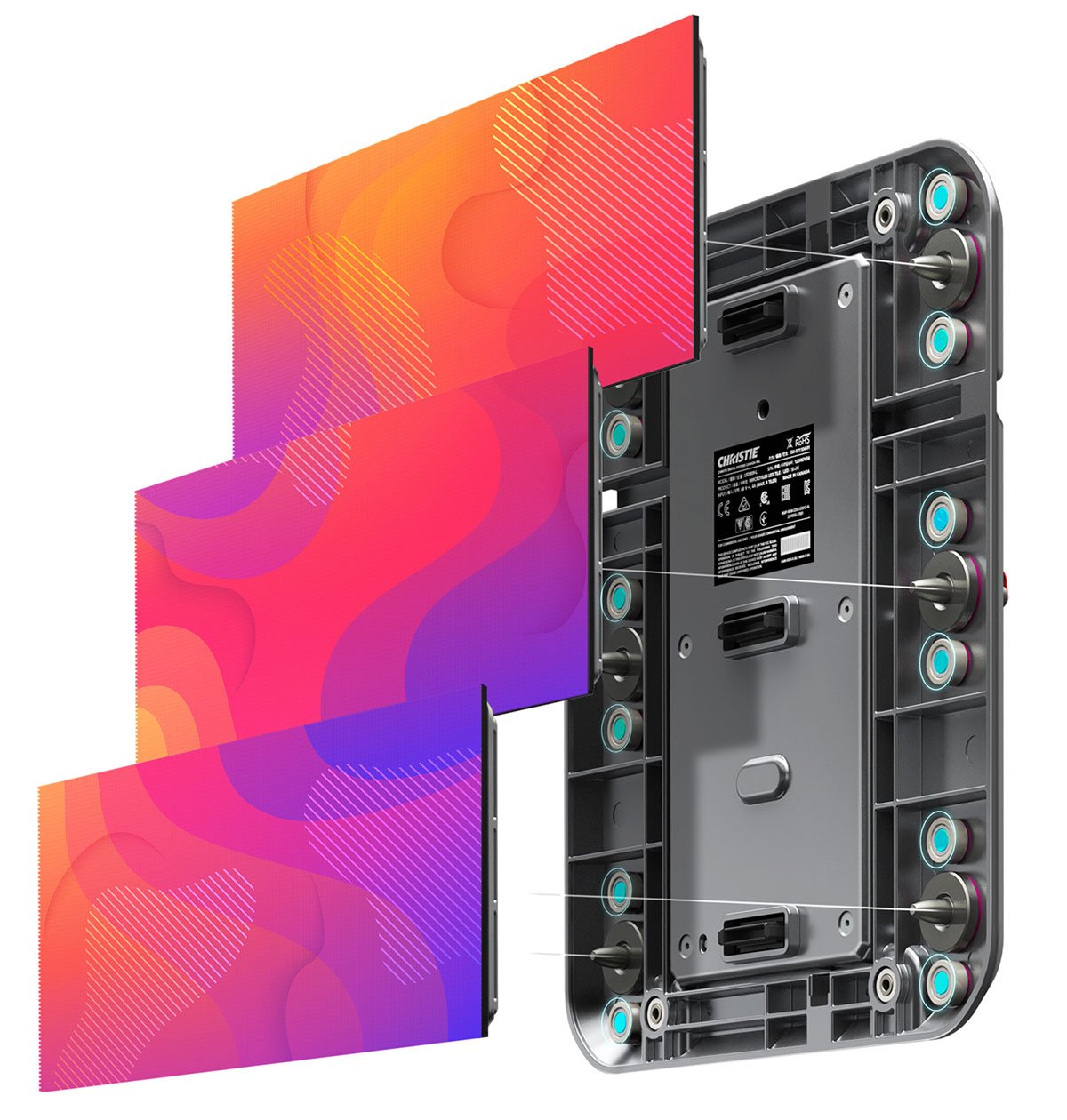

Unleash your creativity and design outside the box with Christie® MicroTiles® LED. The small, proprietary, cabinet-free Click-n-Go™ LED tiles can be arranged in near-limitless ways while the innovative ADA-compliant QuickMount™ system lets you build your display in virtually any shape or size. Take advantage of 90-degree corners both inside and out and concave and convex curves.
Powerful processing including 12-bit input sources, 4K@120Hz, HDR10 compatibility, and up to 14-bit grayscale with up to 4-bit integrated image processing results in unmatched performance that will meet your needs today and into the future.
Spec your video wall with the LED designer
With just a few clicks, you can design a wall for your space, create a simple reference diagram and generate a bill of materials so you can order everything you need.
See MicroTiles LED at ISE 2020Christie MicroTiles LED video walls at ISE 2020
|
See MicroTiles LED 3D at ISE 2020Christie MicroTiles LED - Active 3D
|
Specifications
Pixel pitch
1.5mm
Pixel configuration
3-in-1 (1R1G1B)
Pixel density
444,444 pixels/sq m
Brightness (maximum calibrated)
1,000 nits (cd/sq m)
Aspect ratio
8:9
Contrast ratio (full field)
Greater than 5000:1
*See remote power specifications for full details.
**Certain of the listed certifications may be pending and not yet issued. For the current status of the listed certifications, please contact an authorized Christie representative.
Performance specifications are typical. Due to constant research, specifications are subject to change without notice.
Downloads
Digital Signage line card
Jan 19, 2024 | PDF: 264 KB
Christie MicroTiles LED Series 60 Datasheet
Apr 10, 2023 | PDF: 288 KB
This datasheet outlines the specifications of the Christie MicroTiles LED Series 60 tiles.
Christie MicroTiles LED brochure
Sep 16, 2022 | PDF: 2.3 MB
Cabinet-free. Ultra-lightweight. Any shape you want. Unleash your creativity and design outside the box with Christie MicroTiles LED.
Christie Remote Power Rack Shelf SpecSheet
May 02, 2022 | PDF: 112 KB
Designed to work with remote power units for Christie Velvet Apex Series displays, the Christie remote power rack accommodates up to 4 units (N+1 redundancy recommended). It also adds the capabilities of hot swapping and SNMP monitoring to the solution.
