Christie D12HD-H | Christie - Audio Visual Solutions
Overview Specs Accessories Downloads Images

View Christie's current line of projectors.

From boardrooms to auditoriums, the Christie® H Series is our most versatile 1DLP projector. Combining high​ 1DLP brightness with excellent color reproduction, the Christie H Series is small, light and quiet – perfect for discrete installations.

Ideal for medium-to-large venues

The Christie H Series can be set-up in any orientation, includes built-in warping and blending, and offers a full suite of lenses to meet even the most challenging projection needs. With superior image quality, flexible connectivity and less than half the noise of competitive products, the Christie H Series makes itself seen, not heard.

It packs a punch

The Christie H Series packs a lot of high-performance features into a surprisingly small and sleek package. Plus, the Christie H Series looks great: with an input panel cover plate and a second HDMI input on the bottom of the projector to hide cords. Don’t sacrifice one for the other: experience color integrity and bright, powerful images with Christie H Series projectors.

Read on to see what else we’ve packed into this beautiful and versatile powerhouse projector:

  • HD: 11,250 ISO 21118, 11,000 center lumens, 10,500 ANSI lumens,
  • Proven DLP® technology
  • Dual-lamp, 2 x 465W
  • Excellent image quality
  • Built-in warping, blending and color correction
  • 3D capability
  • Energy-saving features
  • Low maintenance costs
  • Easy integration – wide selection of inputs, Crestron and AMX compatible. Plus, second HDMI input on bottom of projector for ceiling installs, cover plate for side input panel for clean look

The Christie H Series is backed by Christie’s industry-leading warranties and support.​

Specifications


  • Brightness
  • - 11,250 lumens (Compliance with ISO 21118 standard)
  • - 11,000 Center lumens
  • - 10,500 ANSI lumens
  • Contrast
  • - 5000:1 (Dynamic Aperture Enabled)
  • - 1200:1 Full On/Off
  • - 250:1 ANSI
  • Color Wheel
  • - 6-segment (RGBCYW)

Display

  • Type
  • - 1-chip 0.95" DMD
  • Native resolution
  • - 1920 x 1080 HD (2,073,600 pixels) 16:9

Lamp

  • Type
  • - 2 x 465W (003-005237-XX)
  • Life
  • - 1500 hours typical​ @ 465W
  • - 2000 hours typical @ 370W

Input

  • Standard
  • - HDMI x 2 (One on side panel, one on bottom of projector, independently selectable)
  • - 3GSDI x 1 (BNC)
  • - DVI-D x 1 (Digital only)
  • - Display Port x 1
  • - HD15 x 1
  • - RGBHV/Component (5 BNC)
  • - Composite Video x 1 (BNC)
  • - S-Video x 1 (mini DIN)
  • - Component Video (RCA)
  • - USB x 1 (Type B mini) - Display over USB
  • - USB x 1 (type A) - Image Viewer or WiFi Dongle (optional)
  • - HDBaseT (RJ45 x 1)
  • - RJ45 x 1 (ChristiePresenter over wired network connection)
  • 3D
  • - HDMI, HDBaseT - frame packed, side by side, top/bottom
  • Signals
  • - HDTV formats VGA through to WUXGA (1920 x 1200)
  • - Horizontal and vertical scaling while maintaining aspect ratio, all inputs
  • Pixel clock
  • - 162 MHz
  • Scan rates
  • - Horizontal: 15 kHz to 100 kHz
  • - Vertical: 24 Hz to 85 Hz

Output

  • Standard
  • - HD15 x 1
  • Control and networking
  • - RS232 In
  • - Control via HDBaseT
  • - Ethernet (10/100) RJ45 with ChristieNET connectivity
  • - Built-in backlit keypad
  • - Wired remote control (3.5mm stereo) - Loop out available for daisy chaining

Accessories

  • Standard
  • - IR Remote w/ wired remote jack (wire not included)
  • - Coarse Dust Filters - 3 Pack (Not mandatory for standard use)
  • - AC Line cords for projector Head
  • - User Manual
  • Optional

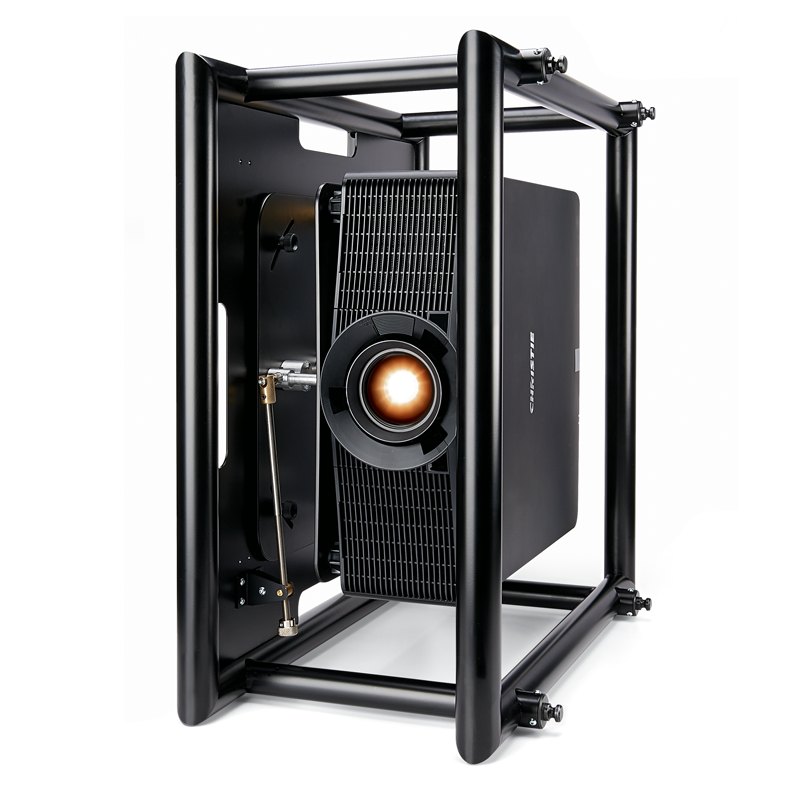

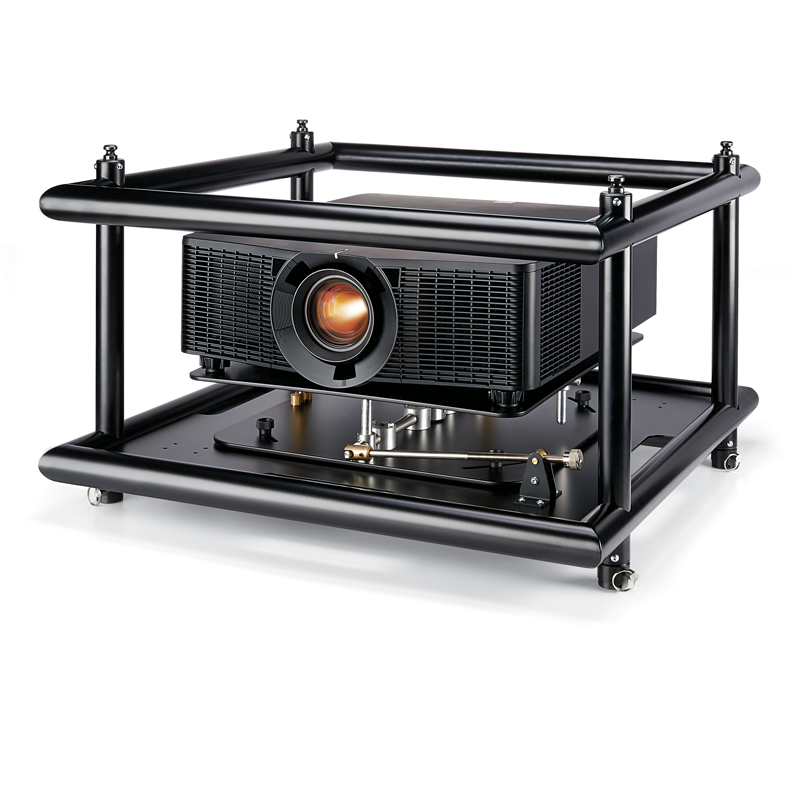

  • - Rigging/Stacking Frame
  • - Lens Adapter for E Series Lenses
  • - 1DWUSB-BGN (Wireless Dongle for video and control)
  • - Fog Filters - 3 Pack
  • - Ceiling Mount
  • - Ceiling Mount Extension Rod
  • - Replacement Remote Control

Downloads

Images

Christie D12HD-H 1DLP projectors | 140-010102-XX (Black)

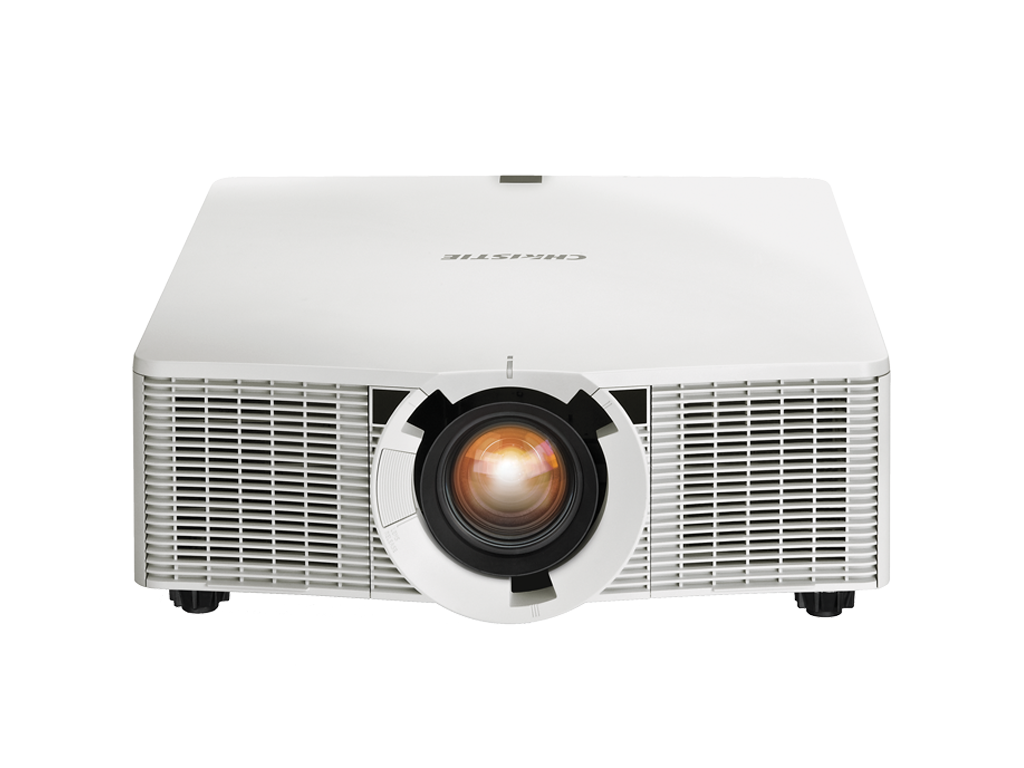

Christie D12HD-H 1DLP projectors | 140-010102-XX (Black)

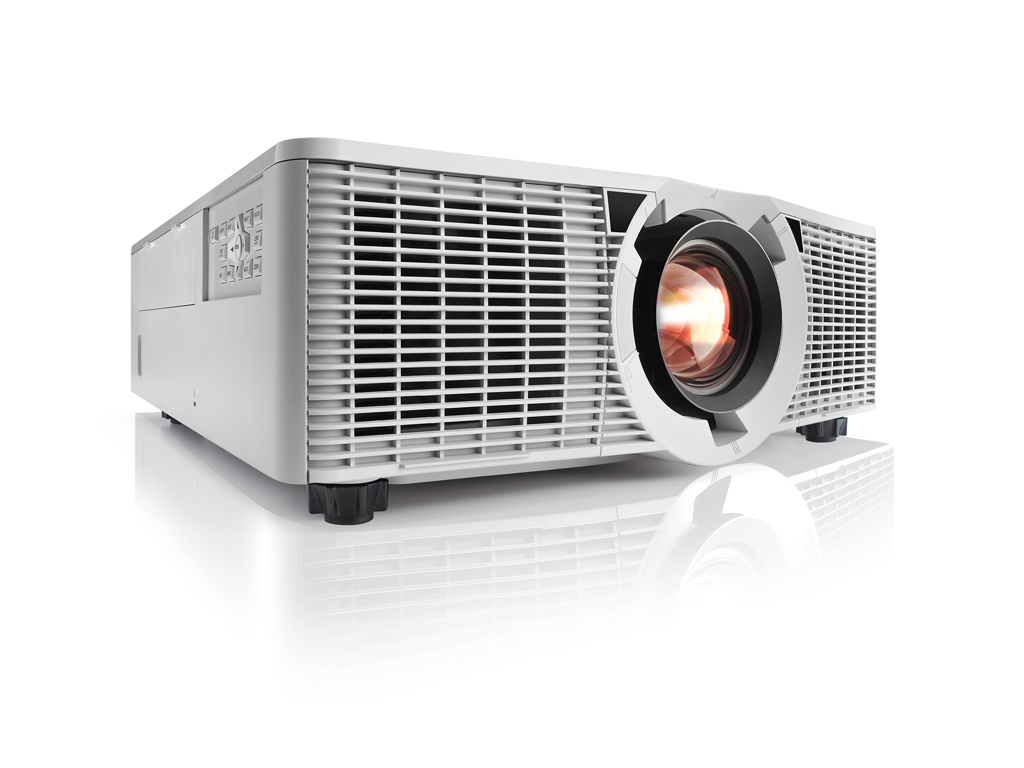

Christie D12HD-H 1DLP projectors | 140-010102-XX (Black)

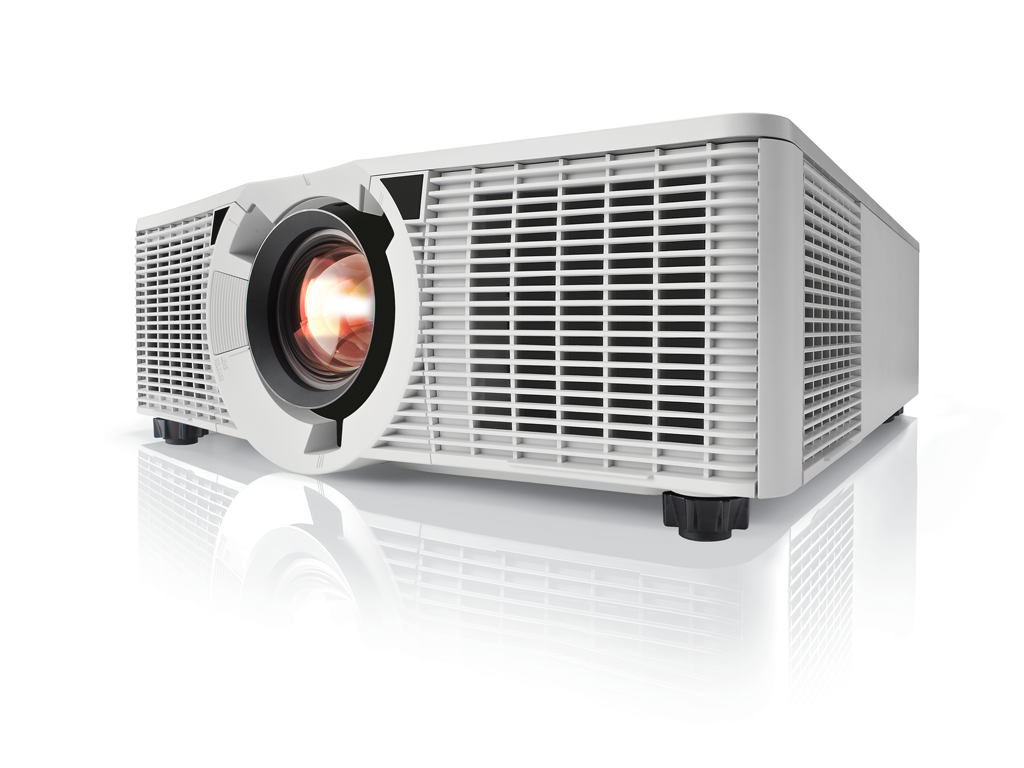

Christie D12HD-H 1DLP projectors | 140-010102-XX (Black)

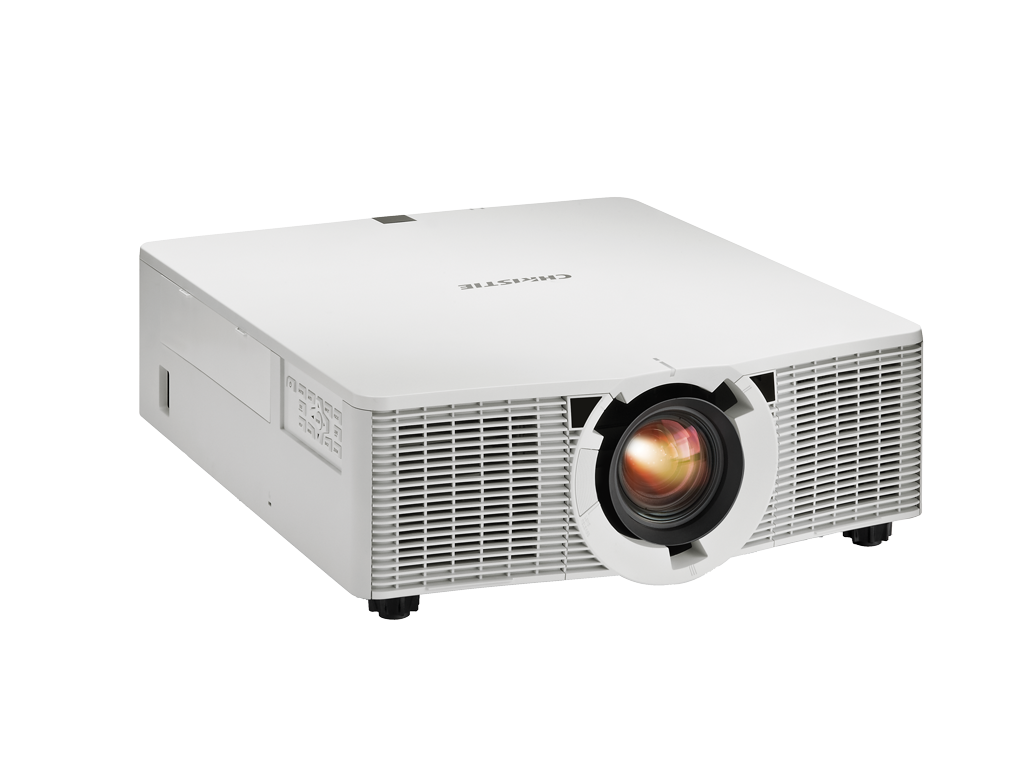

Christie D12HD-H 1DLP projectors | 140-010102-XX (Black)
