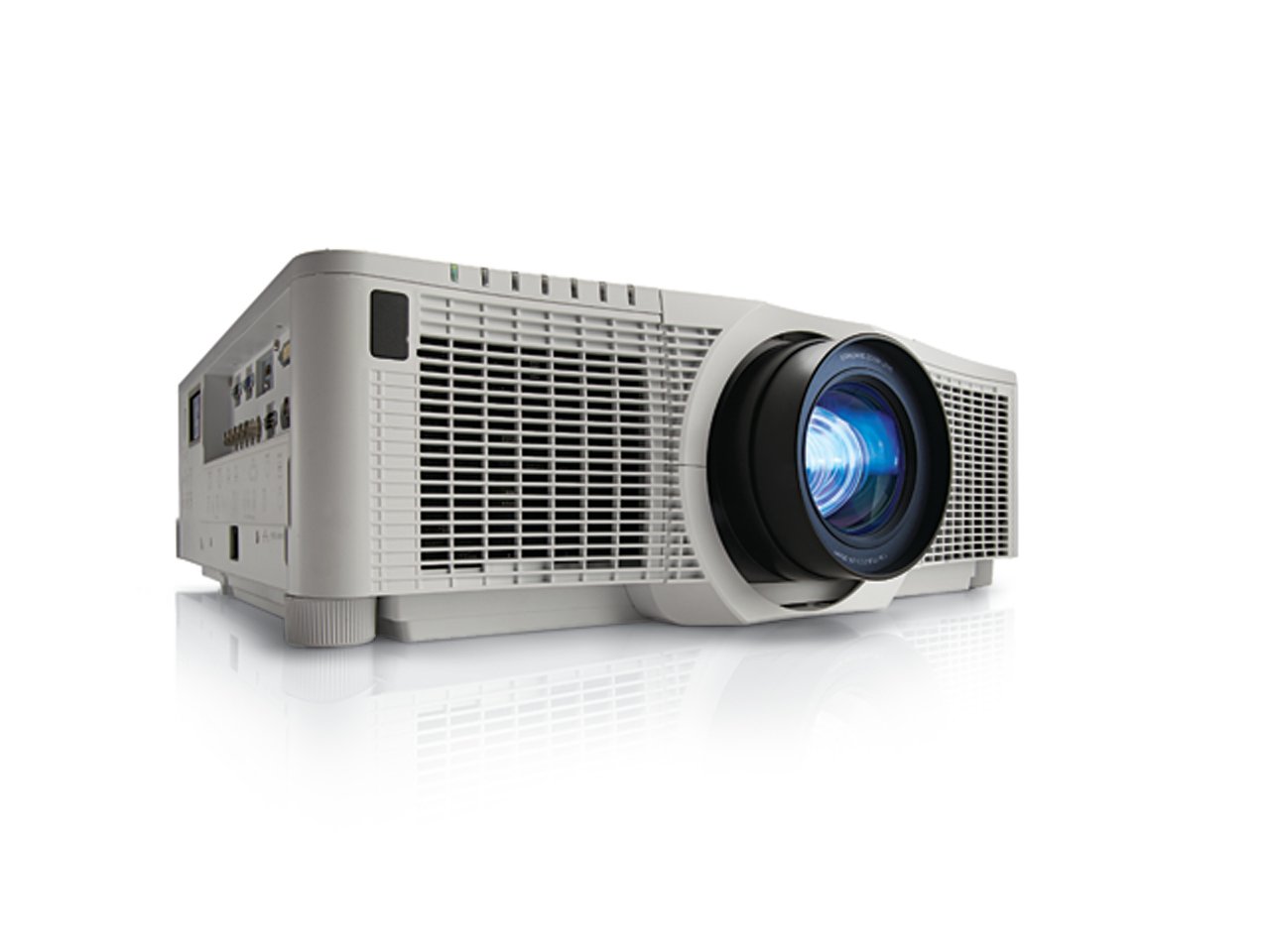

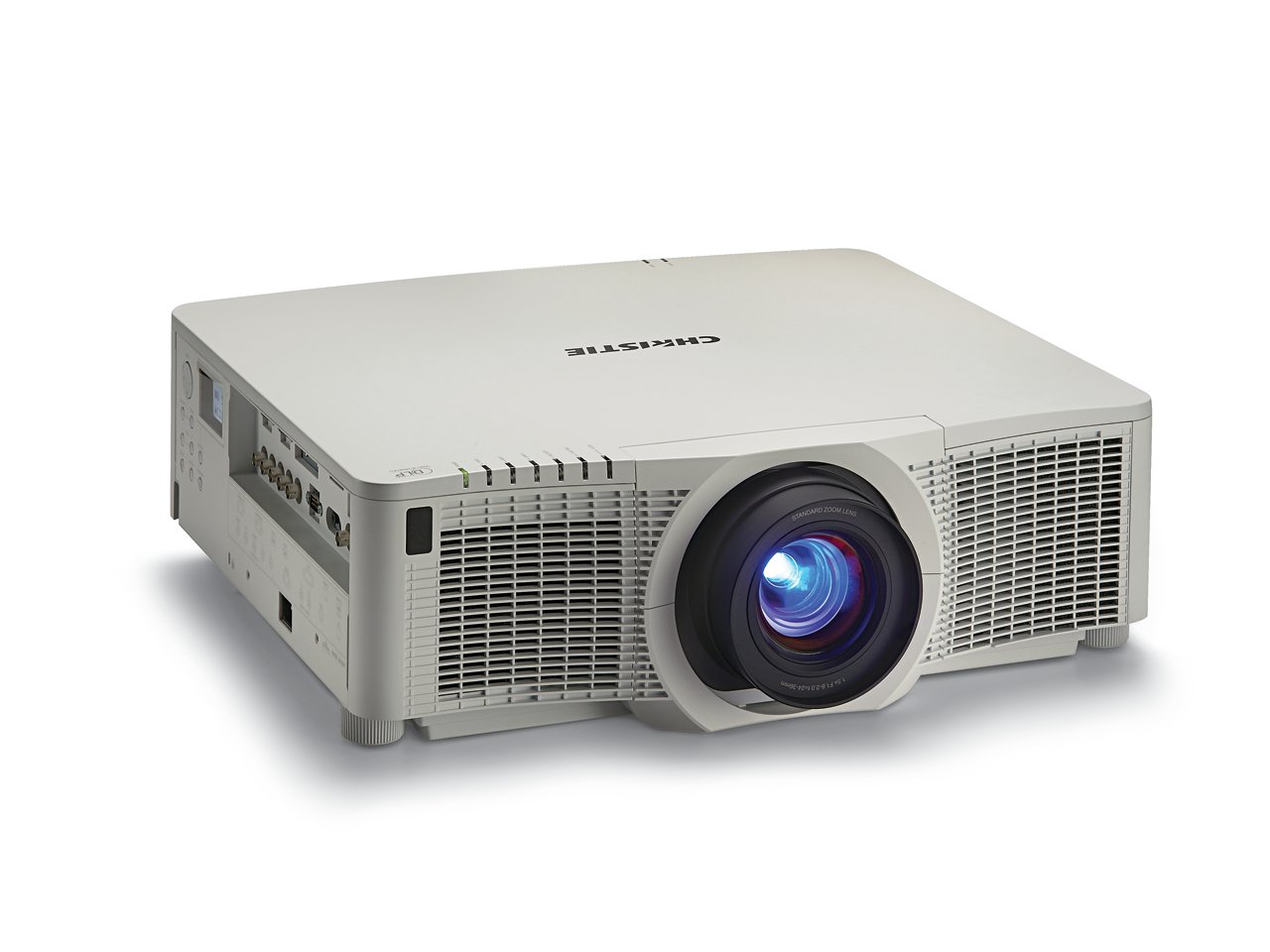

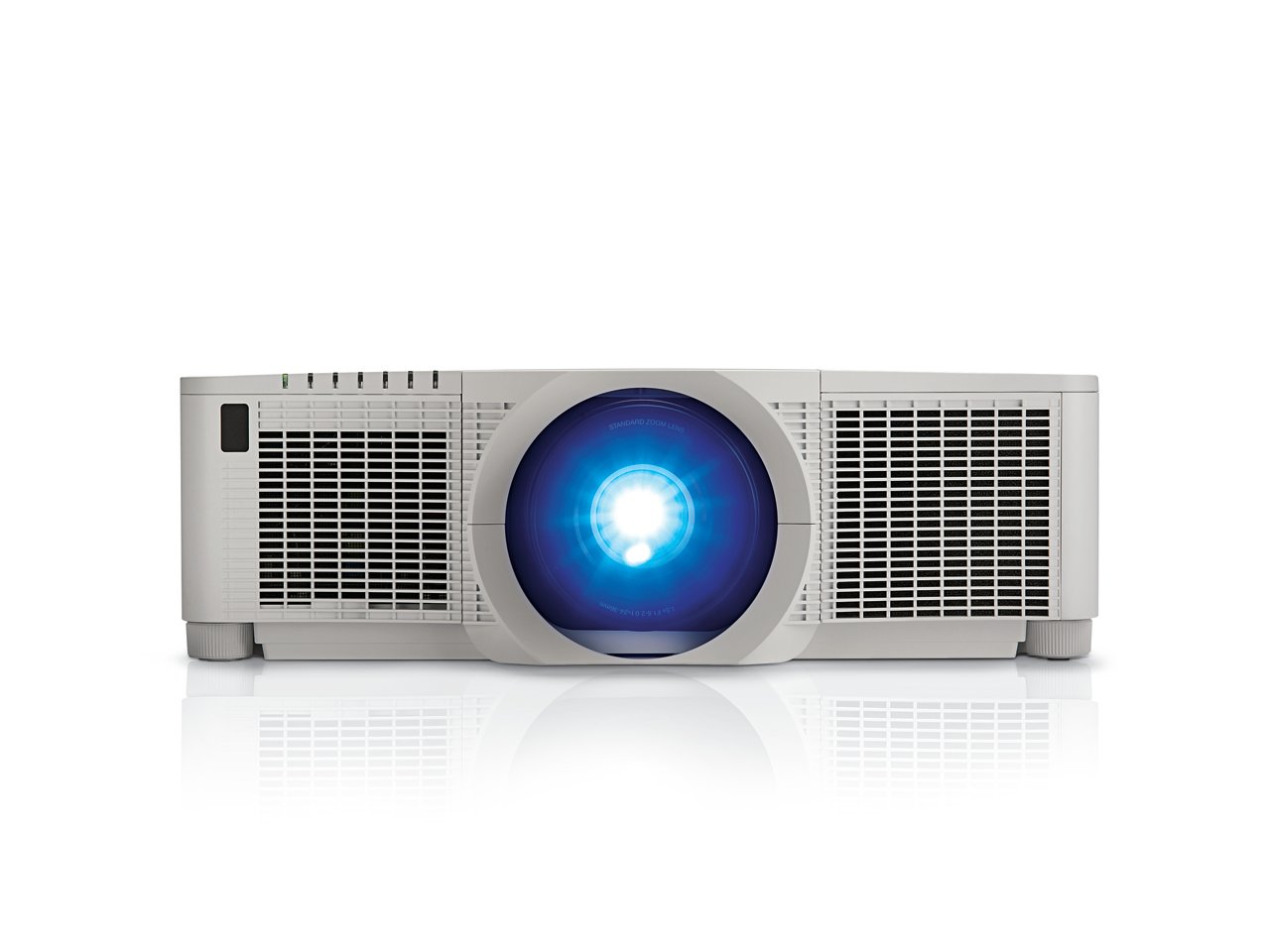

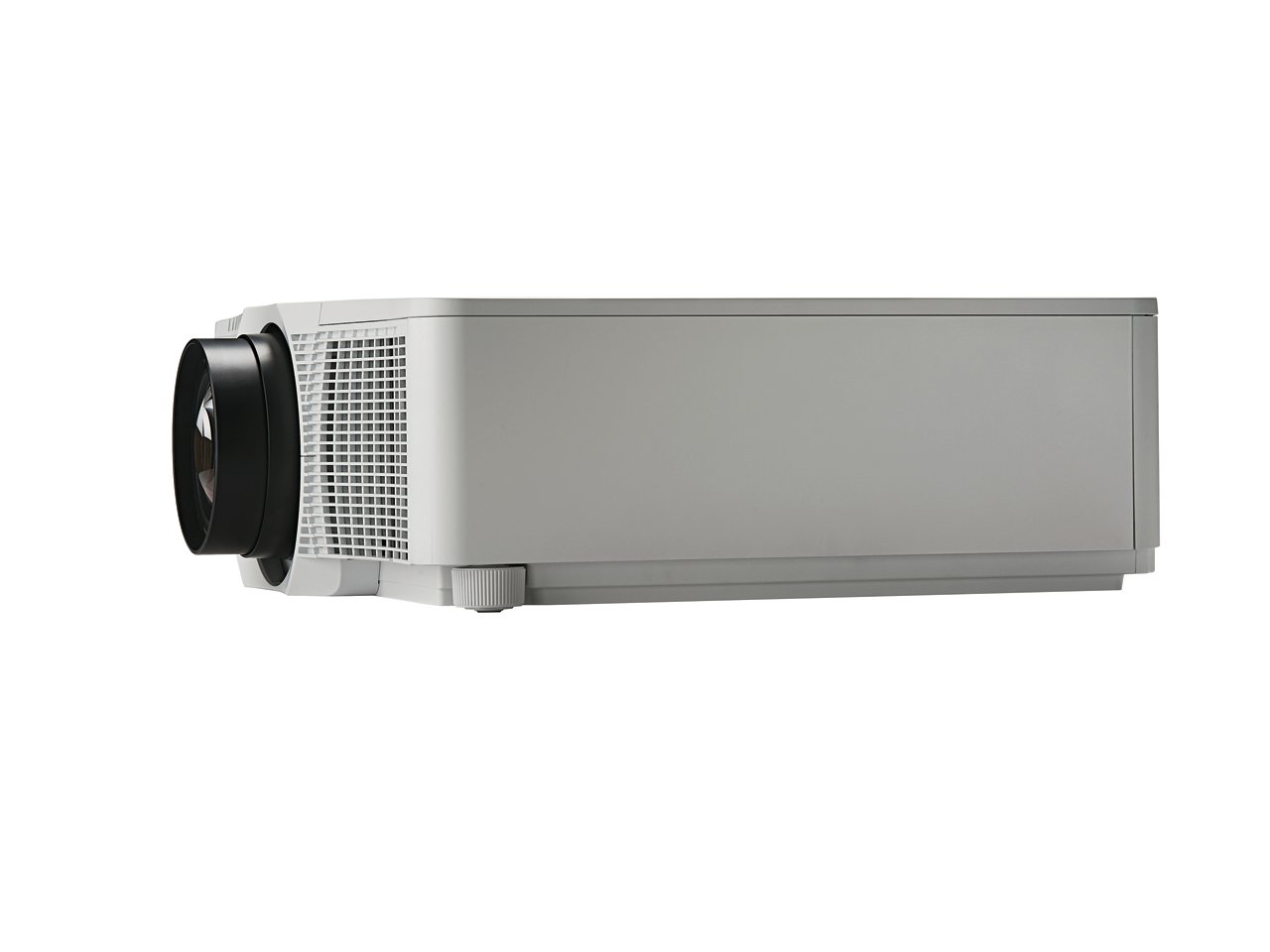

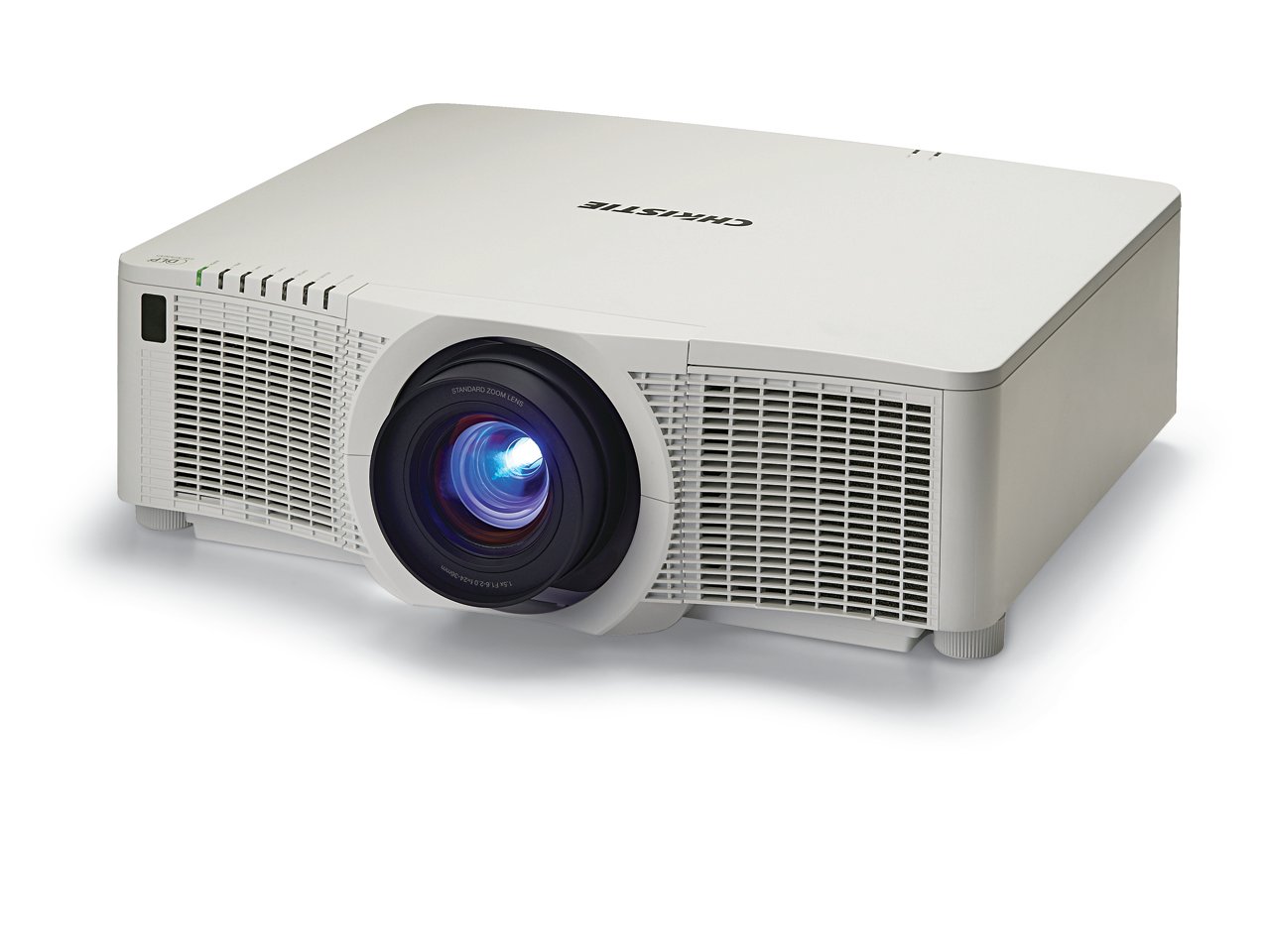

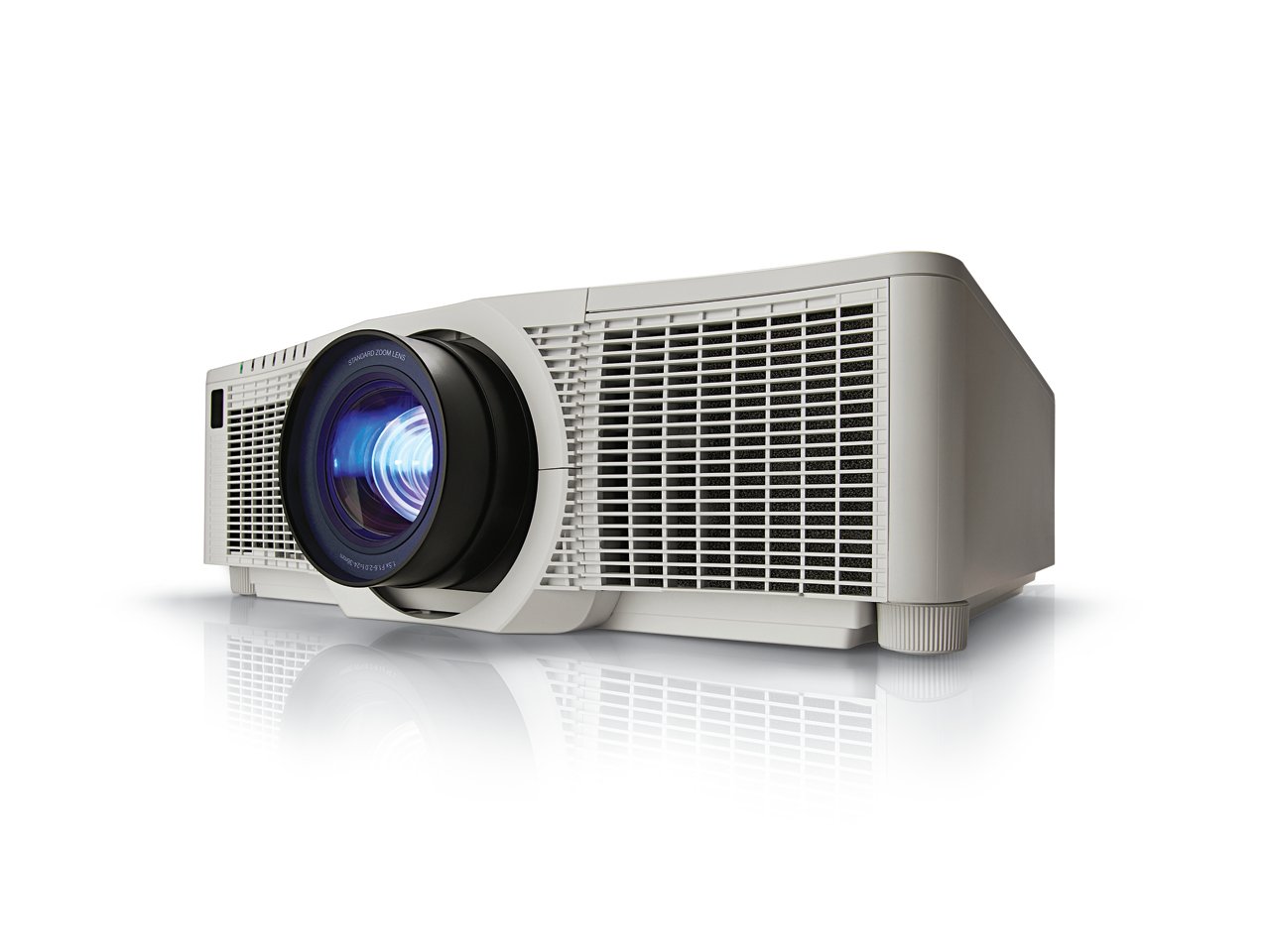

The Christie® Q Series takes projectors to a new level of high-brightness to bring you the industry’s highest-quality 1DLP® projector. Deliver presentations and video content clearly, with the image quality you expect from Christie. We offer a range of projection options with sleek overall style and high-performance features. Experience versatile, affordable and superior image processing with the Christie Q Series. When coupled with our Ultra Short Throw option, the 0.38:1 throw ratio gives you brilliant, high-resolution images to meet the tightest space requirements without requiring additional wall structure or support.
- Proven DLP® technology
- Excellent image quality
- Reliability and versatility
- Energy-saving features
- Low maintenance costs
- High-performance features

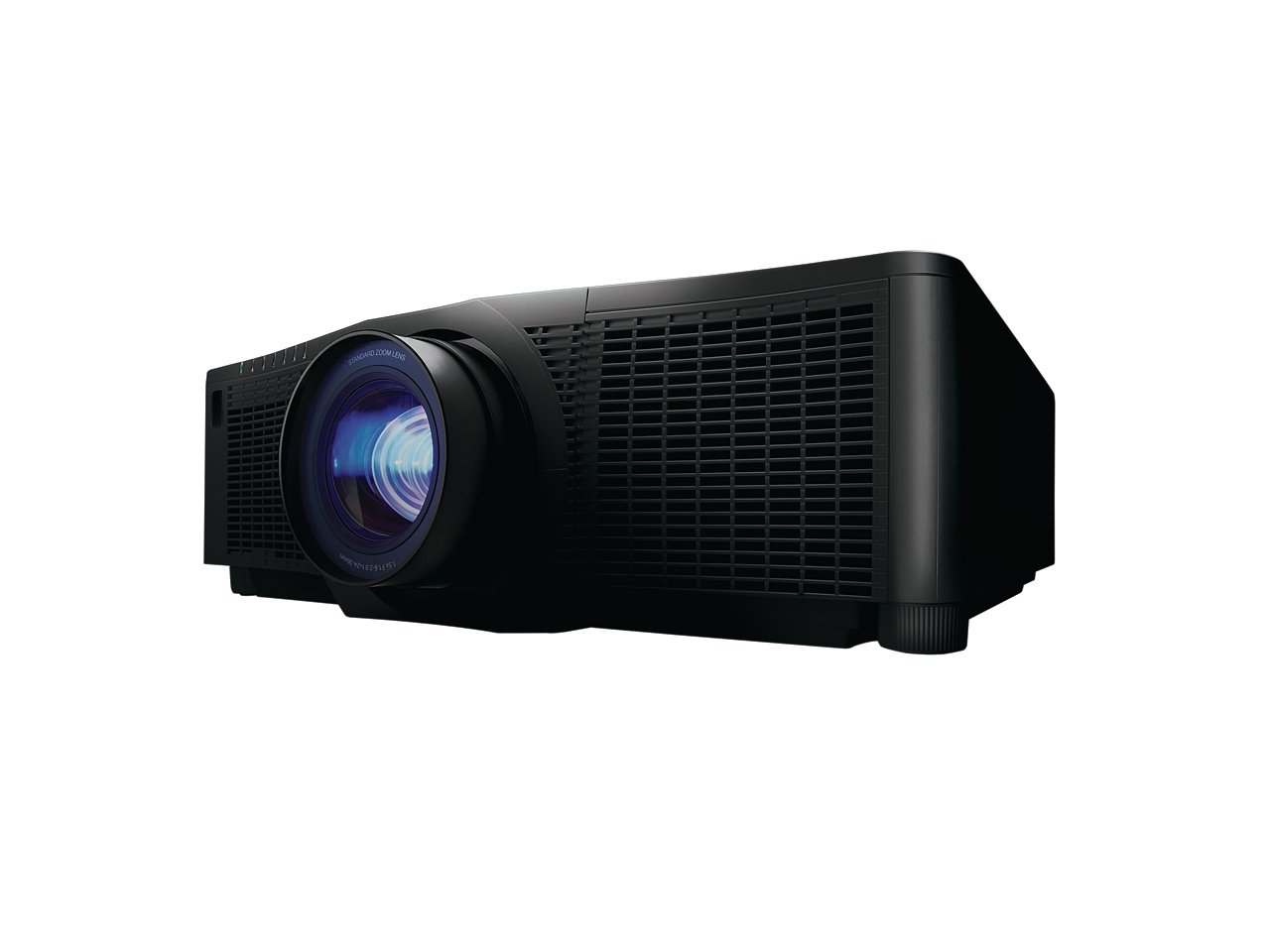

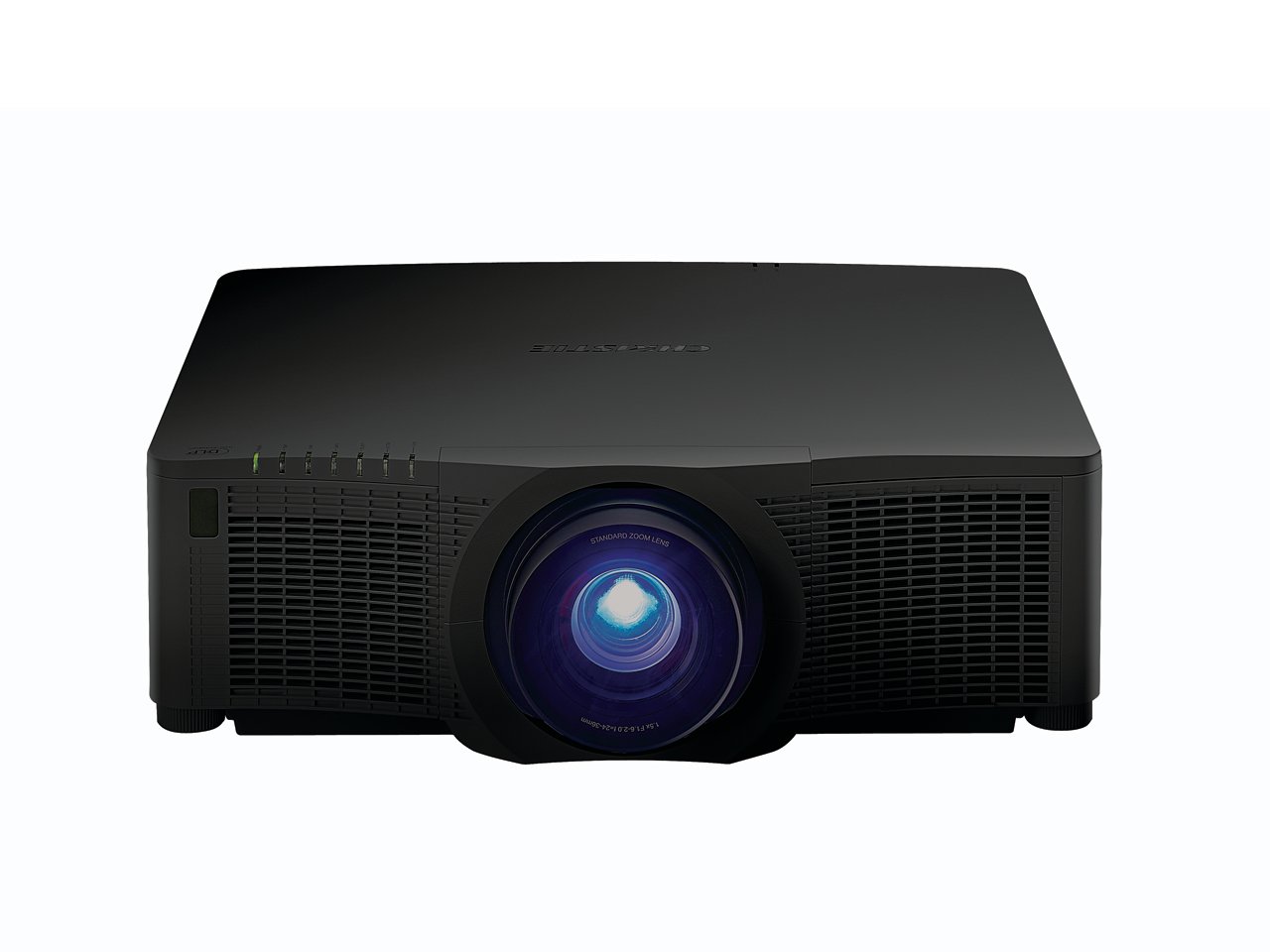

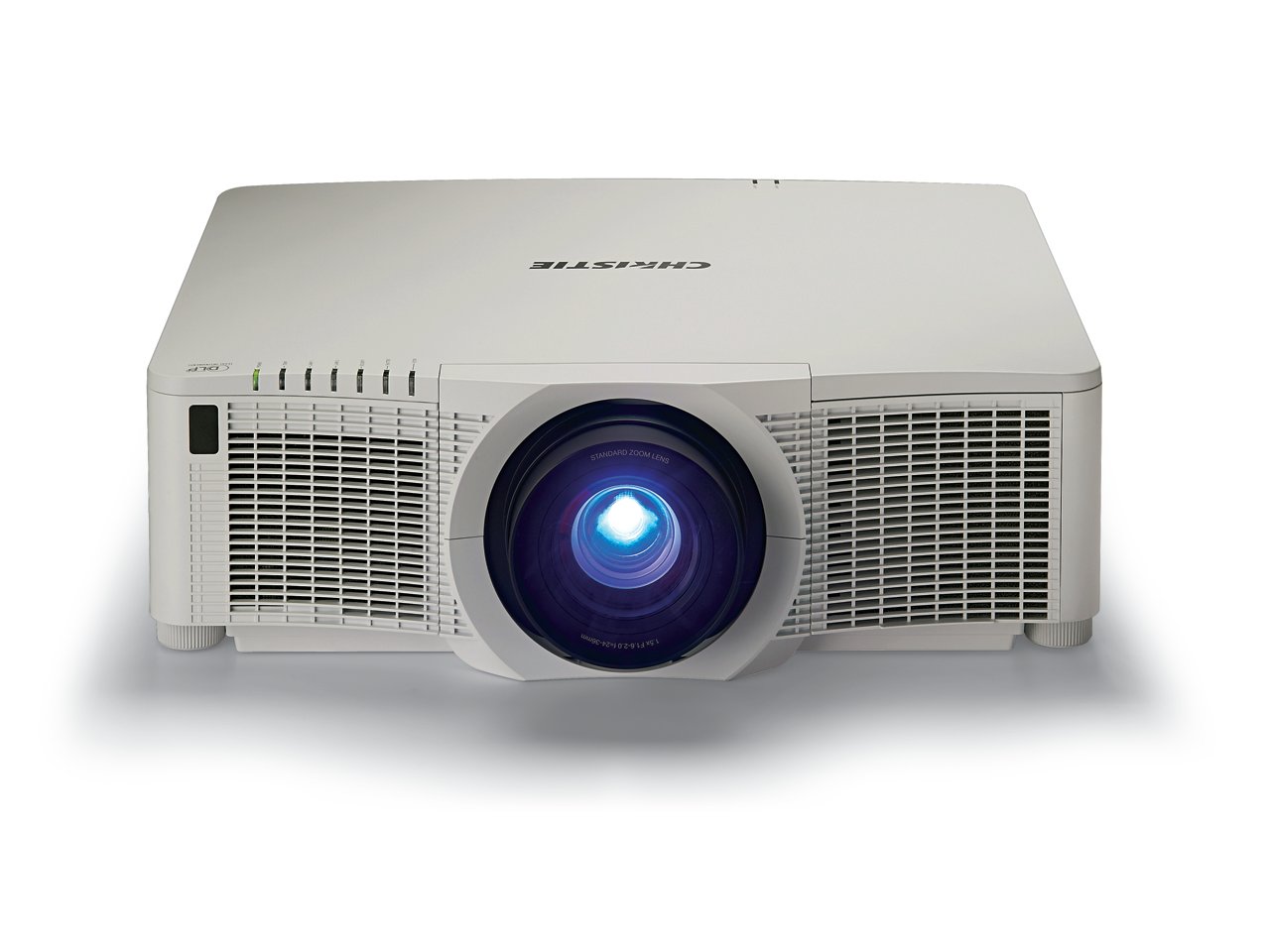

- Choice between black or white models
- Backed by Christie’s industry-leading warranties and support
- DICOM simulation mode for training purposes
Specifications
- Brightness
- - 8,500 center lumens
- - 8,200 ISO lumens
- - 8,200 ANSI lumens
- Contrast
- - 2500:1 full on, full off
- Uniformity
- - ≤90%
Display
- Type
- - 1DLP 0.65" DMD
- Native resolution
- - 1920 x 1080 HD
Lamp
- Type
- - Dual 370W P-VIP
- Life
- - Up to 2000 hours in standard mode
- - Up to 4000 hours in eco mode
- - Up to 500 hours in portrait mode

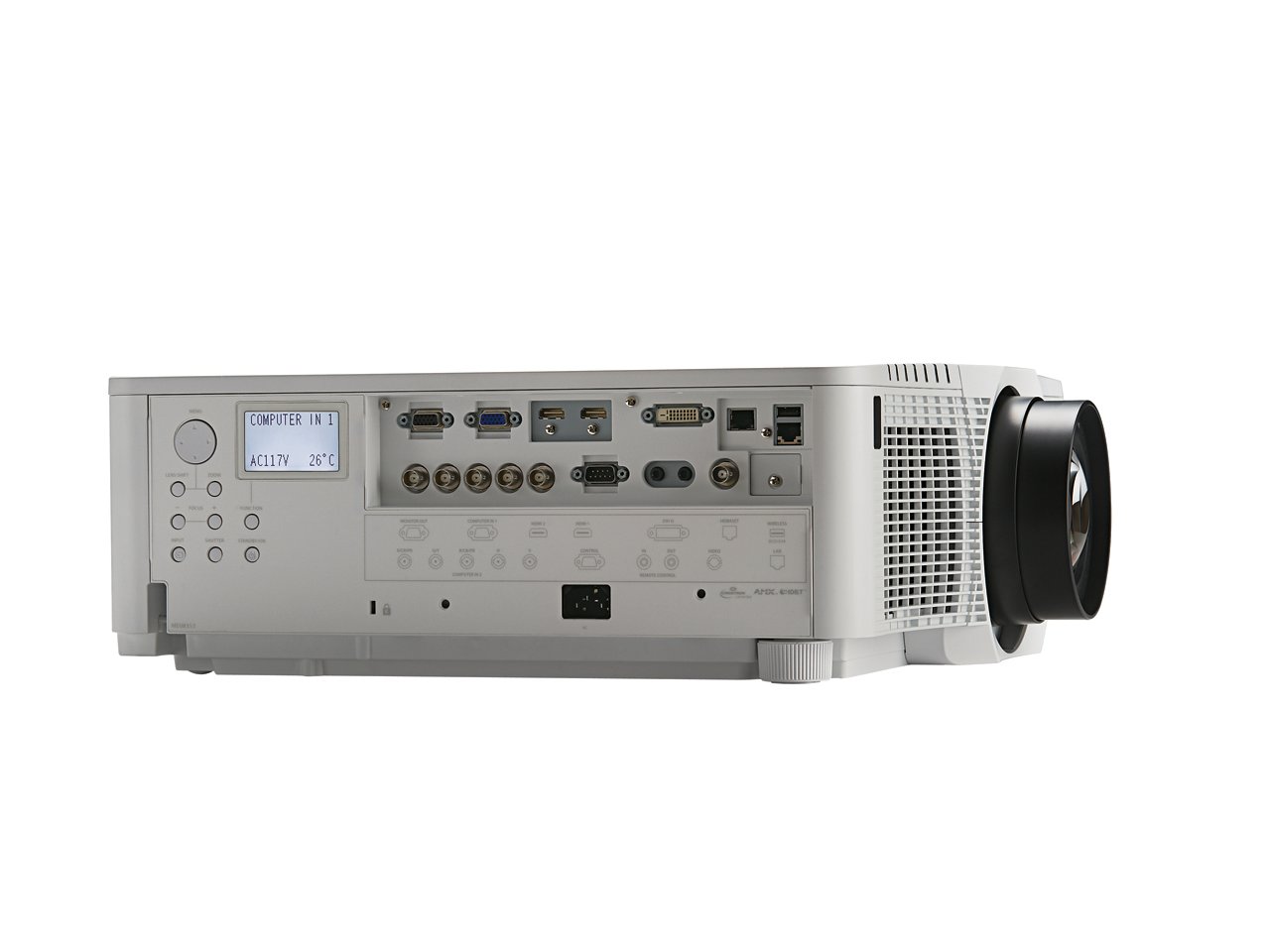

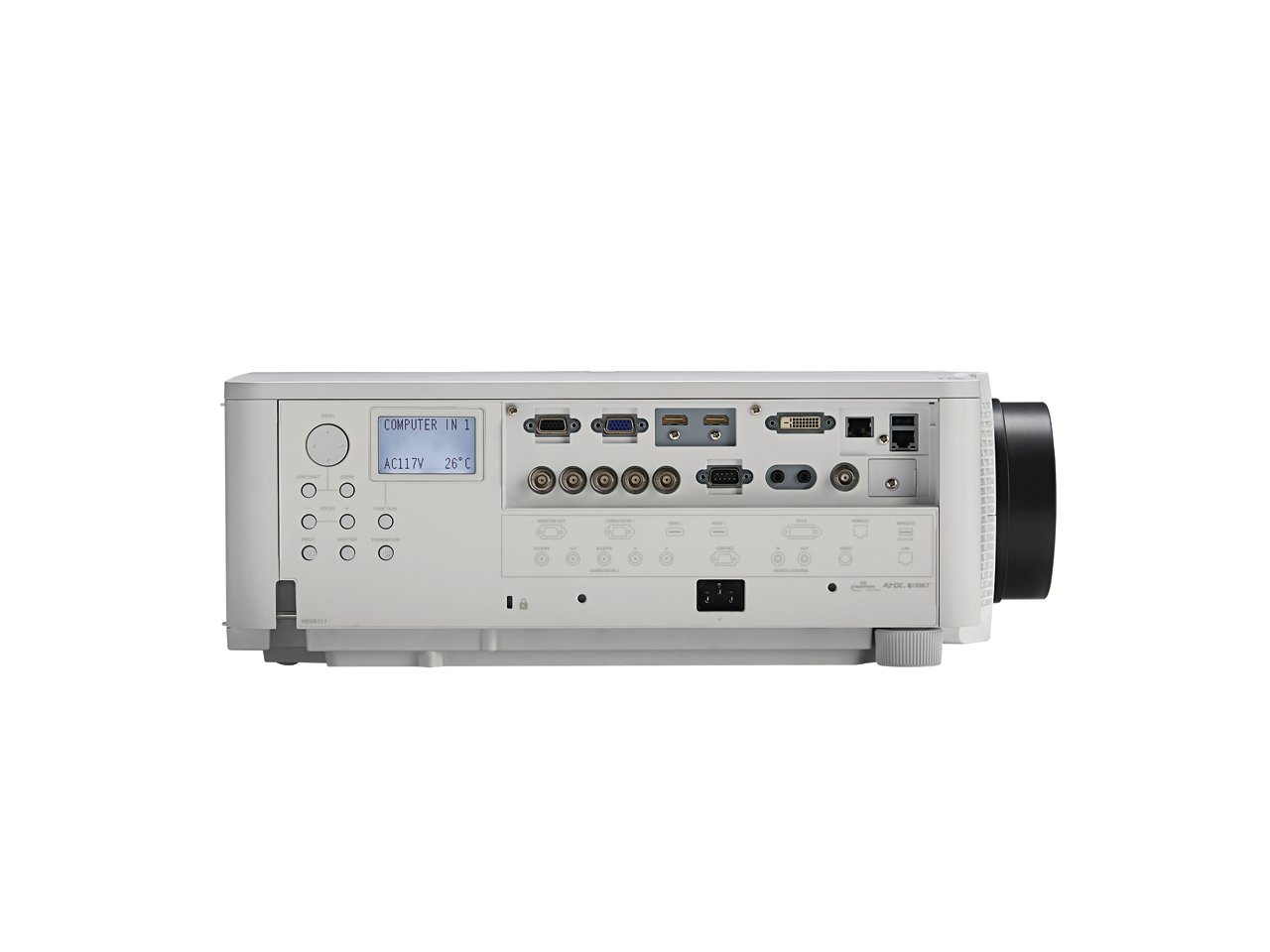

Input
- Standard
- - Computer D-sub 15 pin mini jack x1
- - 3G-SDI x1
- - BNC connector x1 (composite)
- - HDMI connector x2
- - DVI-D connector x1
- - RJ-45 x1 (HDBaseT)
- - D-sub 9 pin x1 (RS232c)
- - RJ-45 x1 (LAN)
- - USB type A connector x1 (optional wireless USB or PC-less)
- - Wired remote control (3.5mm)
- Signals
- - 525i(480i)
- - 525p(480p)
- - 625i(576i)
- - 1125i(1080i @ 50/60)
- - 750p(720p @ 50/60)
- - 1125p(1080p @ 50/60)
- Pixel clock
- - 27MHz~150MHz
Output
- Standard
- - Computer out D-sub 15 pin mini jack x1
- - Wired remote control (3.5mm)
- Control and networking
- - RJ-45 x1 (LAN)
- - RJ-45 x1 (HDBaseT)
- - D-sub 9 pin x1 (RS232c)
Accessories
- Standard
- - Power cord (US cord, 3m) / (Euro cord, 3m)
- - Power cord (China cord, 3m Only For China Models)
- - RGB cable (2m)
- - Wireless remote control / AA" batteries x2
- - Adapter cover
- - Ferrite core and band x2
- - Cable tie x2
- - User's manual
- - User’s manual CD x1
- - Safety guide
- - Quick setup guide
- - Network quick setup guide
- - Operating guide
- - Network guide
- - Instant stack guide
- - Technical guide
- - Software license agreement
- Optional
- - Replacement lamp - P/N 003-005053-XX
- - Replacement hybrid filter - P/N 003-004775-XX
- - Optional wireless dongle (USB) - P/N 121-116109-XX
- - Replacement remote
