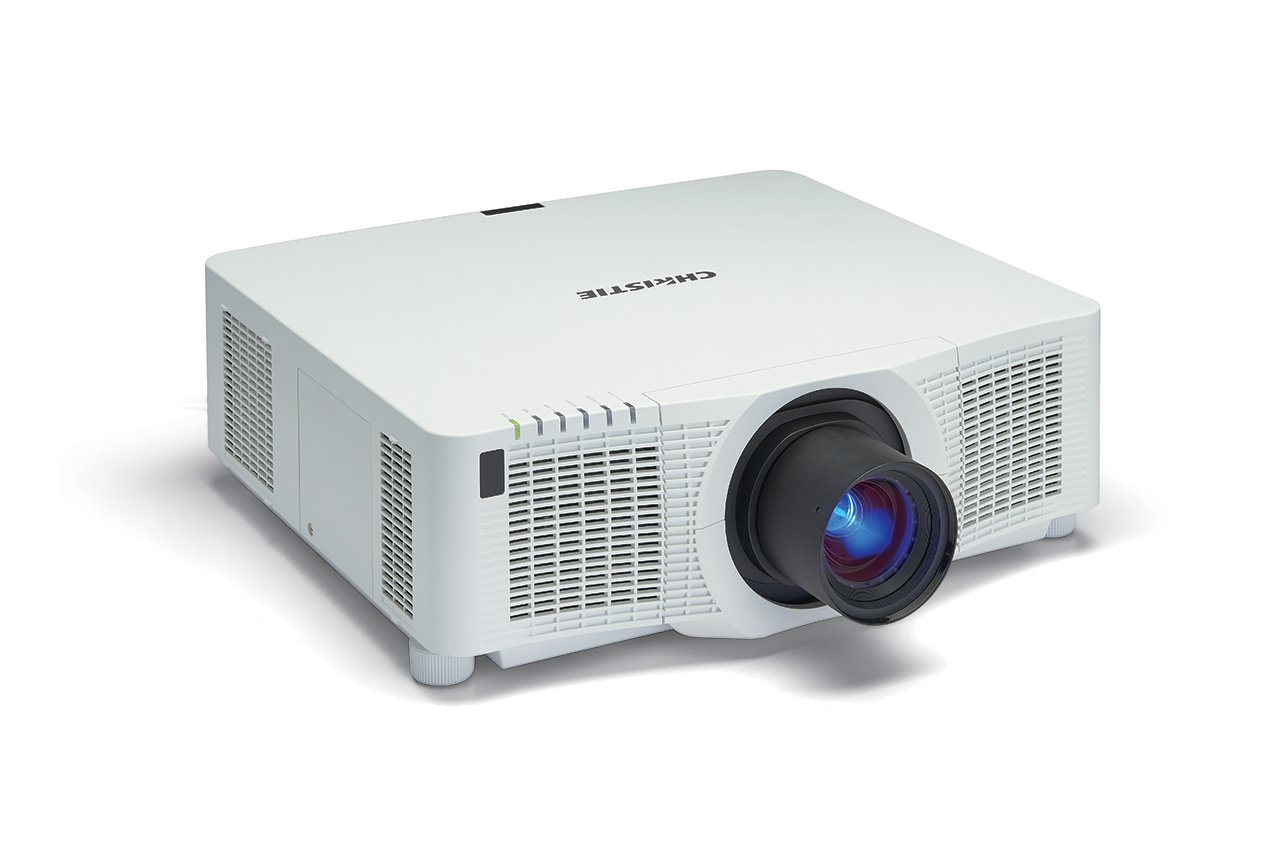

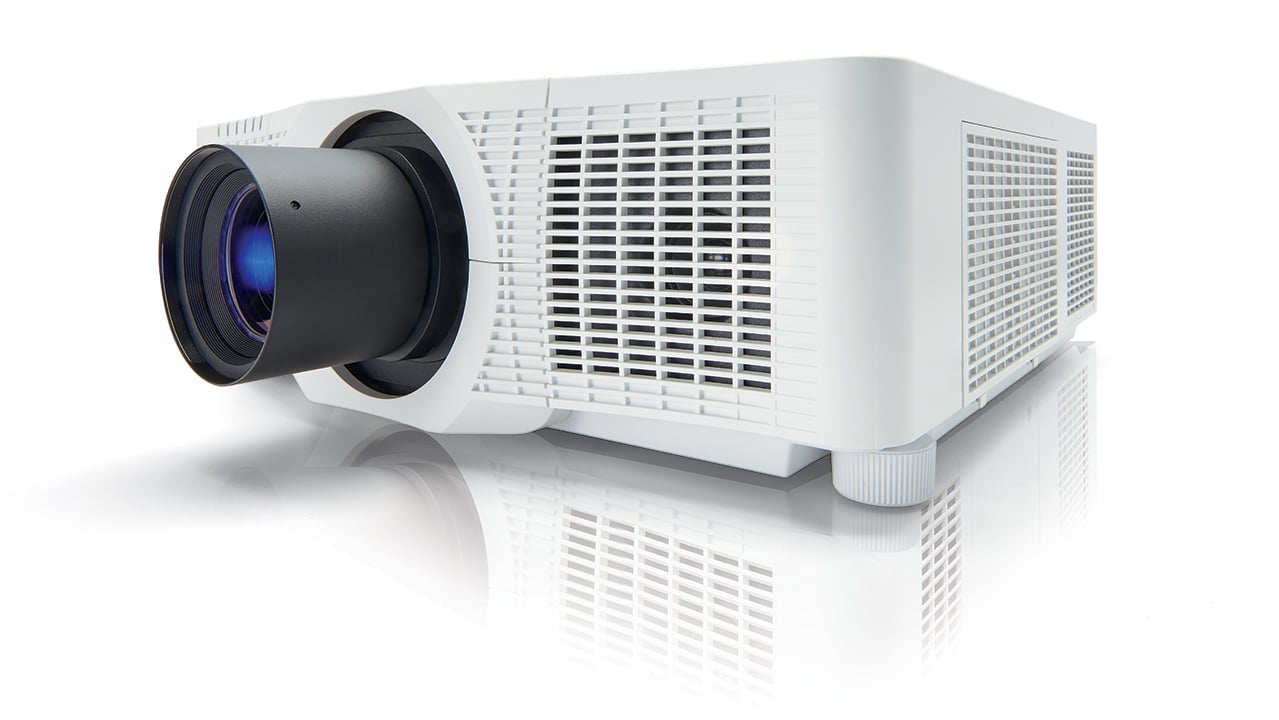

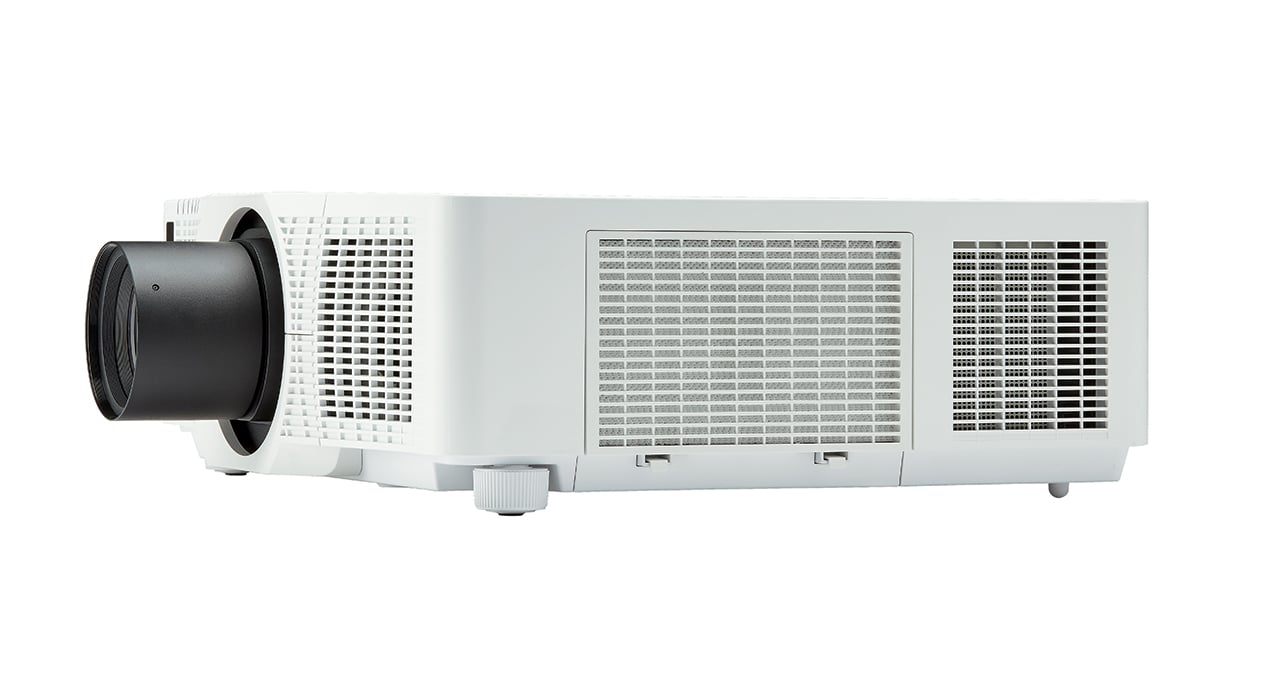

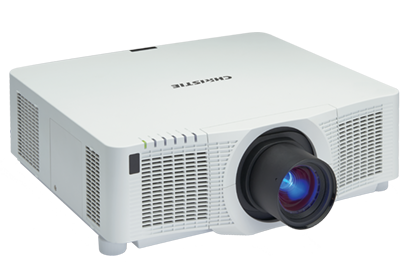

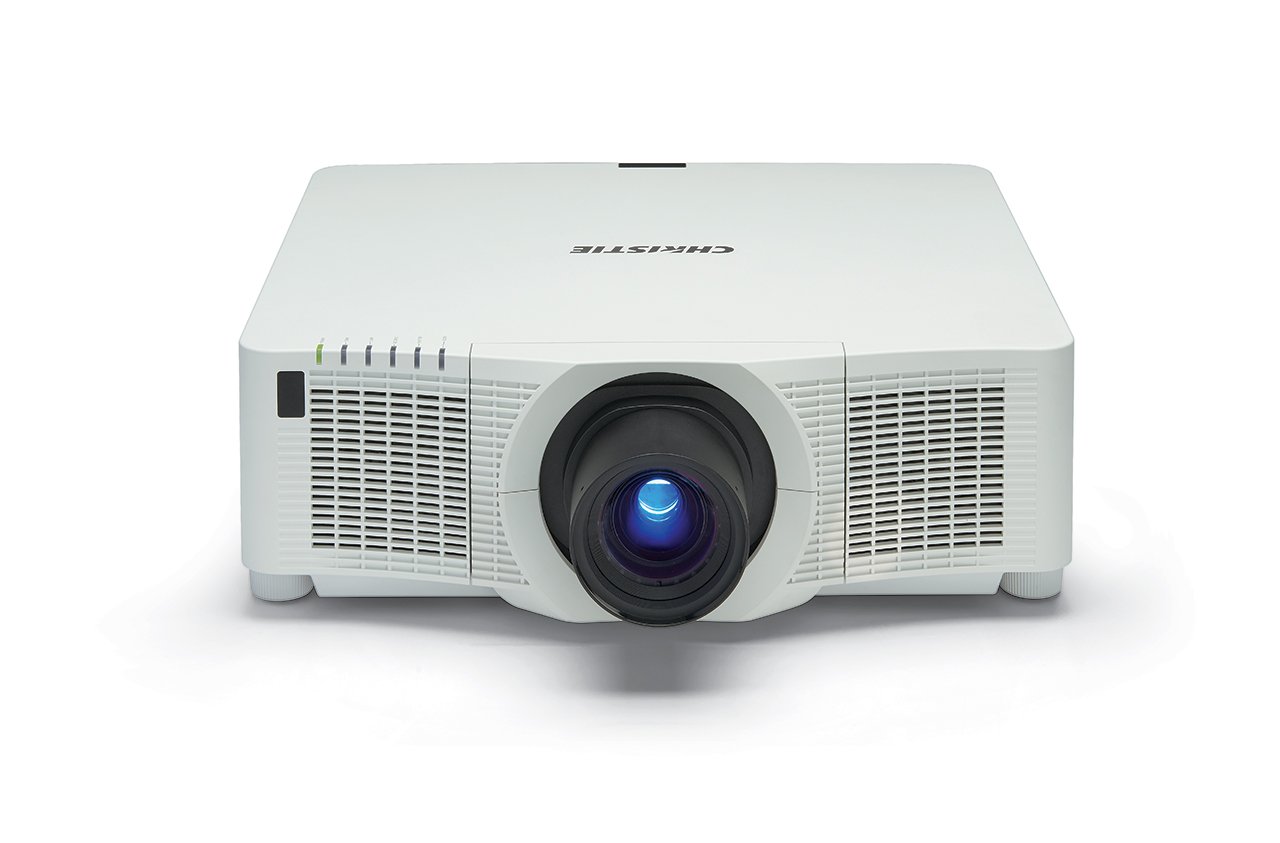

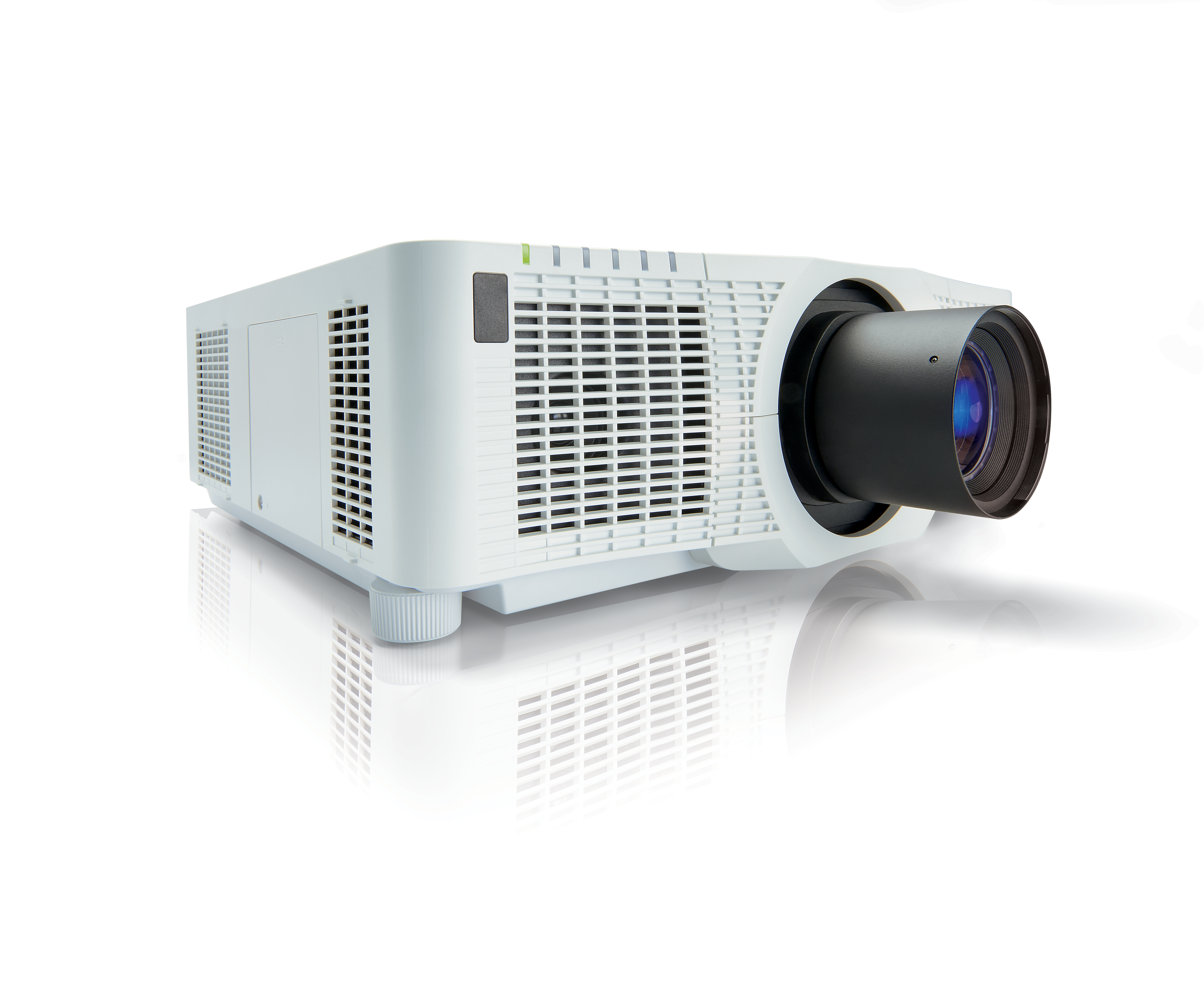

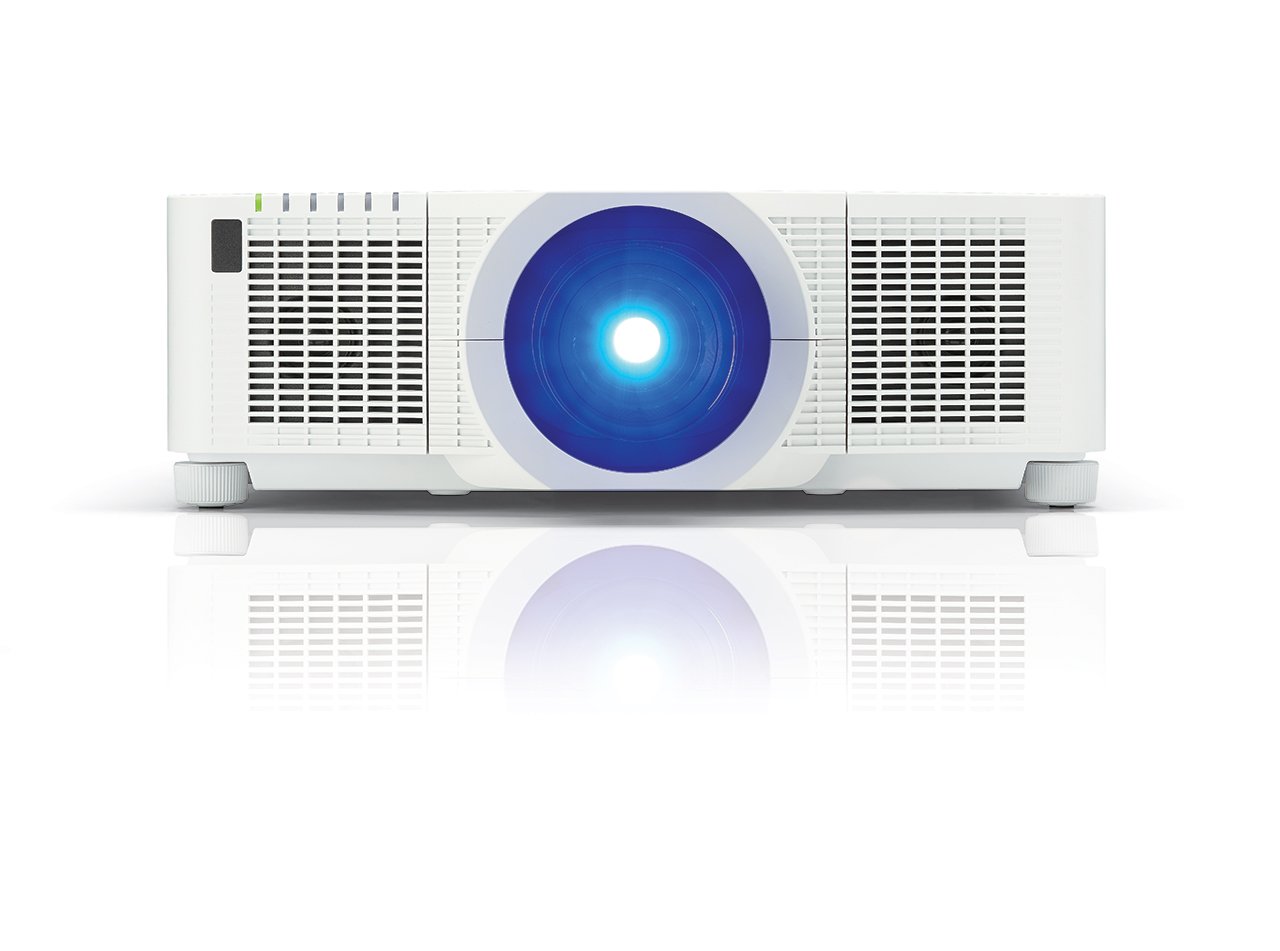

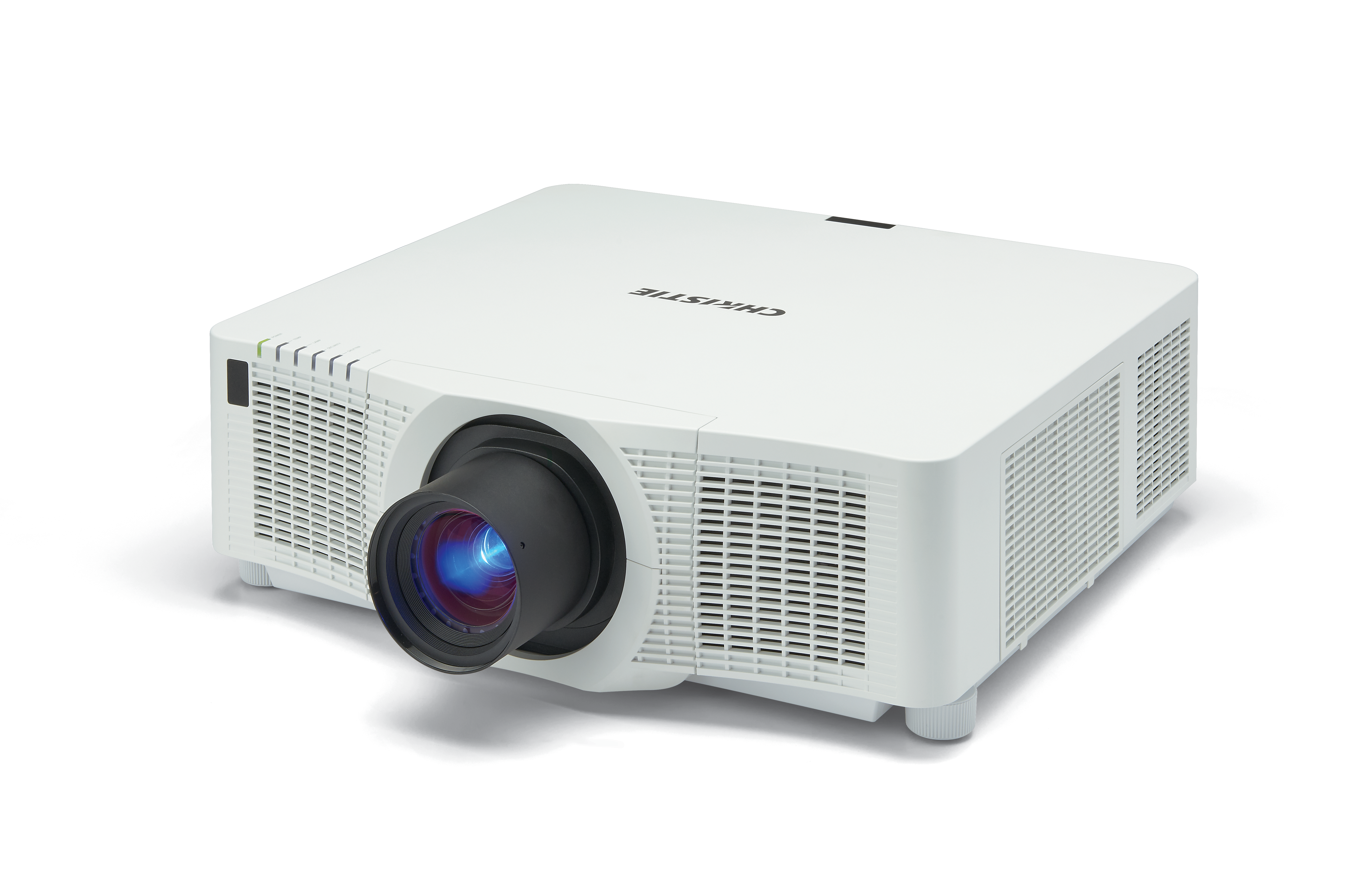

Christie® D Series expands our existing 3LCD projection family by broadening our range of resolution and brightness options, as well as offering connectivity, integration with third-party systems and a variety of lens options. With an attractively designed exterior and high-performance features, Christie D Series single-lamp projectors give you choice to meet your venue’s needs. With a combination of brightness, image quality, lens and resolution choice, and a great little form factor, few competitors can touch the Christie D Series in overall value.
Whether you’re outfitting a meeting room, event space, classroom or auditorium, the Christie LWU620i-D delivers:
- Affordability
- WUXGA resolution
- 7,000 ISO lumens
- Wide aspect ratio
- Simple integration with third-party control systems
- Exceptional image quality
- 16W (2 x 8W speakers) of onboard audio
- Reliability and versatility
- Ease of use and maintenance
- Portability with a small and light form factor
- Industry-leading warranties and service
- Existing lens choices that include an Ultra Short Throw
- DICOM simulation mode for training purposes
Specifications
- - Brightness: 7,000 ISO lumens, 6200 ANSI, 6200 Center
- - Dynamic contrast: 65,000:1
- - Colors: 1.074 billion
Display technology
- - 3 x inorganic LCD 0.76" Polysilicon TFT active matrix
- - 1920 x 1200 (2,304,000 pixels)
- - 16:10
Lamp
- - 370W UHP lamp
- - Standard mode: up to 3,000 hours
- - Eco mode: up to 4,000 hours
- - Portrait mode: up to 1,000 hours

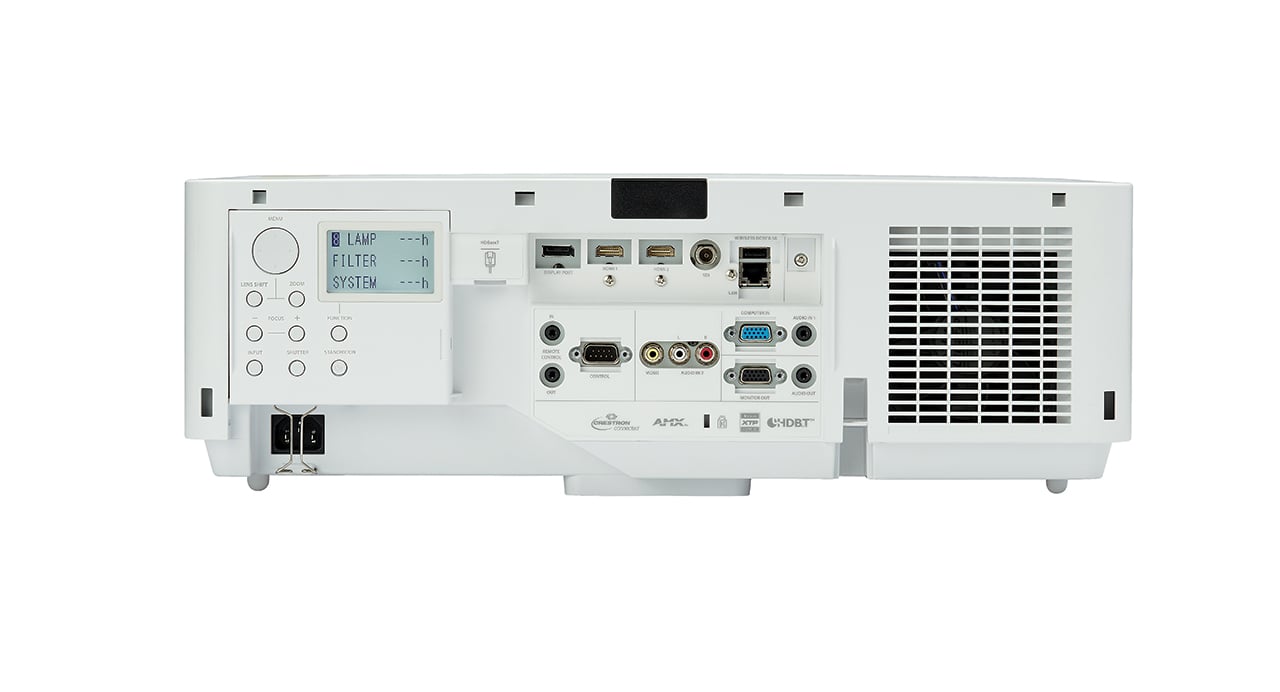

Inputs
- - HDMI x 2
- - DisplayPort x 1
- - HDBaseT x 1
- - D-sub 15 pin (RGB and Component) x 1
- - Composite video x 1 • USB type A connector x 1 (for wireless USB dongle)
Signals
- HDTV formats VGA through to WUXGA (1920 x 1200)
- Horizontal and vertical scaling while maintaining aspect ratio, all inputs
Pixel clock
- 25.2 ~ 162 MHz
Due to constant research, specifications and features are subject to change without notice.
