LCD Panel | 55" Indoor Digital Signage | Christie
Overview Specs Accessories Downloads Images

*This product is no longer available.

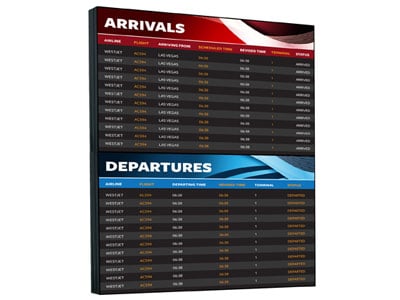

The Christie FHD551-XG included bonded Corning® Gorilla® glass, making it the perfect, professional-grade, tiled LCD panel solution for applications that require touchscreen interactivity or are located in high-traffic areas..

This ultra-narrow bezel, flat panel display offers full HD resolution, high pixel density and an LED-backlit screen. Images look sharp at any distance and you can convey your information with controlled brightness suitable for a variety of indoor environments.


  • High pixel density for best image quality
  • Ultra-narrow bezel for a virtually seamless display
  • Space-saving, slim chassis
  • The flexibility of portrait or landscape orientation
  • Optically bonded Corning® Gorilla® Glass
  • Reliable performance
  • Highly energy-efficient operation
  • Low total cost of ownership

With a pixel pitch of just 0.63mm, the HD-resolution Christie FHD551-XG displays your images sharply and clearly at any angle or distance.

This energy-efficient LCD flat panel is significantly thinner than conventional cubes, saving you space and money. The panels will automatically map in an array, ensuring your content is accurately displayed and making setup quick and easy. You can also configure the tiled panels to start up in sequence to avoid a power surge. The Christie FHD551-XG uses less than one watt of power in standby mode and the LED-backlit screen consumes less power than traditional cold cathode fluorescent lamp (CCFL) backlighting.

Christie is the first to offer ultra-narrow bezel LCD panels with optically bonded Corning® Gorilla® Glass, delivering an enhanced visual experience — making images appear more vivid and crisp — and a surface that’s easy to clean using any standard glass cleaner. Scratch- and damage-resistant, Corning® Gorilla® Glass provides superior protection in high-traffic public spaces where your display might be subject to more wear and tear. And it’s lighter than other bonded solutions or displays that have glass overlays so you’ll save on transportation costs

Want to incorporate multi-touch interactivity into your display? Choose the Christie FHD551-XG LCD panel with bonded Corning® Gorilla® Glass in combination with the groundbreaking Christie Interactivity Kit.

It’s one-stop shopping with Christie

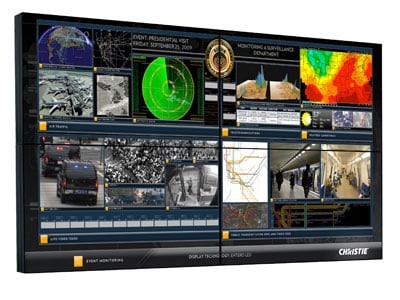

Count on Christie to bring your tiled display wall to life. We offer mounting brackets, frame and pedestal structural supports, and a wide selection of industry-leading image processing and playback solutions.

Discover the Christie turnkey multi-touch video wall solution. Equipped with four Christie FHD551-XG LCD flat panels with Corning® Gorilla® Glass, Christie Interactivity Kit, Christie JumpStart for straightforward image processing and playback, and the mounting system for a wall-mounted or floor-stand display, our nearly seamless, multi-touch video wall solution provides everything you need to create an amazing interactive digital experience.

Peace of mind. All Christie products and solutions have the backing of our industry-leading training, warranties and technical support.

Industry-leading service and support

All of our flat panels come standard with a three-year commercial warranty to maximize uptime and provide you with added peace of mind. Enjoy technical phone support, a discount on additional flat panels*, and advanced exchange for the first year.

Plus, for an additional charge at the time of purchase, get upgrades like 24/7 technical phone support and on-site repair for the full three year warranty period. Learn more.

*Cannot be combined with other incentive programs or rebates


Screen size (diagonal)

  • 55"

Native resolution

  • 1920 x 1080


  • Commercial-grade SPVA-LCD


  • Direct LED

Pixel pitch

  • 0.63 x 0.63mm

Bezel size

  • 1.8mm (bottom/right)
  • 3.7mm (top/left) nominal

* Avoid static images for extended periods. Refer to the user manual for additional runtime guidance.

For a full list of specifications, along with operational guidelines and limitations, please refer to the product User Manual available under the downloads area of this product page.

Due to constant research, specifications and features are subject to change without notice.


Christie LCD Flat Panel Brochure - English

Jun 13, 2016 | PDF: 1.2 MB

This PDF product brochure outlines key features, specifications and uses. Please refer to the information presented on the Christie website, or speak to your Christie representative, for the confirmation of installation-critical specifications and features.

Christie Professional LCD Flat Panel Brochure

Nov 26, 2014 | PDF: 508 KB

Christie offers a full range of leading-edge LCD flat panels as well as content and image processing that can be seamlessly integrated to create the most amazing display solutions.

Christie FHD551-X and XG Datasheet - English

Aug 08, 2014 | PDF: 1.9 MB

This PDF is the datasheet that outlines key features, specifications and uses of the Christie FHD551-X and FHD551-XG products. Please refer to the information presented on the Christie website or speak to your Christie representative for the confirmation of installation-critical specifications and features.

Christie flat panel operational guidelines

Jun 11, 2014 | PDF: 401 KB

​Christie LCD flat panels are high-performance displays designed to deliver on quality, reliability and long-term service. To help maximize your displays’ performance and lifespan, we have provided a number of operational guidelines.

The top 5 benefits of optical bonding

Apr 30, 2014 | PDF: 146 KB

​Discover the benefits of investing in a professional-grade, optically-bonded LCD panel.

Why go pro?

Apr 30, 2014 | PDF: 60 KB

​You need to invest in digital signage for your organization or business, but aren’t sure if professional or consumer LCD panels are right for your application. So how do you decide?
