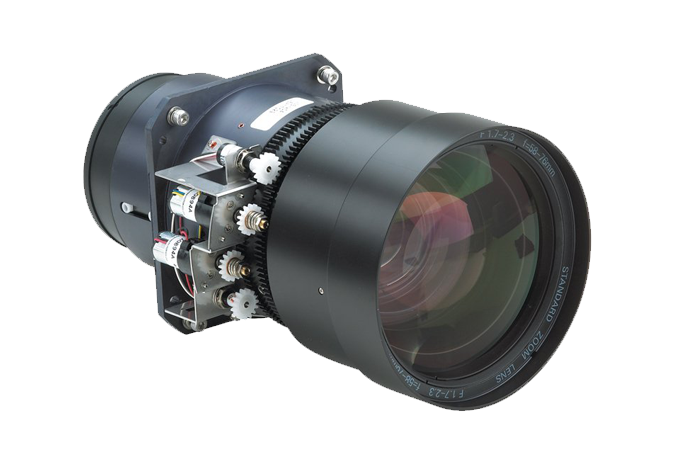

1.5-2.0:1 High Performance Zoom Lens | Christie - Audio Visual Solutions
Overview Products

When used with the RoadRunner and Vivid products, LU77 or LX900 this lens has a 1.5-2.0:1 throw ratio. If used with the LS+58, LX66 or LX66A, the lens will provide a 2.0-2.6:1 throw ratio. If used with the LW40(U) or LW600  projectors, this lens will provide a 2.1-2.8:1 throw ratio.

For specific lens throw distance values, please refer to the Christie Lens Calculator on this website or the downloadable PDF throw distance chart located in the resource tab of this lens option or the resource tab of Christie projector to be used with this lens.


Throw Distance 1.8" LCD Panels - 1.5-2.0
  1.4" LCD Panels - 2.0-2.6
  1.2" LCD Panels - 2.1-2.8
Focal Length 58 - 76 mm
Lens Shift 10:0
F Value 1.7-2.3
Image Circle Φ56mm
Max. Diameter Φ122mm
Length 224mm
Carton Size 366W x 262H x 236D mm
Gross Weight 4.0kg

Due to constant research, specifications and features are subject to change without notice.
