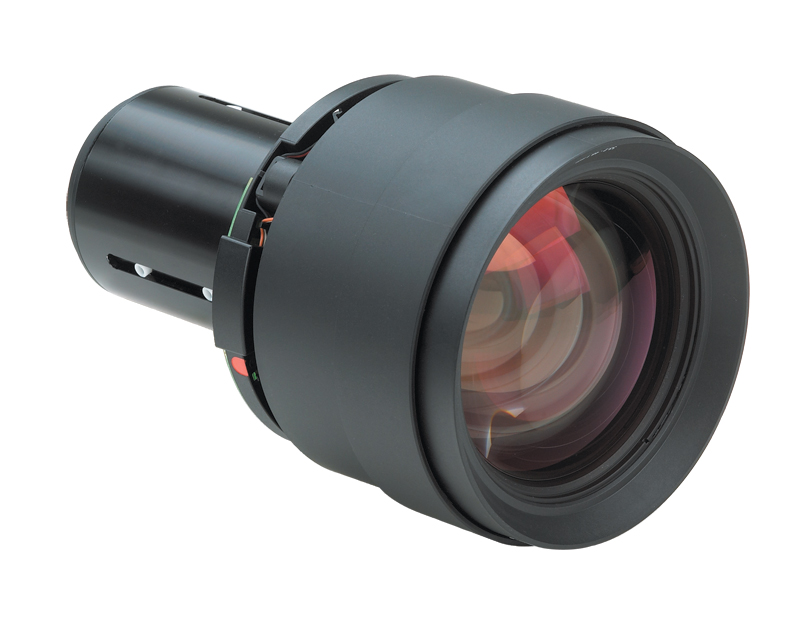

1.7-2.5:1 Zoom Lens38-809085-XX
Overview Downloads

When used with Christie's single-chip DLP® SXGA+ products, this lens has a 1.3-1.7:1 throw ratio. If used with the HD405, the lens will provide a 1.56-2.3:1 throw ratio. If used with the DW30, the lens will provide a 1.42-1.86:1 throw ratio.

Please refer to the Christie Lens Calculator on this website or the downloadable PDF throw distance chart located in the resource tab of this lens option or the resource tab of Christie projector to be used with this lens.

SXGA+ Specifications



Throw Ratio 1.7-2.5:1
Vertical Offset +/-120%
Horizontal Offset +/-78%
Screen Width 43" - 339" (110cm - 862cm)



720HD Specifications



Throw Ratio 1.86-2.73:1
Vertical Offset +/-231%
Horizontal Offset +/-104%
Screen Width 43" - 339" (110cm - 862cm)



Due to constant research, specifications and features are subject to change without notice.

Downloads

Christie HD405 Lens Throw Ratio Information

Apr 21, 2010 | PDF: 103 KB

This PDF document contains a static table outlining each lenses throw formulas, vertical and horizontal offset capabilities and attainable minimum and maximum screen sizes when used with the Christie digital projectors listed below.All measurements are presented in metric and imperial formats. Contact our technical support center or your Christie Sales Manager if you require more information or assistance.
