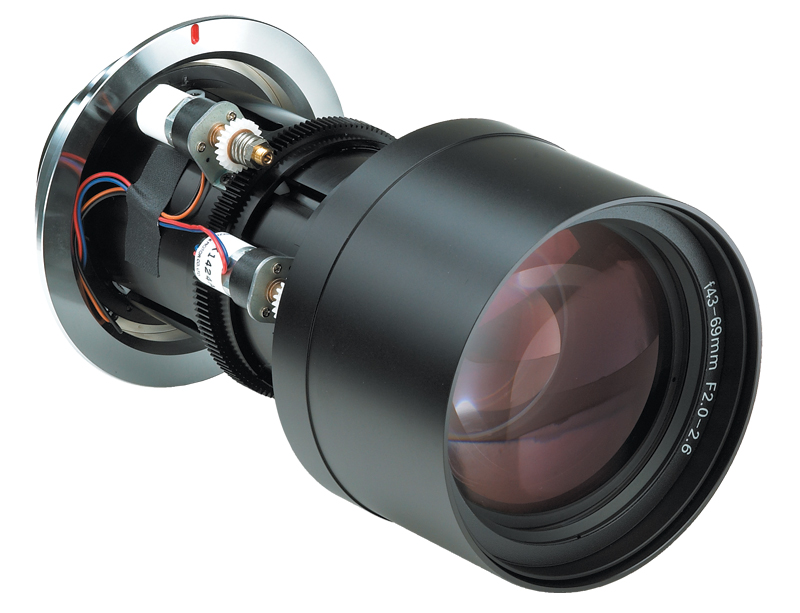

2.1-3.4:1 Zoom Lens38-809057-XX
Overview Downloads

This lens provides a 2.1-3.4:1 throw ratio for any of the Christie LCD projectors listed below.  This means that the distance between the projector and the screen (throw distance) can be approximately 2.1-3.4 x the width of the projected image (screen).

For specific lens throw distance values, please refer to the Christie Lens Calculator on this website or the downloadable PDF throw distance chart located in the resource tab of this lens option or the resource tab of Christie projector to be used with this lens.

Specifications



Throw Distance  2.1-3.5 : 1
Focal Length 43-70mm
Lens Shift 10:0-1:1
F Value 2.0-2.6
Image Circle Φ36.7mm
Max. Diameter Φ36.7mm
Length 173mm
Carton Size 366W x 262H x 236Dmm
Gross Weight 2.3kg



Due to constant research, specifications and features are subject to change without notice.

Downloads

Christie LX380, LX450 and LX500 Lens Throw Information

Apr 21, 2010 | PDF: 107 KB

This PDF document contains a static table outlining each lenses throw formulas, vertical and horizontal offset capabilities and attainable minimum and maximum screen sizes when used with the Christie digital projectors listed below. All measurements are presented in metric and imperial formats. Contact our technical support center or your Christie Sales Manager if you require more information or assistance.
