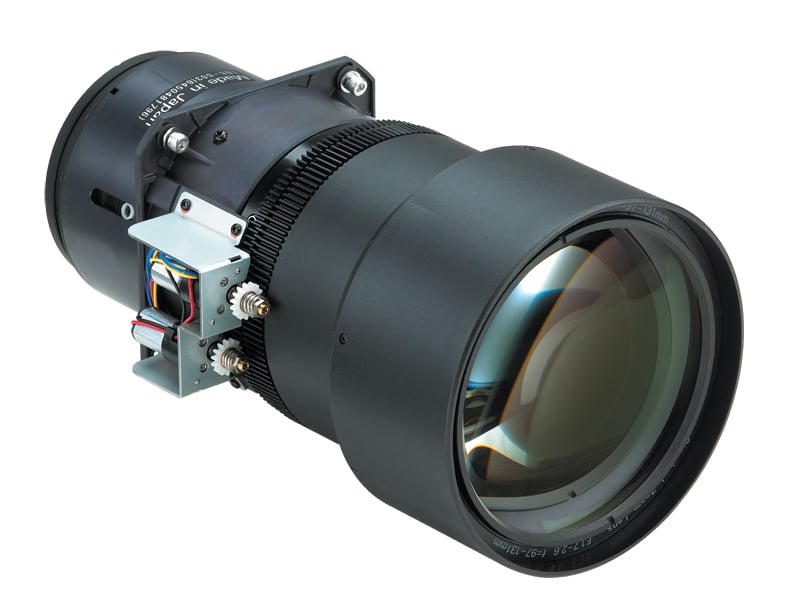

2.6-3.5:1 Zoom Lens38-809044-XX
Overview Products

 When used with the RoadRunner and Vivid products, the LU77 or LX900 this lens has a 2.6-3.5:1 medium throw ratio. If used with the LS+58, LX66 or LX66A, the lens will provide a 3.3-4.5:1 throw ratio.

If used with the LW40(U) or LW600 projectors, this lens will provide a 3.6-4.8:1 throw ratio. Please refer to the Christie Lens Calculator on this website or the downloadable PDF throw distance chart located in the resource tab of this lens option or the resource tab of Christie projector to be used with this lens.


Throw Distance 1.8"2.6~3.5:1
Throw Distance 1.4"3.3-4.5:1
Throw Distance 1.2"3.6-4.8:1
Focal Length 97 - 131 mm
Lens Shift 10:0
F Value   1.7~2.6
Image Circle Φ62mm
Max. Diameter Φ137mm
Length 260mm
Carton Size 381W x 317H x 301D mm

Due to constant research, specifications and features are subject to change without notice.
