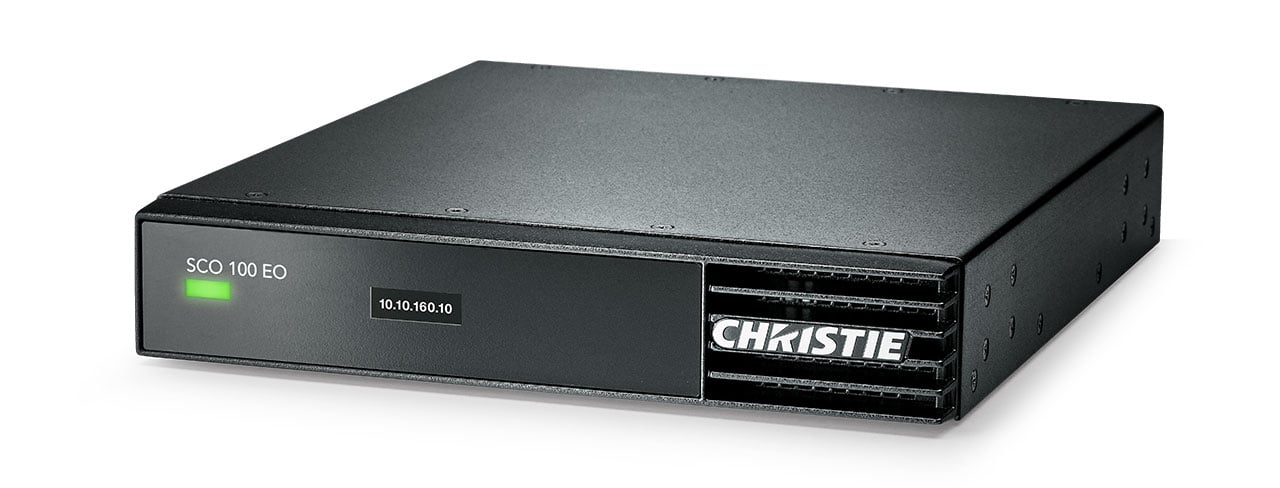

Christie Terra Controller | Christie

The Christie^® Terra Controller gives you complete, secure operational control and management of SDVoE systems. Featuring an intuitive web-based programming interface, the Terra Controller is easy to learn and use, simplifying the installation, configuration, programming, management and operational tasks of SDVoE systems.

This embedded device is highly-secure and offers redundancy and web-based configuration making it ideal for reliable operation in mission-critical environments.

Key features

Full-control: configure networked devices, control routing, configure audio, manage source and display configurations and easily scale visuals all from a single, easy-to-use programing interface
Saved configurations and presets: minimize programming and simplify system management by easily accessing preset and saved configurations directly or from a third-party control system using an advanced API
Embedded operating system: built-in control capabilities operate from a secure and reliable management platform
Software client: configure and program systems offline before going to site, and map devices to the program during commissioning
Addressing automation: Startup addressing assistant simplifies configuration for all Terra devices, ensuring they are quickly and reliably addressed during initial setup and configuration changes
Highly-secure: features multi-level user access, encrypted control and system data, user access and operational system logging, strong password management and more to ensure the safeguarding of your information
Redundant control configuration: ensures continuous operation of the system
System-wide updates: single-configuration for easy updates to all Christie Terra components in a system
Solid-state storage: no moving parts promises reliable operation over time
Use Terra Controller APS (166-004105-XX) for Australia, New Zealand, China, India, South Korea, Japan or Russia

Specifications

Platform

Processor: Intel Core I7 3.4 GHz
RAM: 8GB DDR3
Storage: 64GB SSD

Software

Operating System: Windows 10 Embedded
Web Configuration and Control Application
Application Programming Interface (API), JSON

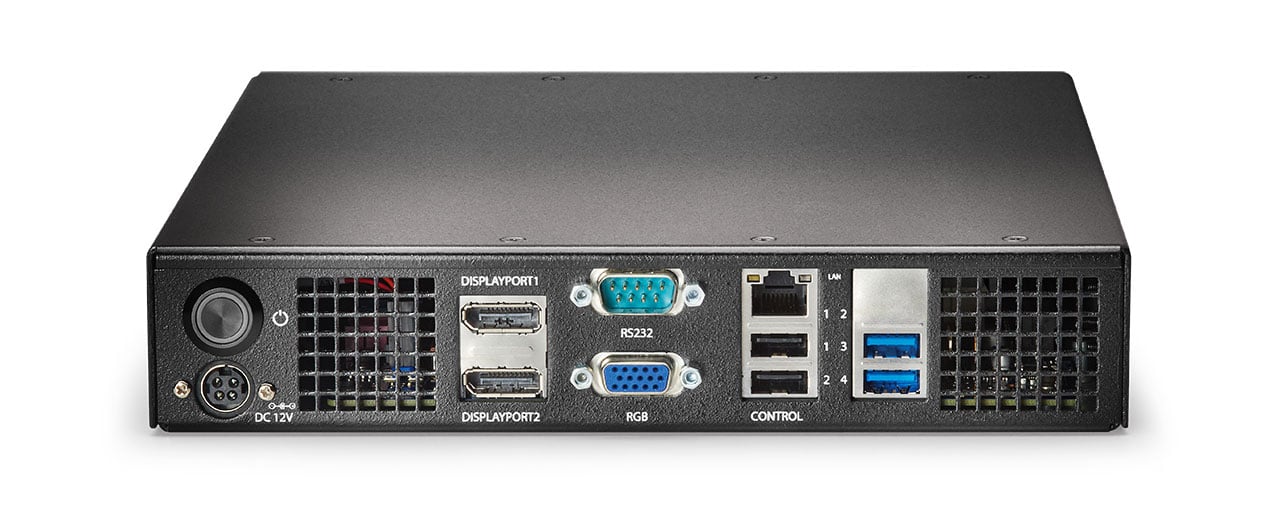

Network Control

2 x 100/1000BaseT Ethernet, RJ45, port 1 control, port 2 unused
HTTPS encryption: TLS 1.2 protocol, 256-bit key, 2048-bit certificate key

Direct Control

Serial RS-232, 9-PinD up to 115.2 k baud

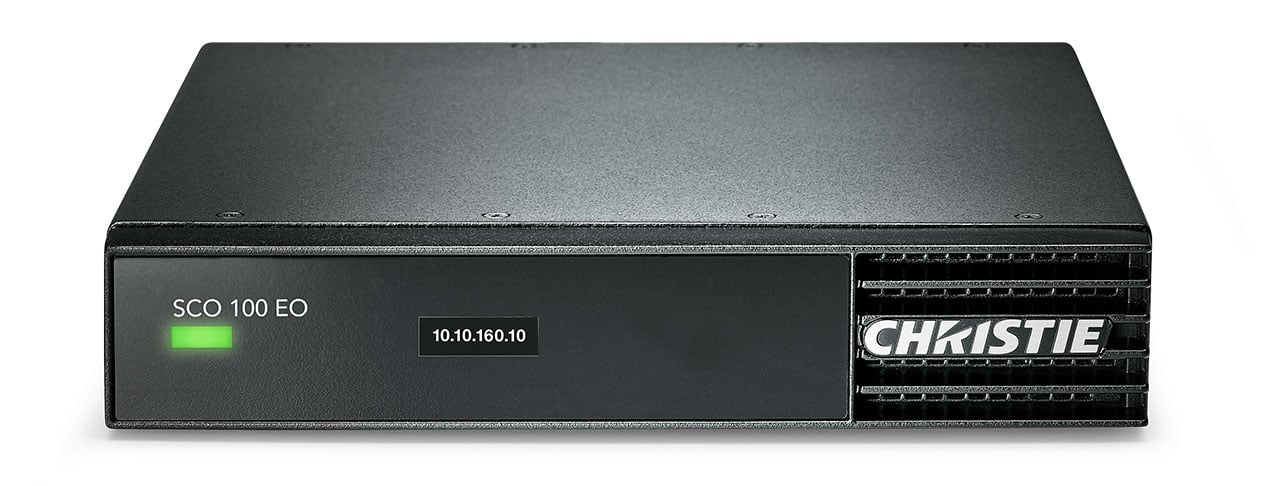

Front Panel

LCD Device Status Display

Factory Use Only

2 x DisplayPort, 1 x 15PinHD RGB analog, 4 x USB (all reserved for factory use)

Dimensions

(WxHxD) 8.78 x 1.7 x 10.24” (223 x 43 x 260 mm) without connectors
(WxHxD) 8.78 x 1.7 x 10.39” (223 x 43 x 264 mm) with connectors

Rack Mount

Rack mount ears included

Material

Aluminum, painted black

Environmental

Operating Temperature: from 0°C - 40°C
Operating Temperature: from 0°C - 40°C
Relative Humidity: 20 - 90% RH (non-condensing)

External Power Supply

Input: 100 – 240 VAC, 50 – 60 Hz
Output: 12VDC, 7.08A, 85W max
Alternate power supply output: 12VDC, 6.25A, 75W max
Typical Operation: 26W, 89 BTU

Weight

3.5 lbs. (1.6 kg) excluding power supply
4.5 lbs. (2.1 kg) with power supply

Reliability

MTBF > 50,000 hours
MTTR < 15 minutes

Regulatory

CE/FCC Class A
Directives (EC) 2011/65/EU (RoHS); 2012/19/EU (WEEE); Regulation (EC) No. 1907/2006 (REACH)

Manufacturing Location

Designed, developed and manufactured in the USA

Warranty

Limited two years parts and labor
