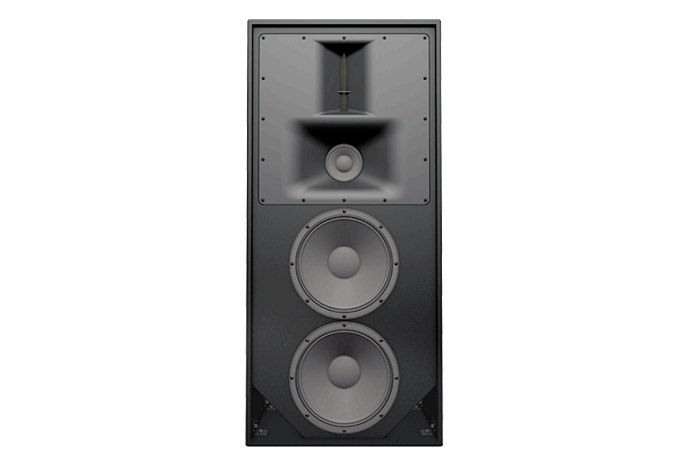

Christie® screen channel loudspeakers combine advanced ribbon driver technology with a unique line array design to provide greatly enhanced clarity, dramatically reduced distortion and ultra-fast transient response. Featuring very wide horizontal dispersion and highly controlled vertical dispersion patterns, Christie’s screen channel loudspeakers place sound exactly where it is needed, increasing the optimal listening area up to four times greater than conventional cinema audio systems.
Features:
- Christie single enclosure coaxial arcuate line array design
- Ribbon driver technology representing the next evolution of loudspeaker design
- Provides approximately four times the optimal listening area than typical cinema audio systems
- Enhanced voice intelligibility, low distortion and highly controlled dispersion
Specifications
System type
- Four-way, bi-amp, ported enclosure
Driver components
- HF: 6" and 3" high output ribbon drivers with Kapton® diaphragm and Neodymium magnets
- MF: 6.5" paper/Kevlar high efficiency midrange cone driver with Neodymium magnet and 51mm voice coil
- LF: 2 x 15" paper composite cone drivers with 100mm diameter voice coil
Crossover
- LF-MF: 350Hz, active via processor
- MF-HF: passive @ 2.0kHz
- Two-way HF section with frequency shading network
Effective frequency rage*
- 930Hz-20kHz @ -6dB
Maximum SPL**
- LF: 129dB continuous, 142dB peak
- MF-HF: 125.5dB continuous, 138dB peak
- LS2 system: 131dB continuous, 143dB peak
System coverage***
- 100° horizontal dispersion
- 40° vertical dispersion
*Measured at 2m on tweeter axis in simulated free field conditions. Near field measurements were used for low-frequency data. Sensitivity is calculated based on measured SPL response averaged in 200Hz-5kHz range.
**IEC refers to IEC 60268-5 standard. Max SPL calculated based on sensitivity and power handling. IEC short-term power tested using IEC pink noise with 9dB crest factor. The crest factor was specifically increased to reflect real-life parameters of digital cinema sound tracks. Maximum peak SPL calculated using peak voltage during IEC short-term power test. Continuous power handling tested using IEC60268-1 noise signal for duration of 2 hours.
***Averaged in 500Hz-12kHz range, at -6dB
