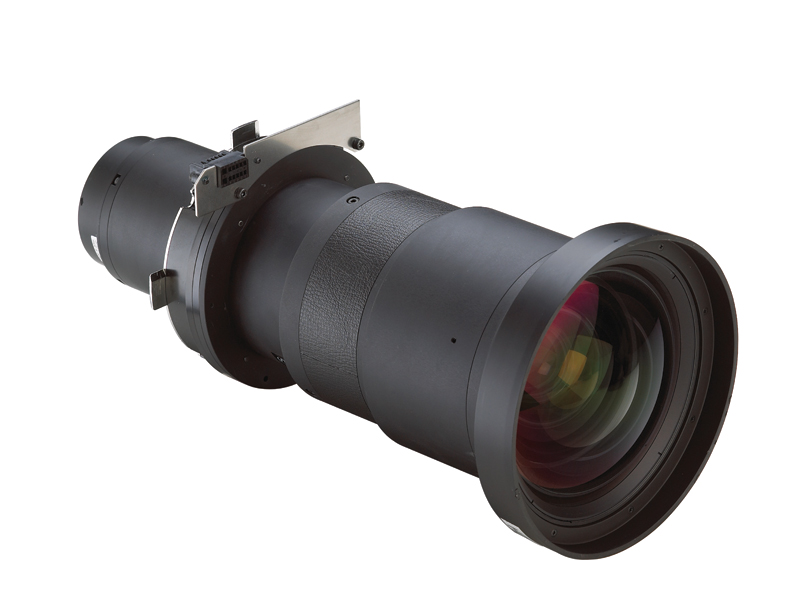

0.67:1 Fixed Lens104-110101-XX
Overview

When used with Christie's 3-chip DLP® 1080 HD products, this lens has a fixed 0.67:1 throw ratio. If used with any Christie 3-chip DLP SXGA+ products, the lens will provide a fixed 0.76:1 throw ratio.

Please refer to the Christie Lens Calculator on this website or the downloadable PDF throw distance chart located in the resource tab of this lens option or the resource tab of Christie projector to be used with this lens.

1080 HD Specifications



Throw Ratio 0.67
Vertical Offset +47/-47%
Horizontal Offset +19/-19%
Screen Width 58.2" - 175" (148cm - 1000cm)
Lens Length 14.21" (36.1cm)



Note: Image widths greater than 5m is outside the performance range of lens and may result in reduced image quality.

SXGA+ Specifications



Throw Ratio 0.76
Vertical Offset +47/-47%
Horizontal Offset +19/-19%
Screen Width 58.2" - 175" (148cm - 1000cm)
Lens Length 14.21" (36.1cm)



Note: Image widths greater than 5m is outside the performance range of lens and may result in reduced image quality.

Due to constant research, specifications and features are subject to change without notice.
