Christie DHD670-E HD DLP projector | Christie Visual Solutions
Overview Specs Accessories Downloads Images

*This product is no longer available. View Christie's current line of projectors.

Best suited for mid-to large-sized boardrooms, breakout rooms, churches and classrooms, the Christie® DHD670-E (part of the Christie E Series projector line) provides exceptional brightness and image quality. This 1-chip DLP® projector offers native HD resolution – making it compatible with most computers and video sources.  A compact chassis, along with reliable, long-life performance and Christie’s industry-leading warranties, service and support ensure a low cost of ownership.

This dual lamp projector operates in single- or dual-lamp modes, and can produce higher lumen levels in a single lamp than other dual lamp projectors. The dust-sealed, filter-free design prevents dust and dirt from affecting the system – ensuring that image quality is maintained and maintenance costs are low. A full suite of optional lenses provides you with more options to meet your application needs.

Features

  • 5800 ANSI lumens (6400 center lumens)
  • Up to 5000:1 (full on/full off)1 contrast ratio
  • Full HD (1920 x 1080) native resolution
  • Lamp redundancy with dual lamp platform
  • 24/7 operation2
  • Low cost of ownership
  • Lower cost alternative to 3-chip DLP technology
  • AutoDesk® Revit® model

Ideal for single screen applications, it has PiP/PbP capabilities making it easy to show multiple windows with different content and/or include video conferencing in your presentations. As well, the Christie DHD670-E ships standard with a high brightness, six segment color wheel (RGBCYW), but offers an optional rich color wheel (RGBCYM) for applications where optimal color accuracy is required.

Power, performance, quality, the Christie DHD670-E provides extra value at no extra cost.

1 In dynamic contrast mode.
2 Christie 1-chip DLP projectors can be used in 24/7 or extended use applications. Regular maintenance and a 24/7 maintenance kit are recommended to maximize the lifetime of your projector.

Specifications

Brightness

  • - High brightness color wheel (RGBCYW)
  • - Dual lamp: 6,400 lumens
  • - Single Lamp: 4,250 lumens
  • - Optional rich color wheel (RGBCYM)
  • - Dual lamp: 4,250 lumens
  • - Single lamp: 2,800 lumens

Contrast

  • 5000:1 (Full on/off)* 150:1 minimum ANSI

Uniformity

  • 90%

Display technology type

  • 1-chip 0.65" DMD

Native resolution

  • HD (1920 x 1080) 16:9

Signals

  • HDTV formats VGA through to WUXGA (1920 x 1200)
  • Horizontal and vertical scaling while maintaining aspect ratio, all inputs

* in dynamic contrast mode

** Limited offset

*** Christie 1-chip DLP projectors can be used in 24/7 or extended use applications. Regular maintenance and a 24/7 maintenance kit are recommended to maximize the lifetime of your projector

**** In this mode, network functions and serial command functions not operable unless projector is turned on



Due to constant research, specifications and features are subject to change without notice.

Downloads

Christie DHD670-E and DWU670-E Brochure - English

Aug 08, 2014 | PDF: 2.1 MB

This is the PDF product brochure that outlines key features, specifications and uses for the Christie DHD670-E and Christie DWU670-E. Please refer to the information presented on the Christie website or speak to your Christie representative for the confirmation of installation-critical specifications and features.

Christie DHD670-E DWU670-E Brochure (Chinese)

Nov 02, 2012 | PDF: 353 KB

This is the PDF product brochure that outlines key features, specifications and uses for the Christie DHD670-E and Christie DWU670-E. Please refer to the information presented on the Christie website or speak to your Christie representative for the confirmation of installation-critical specifications and features.

Christie DHD670-E DWU670-E Brochure

Nov 28, 2011 | PDF: 771 KB

This is the PDF product brochure that outlines key features, specifications and uses for the Christie DHD670-E and Christie DWU670-E. Please refer to the information presented on the Christie website or speak to your Christie representative for the confirmation of installation-critical specifications and features.

Christie DHD670-E DWU670-E Brochure

Jan 18, 2011 | PDF: 760 KB

This is the PDF product brochure that outlines key features, specifications and uses for the Christie DHD670-E and Christie DWU670-E. Please refer to the information presented on the Christie website or speak to your Christie representative for the confirmation of installation-critical specifications and features.

Images

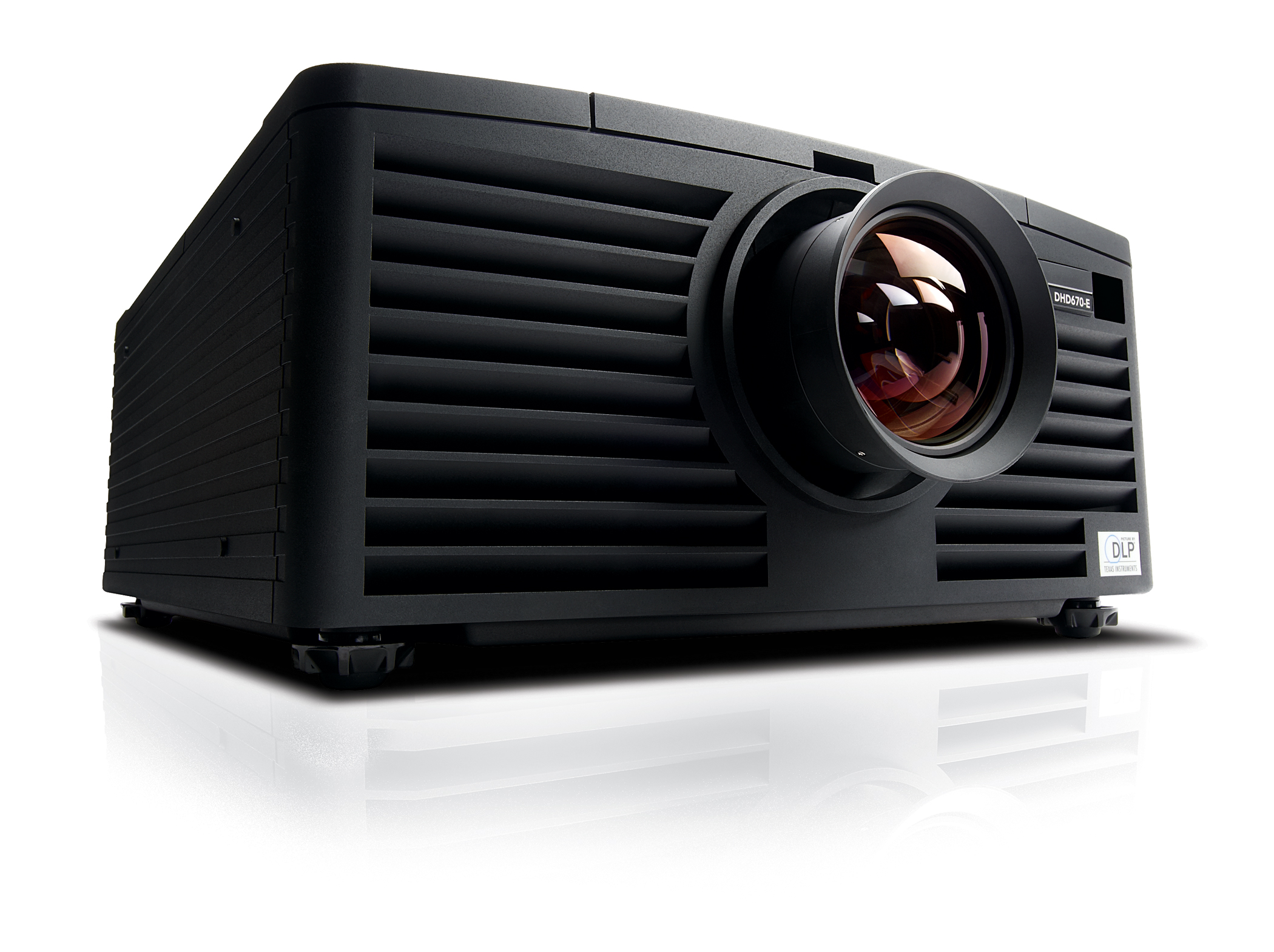

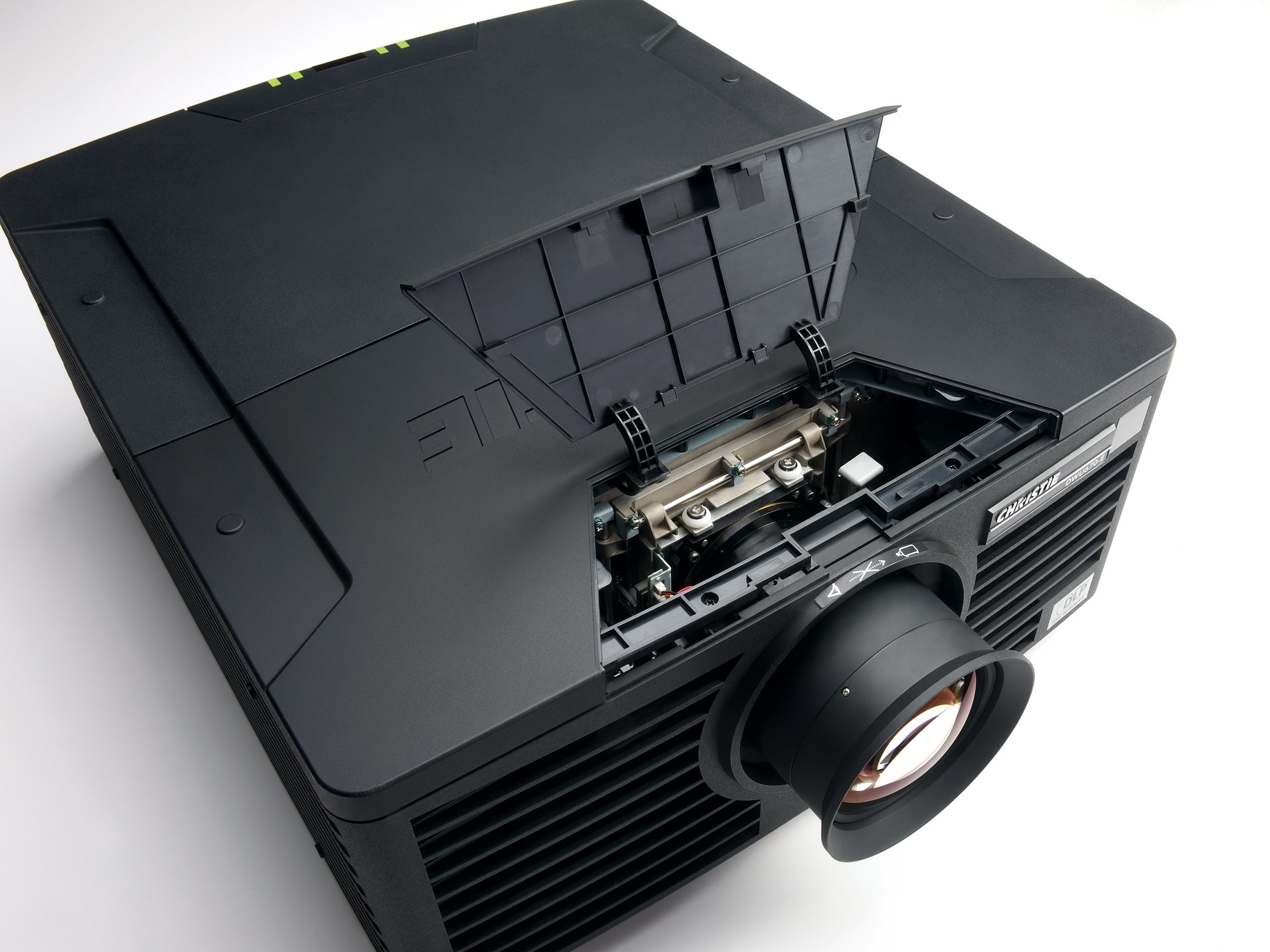

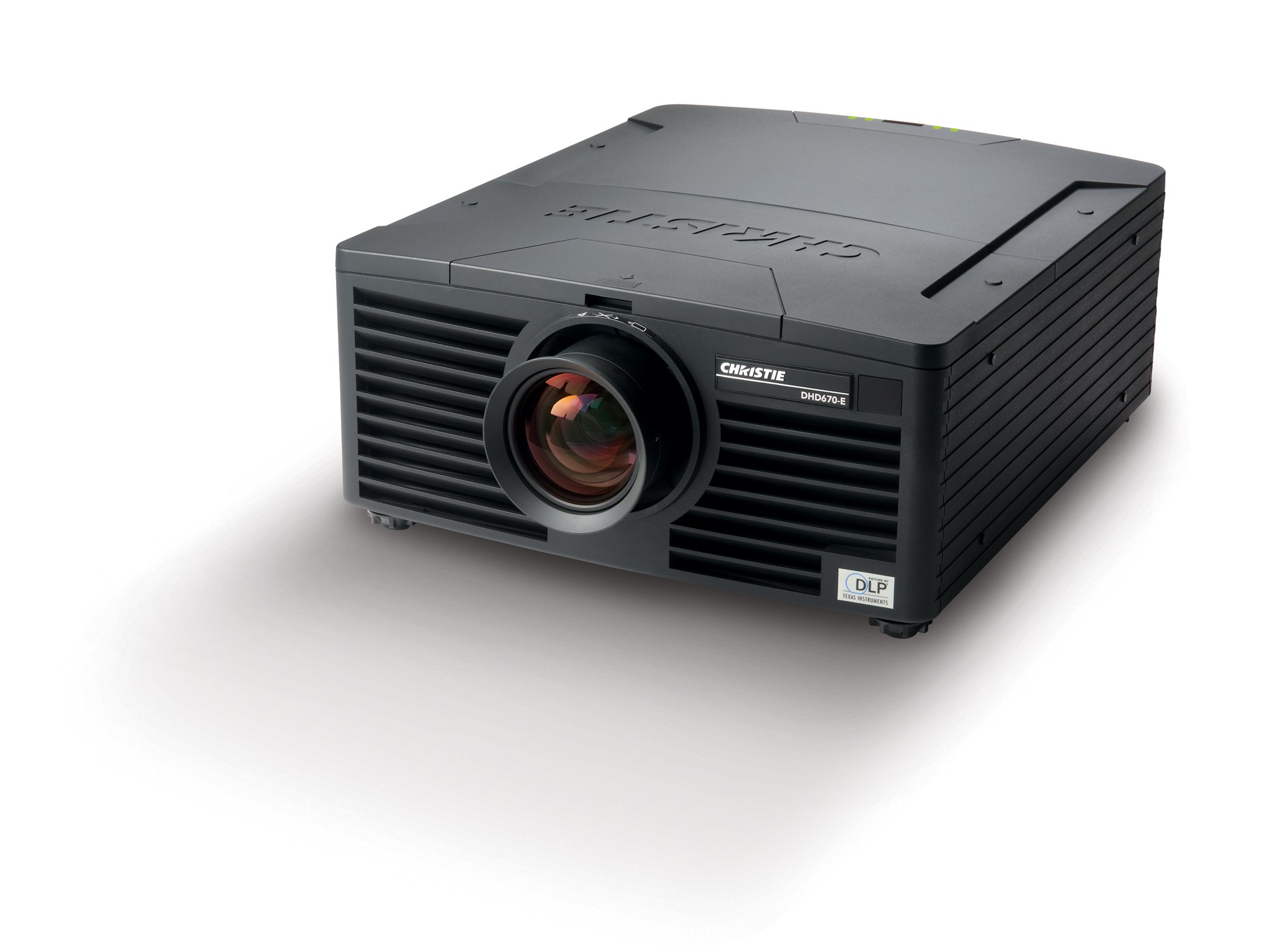

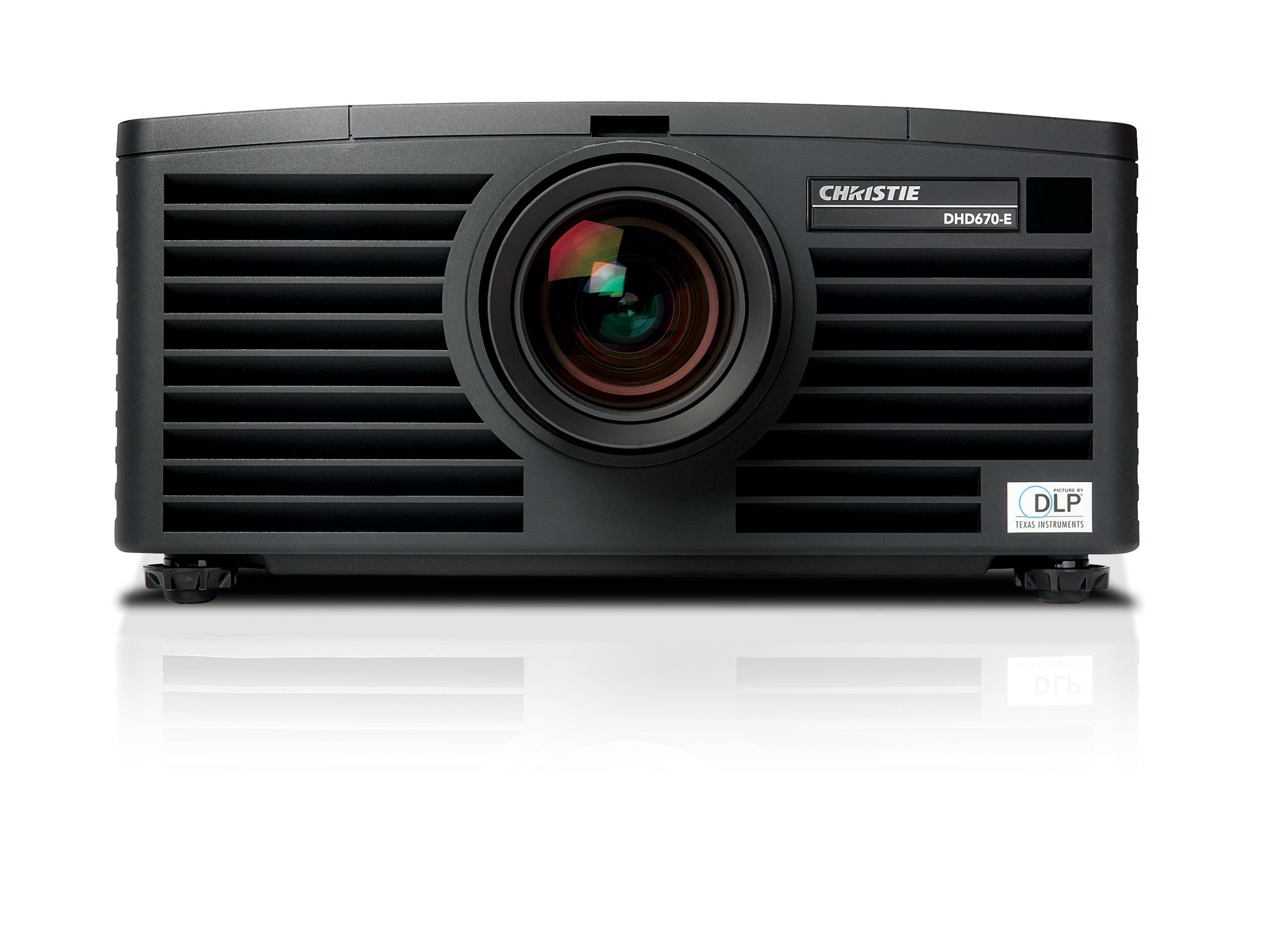

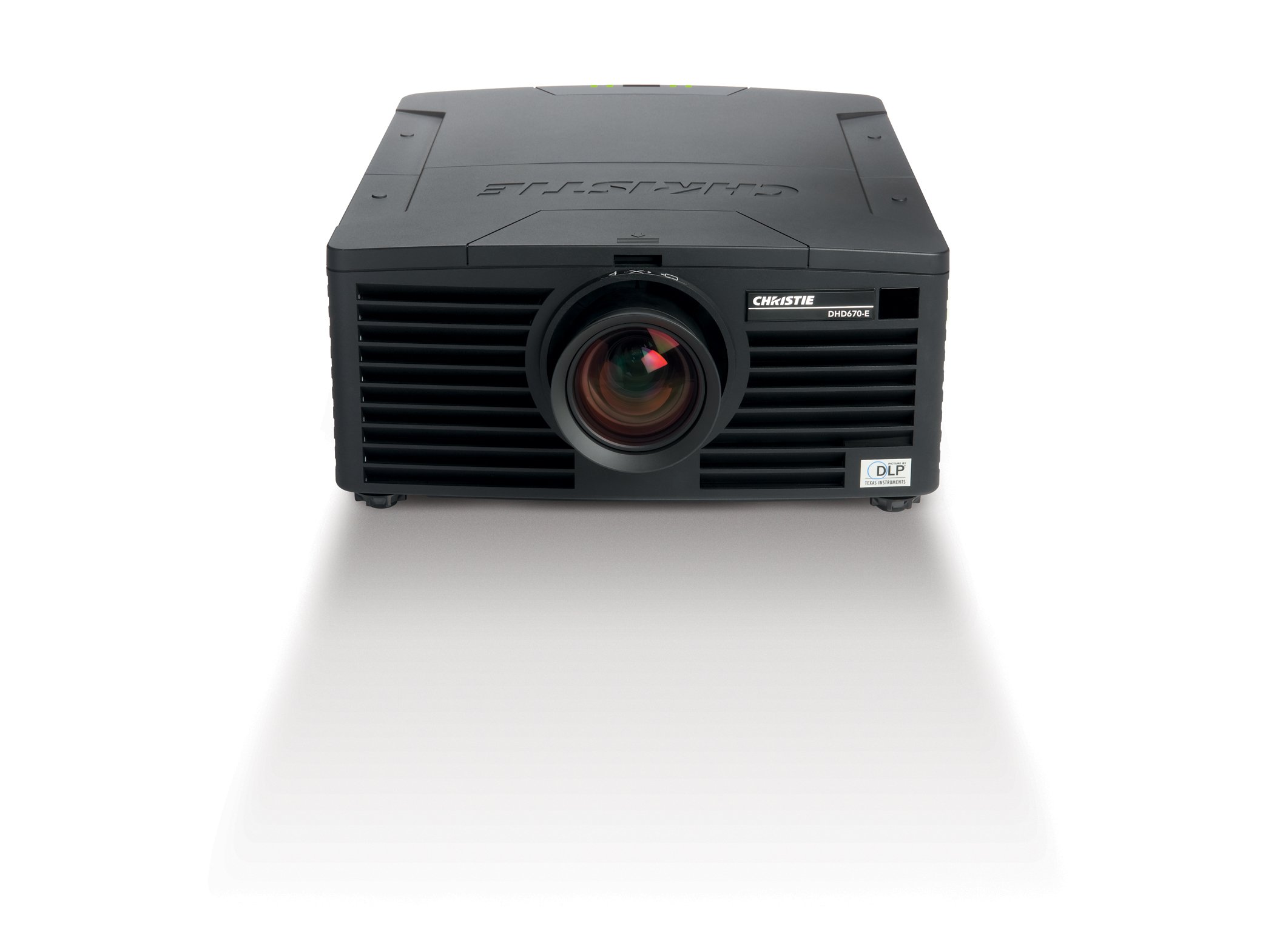

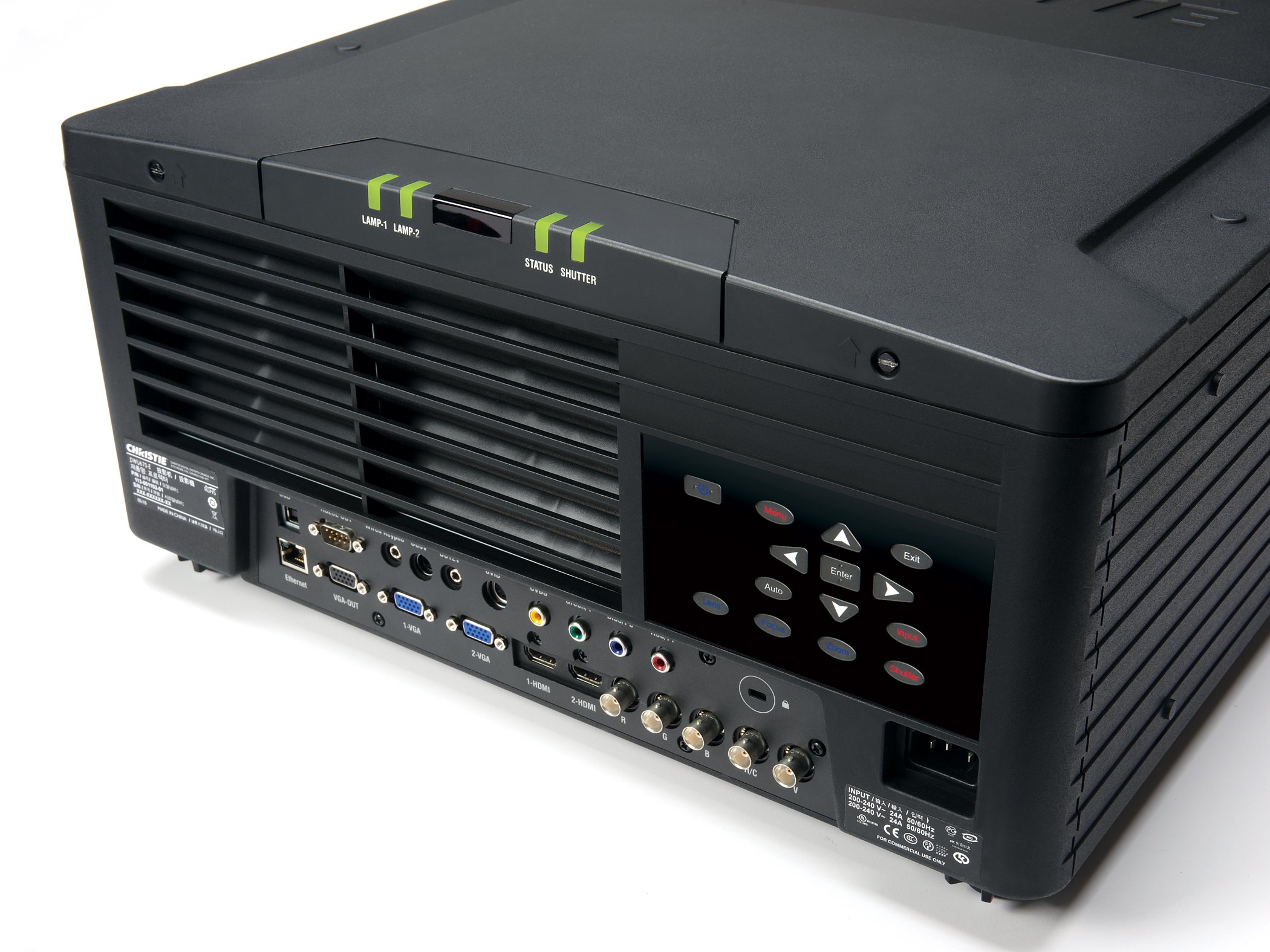

Christie DHD670-E HD DLP Projector | 133-001102-XX
