The Christie® Q Series takes projectors to a new level of high-brightness to bring you the industry’s highest-quality 1DLP® projector. Deliver presentations and video content clearly, with the image quality you expect from Christie. We offer a range of projection options with sleek overall style and high-performance features. Experience versatile, affordable and superior image processing with the Christie Q Series. When coupled with our Ultra Short Throw option, the 0.38:1 throw ratio gives you brilliant, high-resolution images to meet the tightest space requirements without requiring additional wall structure or support.
- Proven DLP® technology
- Excellent image quality
- Reliability and versatility
- Energy-saving features
- Low maintenance costs
- High-performance features

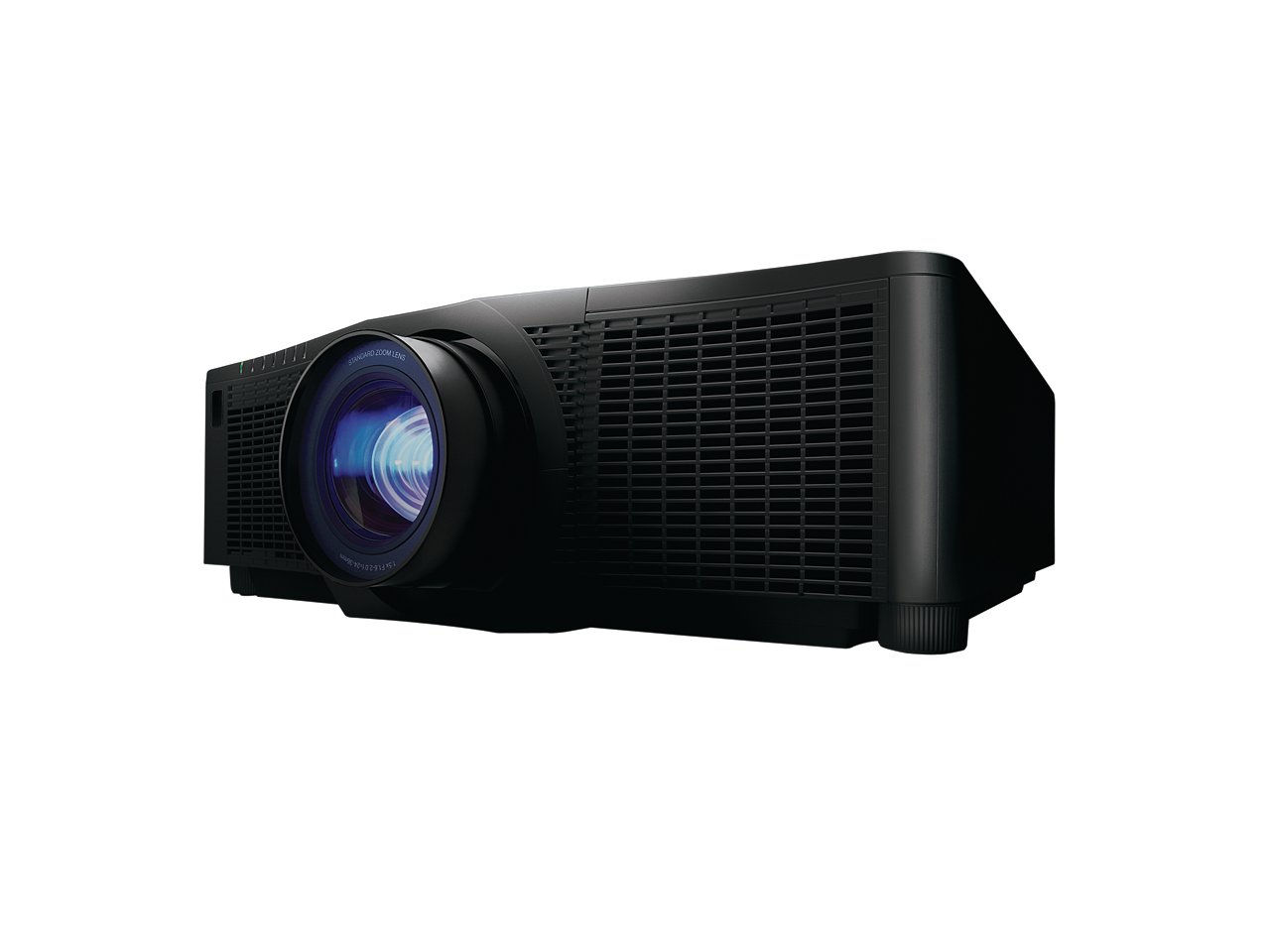

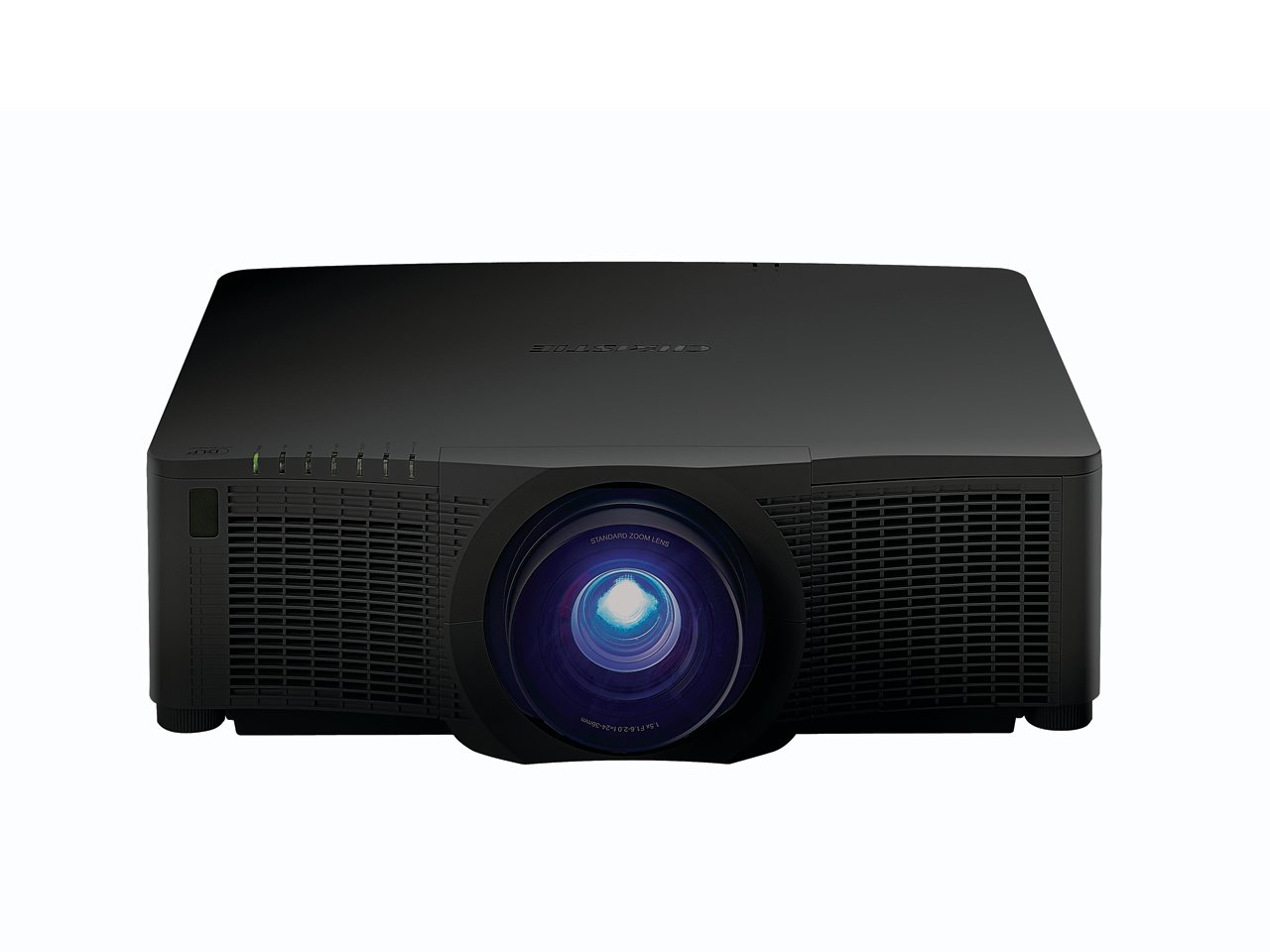

- Choice between black or white models
- Backed by Christie’s industry-leading warranties and support
Specifications
- Brightness
- - 10,400 centers (10,000 ANSI) lumens
- Contrast
- - 2000:1 full on, full off
- Uniformity
- - ≤90%
Display
- Type
- - 1DLP 0.7" DMD
- Native resolution
- - 1024 x 768 XGA
Lamp
- Type
- - Dual 370W P-VIP
- Life
- - Up to 2000 hours in standard mode
- - Up to 4000 hours in eco mode*
- - Up to 500 hours in portrait mode

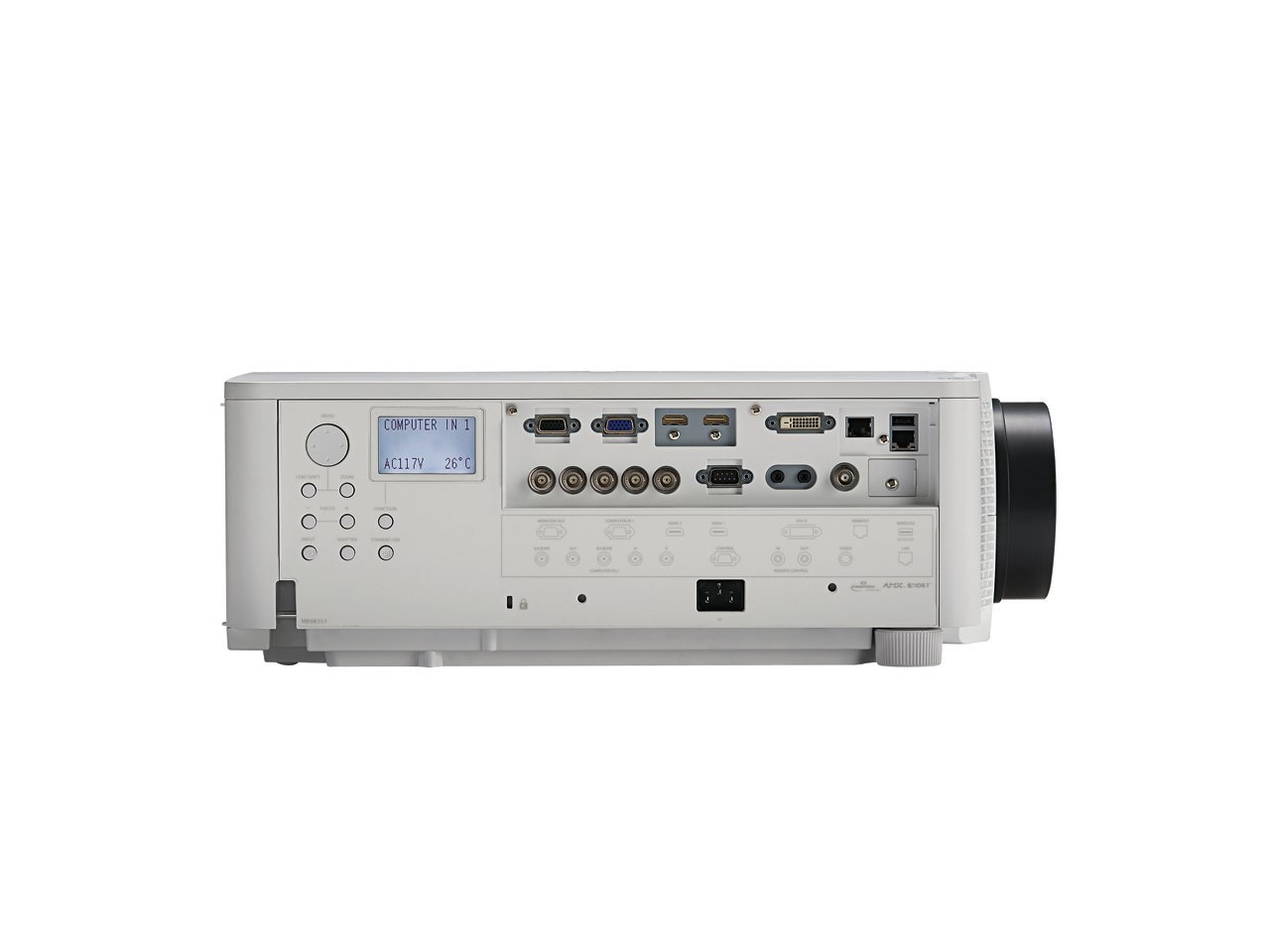

Input
- Standard
- - Computer D-sub 15 pin mini jack x1
- - BNC connector x1 (composite)
- - HDMI connector x2
- - DVI-D connector x1
- - RJ-45 x1 (HDBaseT)
- - D-sub 9 pin x1 (RS232c)
- - RJ-45 x1 (LAN)
- - USB type A connector x1 (Optional Wireless USB or PC-less)
- - Wired remote keypad (3.5mm)
- Signals
- - 525i(480i)
- - 525p(480p)
- - 625i(576i)
- - 1125i(1080i @ 50/60)
- - 750p(720p @ 50/60)
- - 1125p(1080p @ 50/60)
- Pixel clock
- - 27MHz～150MHz
Output
- Standard
- - Computer out D-sub 15 pin mini jack x1
- - Wired remote keypad (3.5mm)
- Control and networking
- - RJ-45 x1 (LAN)
- - RJ-45 x1 (HDBaseT)
- - D-sub 9 pin x1 (RS232c)
Lenses
- Offsets
- - Vertical: +115 / -40% (+105 / -40% with ultra short throw zoom lens)
- - Horizontal: +/-22%
- Zoom
- - Ultra long throw zoom lens (5.8-9.2)
- - Ultra short throw zoom lens (0.8-1.0)
- - Short throw zoom lens (1.2-1.8)
- - Standard zoom lens (1.7-2.5)
- - Middle throw zoom lens (2.5-3.8)
- - Long throw zoom lens (3.6-5.8)
Downloads
Christie QuickConnect for Android
Feb 12, 2014 | HTML: 4 KB
The Christie QuickConnect App enables end users and installers to project photos, documents and websites to a compatible Christie projector over Wi-Fi from their Android enabled mobile digital devices. It also allows users to control their projector. This app is specifically designed to control Christie LW401, LWU421, LX501, LW551i, LWU501i, LX601i, DXG1051-Q, DWX951-Q and DWU951-Q projectors.The app is supported on Android OS version 2.3 & 4.0-4.3 enabled mobile digital devices.The Christie QuickConnect app and the projector must be on the same local Wi-Fi network. Projector discovery Content delivery lets users display content from their Android devices to the projector: Documents, Images, Webpages, Projector control, Control projector - standby/on, audio mute, blank and freeze, Input source selection - choose from two computer ports, two USB ports, HDMI, video, s-video and LAN. Advanced setting: Display modes - full image mode or multi-devices mode (up to 4 Android-enabled devices at the same time). Presenter mode enables the user to invite others to present or prevent another device from connecting to the projector.
Christie QuickConnect for iOS
Jan 09, 2014 | HTML: 4 KB
The Christie QuickConnect App enables end users and installers to project photos, documents and websites to a compatible Christie projector over Wi-Fi from their Android enabled mobile digital devices. It also allows users to control their projector. This app is specifically designed to control Christie LW401, LWU421, LX501, LW551i, LWU501i, LX601i, DXG1051-Q, DWX951-Q and DWU951-Q projectors.The app is supported on Android OS version 2.3 & 4.0-4.3 enabled mobile digital devices.The Christie QuickConnect app and the projector must be on the same local Wi-Fi network. Projector discovery Content delivery lets users display content from their Android devices to the projector: Documents, Images, Webpages, Projector control, Control projector - standby/on, audio mute, blank and freeze, Input source selection - choose from two computer ports, two USB ports, HDMI, video, s-video and LAN. Advanced setting: Display modes - full image mode or multi-devices mode (up to 4 Android-enabled devices at the same time). Presenter mode enables the user to invite others to present or prevent another device from connecting to the projector.

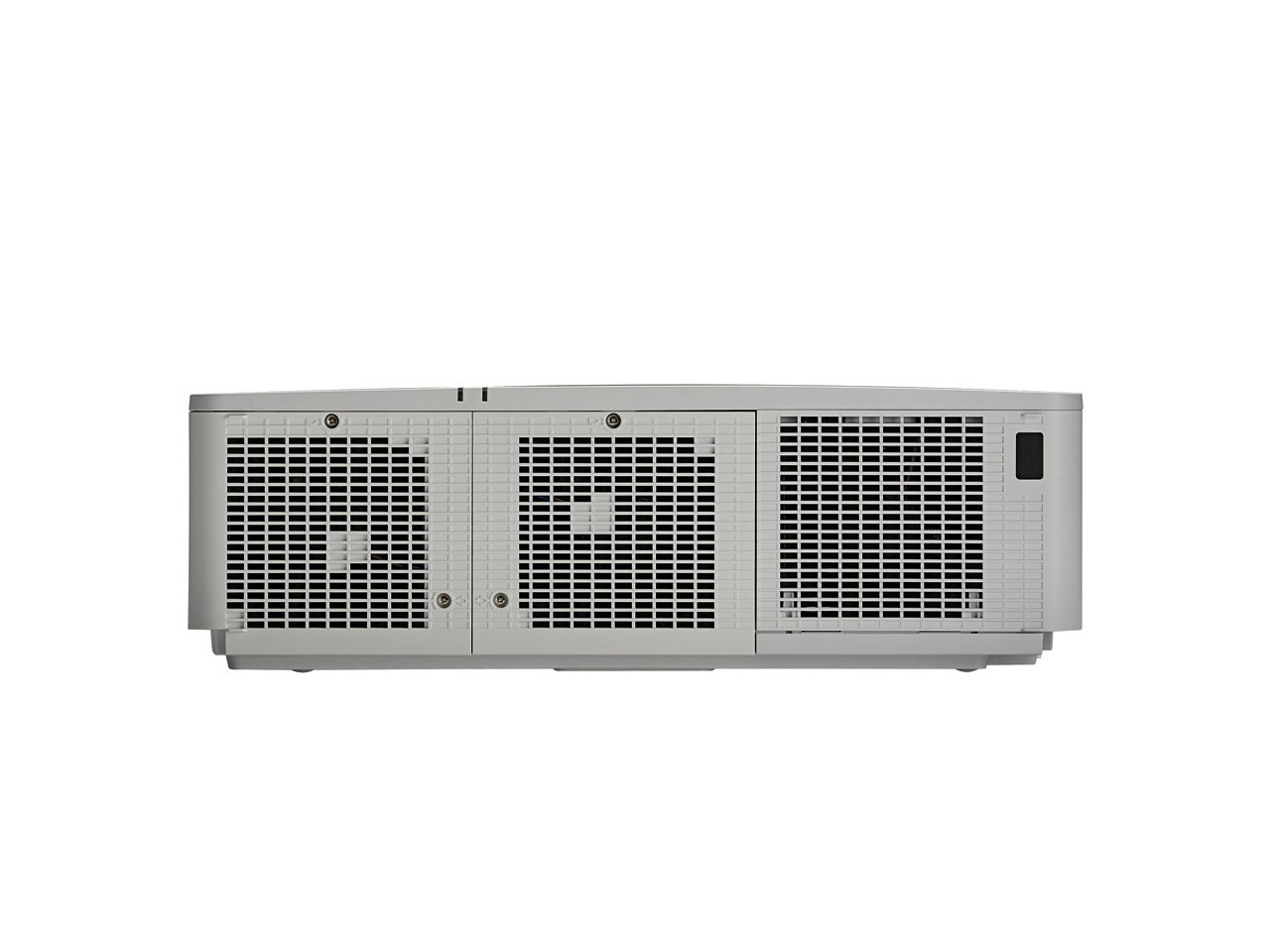

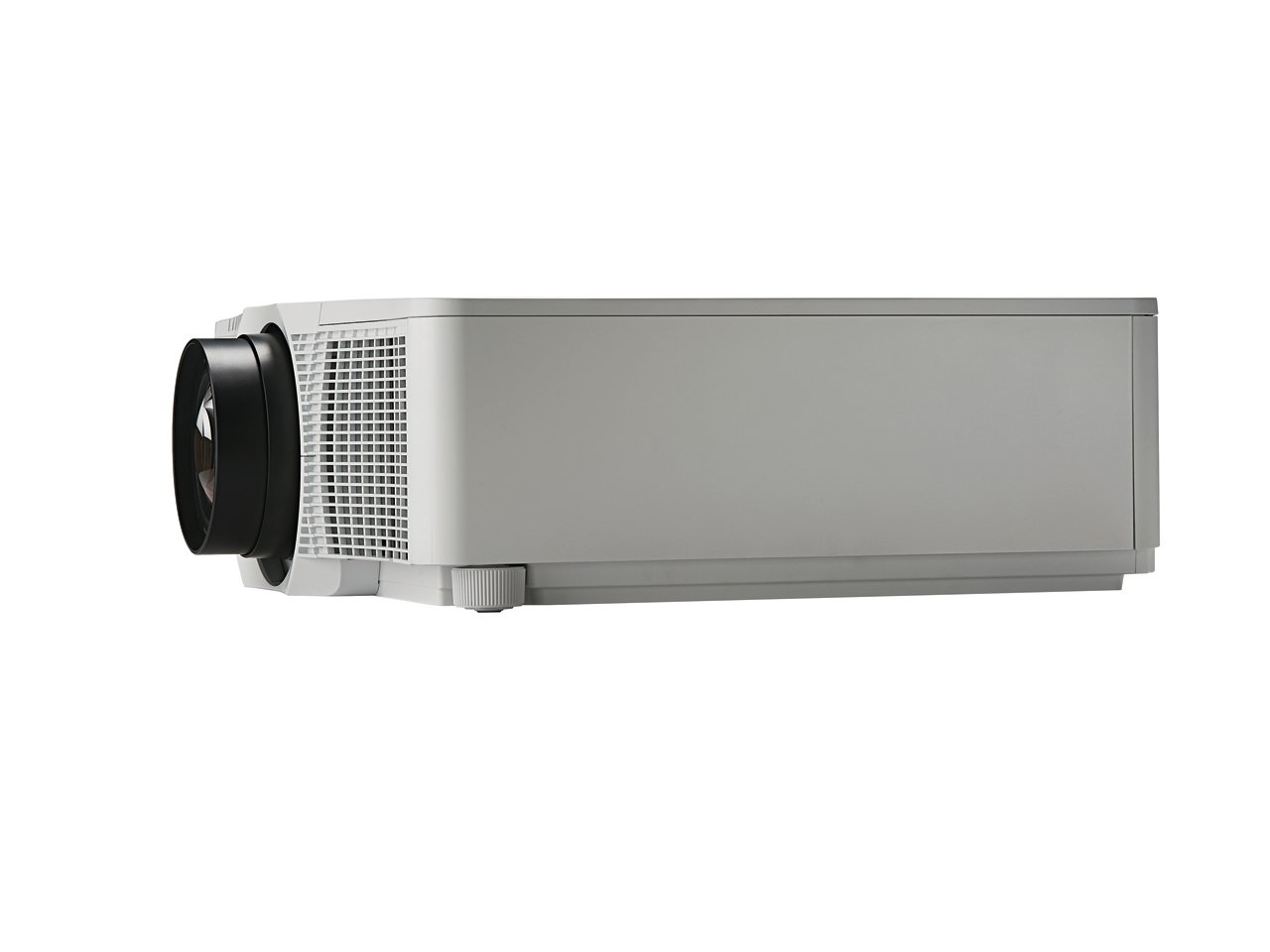

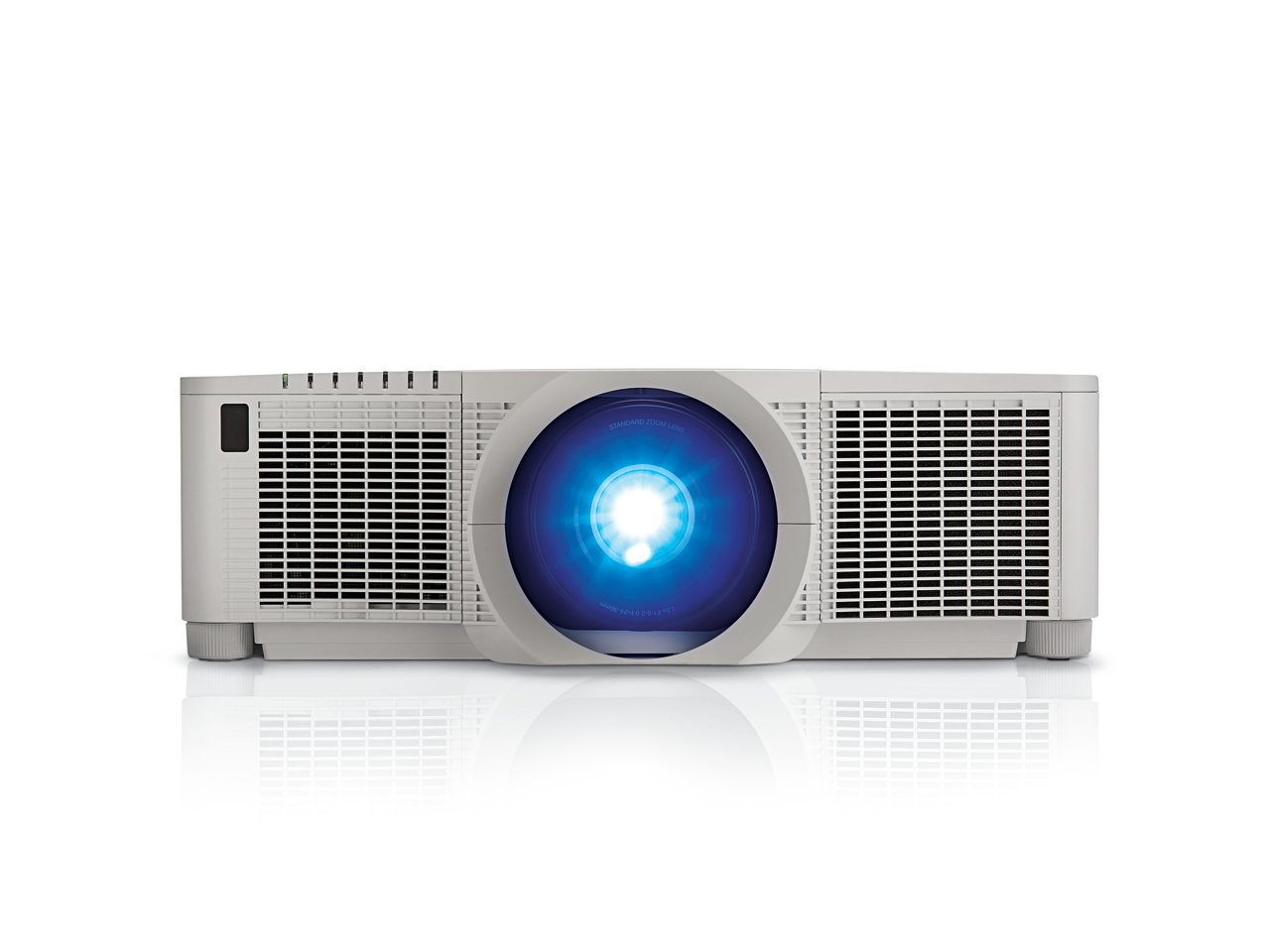

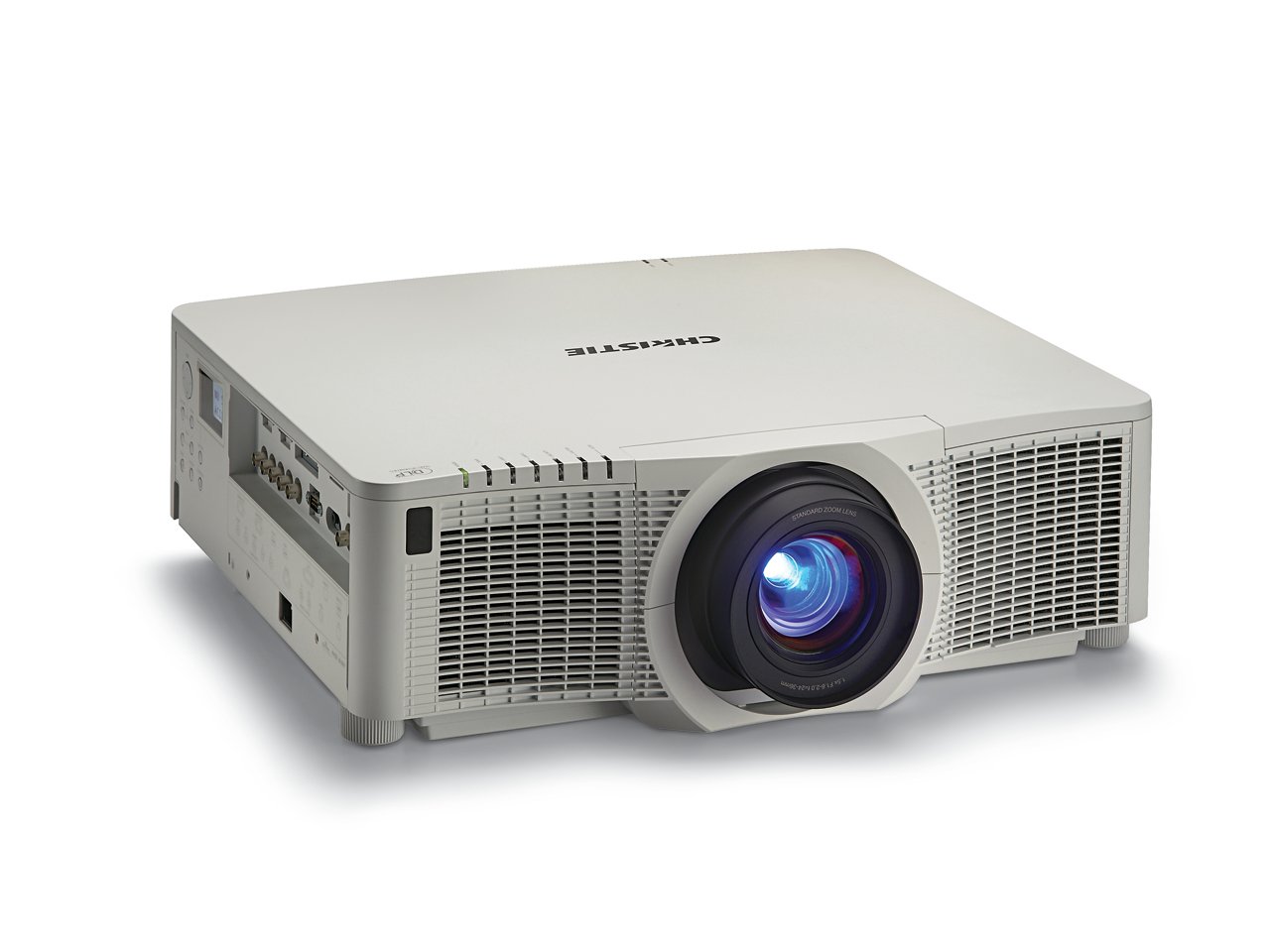

Images
