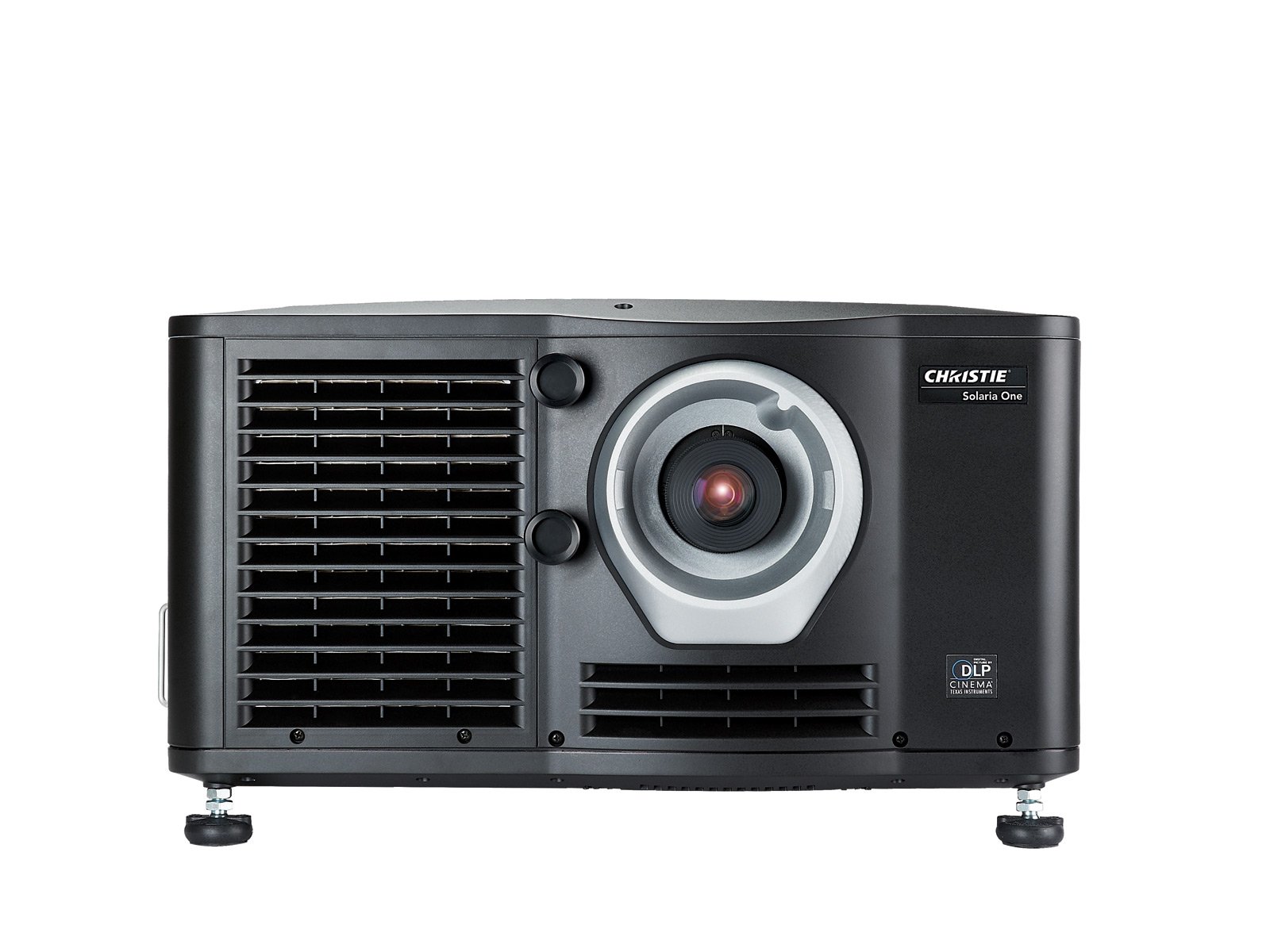

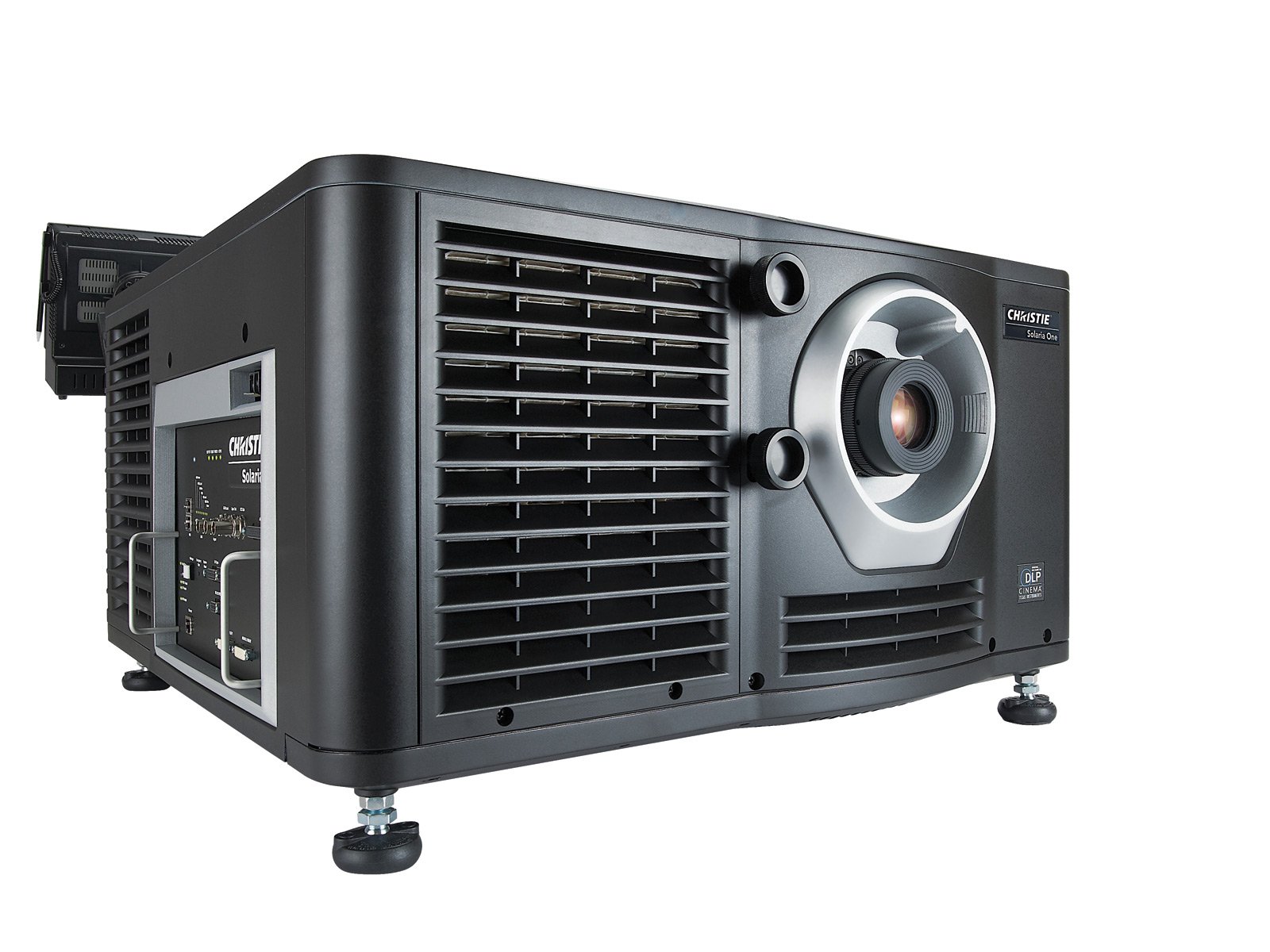

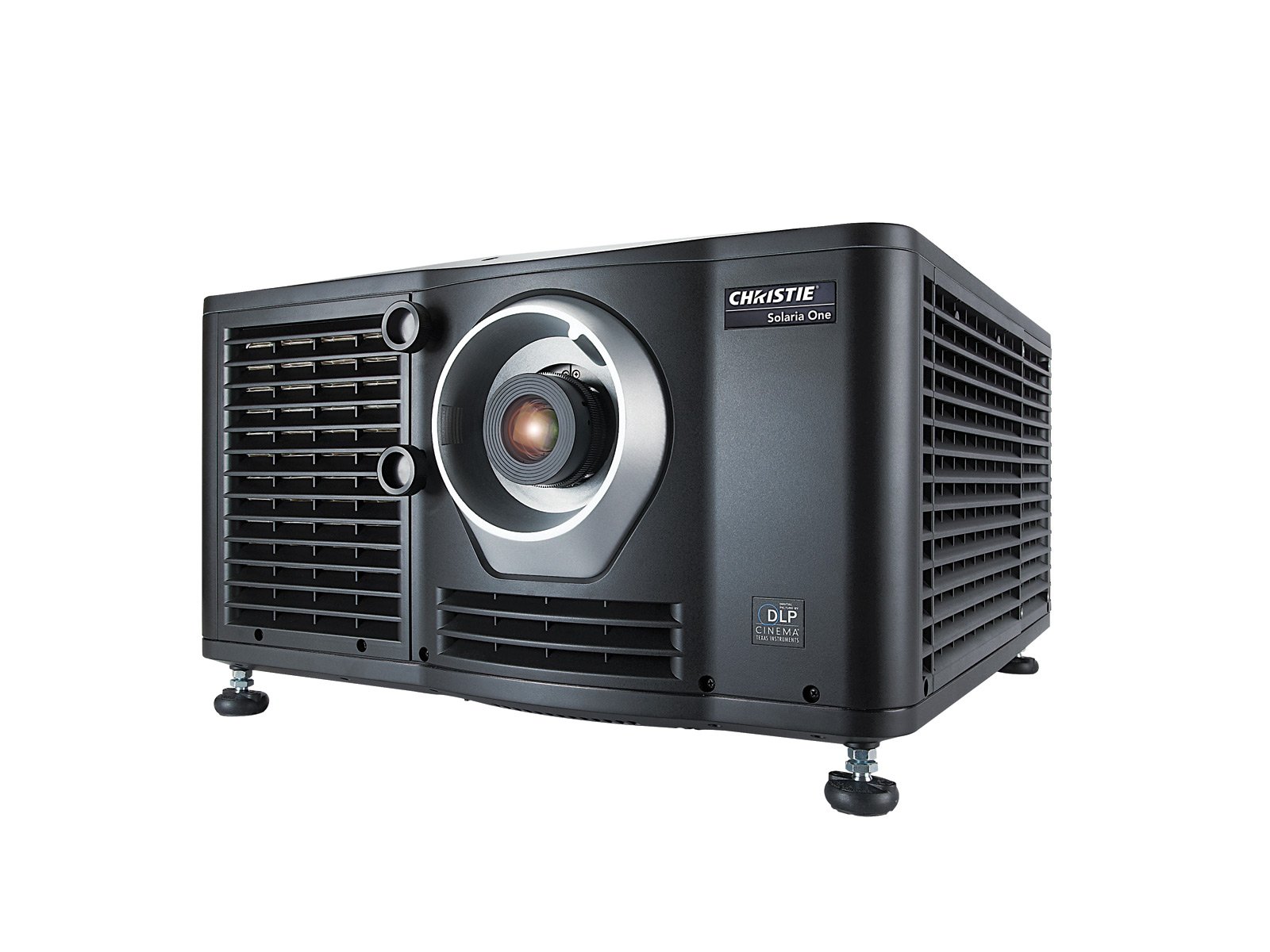

Built for theaters with side masking or post-production houses, our Christie® Solaria® One+ projection solution includes all of the features of the brightest in-class Christie Solaria One, and the additional features of a motorized lens mount, a higher-performing lens suite for greater image sharpness and uniformity, and overdrive capabilities to achieve 9000 lumens within the DCI color space. Like the Christie Solaria One, the Solaria One+ digital cinema solution comes complete with a lens, custom-designed Xenon lamp, and a Christie Integrated Media Block with its own easy to operate Screen Management Software (SMS). Both the Christie Solaria One and Solaria One+ are the most reliable, DCI compliant, digital cinema solutions available today available in their class. They’re easy to operate and maintain, and have the lowest total cost of ownership on the market.

Xenon illumination and S2K DLP Cinema technology

The Christie Solaria One+ delivers 9000 lumens within the DCI color space and more than 10,000 lumens when presenting alternative content. With brilliant Xenon illumination and S2K DLP® Cinema® technology, Solaria One+ produces the highest quality images at the lowest possible total cost.



A built-in, Integrated Media Block

Feature film content is displayed using the built-in Christie IMB. The Christie IMB is linked directly to an external commodity storage system so it’s incredibly flexible and your overall system cost is reduced.

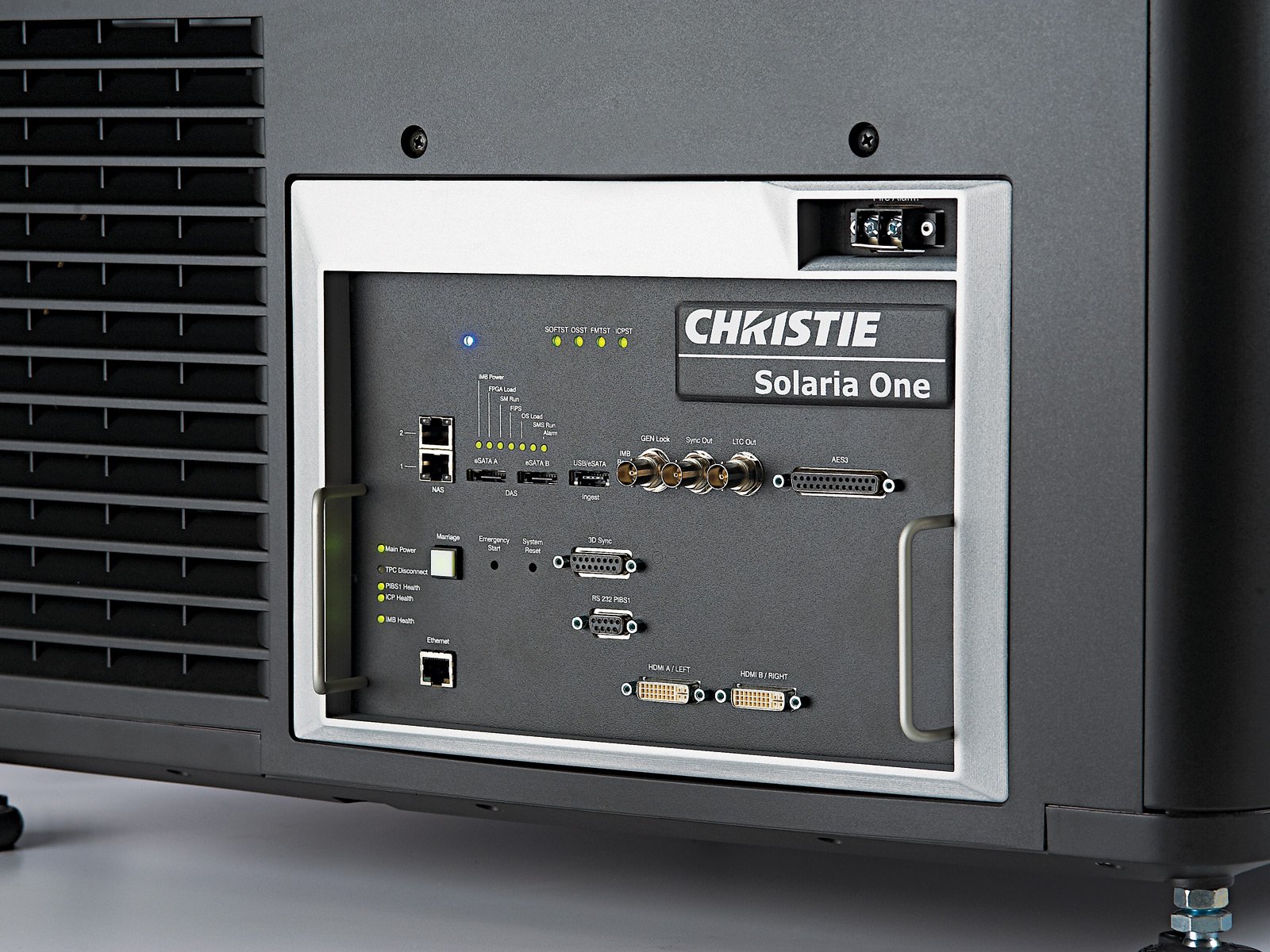

The Christie Solaria One+ also has HFR upgrade capabilities and MPEG2/H.264 support for advertising and alternative content. For external alternative content sources, the Christie Solaria One+ has dual DVI/HDMI inputs, configurable for both 2D and 3D operation.

3D capable

Christie Solaria One+ supports all external 3D systems. For higher brightness 3D presentations, the Christie Solaria One+ can be easily stacked for a dual-projection, 3D presentation.

Features

  • S2K DLP Cinema
  • fully DCI compliant
  • Xenon illumination
  • 3D ready
  • all-in-one system design for a low cost of ownership
  • integrated Christie IMB and SMS
  • motorized lens and custom-designed, high-value lamp included

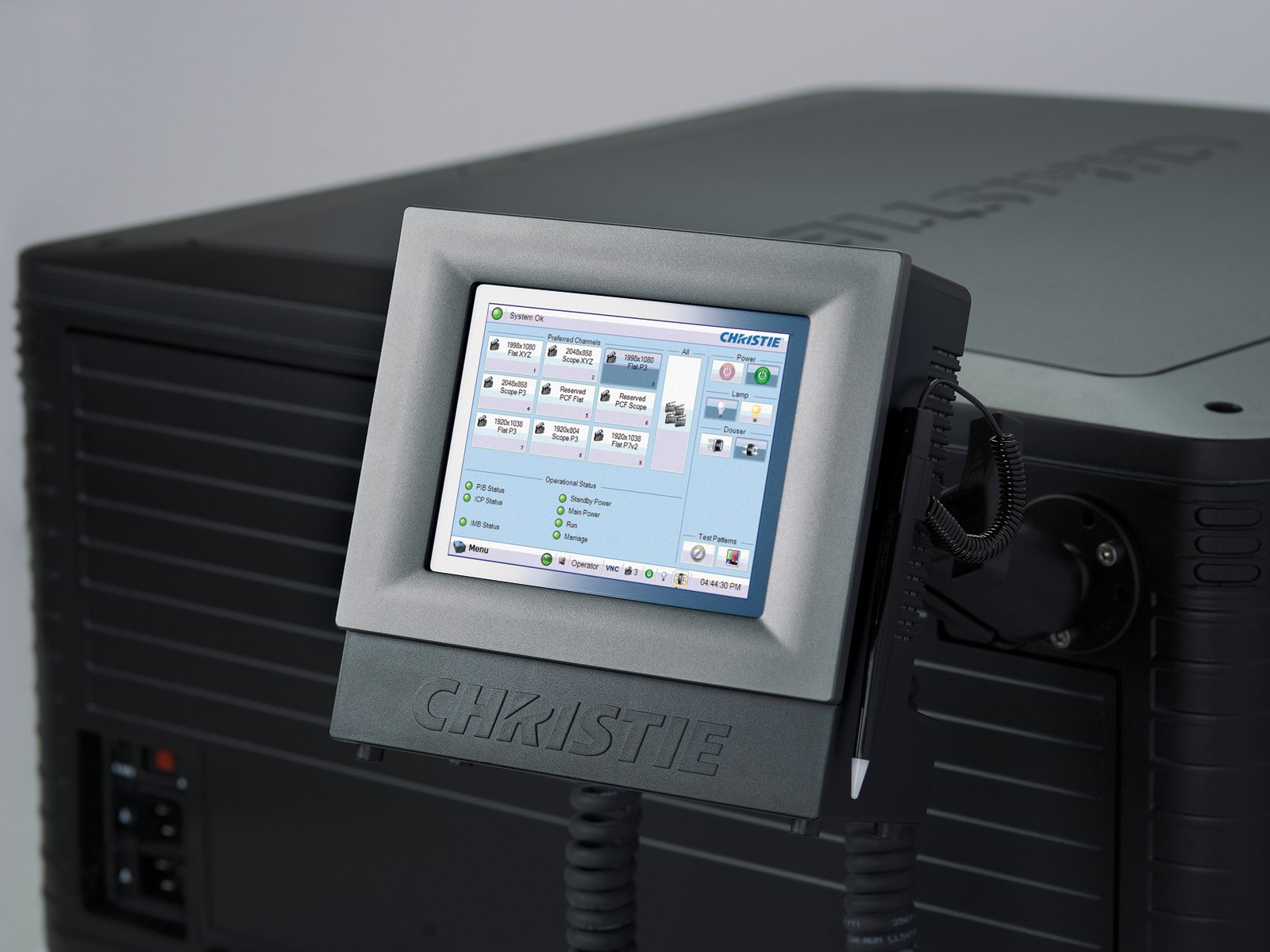

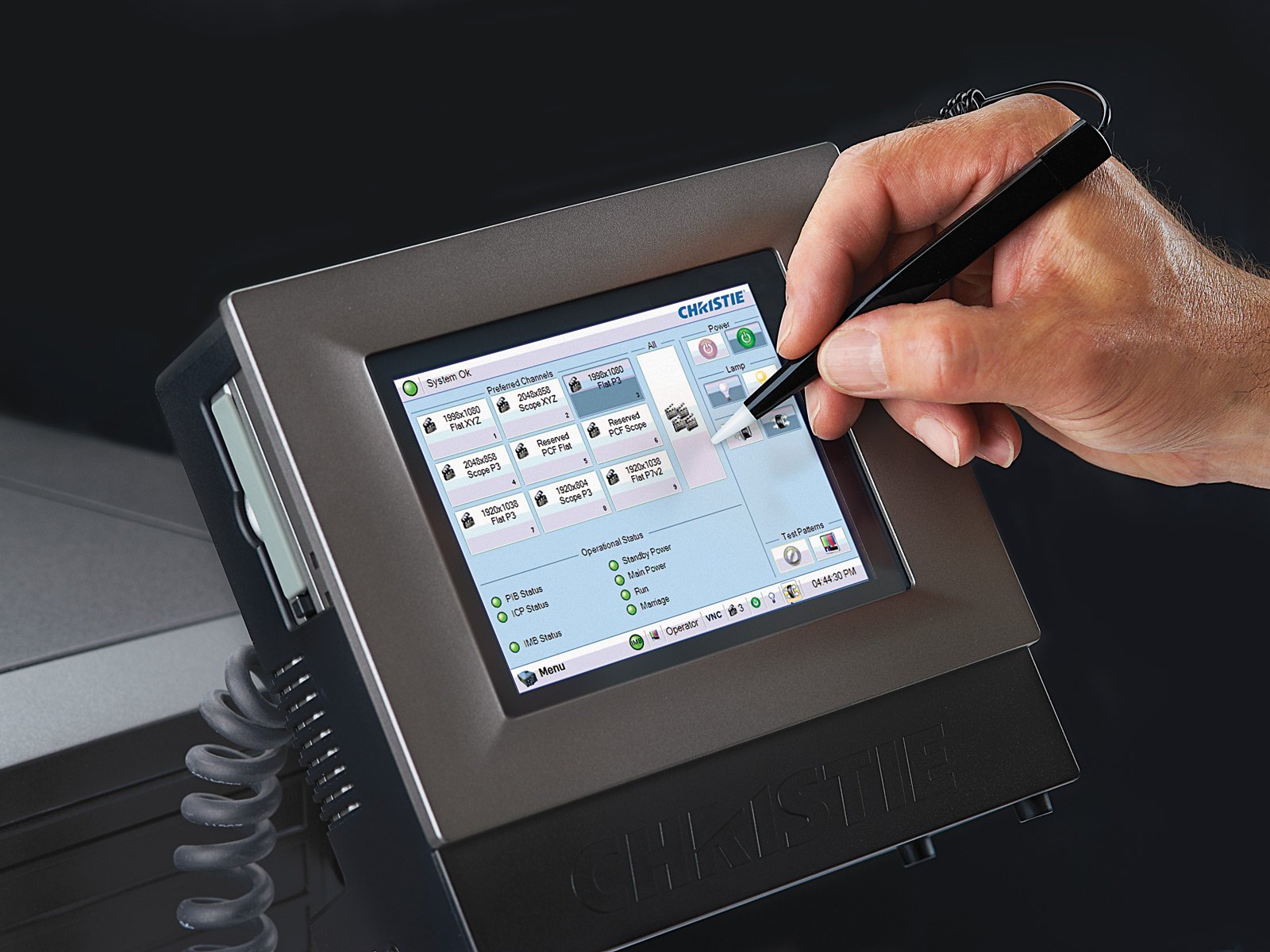

  • touch panel controller with intuitive Graphical User Interface (GUI)
  • HFR upgradable
  • uses commodity storage devices1
  • standard support for HDCP
  • MPEG2/H.264 support for advertising and alternative content
  • quick, easy, rear-access to the lamp
  • washable/reusable filters
  • backed by a single, dedicated technical support team

1 DCI compliant commodity storage systems available through your Christie sales representative.

Specifications

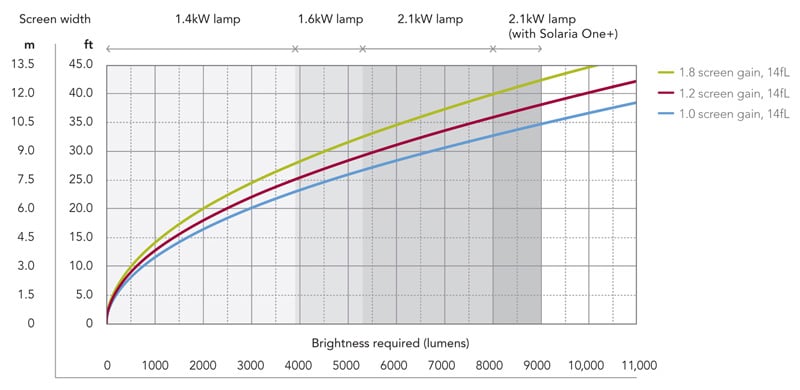

Brightness

  • Lamp
  • -2.1kW CDXL-21S1 (003-004258-XX)
  • -1.6kW CDXL-16M (003-003900-XX)
  • -1.4kW CDXL-14M (003-003066-XX)
  • Nominal
  • -9000 lumens within DCI color space
  • -10,000 lumens within native color space
  • Screen size
  • -<35 foot maximum screen size

Ballast

  • 2.3kW Ushio (700W-2.3kW)

Contrast ratio

  • >1900:1 full field on/off

Digital micromirror device

  • 0.69" S2K 3-chip DMD DLP Cinema
  • 2048x1080 pixels

Number of colors

  • 35.2 trillion

Lens mount configuration

  • Motorized X/Y adjustments
