Christie MicroTiles LED NTSC 1.5mm | LED Video Wall Solutions | Christie
Overview Specs Accessories Downloads Images
1.5mm model numbers
Color space Part number
NTSC 161-011103-01
P3 161-01800-01 | TAA-compliant

Unleash your creativity and design outside the box with Christie® MicroTiles® LED. The small, proprietary, cabinet-free Click-n-Go LED tiles can be arranged in near-limitless ways while the innovative ADA-compliant QuickMount​ system lets you build your display in virtually any shape or size. Take advantage of 90-degree corners both inside and out and concave and convex curves.

A powerful 40G system backbone and 24-bit color internal processing allow support for 4K@60Hz and true HDR10-1000 compliance, with up to 16-bit grayscale. This configuration ensures unmatched performance that meets your needs today and into the future.

The Christie Link E1000 video wall controller delivers a robust, flicker-free and uncompromised Active 3D experience to MicroTiles® LED. With advanced web UI for configuration/control, supporting up to 12-bit video sources, only one controller is required for a 4K wall that helps in reducing system costs & complexity. This high-end display application is designed to enhance visualization and collaborative design processes when combined with our MicroTiles LED models.

Christie MicroTiles LED HD video wall packages

Our Christie MicroTiles® LED packages include everything you need to integrate a seamless, stunning, HD-resolution video wall in your space.

Christie MicroTiles LED HD video wall package pdf

Spec your video wall with the LED designer

With just a few clicks, you can design a wall for your space, create a simple reference diagram and generate a bill of materials so you can order everything you need.

Use the LED designer now

Discover the truly limitless design freedom of MicroTiles LED with Shawn Mills

Discover the truly limitless design freedom of MicroTiles LED with Shawn Mills

Specifications

Pixel pitch

1.5mm

Pixel configuration

3-in-1 (1R1G1B)

Pixel density

444,444 pixels/sq m

Brightness (maximum calibrated)

1,500 nits (cd/sq m)

Aspect ratio

8:9

Contrast ratio (full field)

Greater than 5000:1 or 10000:1

* See remote power specifications for full details.
** Certain of the listed certifications may be pending and not yet issued. For the current status of the listed certifications, please contact an authorized
Christie representative.


Performance specifications are typical. Due to constant research, specifications are subject to change without notice.

Downloads

Images

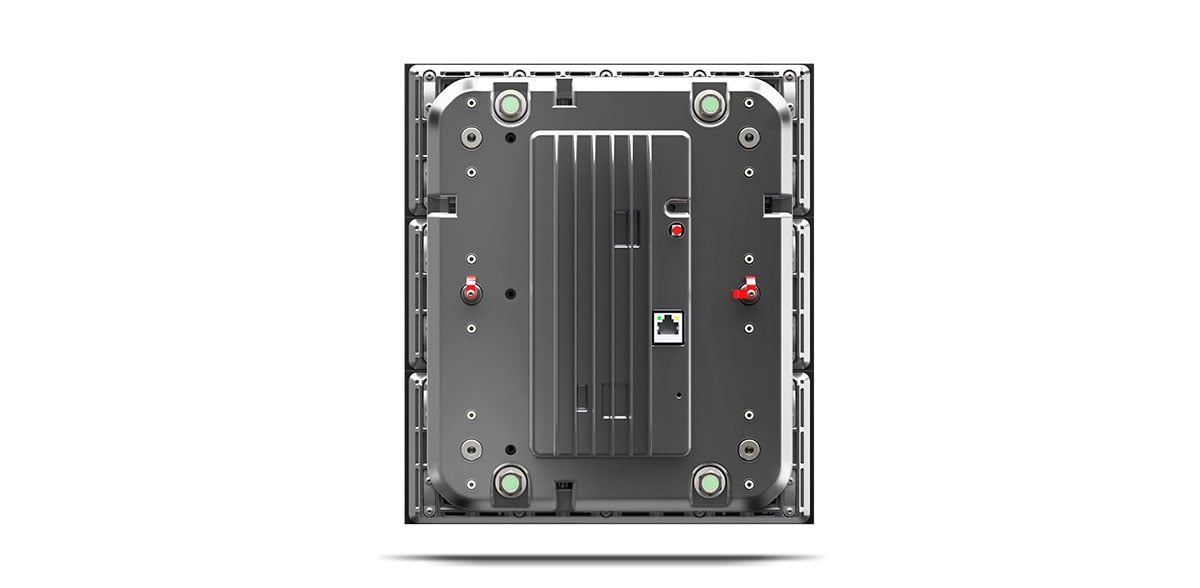

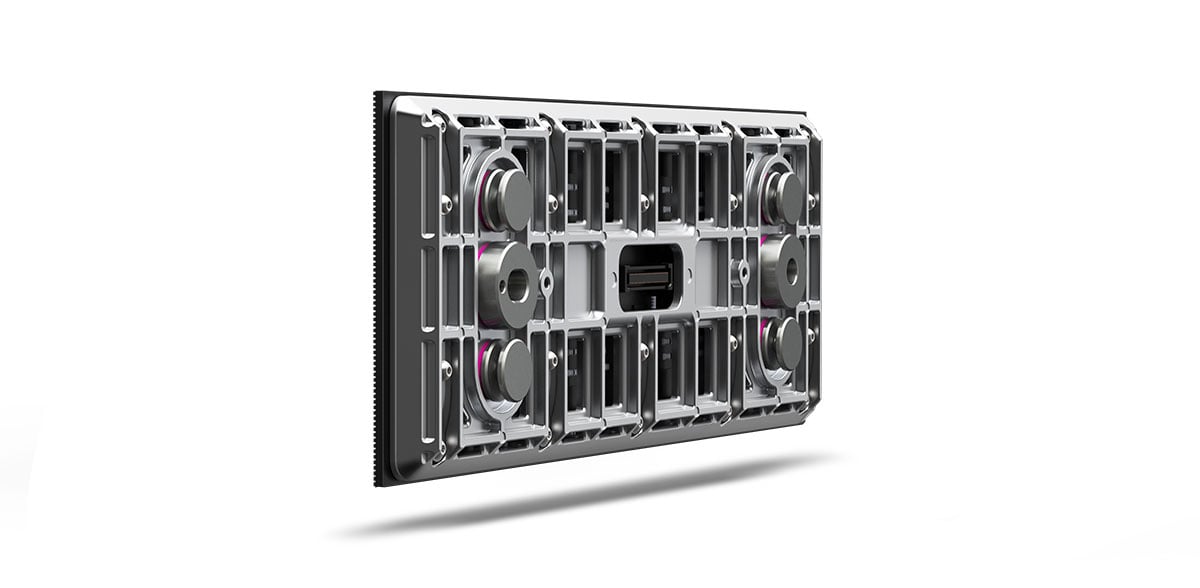

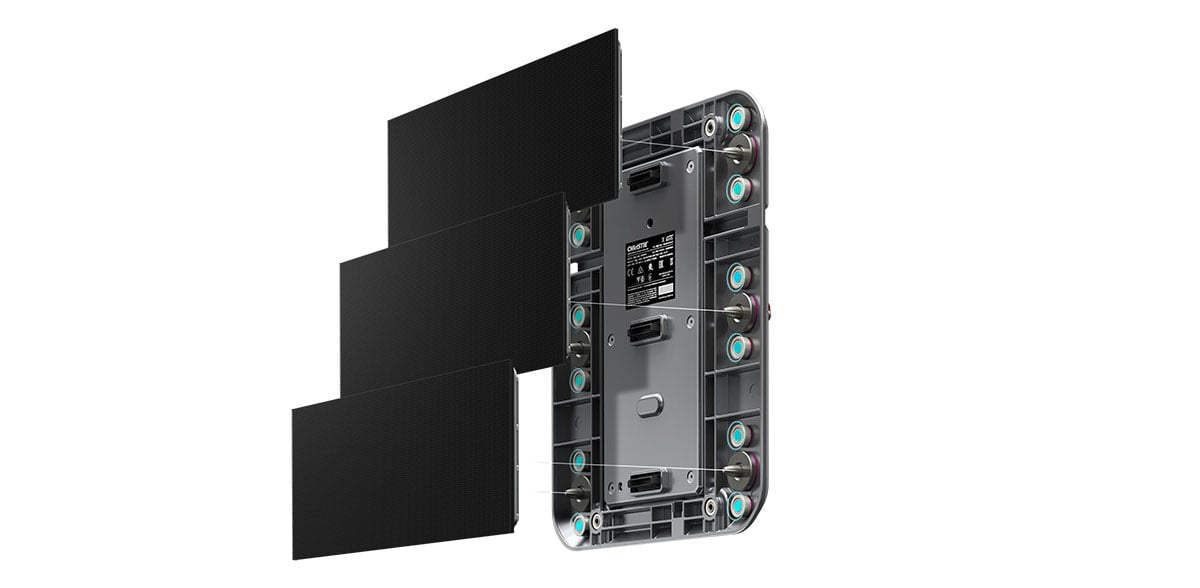

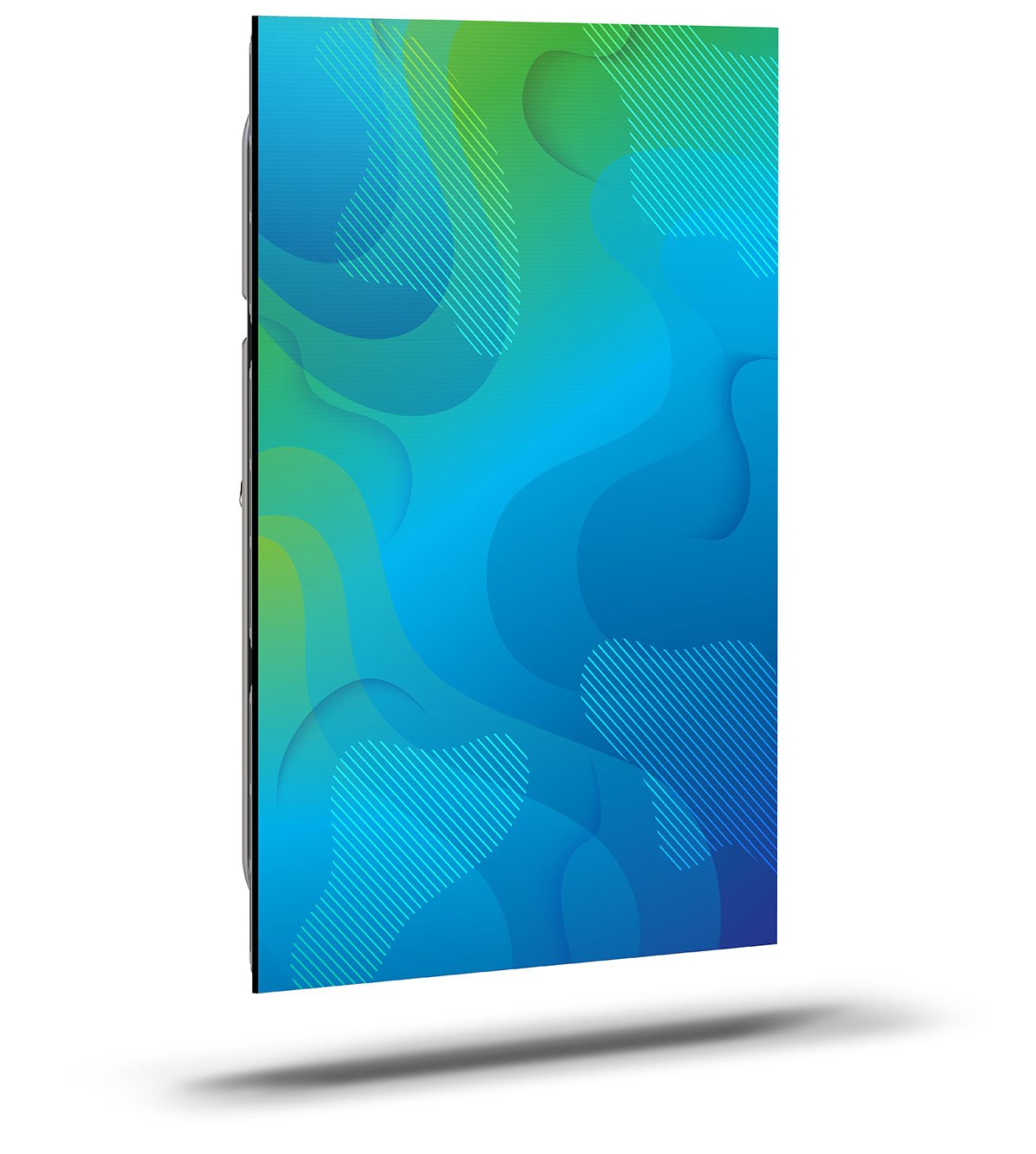

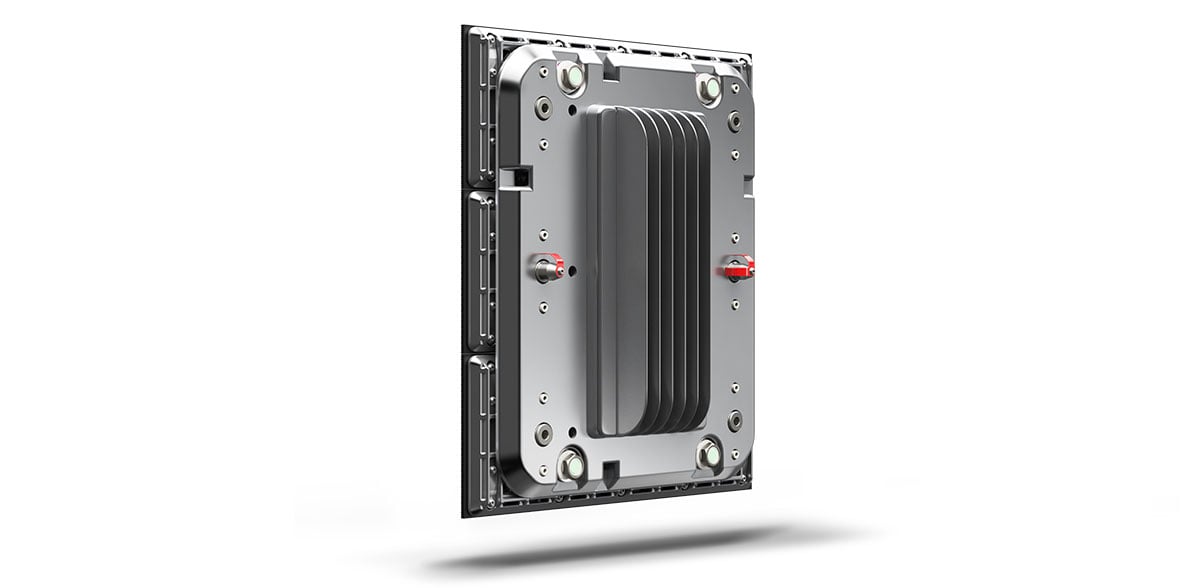

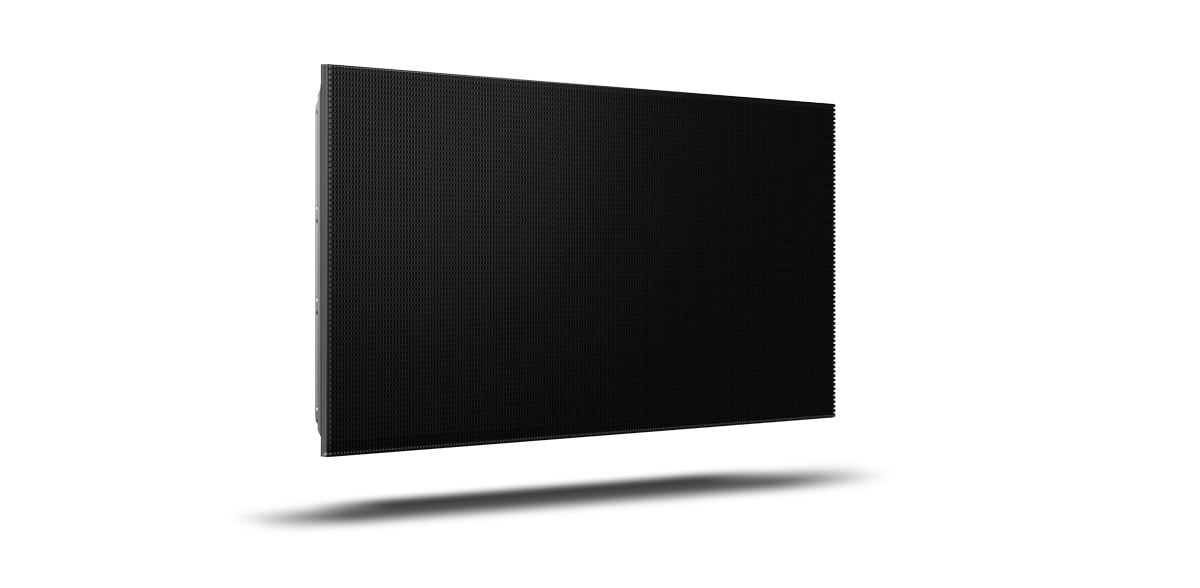

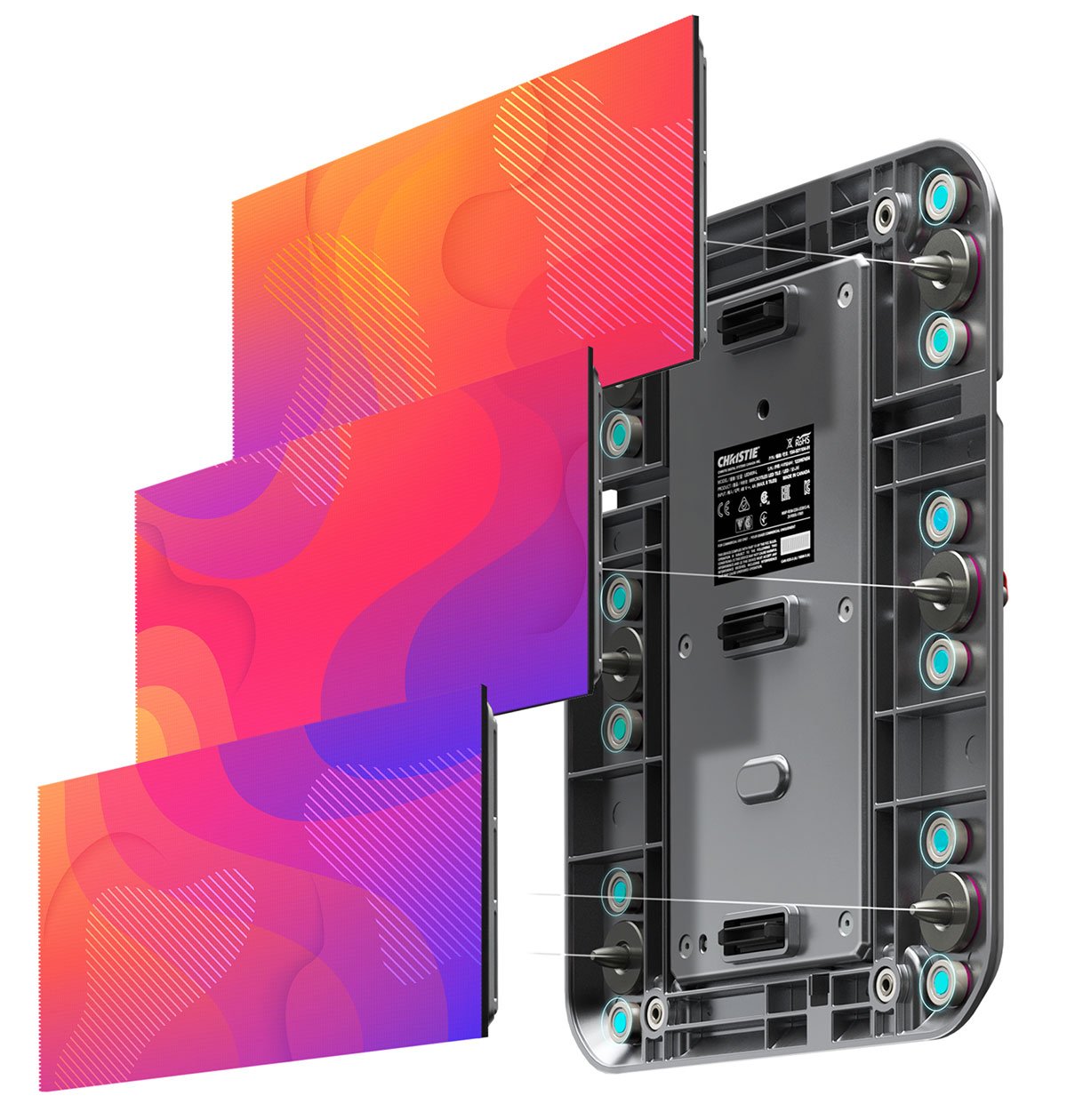

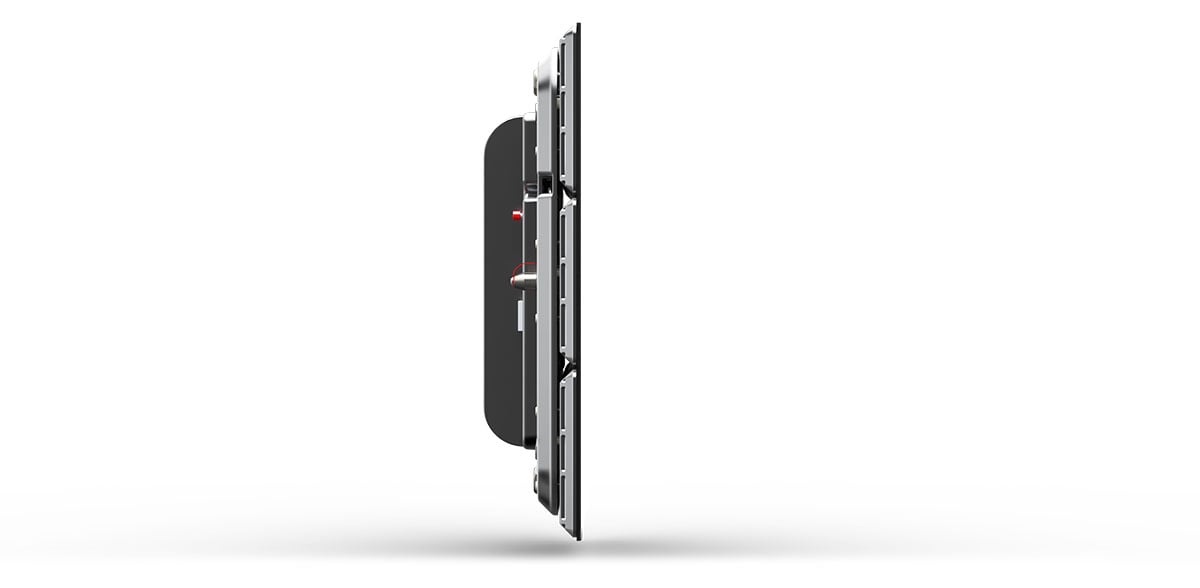

Christie MicroTiles LED 1.5mm (NTSC color) | 161-002104-XX
