Christie D4K2560 HFR 3DLP 4K Projector | Christie – Visual Solutions
Overview Specs Accessories Downloads Images

View Christie's current line of projectors.

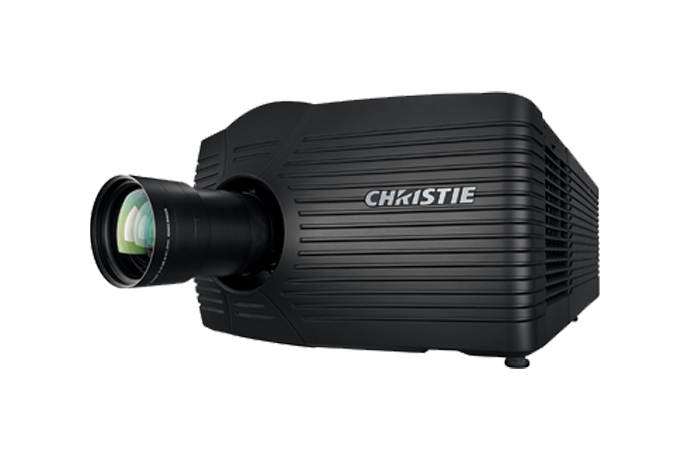

The Christie D4K2560 projector has native 4K (4096 x 2160) resolution and boasts 25,000 center lumens. It offers ultra-realistic images and smoother video at 60Hz, thanks to our new and unique Christie TruLife™ electronics – a quantum leap in video-image processing that is a breakthrough in high frame rate and high-resolution video projection.

With superior 3DLP performance and durability, this projector is ideal for large applications such as amusement parks, auditoriums, casinos, classrooms, museums, planetariums, theaters and virtual design centers.

With the Christie D4K2560 you get:

  • Four times the resolution of 2K
  • 3DLP technology for longer life and richer color
  • High frame rate 60Hz
  • High brightness
  • Flexible input options
  • Cleanable optical engine

You can choose different Christie D4K2560 lamp powers  to suit your application needs. The motorized lens mount, user-replaceable lamps and field-alignable DMDs ensure that set up is fast, and maintenance time and costs are reduced.

This projector is designed to help you put on a breathtaking show. Precise detail and vibrant life-like images will help capture attention and immerse audiences in your content.

The Christie D4K2560 is backed by Christie’s industry-leading warranties, service and support.

Specifications


  • 25,000 center lumens
  • 2000:1 contrast ratio

Brightness

  • - 25,000 center [22,500 ANSI] lumens - 3.0kW lamp CDXL-30SD
  • - 18,000 center [16,000 ANSI] lumens - 3.0kW lamp CDXL-30
  • - 10,000 center [9,000 ANSI] lumens - 2.0kW lamp CDXL-20

Display

  • 3DLP ​1.38” DMD
  • Native 4K (4096 x 2160)

Lamp

  • - Xenon bubble
  • - 3.0kW CDXL-30SD - 1,500 hours
  • - 3.0kW CDXL-30 - 2,500 hours
  • - 2.0kW CDXL-20 - 3,500 hours

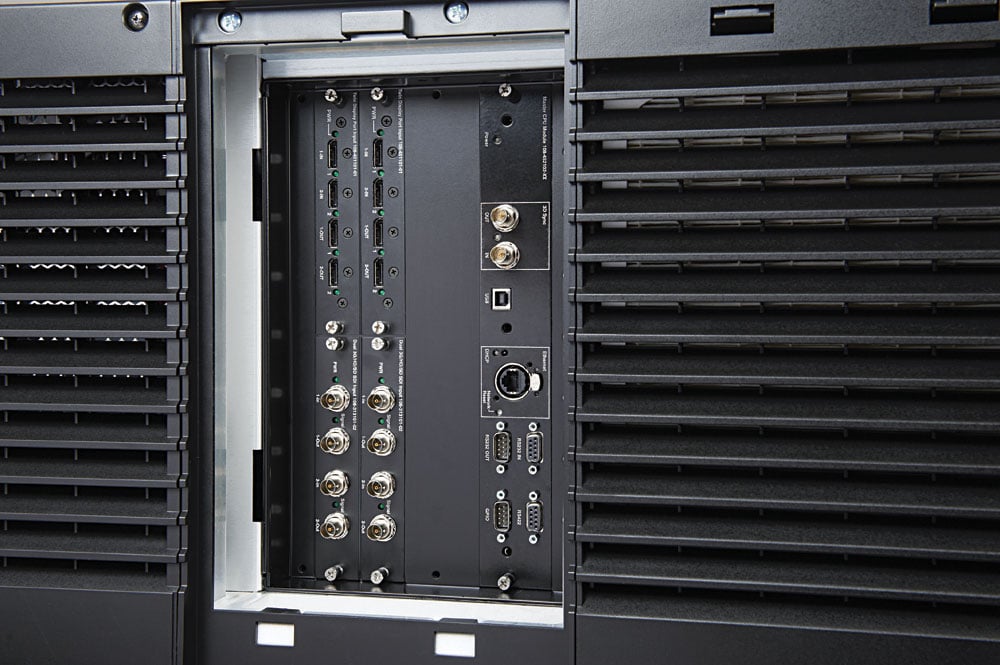

Signals

  • Standard
  • - 2x Dual 3G HD-SDI input card
  • - 2x Twin display port input card
  • Optional
  • - Dual link DVI input card
  • - Twin HDMI input card
  • Signal inputs
  • - Accepts 4K (4096x2160) and Quad HD (3840x2160)
  • 4 x DisplayPort 1.1a
  • - 4K/Quad HD - 24 to 60Hz 4:4:4 8-/10-bit
  • - 4K/Quad HD - 24 to 60Hz 4:2:2 8-/10-/12-bit
  • 2 x DisplayPort 1.1a
  • -4K/Quad HD - 24 to 60Hz 4:4:4 8-/10-bit
  • 4 x HD SDI
  • - 4K/Quad HD - 24 to 30Hz 4:4:4 12-bit (4 x 3G HD-SDI)
  • - 4K/Quad HD - 24 to 30Hz 4:2:2 12-bit (4 x 3G HD-SDI)
  • - 4K/Quad HD - 24 to 30Hz 4:2:2 10-bit (4 x HD-SDI)
  • - 4K/Quad HD - 50 to 60Hz 4:2:2 10-bit (4 x 3G HD-SDI)
  • 4 x DVI
  • - 4K/Quad HD - 24 to 60Hz RGB 8-bit
  • 2 x DVI (Dual Link)
  • - 4K/Quad HD - 24 to 60Hz RGB 8-bit
  • Signal outputs- loop-out
  • - Dual 3G HD-SDI input card, twin DisplayPort input card

Controls and networking

  • - RS-232
  • - Ethernet (10/100) RJ45 with ChristieNET™ connectivity

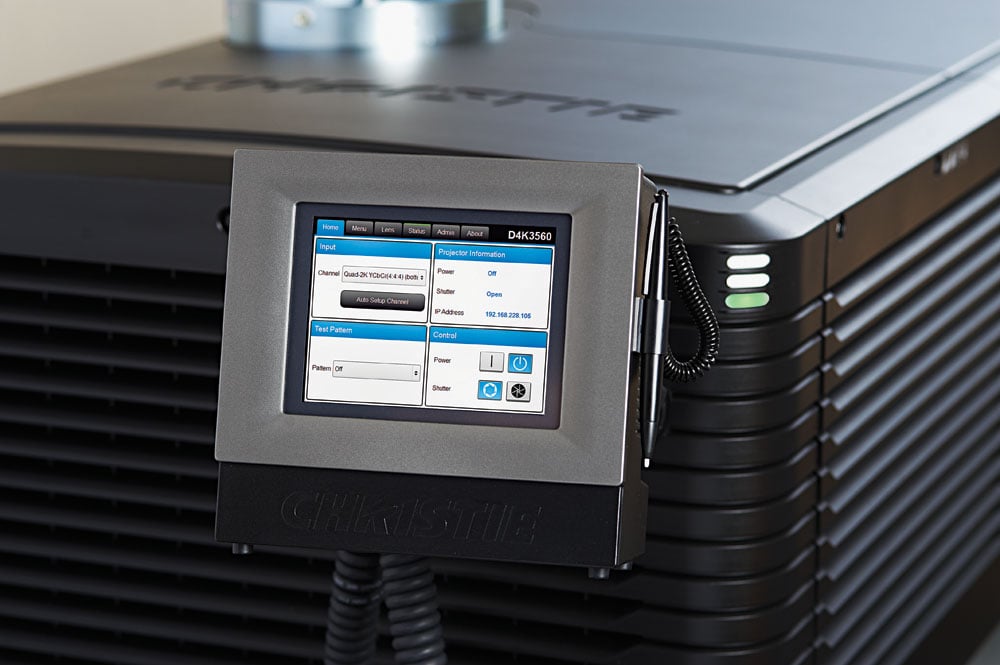

  • - Detachable LCD control module

Due to constant research, specifications and features are subject to change without notice.

1 User-replaceable bulb
2 Some features may not be functional on initial product shipments but will be enabled by software upgrade when available.

Downloads

Images

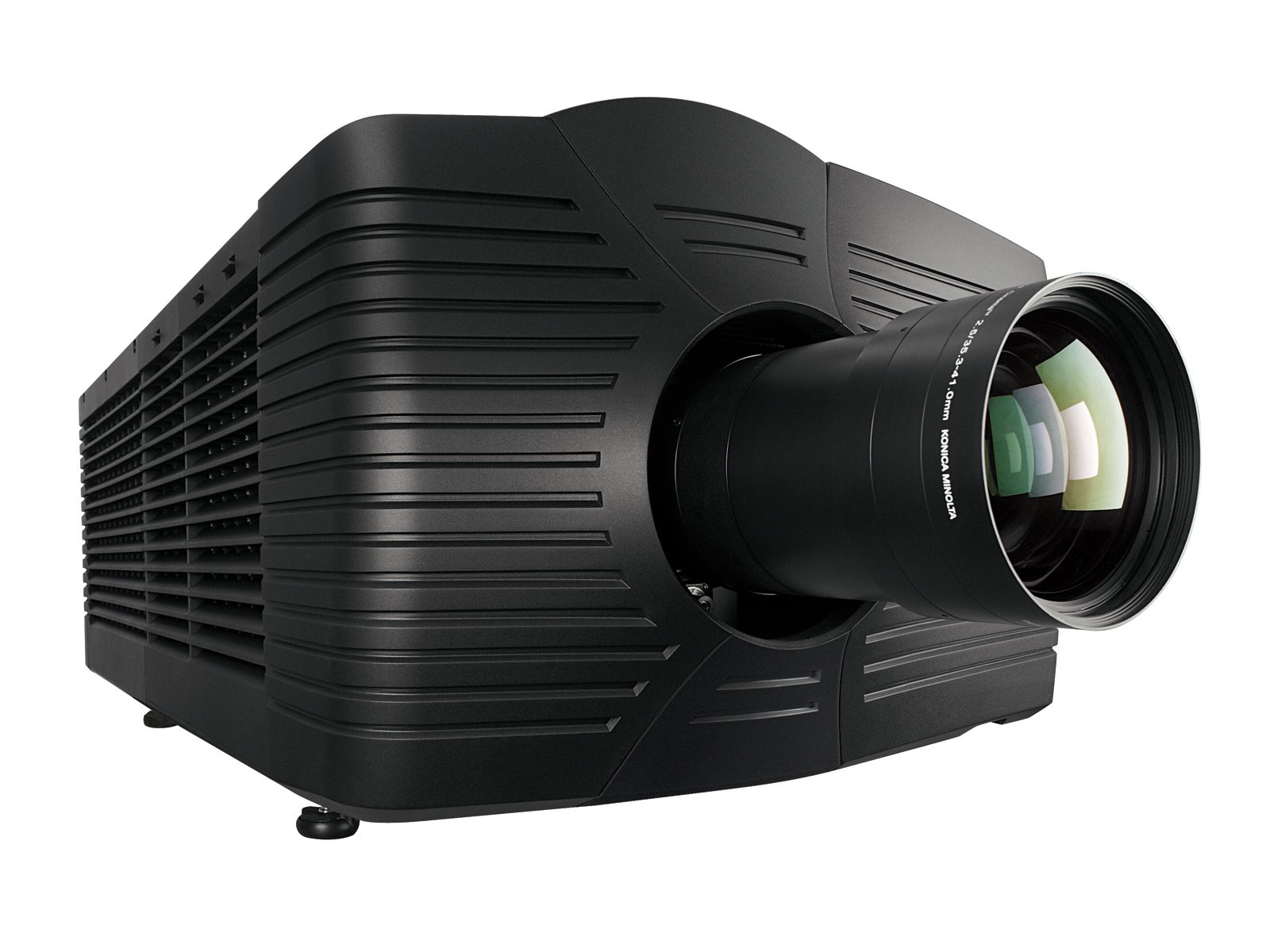

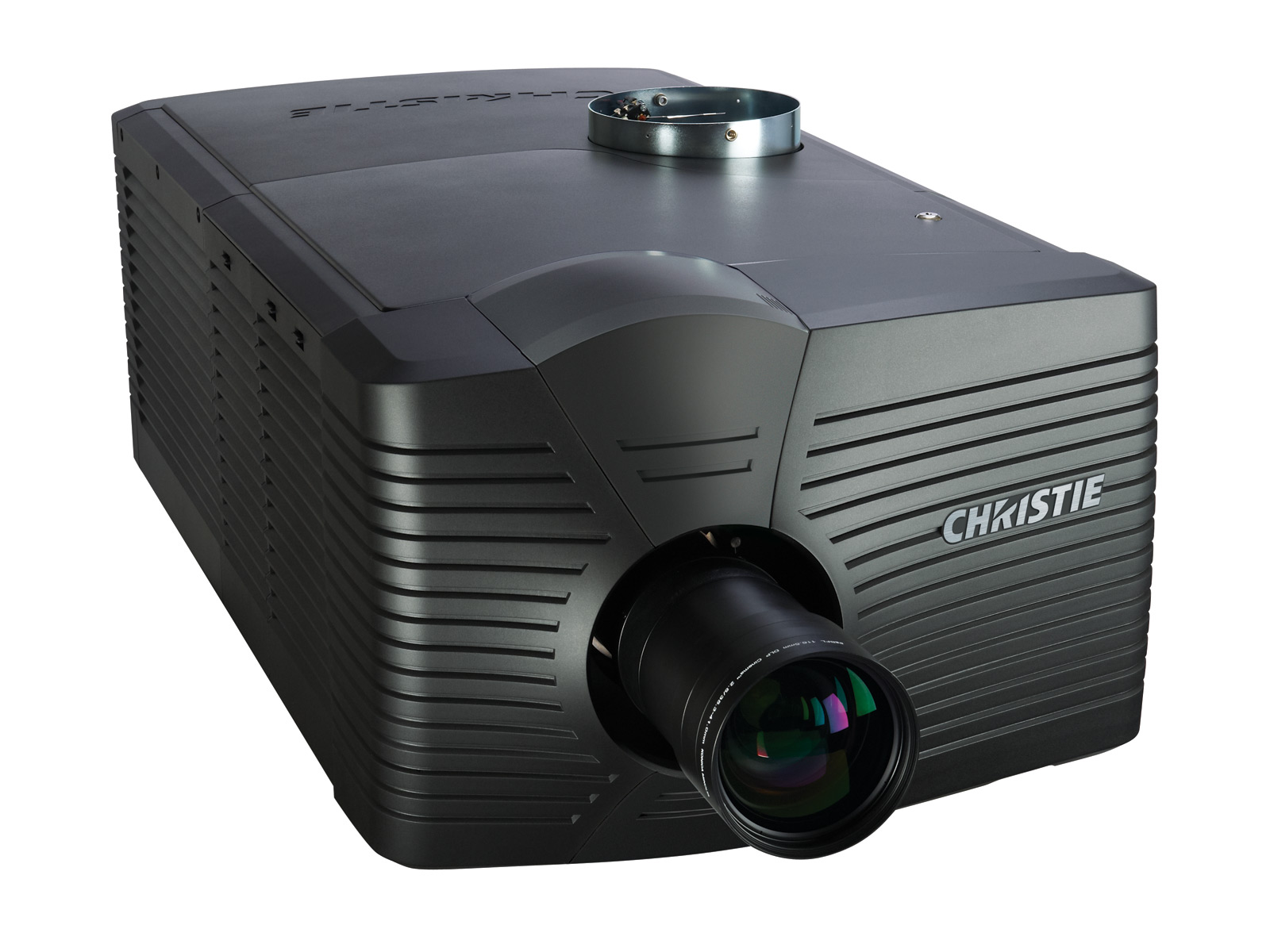

Christie D4K2560 high frame rate 3DLP 4K projector | 129-009100-XX

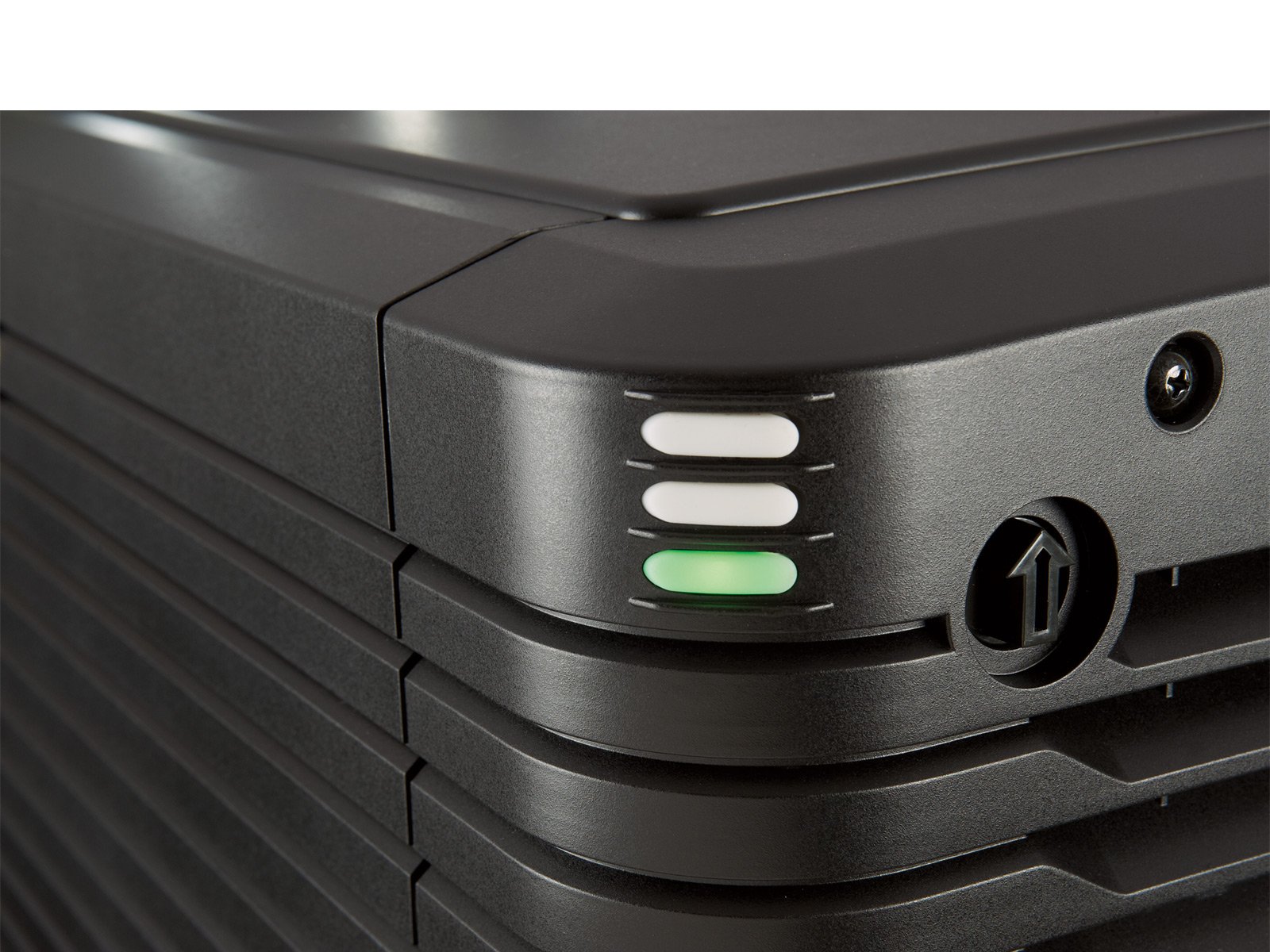

Christie D4K2560 high frame rate 3DLP 4K projector | 129-009100-XX

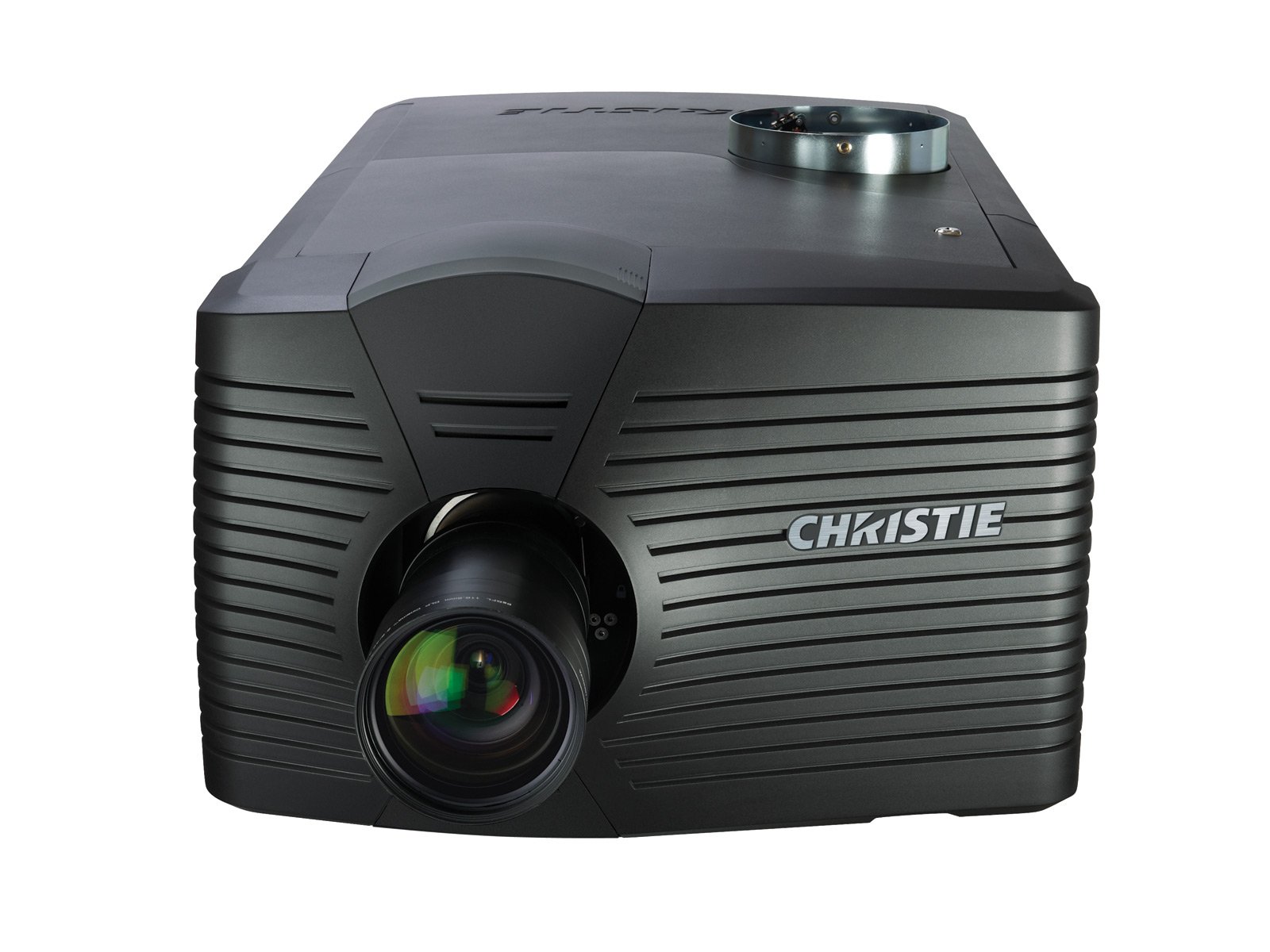

Christie D4K2560 high frame rate 3DLP 4K projector | 129-009100-XX

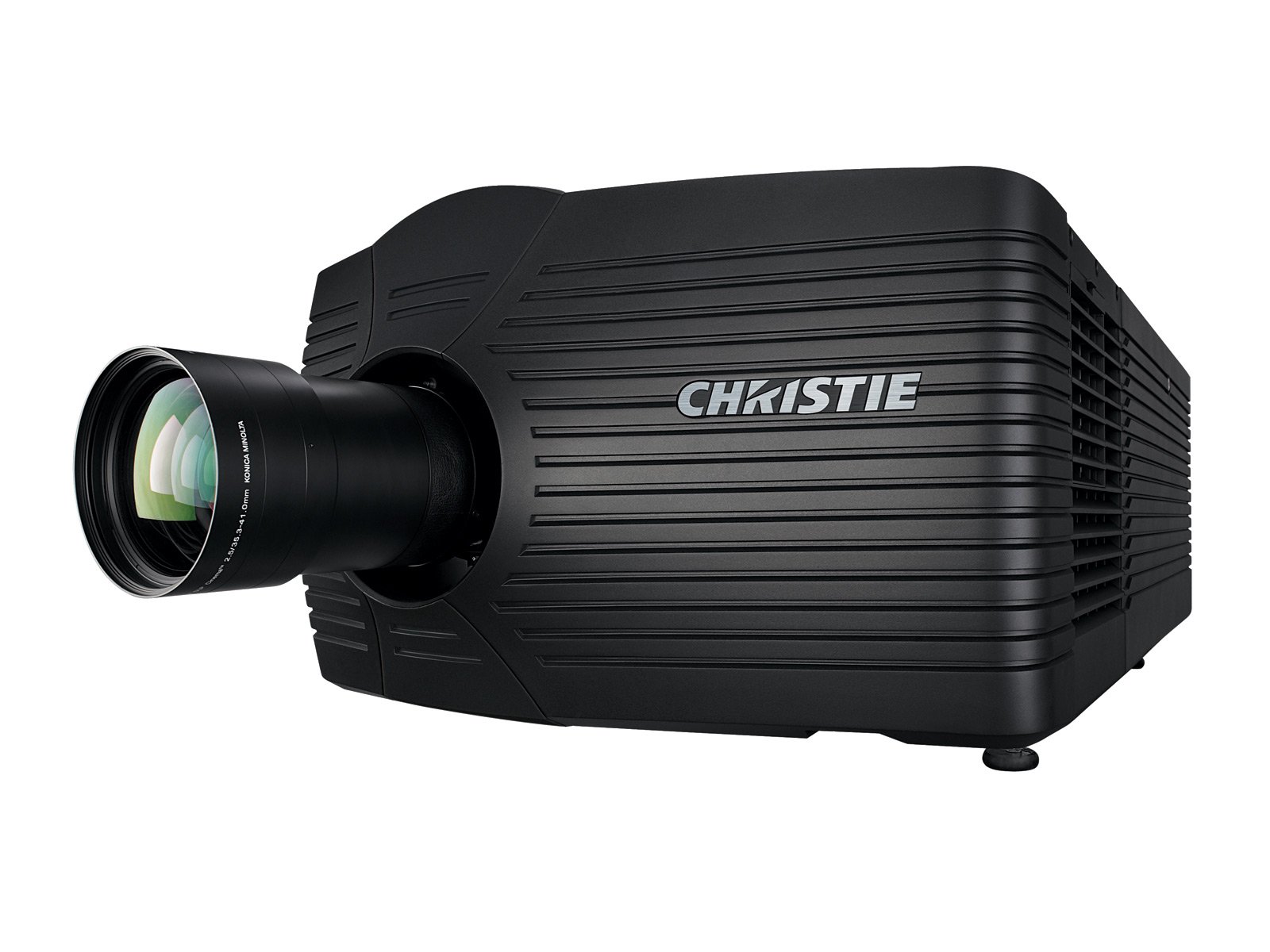

Christie D4K2560 high frame rate 3DLP 4K projector | 129-009100-XX

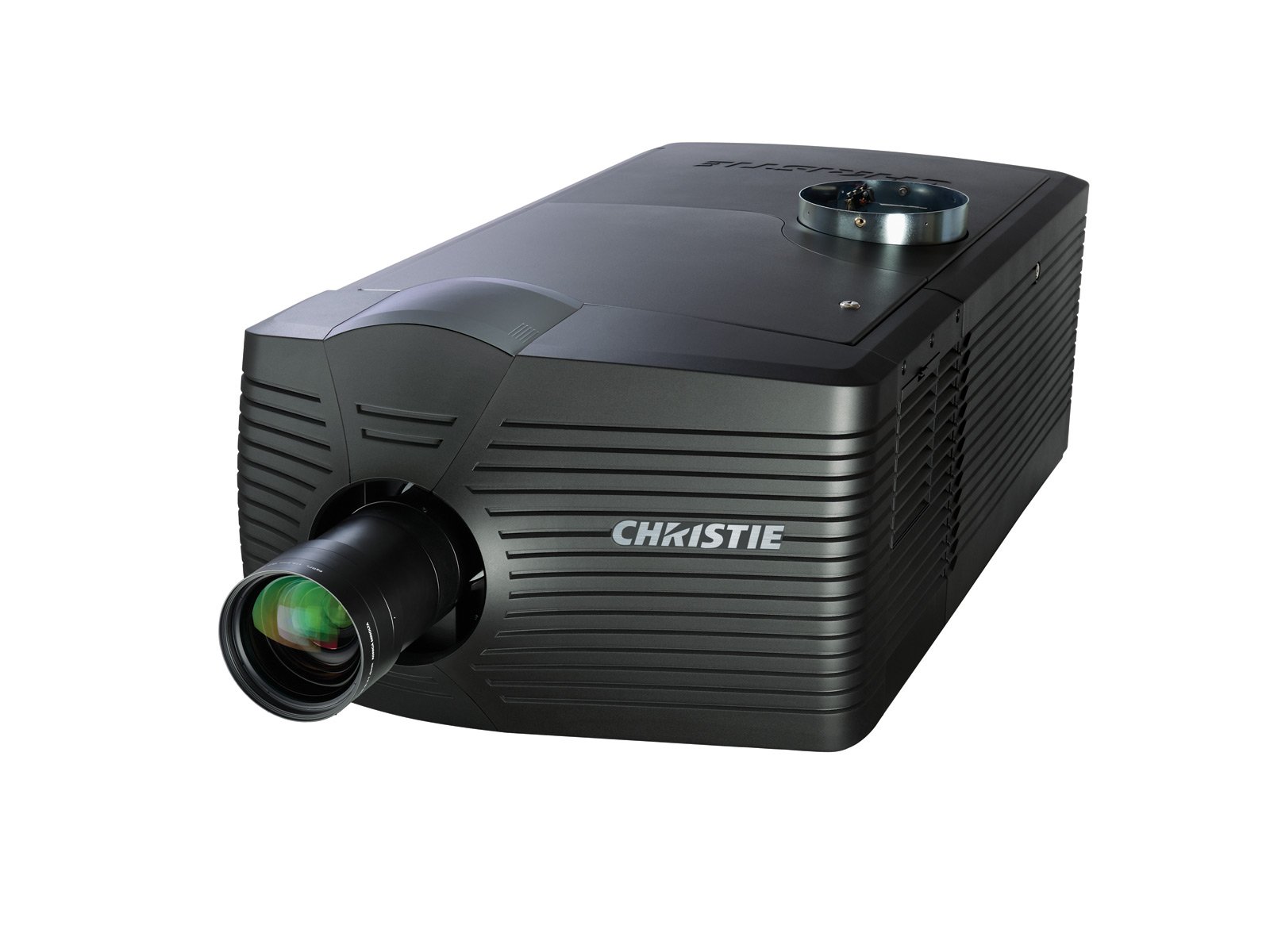

Christie D4K2560 high frame rate 3DLP 4K projector | 129-009100-XX
