Boxer 4K20 | Christie - Audio Visual Solutions
Overview Specs Accessories Downloads Images

View Christie's current line of projectors.

Christie® Boxer 4K20 is a 20,000 lumen, 4K resolution, 3DLP® projector built for life on the road. Rugged and efficient with intelligent design and feedback, Christie Boxer 4K20 future proofs your fleet with considerable brightness and a low cost of ownership. It’s compact and easy to travel with at only 160lbs.

Featuring four Mercury lamps the Christie Boxer 4K20 provides 1,500 hours of lamp-life to 70% initial brightness. With the added benefits of single-phase power to reduce set-up cost and complexity, built-in warping and blending, omnidirectional installation options, and the widest range of connectivity on the market the Boxer 4K20 is sure to meet all your AV expectations. And with Christie TruLife™ electronics, the Christie Boxer 4K20 joins the Boxer Series family in creating powerful and inspiring visual experiences.

Features

  • Native 4K resolution and processing for unmatched and uncompromised performance
  • 4K content maintains stunning color reproduction and image quality from input through to screen with Christie TruLife processing
  • Light stays on –multi-lamp design gives you confidence that you’ll  always have light on your screen
  • Stay at full brightness – lamps can be replaced quickly and easily
  • Installation freedom – omnidirectional deployment capabilities for projecting images in any position
  • Built-in warp and blend functionality with Christie Twist
  • Compatible with the Christie Mystique automated camera-based alignment software solution
  • ​Supports Christie Guardian invisible, real-time automatic blended-image correction even when content is playing
  • ​Flexible 4K  – high bandwidth multi-input card (HBMIC) ​provides versatile 4K connectivity, with preview capability and fast syncing or switching between inputs as well as  direct fiber input, when used with a Christie Link transmitter

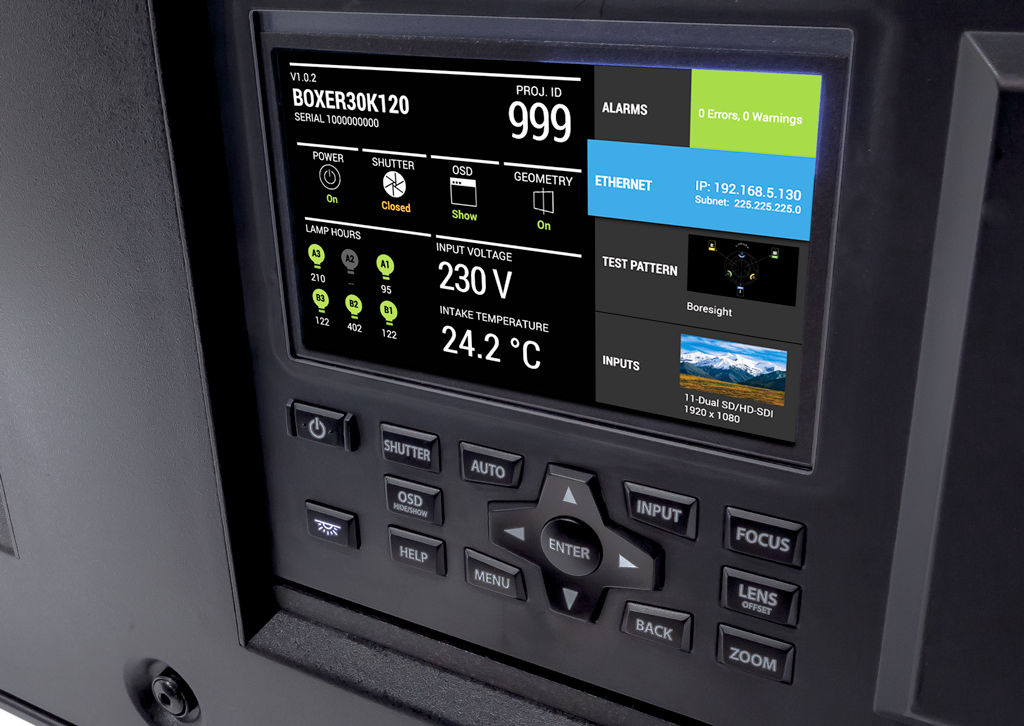

  • Easy to manage – preview screen for at-a-glance status updates and integrated near field communication (NFC) for lamp information tracking even without AC applied
  • Simple to ship and handle – weighs only 160lbs
  • Full bandwidth point-to-point fiber capabilities supporting up to 40 Gbit/s on a single cable with Christie Link. Link packages available with the following products:
    • ​ QSP+ Fiber Optic Module (2 pack)
    • High bandwidth multi-input card (HBMIC)
    • Rack mounting shelf
    • Ter​​ra SDVoE input board​ for direct interfacing of up to 4K AV content and control over 10G Ethernet for highly flexible, scalable and efficient AV system integration.

Contact your Christie sales representative for more information. Christie partners, see details on your partner portal.

​​We’re here to support your investment

Backed by Christie's industry-leading warranties, service and support, you can feel confident investing in the Christie Boxer 4K20. If you have any questions, or if you’d like to speak to a Christie sales representative, please contact us.​​​

Specifications

Brightness

  • - 19,500 ANSI (typical)
  • - 20,000 center
  • - 22,000 ISO

Contrast

  • 2000:1

Display

  • 3DLP 1.38" DMD

Resolution

  • 4K (4096 x 2160)

Illumination

  • 4 x 450W NSH

Lamp life

  • 1500 hours to 70% initial brightness

Accessories

-

Accessories

Lamp Module Boxer

003-104599-XX
+

Fiber solutions

+

Frames

+

Lenses

+

Lenses: high brightness

+

Optional interface modules

+

Software

Downloads

-

Brochures

Christie Boxer 4K20 & 4K30 Specsheet - English

Aug 16, 2017 | PDF: 88 KB

This PDF product brochure outlines key features, specifications and uses. Please refer to the information presented on the Christie website, or speak to your Christie representative, for the confirmation of installation-critical specifications and features.

Christie Boxer 4K20 and 4K30 Specsheet

Apr 24, 2017 | PDF: 49 KB

​This document outlines the detailed specifications for the Christie Boxer 4K20 and 4K30 projectors.

Christie Boxer 4K SpecSheet

Apr 19, 2017 | PDF: 49 KB

​​This document outlines the detailed specifications for the Christie Boxer 4K20 and 4K30 projectors.​

Christie Boxer Series Brochure

Jan 27, 2015 | PDF: 2.4 MB

​This document outlines the specifications and key features of the Christie Boxer Series digital projectors.
+

Installation information

+

Instruction sheets

+

Software downloads

+

Technical bulletins

+

Technical reference

+

Throw distance information

+

User manuals

Images

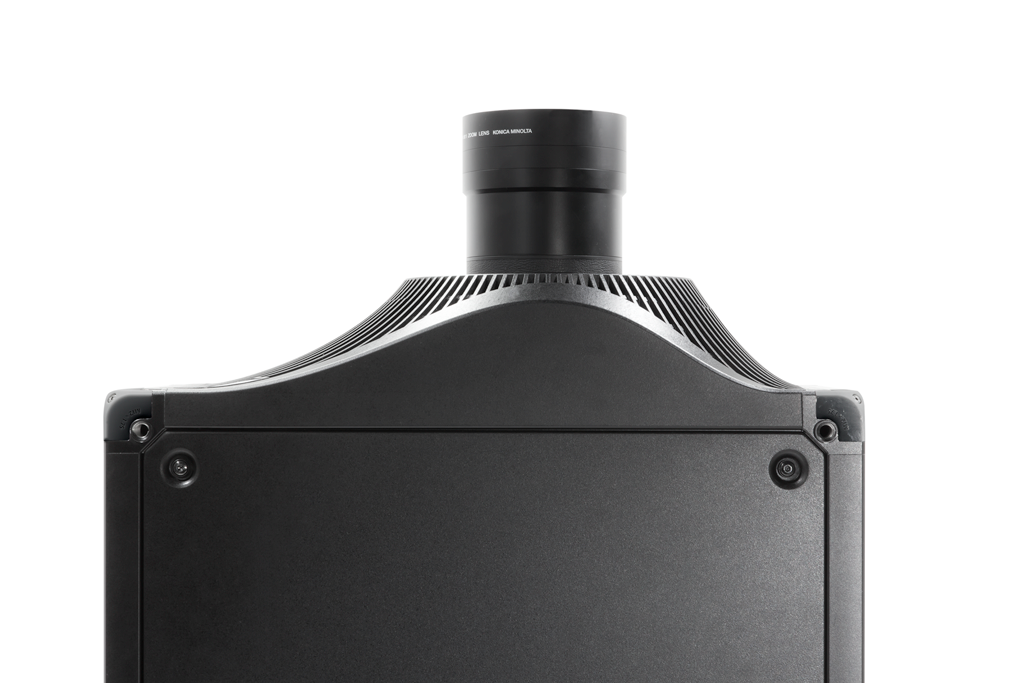

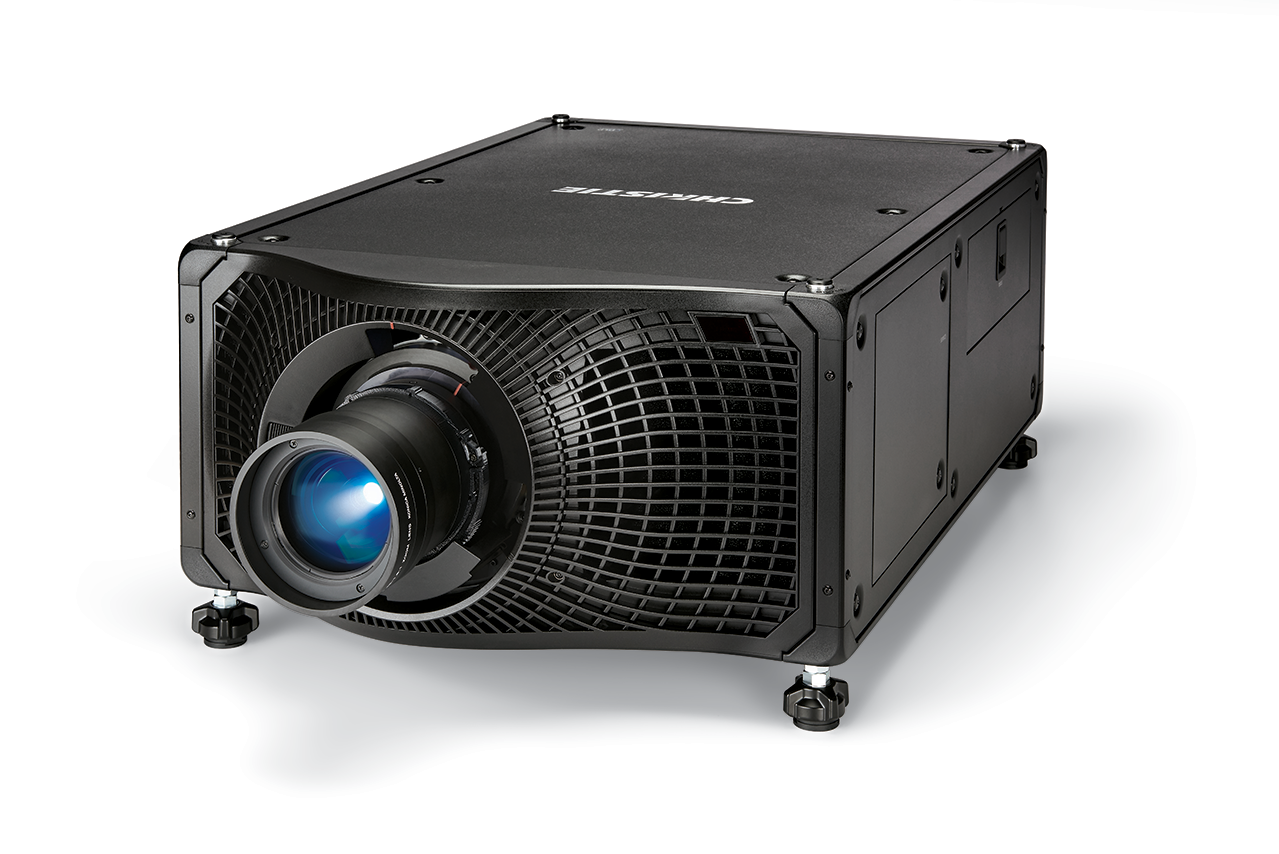

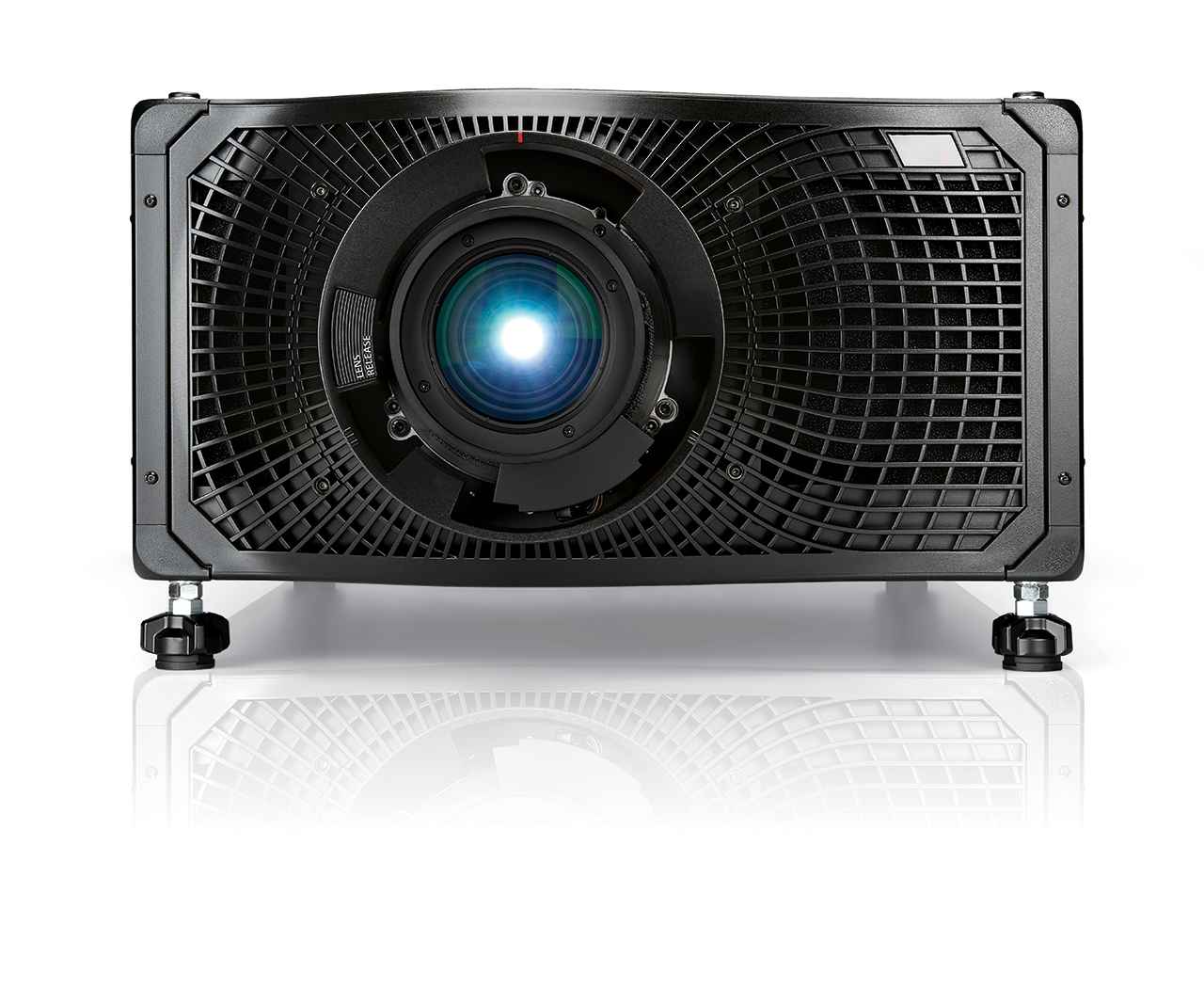

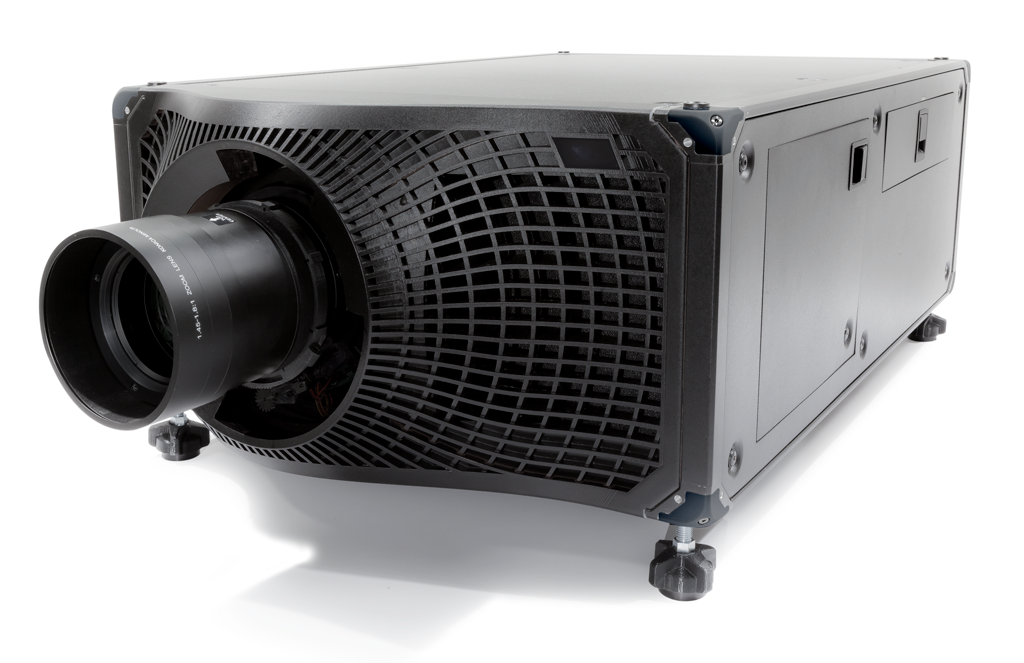

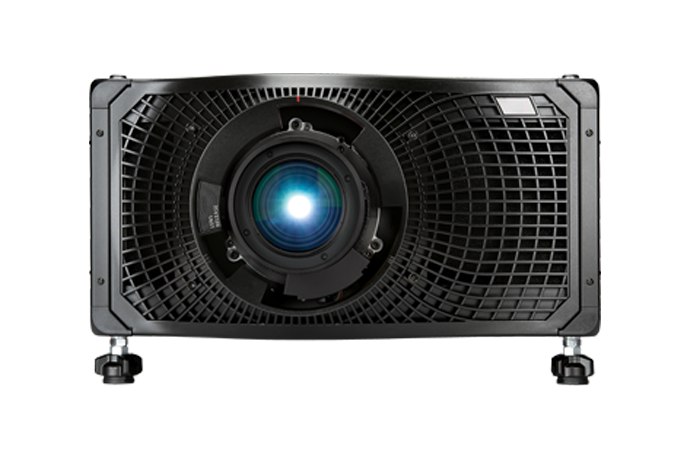

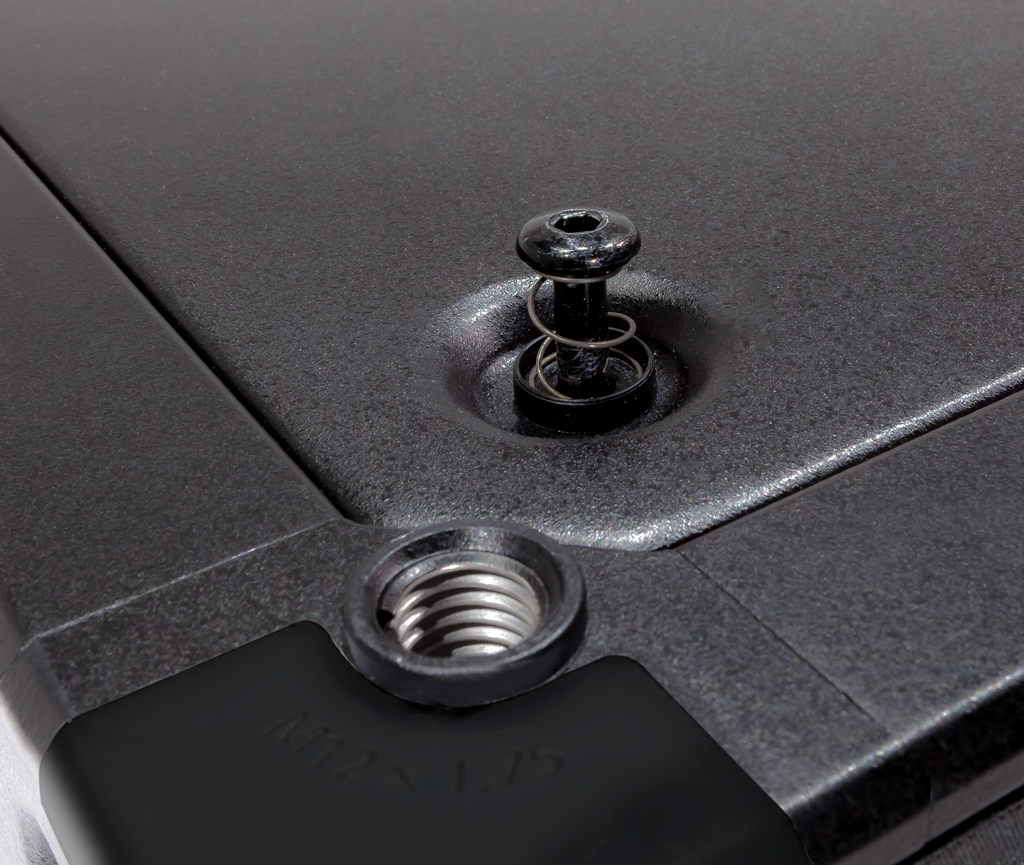

Christie Boxer 4K20 | 144-011103-XX
Christie Boxer 4K20 | 144-011103-XX
Christie Boxer 4K20 | 144-011103-XX
Christie Boxer 4K20 | 144-011103-XX
Christie Boxer 4K20 | 144-011103-XX
Christie Boxer 4K20 | 144-011103-XX
Christie Boxer 4K20 | 144-011103-XX
Christie Boxer 4K20 | 144-011103-XX
