Christie DHD599-GS | Christie - Audio Visual Solutions

View Christie's current line of projectors.

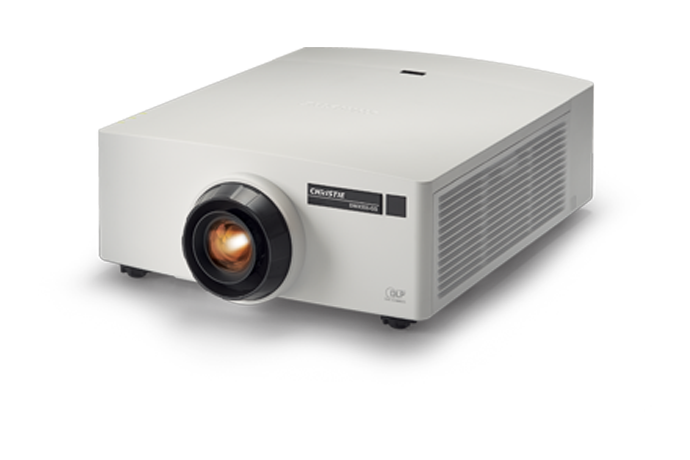

Featuring laser illumination, the Christie DHD599-GS 1DLP^® projector eliminates the need for lamp and filter replacements, providing 20,000 hours of low-cost operation. With its small footprint, low-weight, quiet operation and a full suite of lenses, the Christie DHD599-GS is ideal for boardrooms, higher education, houses of worship and smaller location-based entertainment venues.

Features

Laser illumination and 1DLP technology for excellent image quality and reliability
20,000 hours of low-cost operation
Built-in color matching for a more uniform image in a multiple projector configuration
Features precise software color adjustments for hue, saturation and gain. Adjust the hue of each primary color component (red, green, blue and white) for perfecting images on an individual projector or for matching colors across multiple adjacent displays
Blending and warping capabilities for curved surfaces using the optional Dual processor warp module
24/7 operation
Standard HDBaseT input
Optional wireless module for device flexibility and easy presentation set up
DICOM simulation mode for training purposes

Specifications

Brightness

- 5625 ISO lumens (typical)
- 5000 Center lumens (typical)
- 5400 ANSI lumens (typical)

Contrast

1,500,000:1 Full On/Off (Christie RealBlack enabled): 300,000:1, Dynamic Contrast: 6000:1, Full On/Off (Christie RealBlack disabled): 1200:1, ANSI: 250:1 ANSI (nominal)

Display

1DLP 0.65" DMD

Resolution

1920 x 1080 (16:9)

Illumination

Solid State (Laser Phosphor)

Illumination Life

20,000 hrs

Inputs

- HDMI x 1
- DVI-D x 1 (digital only)
- DisplayPort x 1
- VGA x 1
- Composite video x 1 (RCA)
- S-Video x 1 (mini DIN)
- Component video (Y/Pb/Pr)
- USB x 1 (type B mini) - display over USB
- USB x 1 (type A) - image viewer or WiFi dongle (optional)
- RJ45 x 1 (ChristiePresenter over wired network connection)
- HDBaseT x 1

Signals

HDTV formats VGA through to WUXGA (1920 x 1200)

Pixel clock

162 MHz

Scan rates

Horizontal 15 kHz to 100 kHz
Vertical: 24 Hz to 85 Hz

Monitor out

VGA x 1

Networking

- RS-232 in
- Ethernet (10/100) RJ45 with ChristieNET connectivity
- Built-in backlit keypad
- Compatible with Crestron Connected, AMX Discovery

Standard accessories

- IR remote w/ wired remote jack (wire not included)
- AC line cord for projector head
- User manual

Optional accessories

- 1DWUSB-BGN (wireless dongle for video and control) (133-113106-XX)
- Warp module (133-111104-XX)
- Cable cover (140-106108-XX white | 140-106119-XX black)
- Ceiling mount (108-506102-XX)
- Portrait side cover (140-108100-XX white | 140-108111-XX black)
- Christie One Mount (108-506102-XX)
- One Mount Extender Rod (121-125109-XX)
- One Mount Rigging Kit (used with One Mount, One Mount Plus and/or One Mount Extender Rod) (121-126100-XX)

Lens mount

- Tool-free lens insertion system
- Boresight adjustable
- Motorized horizontal and vertical lens offset
- Motorized zoom and focus adjustment

Lenses

- 0.75-0.95: 1 zoom lens G (140-119102-XX)
- 0.95-1.22 :1 zoom lens G (140-101103-XX)
- 1.22-1.52: 1 zoom lens HP G/GS (140-131106-XX)
- 1.22-1.53: 1 zoom lens standard G/GS except 700/850-GS (140-100102-XX)
- 1.22-1.53: 1 zoom lens standard G/GS except 700/850-GS (140-132107-XX)
- 1.52-2.89:1 zoom lens G (140-102104-XX)
- 2.90-5.50: 1 zoom lens G/GS (140-107109-XX)

Offsets

+/-60% vertical
+/-15% horizontal

Power

- voltage: 100-240VAC @ 50/60 Hz
- consumption: 550W max, 280W eco mode
- current: 6.0A max

Dissipation

1774 BTU/hr max, Full power mode: 1875.5 BTU/hr +/-15%ECO mode: 954.8 BTU/hr +/-15%

Audible noise

Standard Mode: 38dB(A), Eco Mode: 34dB(A)

Dimensions (LxWxH)

physical: 19.9 x 17.95 x 7.5 (505 x 456 x 190mm) w/o feet
shipping: 24.6 x 23.5 x 13.4 (626 x 596 x 341mm)

Weight

physical: 36.0 lbs (16.5 kg)
shipping: 49.2 lbs (22.3 kg)

Operating environment

temperature: 5 to 40°C (40 to 104°F)
humidity: 10-85% non-condensing

Regulatory

- UL/CSA/IEC 60950-1
- FCC Class A, FDA, CE, CCC, KC, EAC, PSE, C-tick, EAC, SABS, BIS, VCCI, RCM and South Africa
- This product conforms to all relevant European directives, standards, safety, health and environmental concerns
- RoHS, REACH, WEEE

Limited warranty

- 3 years parts and labor on the projector
- 3 years or 15,000 hours parts and labor on the illumination system*
- Contact an authorized Christie representative for full details of our limited warranty
*Please reference the Christie Standard Limited Warranty document for details
