Christie® Entero® HB is an evolution in performance, reliability and confidence for control room video walls.

Performance – Leading the progression to higher brightness LED displays, Christie has developed Christie Entero HB – the newest generation of high-performance, high-brightness display wall cubes. With the most advanced LED display system design and Christie’s quality, service and support, Christie Entero HB offers high brightness, 24/7 performance, reliability, with a low total cost of ownership and operation.

Control – The Christie Entero HB Series is the first, and only, LED control room display to offer wireless control through Wi-Fi® capability. You can make adjustments, control the wall or perform diagnostic monitoring through an iPad® or other similar wireless device. It’s that simple.

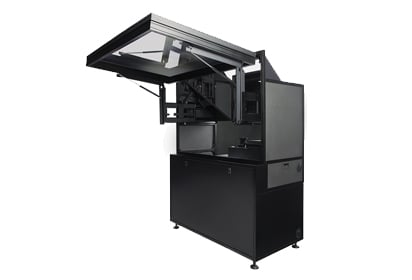

Flexibility – The Christie Entero HB 70” HD front access video wall cube further expands the Entero HB Series of control room display cubes, offering installation flexibility with front-access and a smart airflow design for placement directly against walls, along with resolution and display formats to meet specific room or space requirements. The Christie Entero HB 70” HD front access video wall cube is an excellent option for installations that need true HD LED display cubes in a 70” 16:9 form factor.

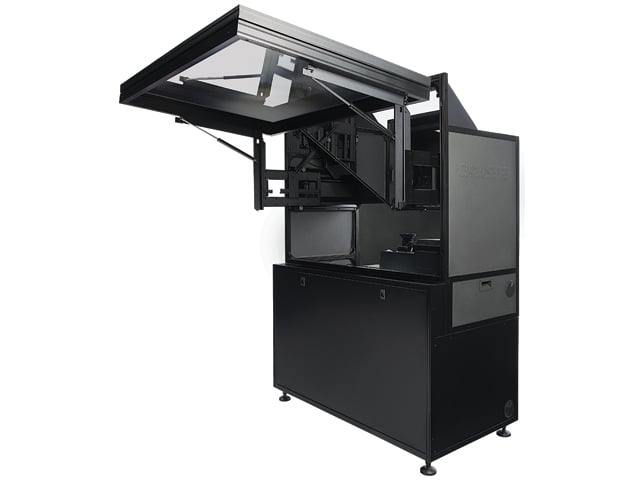

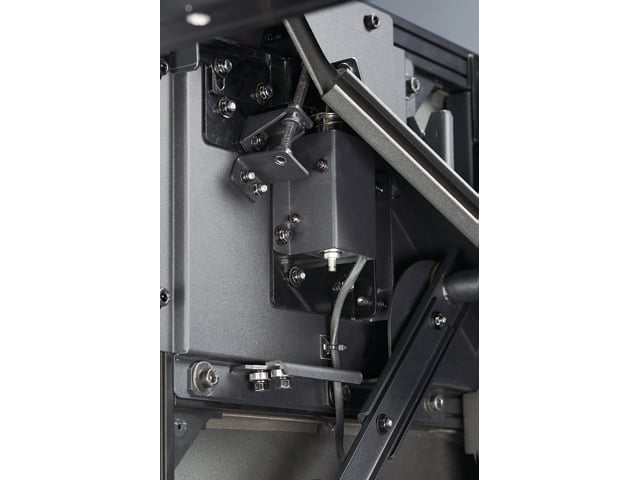

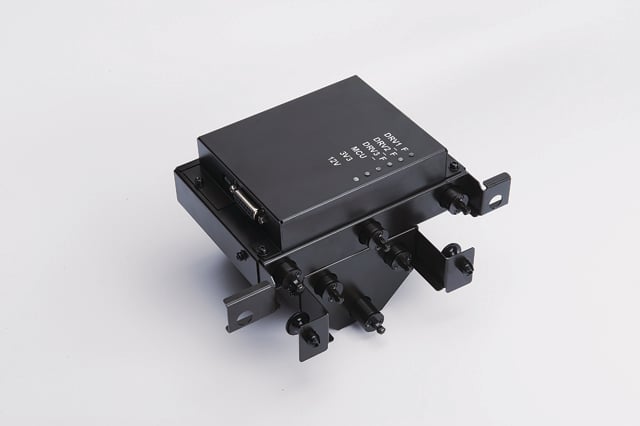

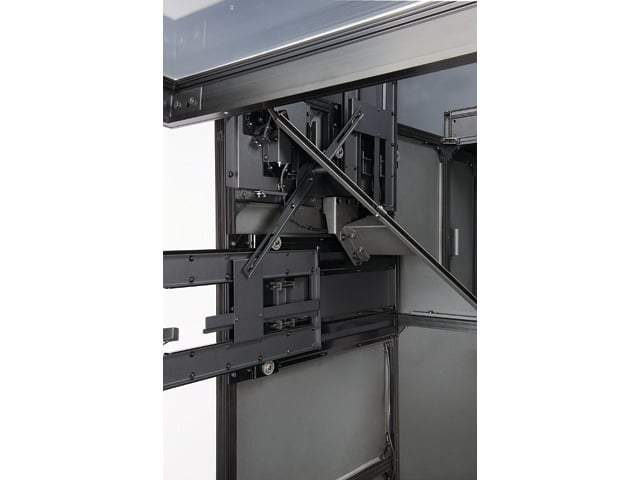

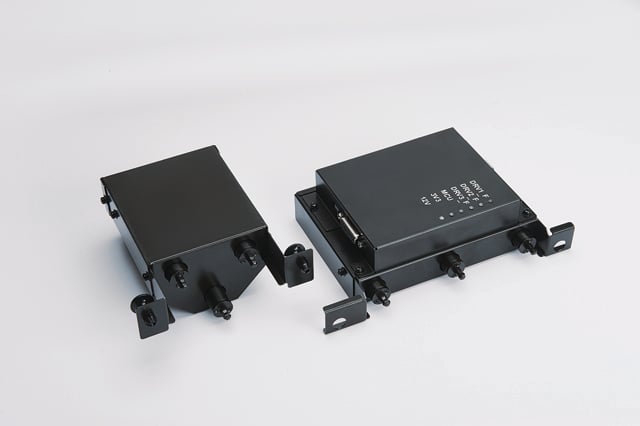

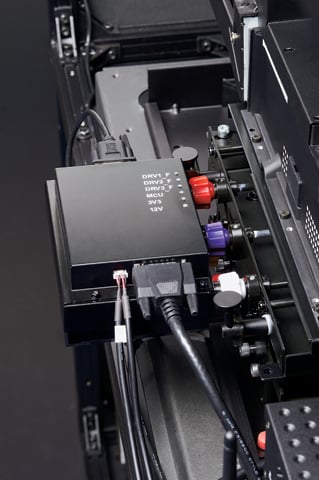

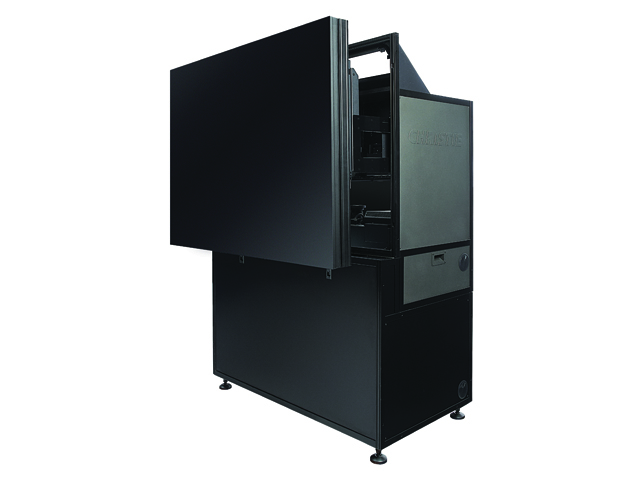

Maintenance – Designed for zero-maintenance, the Christie Entero HB series is solid-state, has no consumables and no scheduled maintenance for at least 5 years. The front access design provides a remote control release-and-lift system for the screen and a motorized, 6-axis adjustment system for easy access, no matter where the cube is placed within a video wall.

The Christie Entero HB offers unparalleled 24/7 performance and years of worry-free operation. Plus, with simple, intuitive hardware installation, minimal setup time and effort and modular design for fast and easy servicing if required, the new Christie Entero® HB control room display cubes exceeds your expectations.

Features

  • Up to 520 cd/m2 – high brightness mode / Up to 403 cd/m2 – normal mode
  • 70” diagonal, HD (1920 x 1080) resolution
  • High performance – high-brightness, wide color gamut, superb contrast and excellent white level uniformity
  • Wi-Fi enabled – wireless video wall control through iPad or similar wireless device
  • Christie ArraySync third-generation, automatic LED video wall color and brightness management
  • 24/7 reliability – based on latest DLP® technology
  • Zero-maintenance design – no consumables, no maintenance for at least 5 years
  • Low total cost of ownership/operation
  • Shallow 1009mm (39.7”) depth and smart airflow design allows cubes to be placed directly against walls
  • Industry standard 16:9 aspect ratio
  • Only 0.2 to 1.7mm nominal space between screens with front-access design
  • Geometric precision for seamless imaging across multiple displays
  • Reduced disruption because there are no consumable components to replace
  • Ultra-high contrast and display performance
  • >80,000 hours rated LED life (eco mode)
  • Modular design for minimal downtime if a repair is required
  • Dust-free sealed optics
  • Permanently-sealed liquid cooling system (no pumps or hazardous liquids)

Specifications

Product make-up

  • Cube: CF70-4001
  • Projection engine: RPMHD-LED02
  • Screen*: SF70-XP01

Imaging technology

  • Superior 0.95" 1-chip DLP®, Darkchip​
  • Texas Instruments

Native resolution

  • HD (1920 x 1080) | 16:9 aspect ratio

Illumination

  • LED (Red, Green, Blue) | OSRAM | Redundant LED Architecture

Cross prism screen technology

  • Optical: Fresnel/cross prism
  • DNP

Screen gap (image to image)2

  • 0.2-1.7mm
  • Adjustable
  • 1.7mm nominal recommended for front access @ 25°C

*Other screen types available.
**Depending on environment and wall configuration.
***Depending on pedestal type used.

***Due to constant research, specifications and features are subject to change without notice

Downloads

Christie Control Rooms Brochure - English

Sep 21, 2016 | PDF: 4.2 MB

This PDF product brochure outlines key features, specifications and uses. Please refer to the information presented on the Christie website, or speak to your Christie representative,...

Christie Entero HB brochure - English

Sep 19, 2016 | PDF: 853 KB

This PDF product brochure outlines key features, specifications and uses. Please refer to the information presented on the Christie website, or speak to your Christie representative......

Christie control room solutions

Jan 26, 2016 | PDF: 1.4 MB

​Christie has the solutions and support to help your team stay in control.

Christie Entero HB Brochure

Jul 08, 2015 | PDF: 342 KB

​This document outlines the key features and specifications for the Christie Entero HB rear projection cubes.

Christie Entero HB SXGA+, HD and WUXGA Light Engines Brochure

Aug 11, 2014 | PDF: 576 KB

This PDF is the brochure that outlines key features, specifications and uses of the Christie products listed below. Please refer to the information presented on the Christie website or speak to your Christie representative for the confirmation of installation-critical specifications and features.

Custom Video Wall Solutions

Jun 18, 2014 | PDF: 654 KB

Upgrading your control room video wall technology doesn't have to be costly or time consuming. With Christie's video wall retrofit solutions, we are committed to providing customers with cost-effective and performance-driven options that can integrate quickly and easily into the existing infrastructure of any control room.

Entero HB HD datasheet

Jan 16, 2014 | PDF: 746 KB

This is the PDF product datasheet that outlines key features, specifications and uses for the Christie Entero HB HD video wall cubes. Please refer to the information presented on the Christie website or speak to your Christie representative for the confirmation of installation-critical specifications and features.

Images

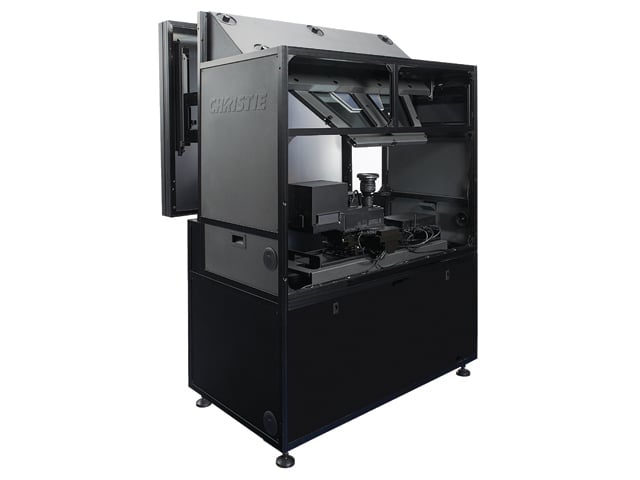

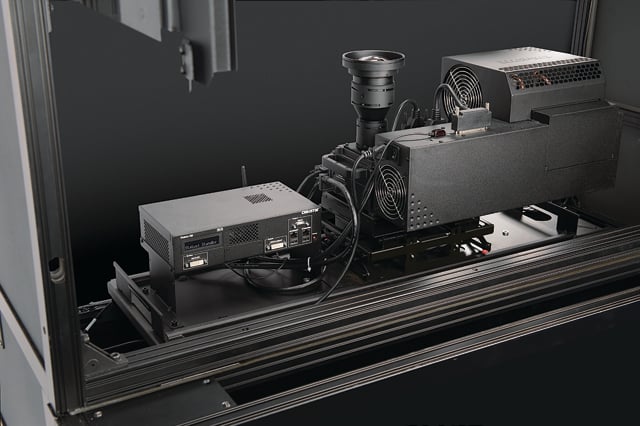

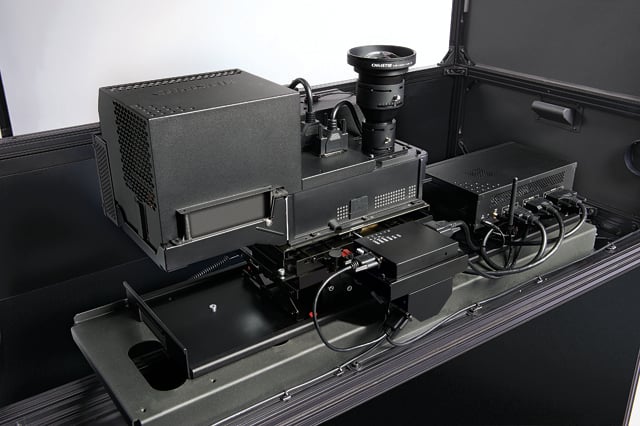

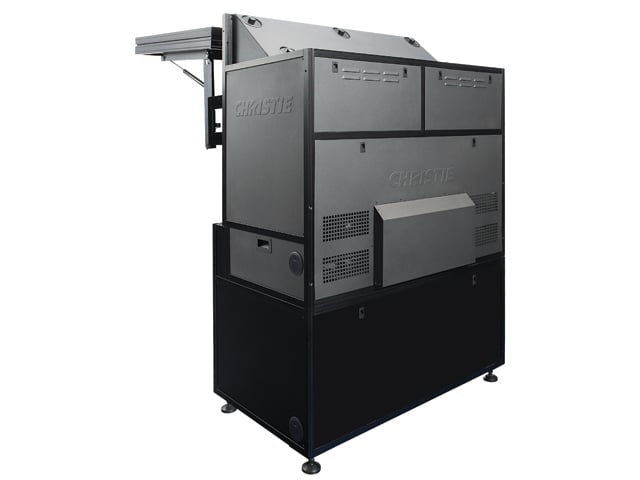

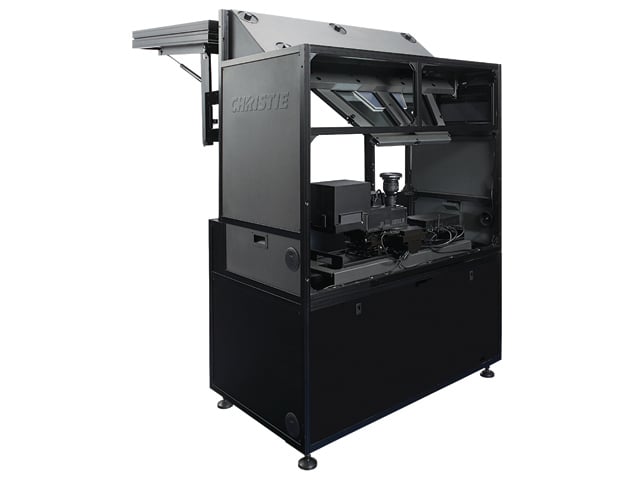

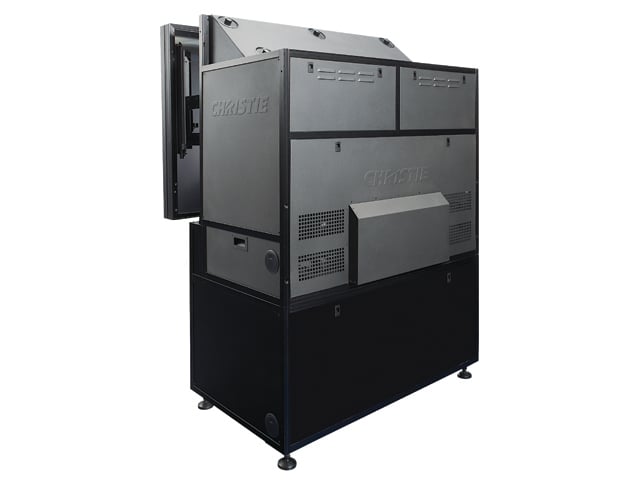

Christie Entero HB 70” HD front access display cube | 122-008109-XX
