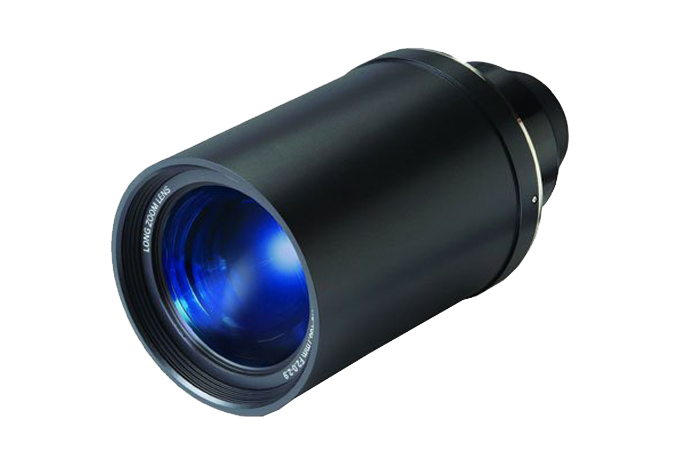

When used with the Christie DHD700 & DHD800 projector this lens has a 2.8-5.0:1 throw ratio. If used with the Christie DS+750 the lens will provide a 3.03:5.50:1 throw ratio.
For specific lens throw distance values, please refer to the Christie Lens Calculator on this website or the downloadable PDF throw distance chart located in the resource tab of this lens option or the resource tab of Christie projector to be used with this lens.
Specifications
Throw Distance
2.8-5.0:1 – Christie DHD700 & DHD800
3.03-5.50:1 – Christie DS+750
Lens Shift U/D
+/- 67.7% (6.65:-1 ～ -1:6.65) – Christie DHD700
+/- 55% (21:-1 ～ -1:21) – Christie DS+750
Lens Shift R/L
+/- 41.6% (10.7:1 ～ 1:10.7) – Christie DHD700
+/- 45% (19:1 ～ 1:19) – Christie DS+750
Focal Length
59.3 - 106.7
Motor Driven
Focus/Zoom/Lens shift
F Value
2.0 - 2.9
Zoom Ratio
1.8
Max. Diameter
φ140
Screen Size (inch)
50 - 600
Length
269mm
Gross Weight
4.6kg
Carton Size
404mm(W) x 342mm(H) x 311mm(D)
Due to constant research, specifications and features are subject to change without notice.
