The Christie® Terra Receiver is designed to deliver audiovisual data and control from an SDVoE system to displays and other devices. As part of a Terra solution, the Terra Receiver delivers artifact-free video at resolutions up to 4K@60Hz with zero-frame latency, and device control over standard 10G networks​. Users benefit from full signal management and processing including magnification, downscaling, KVM, PiP, image compositing and multiviewer applications for a flexible platform that ensures the highest quality, onscreen experience for both large format and standard displays.

Featuring front-facing LED indicators, the Terra Receiver provides quick status reports for increased ease-of-operation, system validation and user-confidence. SDVoE-compliant and supporting a wide range of video formats, the Terra Receiver functions seamlessly as part of a Christie Terra solution or third-party SDVoE components, displays and devices to create complete AV-over-IP distribution and processing systems.

Key features

  • Complete AV and control connectivity: support includes HDMI 2.0, DisplayPort 1.2, audio, RS-232, IR control, Gigabit Ethernet and USB
  • Zero-frame latency: enables natural, real-time monitoring, communication and collaboration, synchronized across displays among users as well as simultaneous response and control of all networked devices
  • Intelligent EDID management: easy management of EDID across the entire system to ensure adaptability across multiple sources and displays
  • Integrated screen management: support for PiP, image composition and multiviewer applications and featuring built-in broadcast quality scaling, screen magnification and bezel compensation for seamless and reliable image presentation and quality
  • Supports high dynamic range (HDR) and deep color: capable of maintaining enhanced image information without compromise
  • Serial RS-232 and IR bidirectional control: easily integrate control into the system reducing the need for additional devices
  • Broad audio format support: interfaces, processes and transports a wide range of audio formats to support compatibility with the destination device
  • Audio embedding and de-embedding: provides flexibility to supply the desired audio format to an AV device or display​


Video Out

  • HDMI
  • Output format: HDMI 2.0a
  • Content Protection: HDCP 2.2 compliant
  • Maximum Resolution: 4096x2160, 60Hz formats including, 8-bit 4:4:4, 10-bit 4:2:2, 10-bit and 12-bit 4:2:0
  • HDR, 3D and Deep Color pass through support
  • Maximum Bandwidth: 594 MHz

Audio Out

  • Analog stereo: Line level, 3.5mm stereo mini-jack
  • HDMI Embedded Audio: Multi-channel PCM, Dolby True HD, DTS-HD Master Audio

Routable Control Ports

  • Serial RS-232, 9-PinD, up to 115.2 k baud
  • Wired IR In, 3.5mm stereo mini-jack
  • Wired IR Out, 3.5mm DC mini-jack
  • USB 2.0, type-A plug
  • 1000BaseT Ethernet, RJ45

Video Processing

  • Video is uncompressed, except 4K/60 input formats including 8-bit 4:4:4, 10-bit 4:2:2, 10-bit and 12-bit 4:2:0. Ultra-lightweight 1.3-to-1 compression ratio is used for these formats which is artifact-free
  • Color space, bit depth and frame rate conversion
  • Video wall magnification including synchronization and bezel compensation
  • Image compositing and multi-viewer functionality
  • Note: Terra multi-viewer assembles downscaled sources and is best used for monitoring rather than presentations. Careful system design and programming should be applied if more than one multi-viewer display is used in a system. Up to 32 images on a multi-viewer if all images are presented adjacent to each other in a grid. The number of sources that can be presented reduces if downscaled sources are not presented in simple grid arrangements.


  • Zero-frame latency transport: < 120 microseconds, see reference guide for details


  • Content Transport and Control: 10G Ethernet, SFP+
  • Optional Control: 1000BaseT Ethernet, RJ45
  • Protocols: IP, TCP, UDP, IPv4, IGMPv2
  • Content Encryption: AES 128-bit
  • Switching Platform: Non-blocking 10GbE IGMPv2 multicast
  • Supplied with generic coded 10GBASE-SR SFP+ 850nm LCLC transceiver for OM3 or OM4 multimode fiber

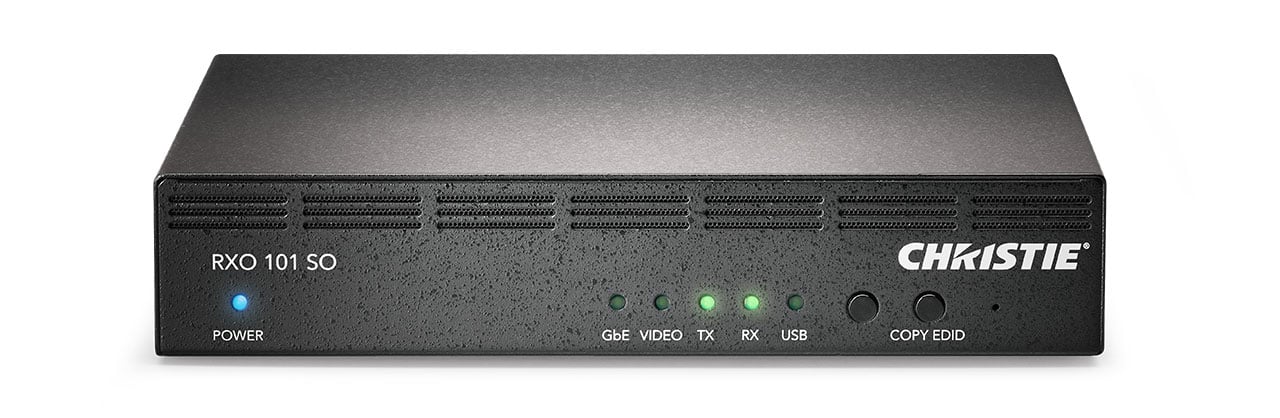

Front Panel LED Indicators

  • Link validation for: Video signal, transmit, receive, 1G Ethernet, USB, power
  • Button 1: Supply EDID to transmitters
  • Button 2: Programmable (future)


  • (WxHxD) 8.41 x 1.66 x 6.22” (213.5 x 42 x 158 mm) case only
  • (WxHxD) 8.41 x 1.66 x 6.50” (213.5 x 42 x 165 mm) including connectors

Sound Pressure

  • Less than 38 dBA on a tabletop from a distance of 0.5m (typical)


  • Steel, painted black


  • Operating Temperature: from 0°C - 40°C
  • Storage Temperature: -20°C - 60°C / -4°F - 140°F
  • Relative Humidity: 20 - 90% RH (non-condensing)

External Power Supply

  • Input: 100 – 240 VAC, 50 – 60 Hz
  • Output: 12V DC, 3.0A, 36W maximum
  • Typical Operation: 10W, 35 BTU


  • 2.3 lbs. (1.1 kg) excluding power supply
  • 2.8 lbs. (1.3 kg) with power supply


  • MTBF > 50,000 hours
  • MTTR < 15 minutes


  • CE/FCC Class A
  • Directives (EC) 2011/65/EU (RoHS); 2012/19/EU (WEEE); Regulation (EC) No. 1907/2006 (REACH)

Manufacturing Location

  • Designed and developed in Canada, USA and Taiwan
  • Manufactured in Taiwan


  • Limited two years parts and labor


  • 723466962612




Software downloads

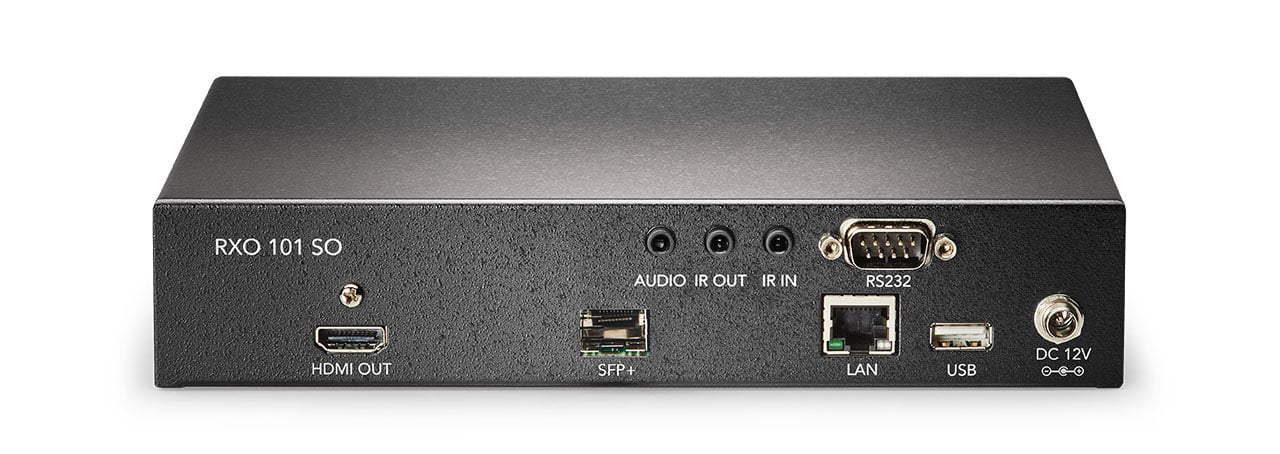

/globalassets/.catalog/products/images/christie-terra-receiver/gallery/terra-receiver-1.jpg /globalassets/.catalog/products/images/christie-terra-receiver/gallery/terra-receiver-2.jpg
