The Christie® Spyder X20 combines the power of a video processor with the flexibility of a video matrix switcher to easily convert and route any signal to any combination of display devices. Drive multiple displays in any combination of edge-blended widescreen, single and multiscreen applications and achieve higher brightness, enhanced image quality and improved resolution.

When it comes to creative visual effects, the only limit is your imagination. Any input can operate as a Native High Resolution Channel, Scaled PIP, Scaled Background or Key Channel on any display in the system. The Christie Spyder X20 gives users a 20 megapixel bandwidth for 16 video layers of unrestricted blending, windowing, mixing and scaling along with key frame effects for dynamic content programming capabilities in both live and pre-programmed video environments.

The Christie Spyder X20 is easy to deploy and install with all components in one unit, reducing the number of wires, boxes and rack space you need. You can add inputs, outputs and pixel real estate with powerful expansion capabilities that allow inputs/outputs from other Christie Spyder systems to contribute to a single pixel space.

Key features

Mixing and multiple key frame effects

  • Smooth transitions automatically interpolate between the first look and the second look according to user-defined duration
  • Real-time window resizing and positioning
  • Full motion path editing with velocity control at each key frame
  • PIP borders, including drop shadows and soft inside edge
  • Adjustable PIP aspect ratio correction as well as cropping, pan and zoom
  • Quickly apply looks to multiple video layers with user-defined treatments
  • Integrated Operators Monitor allows you to see what the audience sees and preview what they will see next, all on a single monitor
  • Stereoscopic option enables viewing of 2D and 3D images from multiple sources at the same time for enhanced design collaboration

Keying

  • Luminance keyer on every input
  • Chroma keyer on every input
  • Alpha channel bitmaps on every input, for alpha channel titling or bugs from your favorite graphics application

Presets and timed cues

  • Save Command Key presets for a single video layer or a complete on-screen look that includes all layout information as well as machine control for ancillary devices
  • Save multiple keyframes in scripted sequences that advance manually or automatically based on timed cues

Background buffers

  • Two native or scalable resolution background buffers allows mixing between high-resolution, still backdrops for PIP images or background inputs without having to use any of Christie Spyder X20's inputs to prevent screens from going to black

Video processing

  • 10-bit analog inputs and outputs
  • Low delay (<1.5 interlaced frames)
  • 3:2 and 2:2 pull-down detection

Need support? Have questions?

Existing customers

  • Technical support: 888-404-4001 or 602-943-5700
  • Service and order status support: 866-880-4462
  • Note: Christie will continue to honor existing Vista Systems warranty agreements

We're here to support your investment

Backed by Christie's industry-leading warranties, service and support, you can feel confident investing in the Christie Spyder X20. If you have any questions, or if you'd like to speak to a Christie sales representative, please contact us.

Videos

Christie Spyder feeds Agua Caliente’s 360 Sports bar and restaurant

Christie Spyder feeds Agua Caliente’s 360 Sports bar and restaurant

The 4K powerwall revs up product development at GM

The 4K powerwall revs up product development at GM

Specifications

Input number (X20-0808)

  • Inputs total - 4 Supporting composite, S-Video, Component Analog, HDSDI, SDI and 3G SDI (SMPTE 424M) - 4 Supporting Progressive DVI and Progressive RGBHV

Input signals

  • - Analog RGB, composite, component
  • - DVI, single-link and dual-link (8 inputs are dual-link capable)
  • - SDI, HD-SDI and 3G HD-SDI (SMPTE 424M)
  • - Motion adaptive de-interlacing (SD & HD)

Pixel clock

  • Analog up to 165 MHz
  • DVI up to 330 MHz

Resolutions

  • Horizontal resolutions up to 2560 and vertical resolutions up to 2160 within 330MHz (any resolution greater than 2048 x 1200 uses 2 input channels)

Scan rates

  • Up to 120Hz dependent on pixel clock rate maximum

Output number

  • 8 @ (< 2048x1200) or 4 @ (2560x1600) or combination of 4 dual-link and 4 single-link resolutions

Customer stories

Downloads

Images

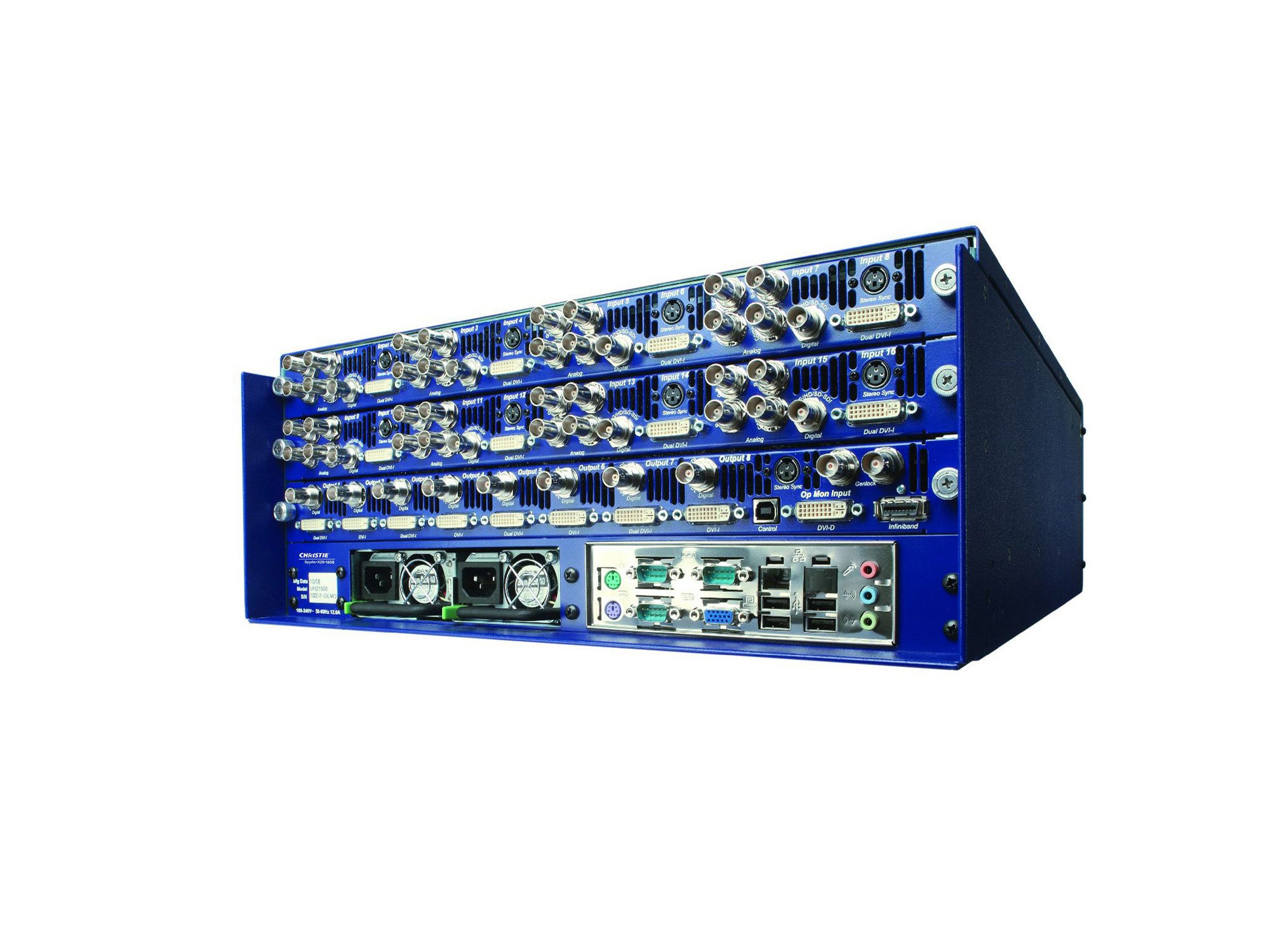

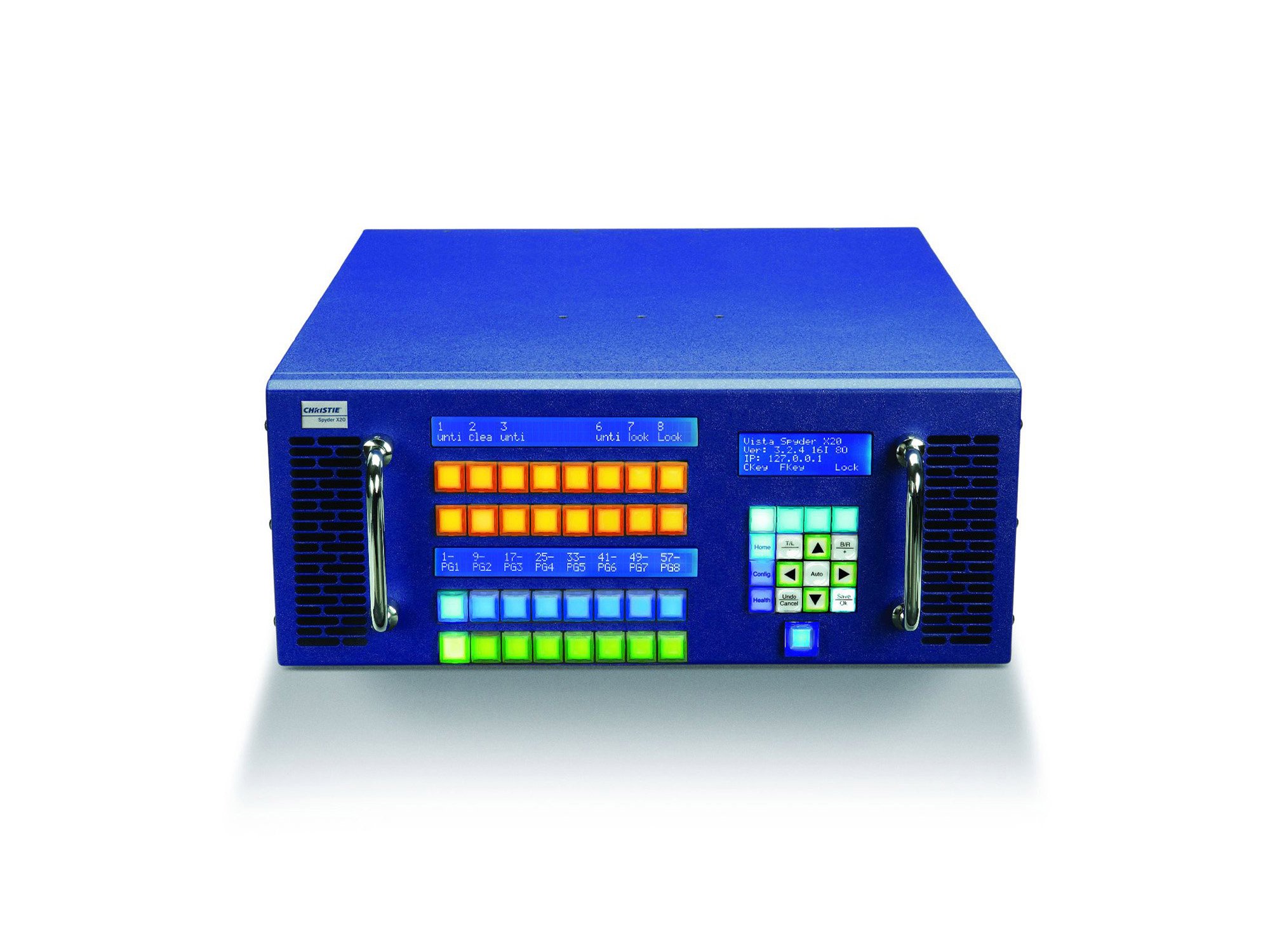

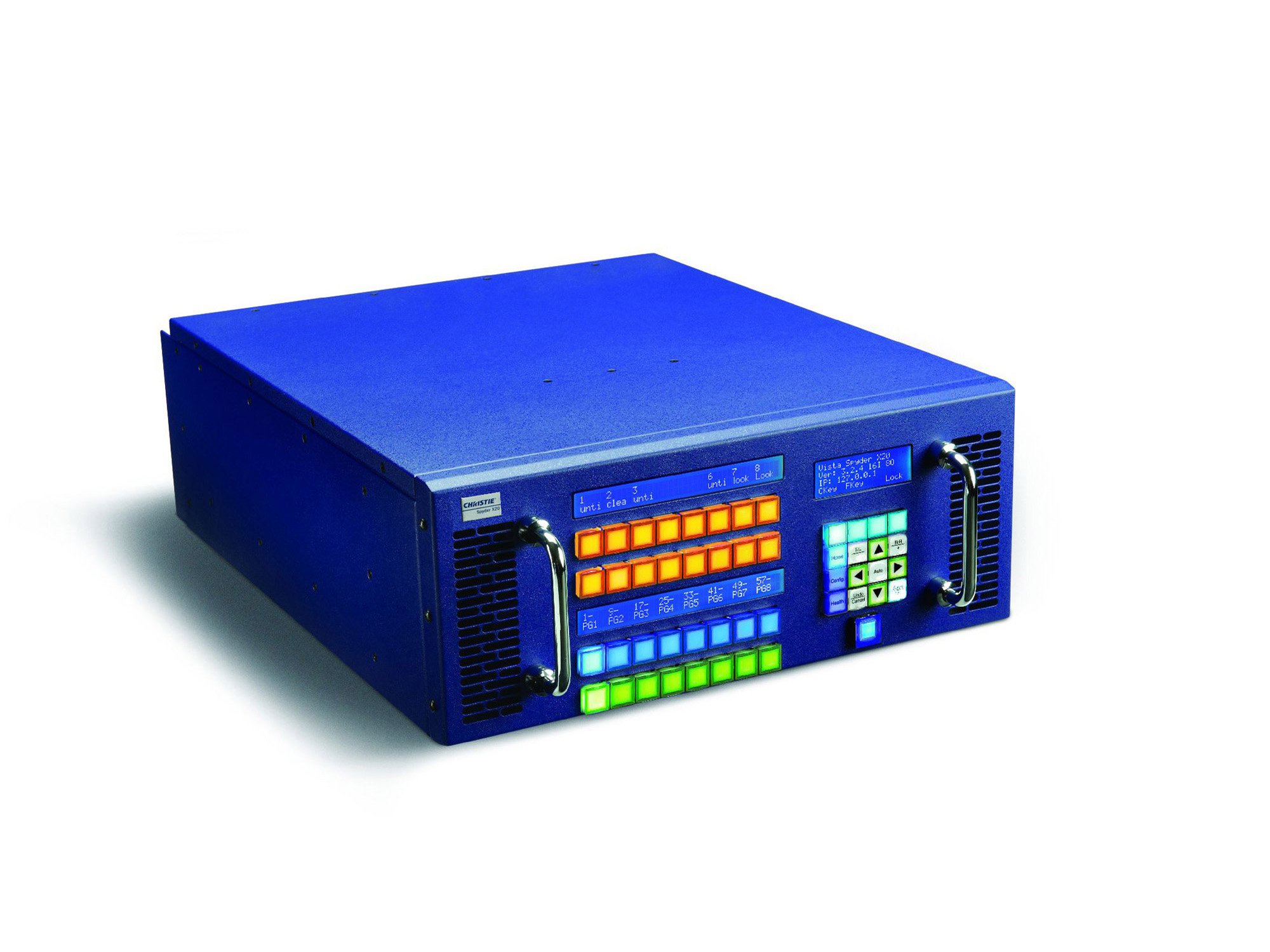

Christie Spyder X20 video processor | 120-052108-XX | 120-064101-XX

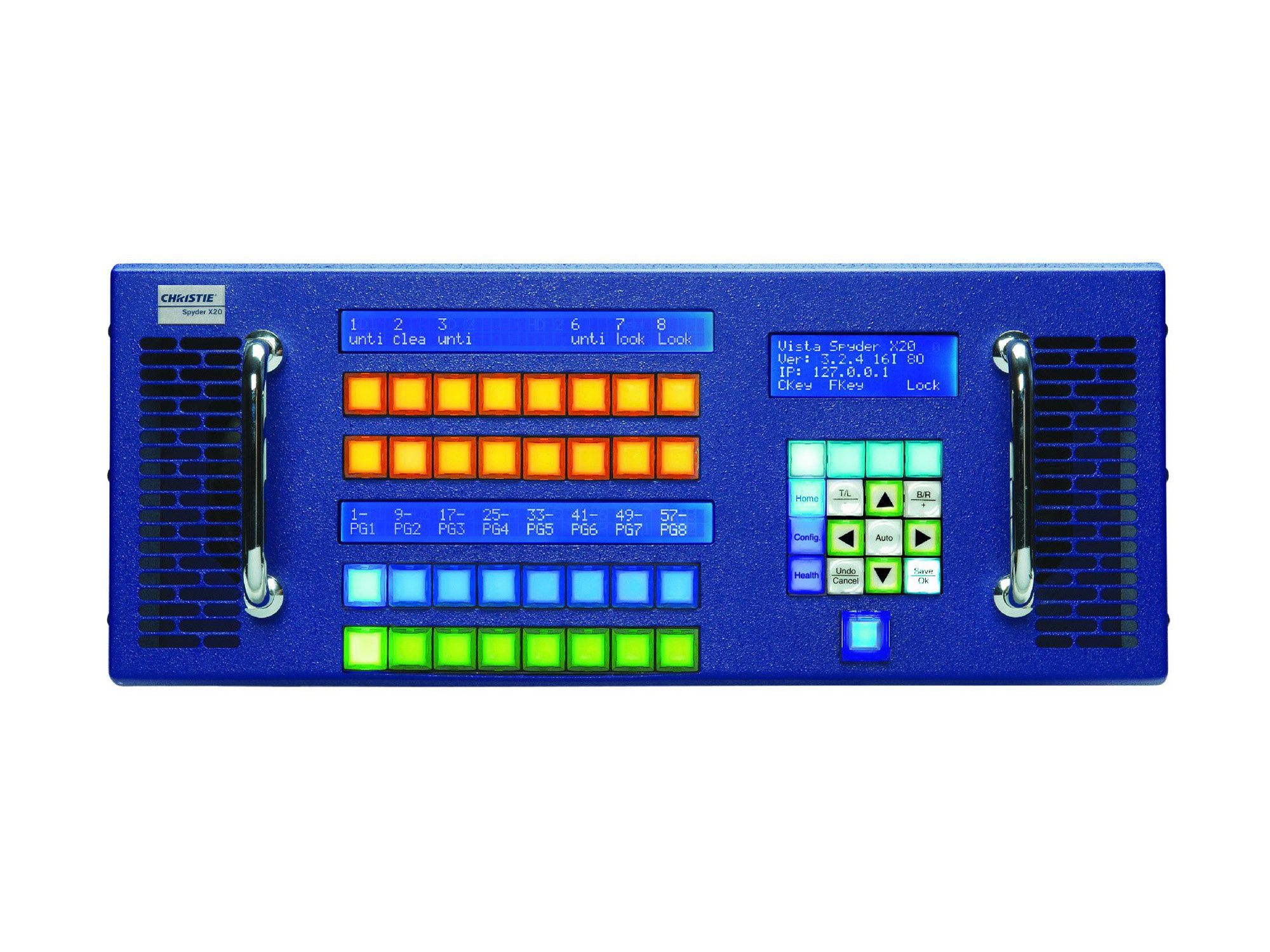

Christie Spyder X20 video processor | 120-052108-XX | 120-064101-XX

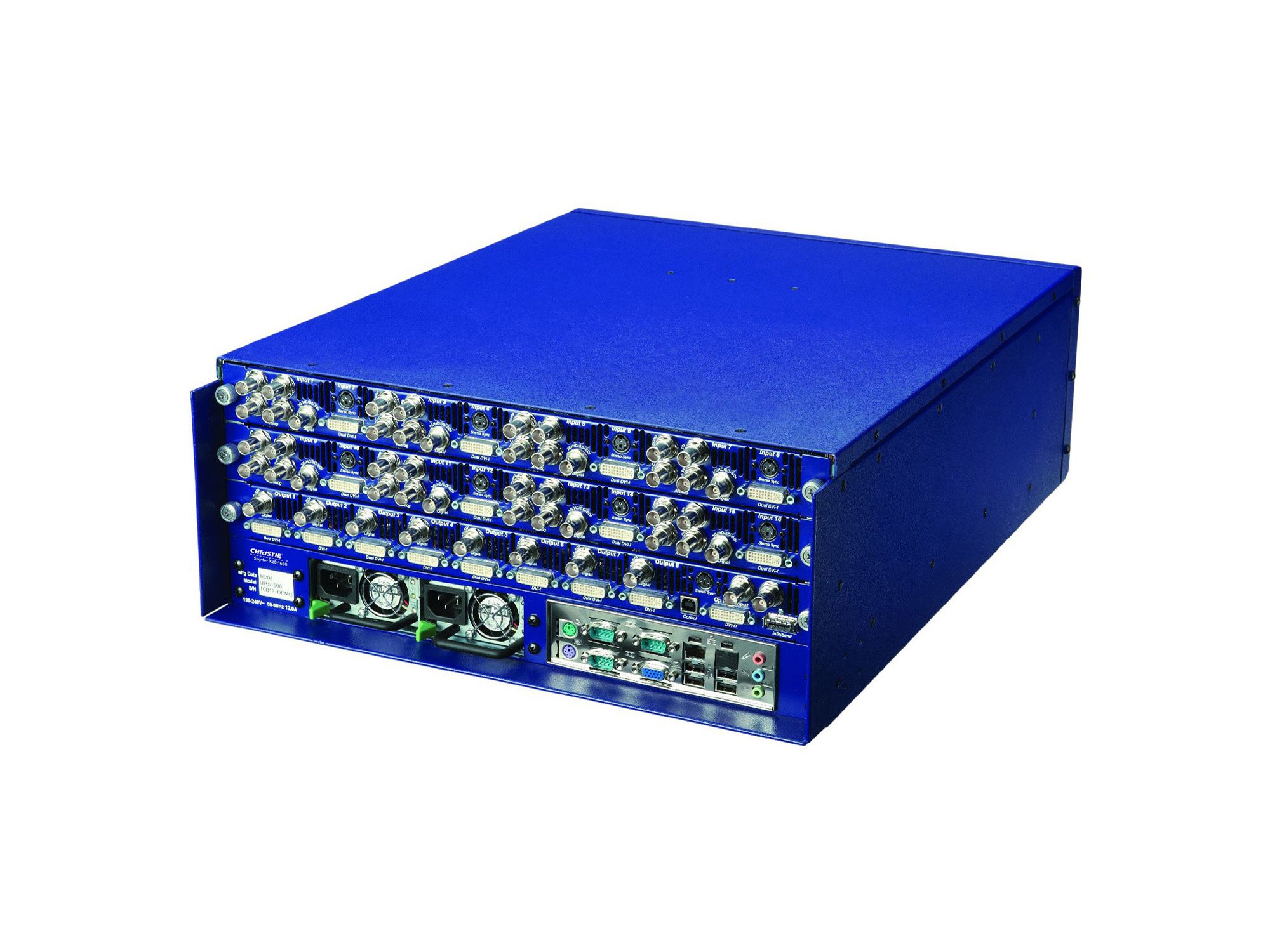

Christie Spyder X20 video processor | 120-052108-XX | 120-064101-XX

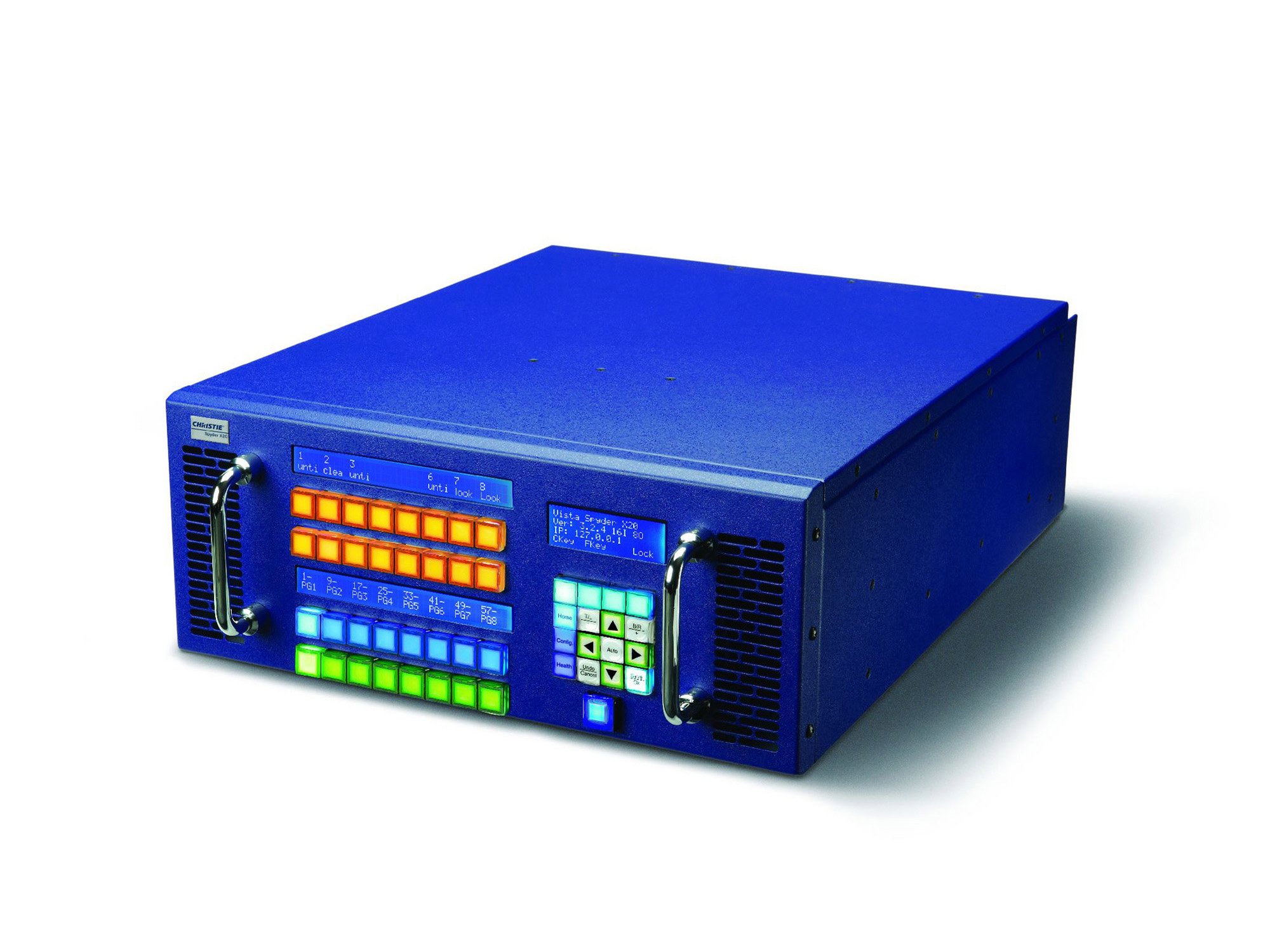

Christie Spyder X20 video processor | 120-052108-XX | 120-064101-XX

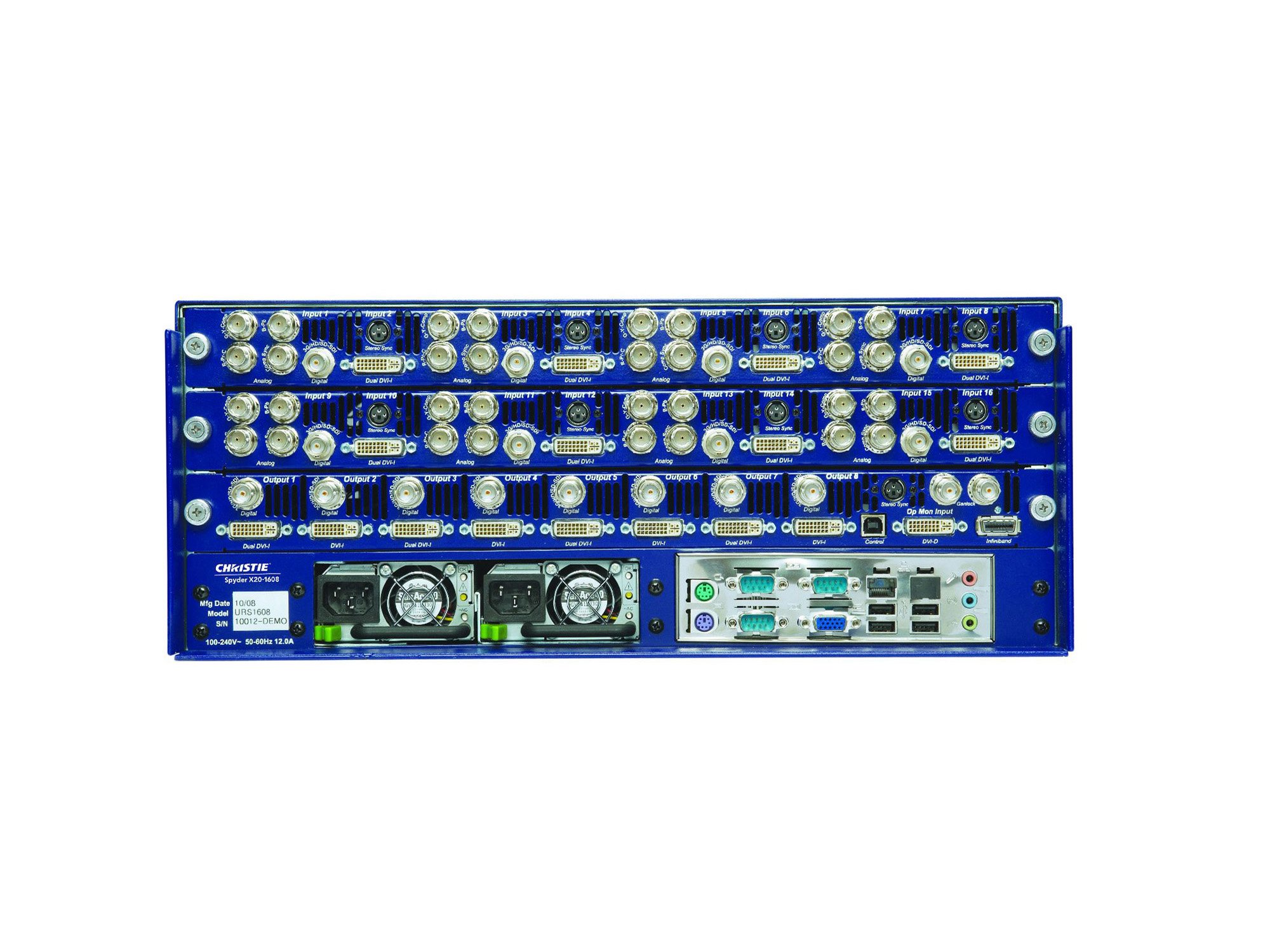

Christie Spyder X20 video processor | 120-052108-XX | 120-064101-XX

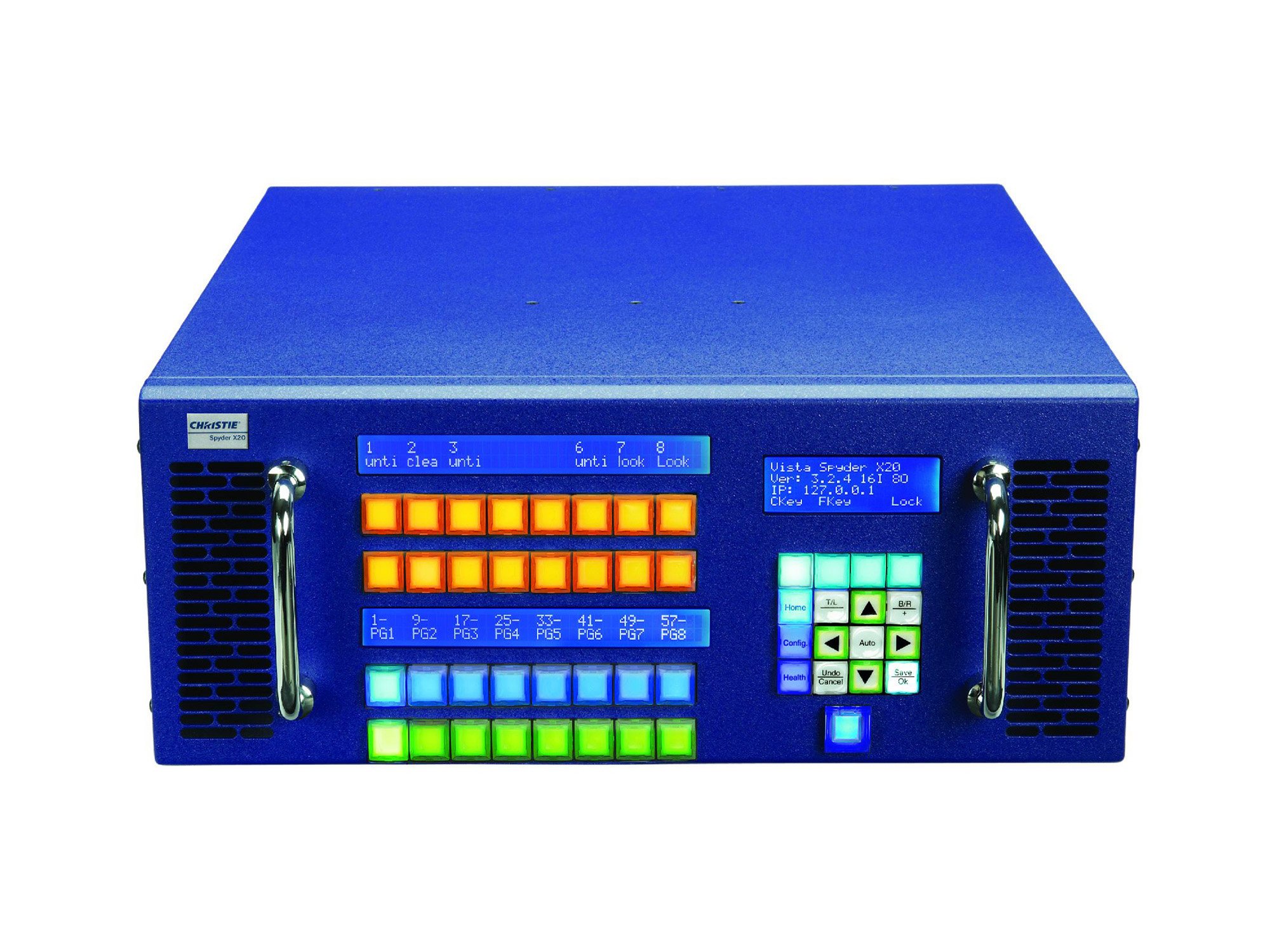

Christie Spyder X20 video processor | 120-052108-XX | 120-064101-XX
