The original version of Christie® Spyder was for edge-blended widescreen, single and multiscreen applications, but the strength of the Christie Spyder 200/300 series is its modularity. The 200/300 series comes in 22 models packaged as 2RU or 3RU units with varying I/O combinations of up to 32 inputs and 32 outputs, as well as smaller I/O increments so you can build the system you need. All models in this series are compatible and configurable with each other. This modularity can make the 200/300 series more cost effective in configurations that don't match the Christie Spyder X20 I/O structure.
Features
Mixing and multiple key frame effects
- Smooth-go transitions automatically interpolate between the first look and the second look according to user-defined duration
- Real-time window resizing and positioning with unrestricted window placement
- Full motion path editing with velocity control at each key frame
- PIP borders, including drop shadows and soft inside edge
- Adjustable PIP aspect ratio correction as well as cropping, pan and zoom
- Quickly apply looks to multiple video layers with user-defined treatments
Keying
- Luminance keyer on every input
- Chroma keyer on every input
- Alpha channel bitmaps on every input, for alpha channel titling or bugs from your favorite graphics application
Presets and timed cues
- Save Command Key presets for a single video layer or a complete on-screen look that includes all layout information as well as machine control for ancillary devices
- Save multiple keyframes in scripted sequences that advance manually or automatically based on timed cues.
Background buffers
- Two native or scalable resolution background buffers allows mixing between high-resolution, still backdrops for PIP images or background inputs without having to use any of Christie Spyder's inputs to prevent screens from going to black
Video processing
- Supports one video layer per input
- 10-bit analog inputs and outputs
- Low delay (< 1.5 interlaced frames)
- 3:2 and 2:2 pull-down detection
Taking the next step
If you have any questions, or if you’d like to speak to a Christie sales representative about Christie processing solutions, please contact us.
Specifications
Input number
- X20-0808: 8 Inputs total -
- - 4 Supporting composite - S Video - Component Analog - HDSDI - SDI - 3G SDI (SMPTE 424M)
- - 4 Supporting Progressive DVI and Progressive RGBHV
- X20-1608: 16 Inputs total -
- - 8 Supporting composite, - S-Video - Component Analog - HDSDI - SDI - 3G SDI (SMPTE 424M)
- - 8 Supporting Progressive DVI and Progressive RGBHV
Input signals
- - Analog RGB, composite, component
- - DVI, single-link and dual-link (8 inputs are dual-link capable)
- - SDI, HD-SDI and 3G HD-SDI (SMPTE 424M)
- - Motion adaptive de-interlacing (SD & HD)
Pixel clock
- Analog up to 165 MHz
- DVI up to 330 MHz
Resolutions
- Horizontal resolutions up to 2560 and vertical resolutions up to 2160 within 330MHz (any resolution greater than 2048 x 1200 uses 2 input channels)
Scan rates
- Up to 120Hz dependent on pixel clock rate maximum
Output number
- 8 @ (< 2048x1200) or 4 @ (2560x1600) or combination of 4 dual-link and 4 single-link resolutions
Due to constant research, specifications and features are subject to change without notice.
Downloads
Sign in to access additional resources, including service bulletins, interconnect drawings, and cinema software updates.
Christie Spyder Datasheet
Jun 11, 2015 | PDF: 619 KB
This document outlines the key features and specifications for the Christie Spyder image processor.
VE Competency Brochure
Feb 08, 2013 | PDF: 1.8 MB
This brochure outlines Christie 's competency in visual display solutions for simulation and visualization.
3D Visualization Brochure
Apr 20, 2010 | PDF: 1.1 MB
This is the PDF product brochure that outlines key features, specifications and uses for the Christie products listed below. Please refer to the information presented on the Christie website or speak to your Christie representative for the confirmation of installation-critical specifications and features.

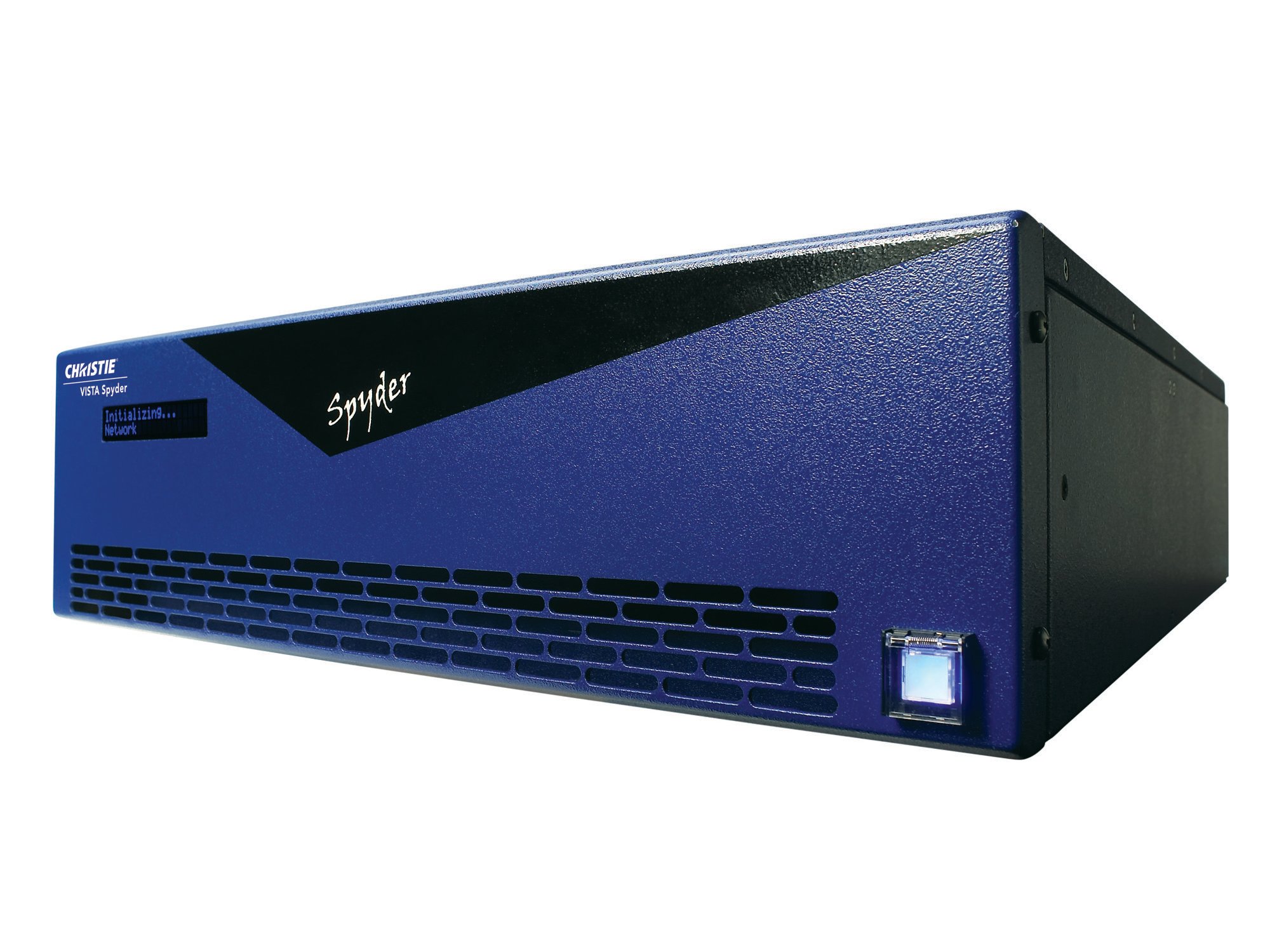

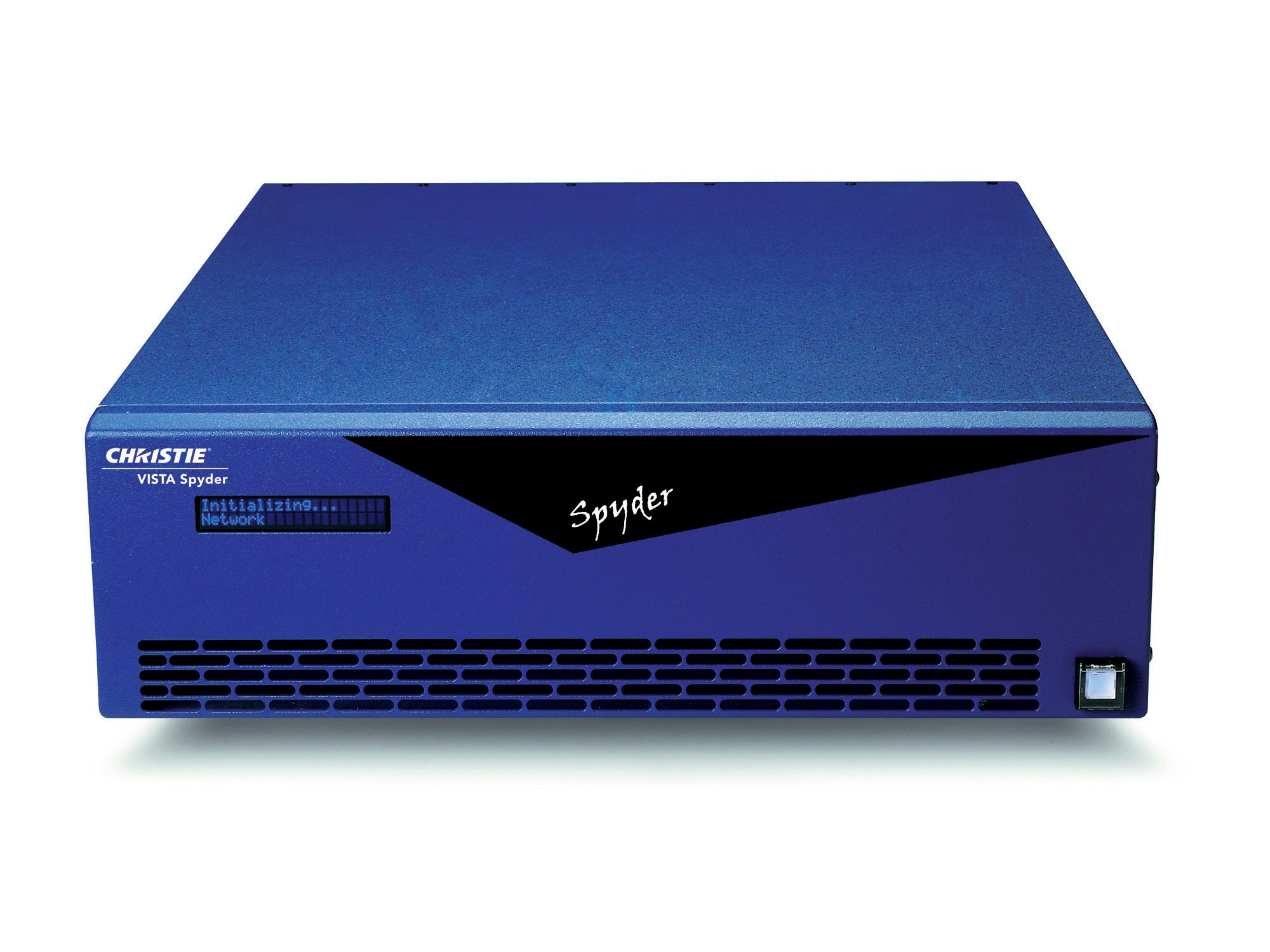

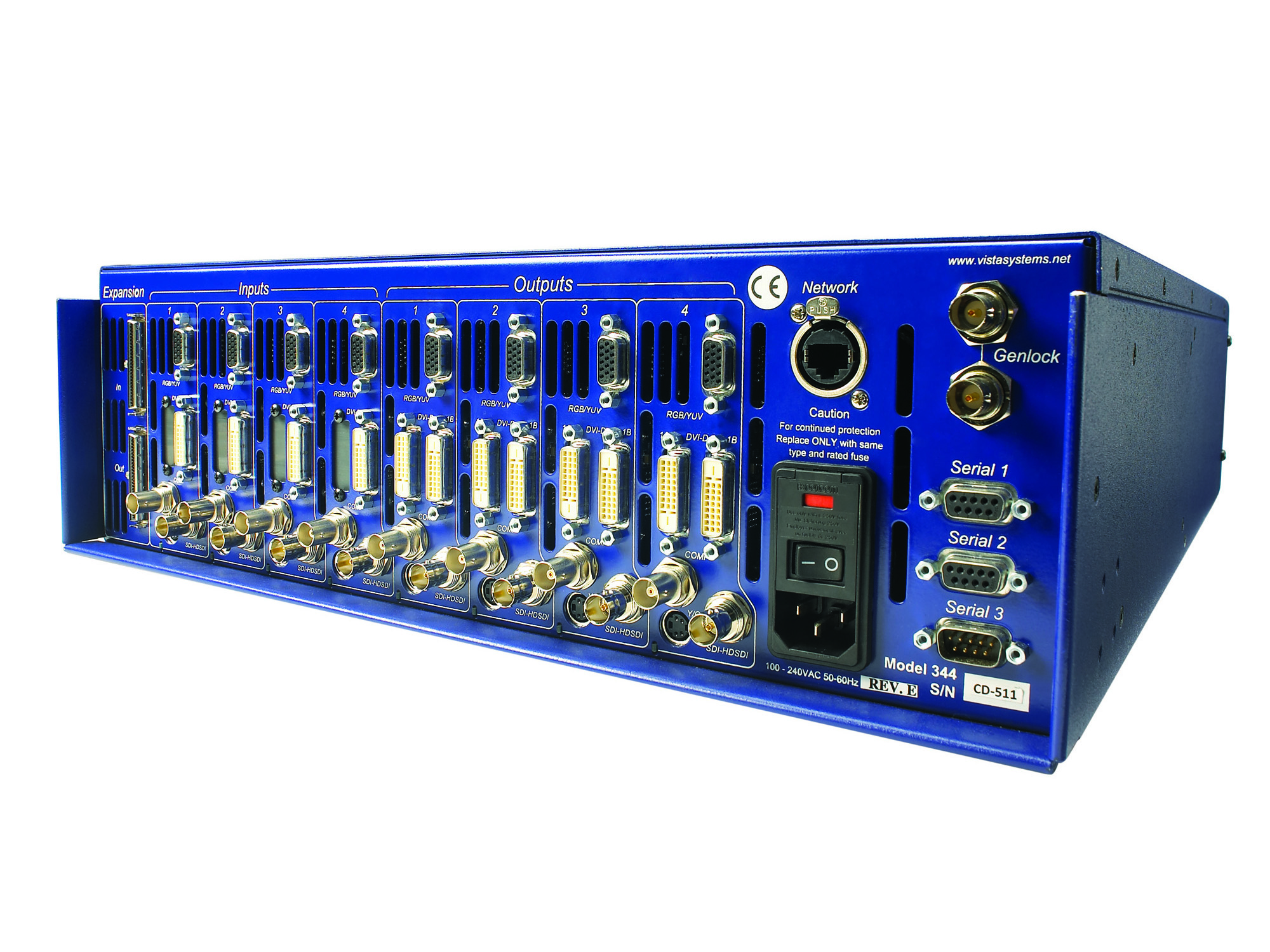

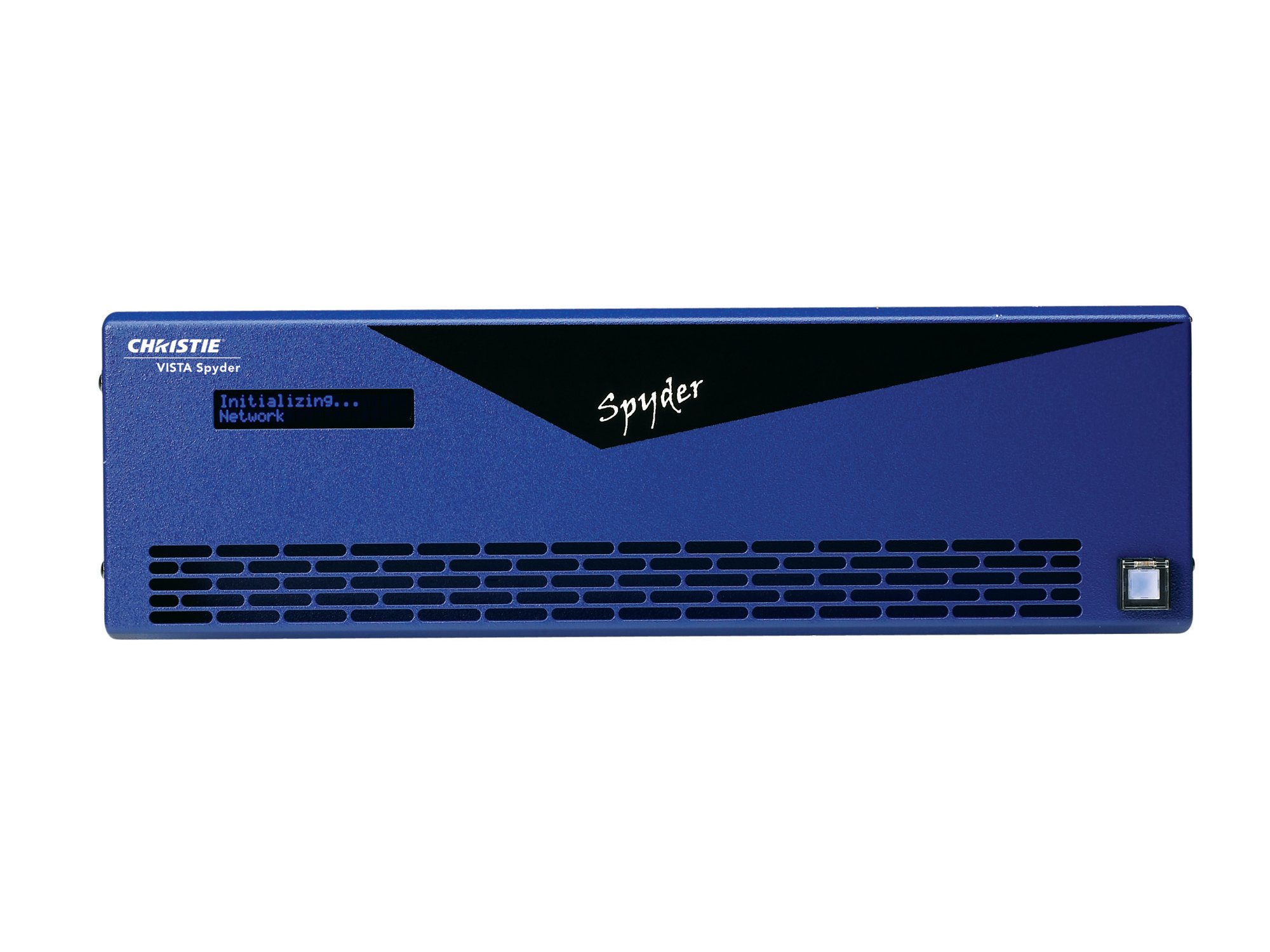

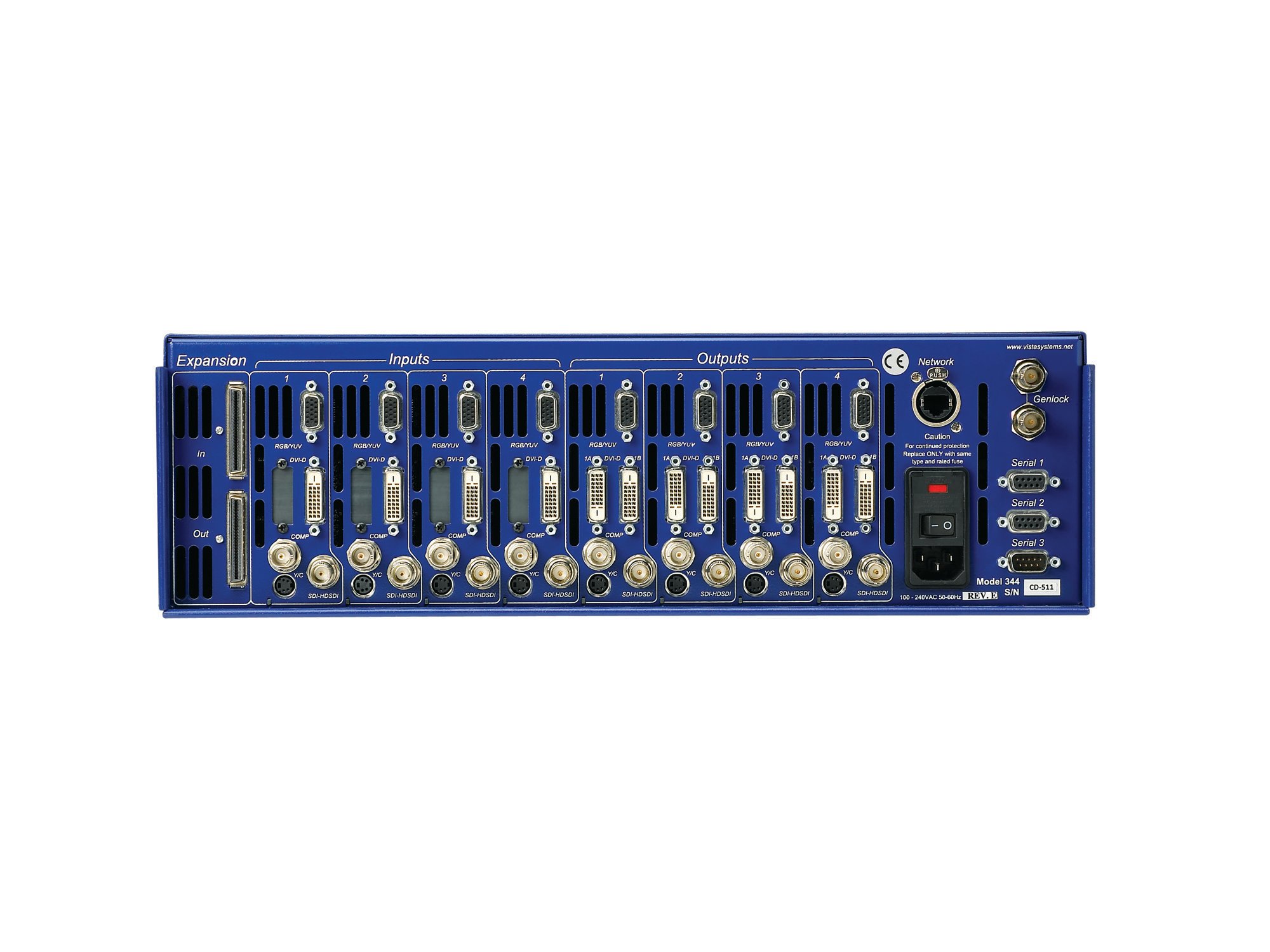

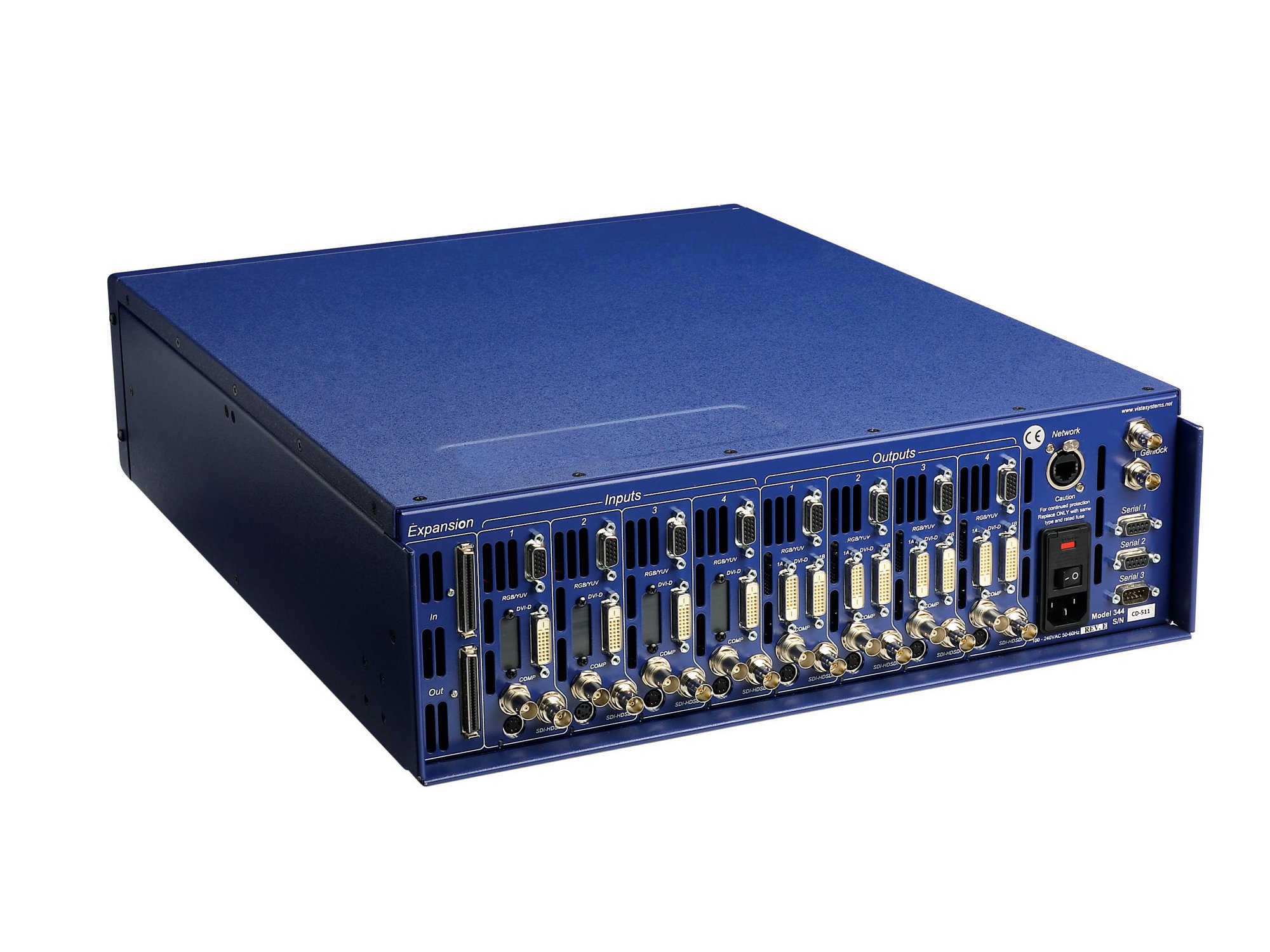

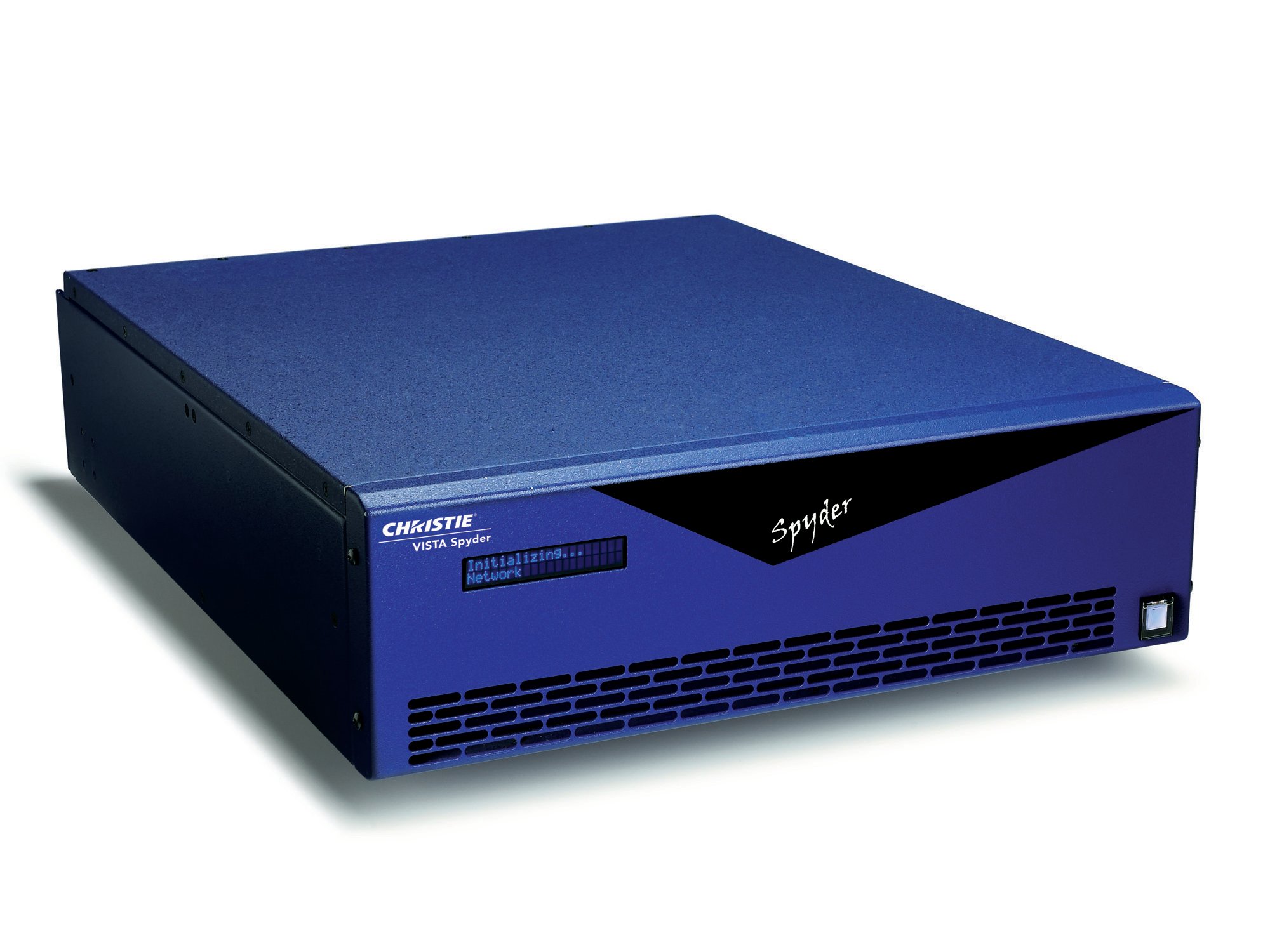

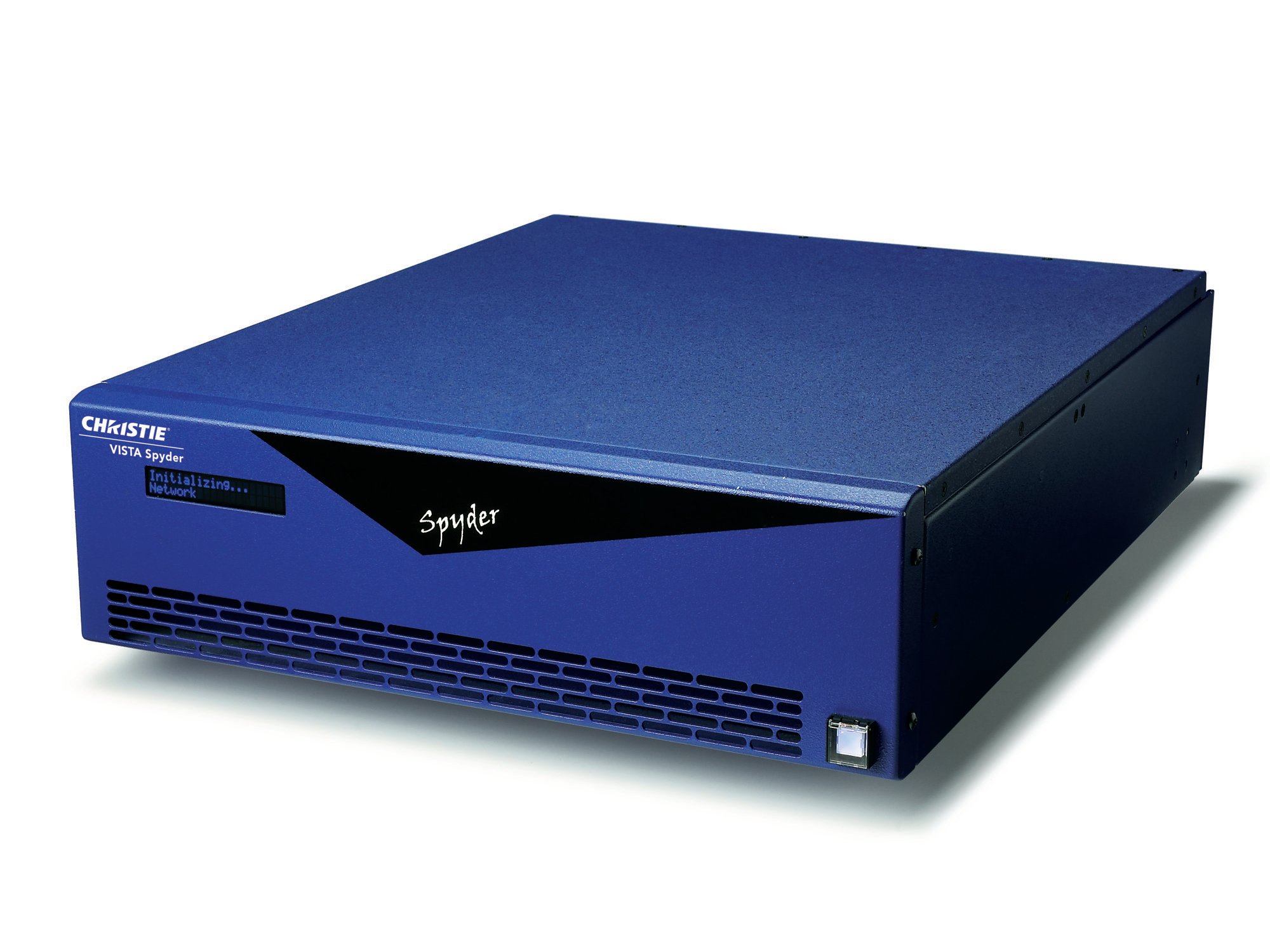

Images
