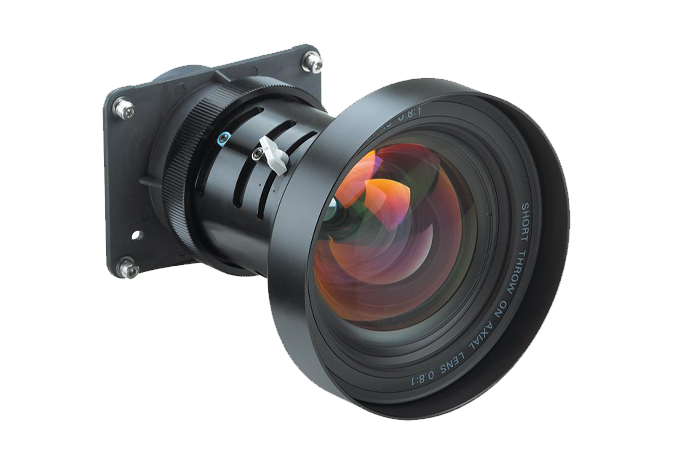

0.8:1 Fixed Lens | Christie - Audio Visual Solutions
Overview Products

When used with the RoadRunner and Vivid products, LU77 or LX900 this lens has a 0.8:1 short throw ratio. If used with the LS+58, LX66 or LX66A, the lens will provide a 1.0:1 short throw ratio. If used with the LW40(U) or LW600 projectors, this lens will provide a 1.1:1 throw ratio.



 Projector Throw Ratio
 Roadrunner Projectors 0.8:1
 Vivid Projectors 0.8:1
 Christie LU77 0.8:1
 Christie LX900 0.8:1
 Christie LS+58 1.0:1
 Christie LX66 1.0:1
 Christie LX66A 1.0:1
 Christie LW40(U) 1.1:1
 Christie LW600 1.1:1



Please refer to the Christie Lens Calculator on this website or the downloadable PDF throw distance chart located in the resource tab of this lens option or the resource tab of Christie projector to be used with this lens.

 Specifications



Throw Distance 1.8"0.8:1
Throw Distance 1.4"1.0:1
Throw Distance 1.2"1.1:1
Focal Length 30 mm
Lens Shift 1:1
F Value 2.6
Image Circle Φ50mm
Max. Diameter Φ175mm
Length 235mm
Carton Size 381W x 317H x 301D mm



 Due to constant research, specifications and features are subject to change without notice.
