Christie LX602 3LCD projector | Christie - Audio Visual Solutions
Overview Specs Downloads Images

View Christie's current line of projectors.

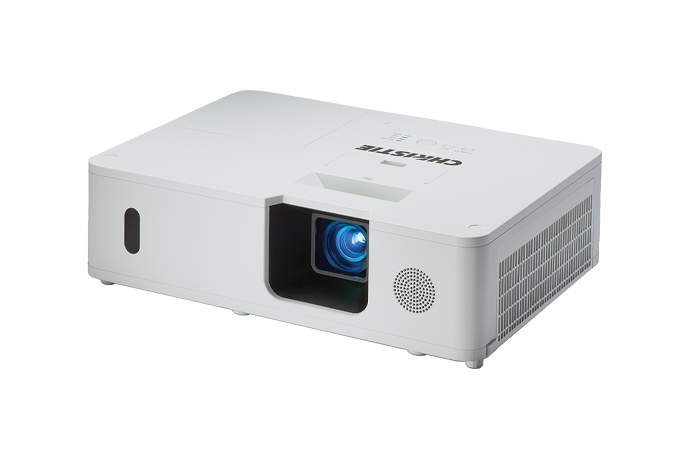

The Christie® LX602 is a feature-rich, 6,200 ISO lumen, 3LCD projector showcasing Christie’s renowned level of performance in a compact, easy-to-use and value-added package. Offering a long lamp life (up to 6,000 hours) and integrated audio, this projector provides a low total cost of ownership and is designed for easy classroom or meeting space installation.

Features

  • XGA (1024x768) resolution
  • 10000:1 dynamic contrast ratio
  • 16W integrated audio system
  • Edge-blending and warping
  • DICOM simulation mode
  • Wireless presentation capable
  • Ease of use and maintenance
  • Industry-leading warranties and service

Specifications


  • Brightness (lumens)
  • - ANSI- 5475
  • - ISO - 6200
  • Contrast
  • - 10,000:1

Display technology

  • 3 x 0.63" Inorganic LCD
  • 1024 x 768 XGA

Lamp

  • Type
  • - 1x 300W UHB
  • Typical lifetime
  • - Normal mode: up to 4000 hrs
  • - Eco mode: up to 6000 hrs

Inputs

  • Signals
  • - VGA / SVGA / XGA / WXGA / WXGA+ / SXGA / SXGA+ / WSXGA+ / UXGA / WUXGA / ​MAC 16"
  • - NTSC, NTSC4.43, PAL, PAL-M, PAL-N, SECAM
  • - 480i, 480p, 576i, 720p, 1080i, 1080p
  • Scan rates
  • - Horizontal: 32-106kHz
  • - Vertical: 56-120Hz
  • Standard
  • - Computer In: 15-pin D-sub x 1
  • - Digital Input: HDMI x 2​
  • - Video Input: Composite video RCA jack x 1
  • - Component video 15-pin D-sub x 1
  • - Audio input: 3.5mm stereo mini jack x 1
  • - RCA jack (L/R) x 1
  • - USB Type A x 1 (for wireless network)

Outputs

  • - HDMI x 1
  • - 15-pin D-sub x 1
  • - Audio output 3.5mm stereo mini jack x 1

Control and networking

  • 9-pin D-sub x 1 (RS-232C)
  • RJ-45 port (HDBaseT)

 Due to constant research, specifications and features are subject to change without notice.

Downloads

Images

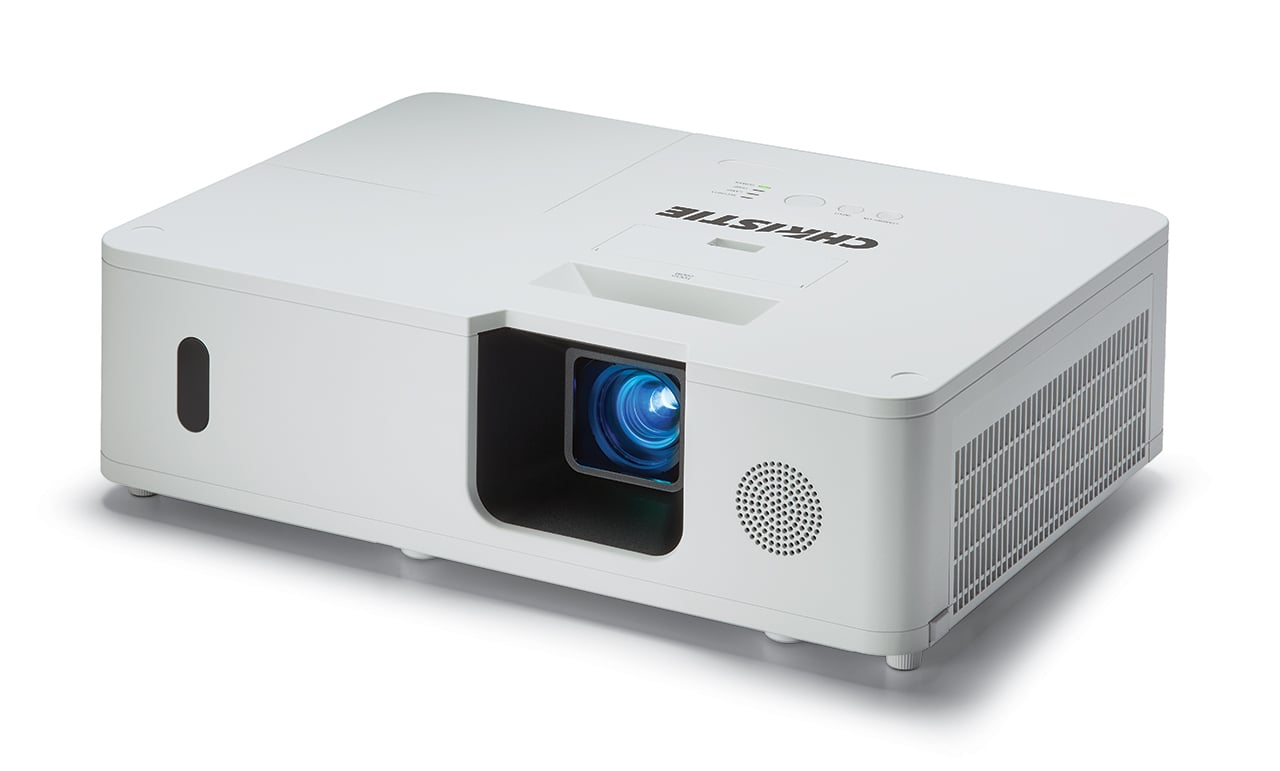

Christie LX602 3LCD projector | 121-053109-XX

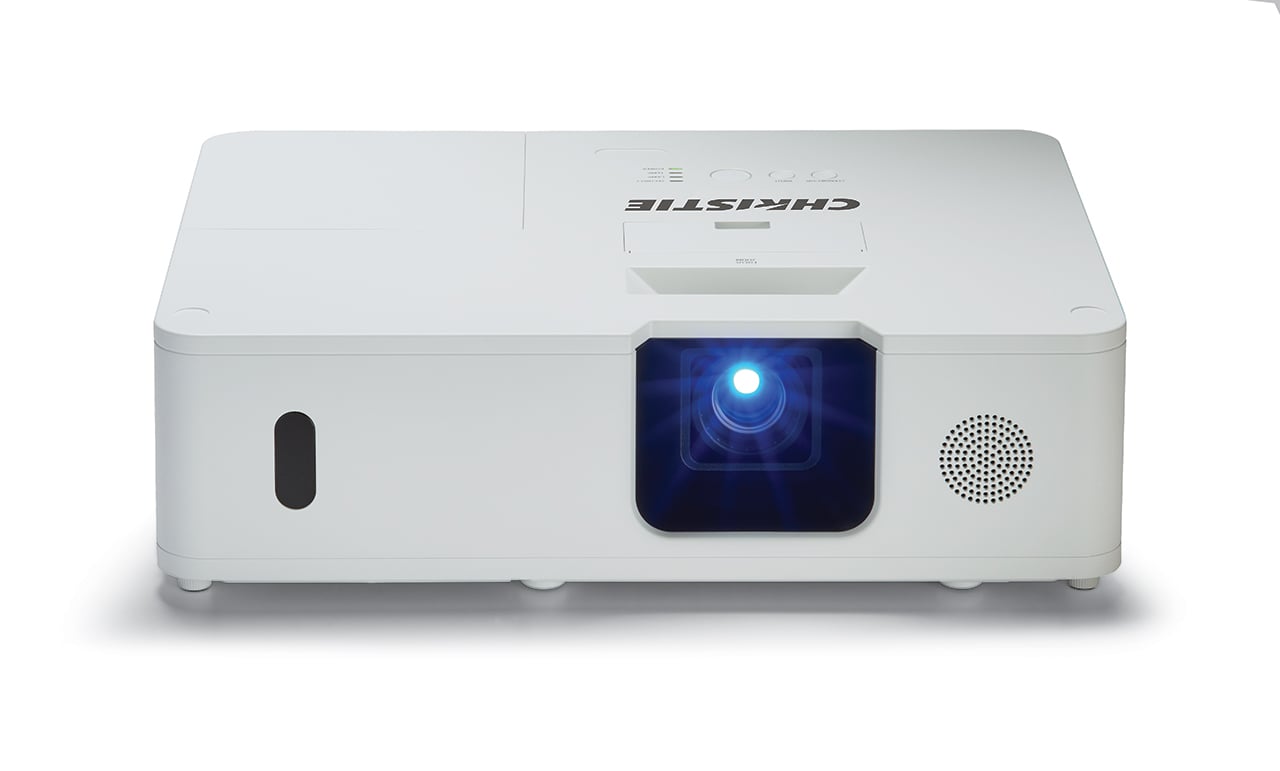

Christie LX602 3LCD projector | 121-053109-XX

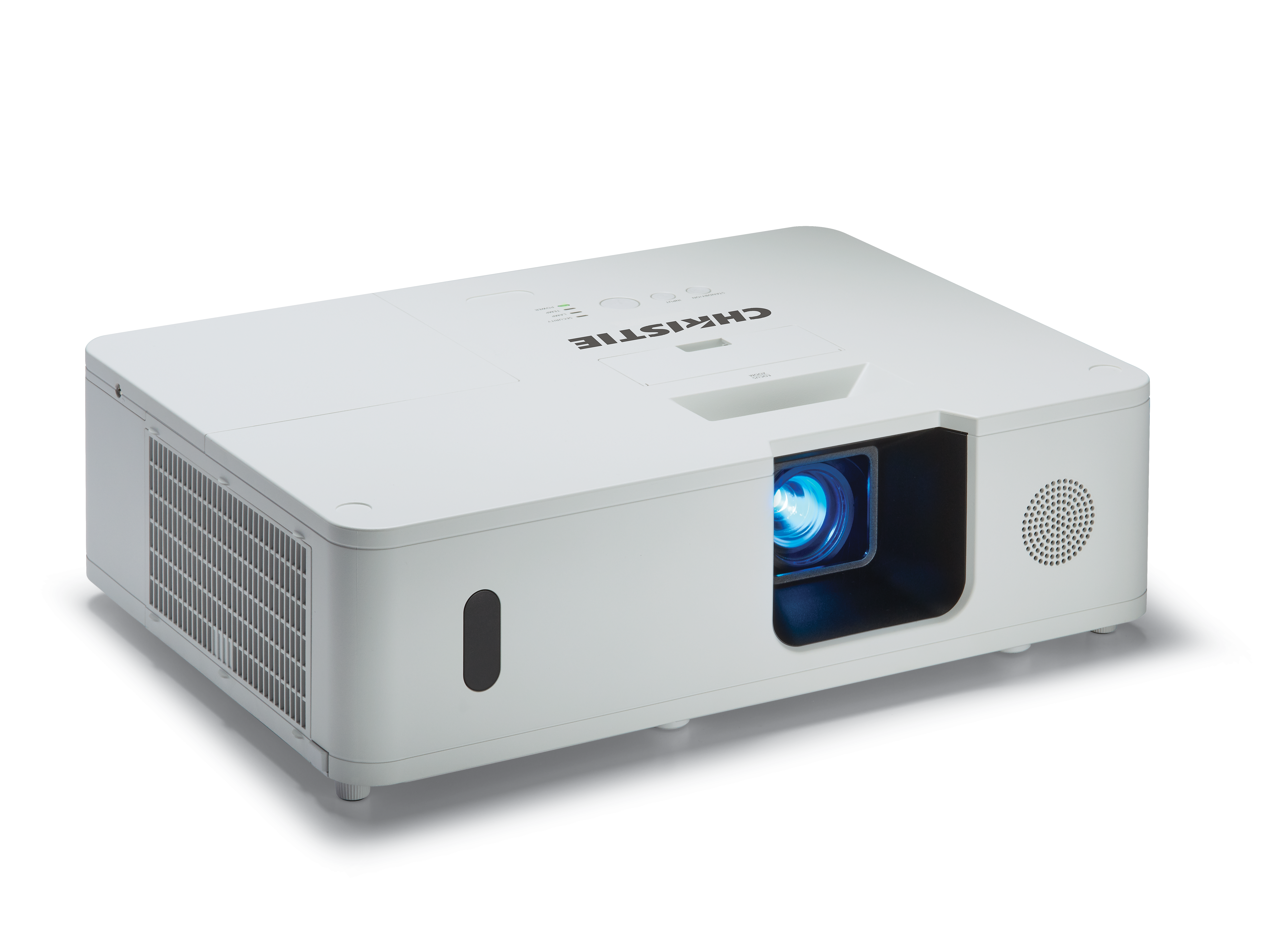

Christie LX602 3LCD projector | 121-053109-XX
