*This product is no longer available. View Christie's current line of projectors.

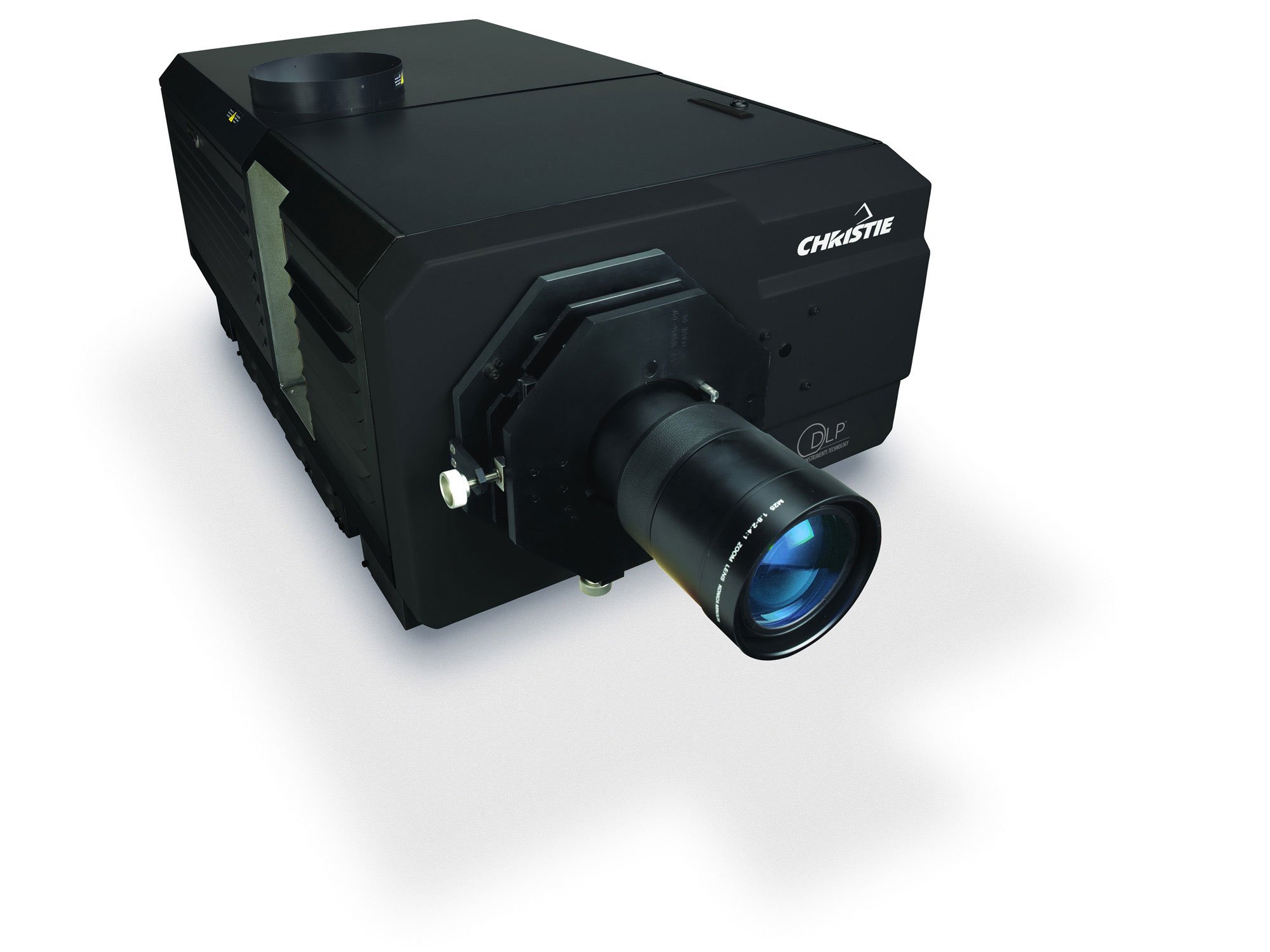

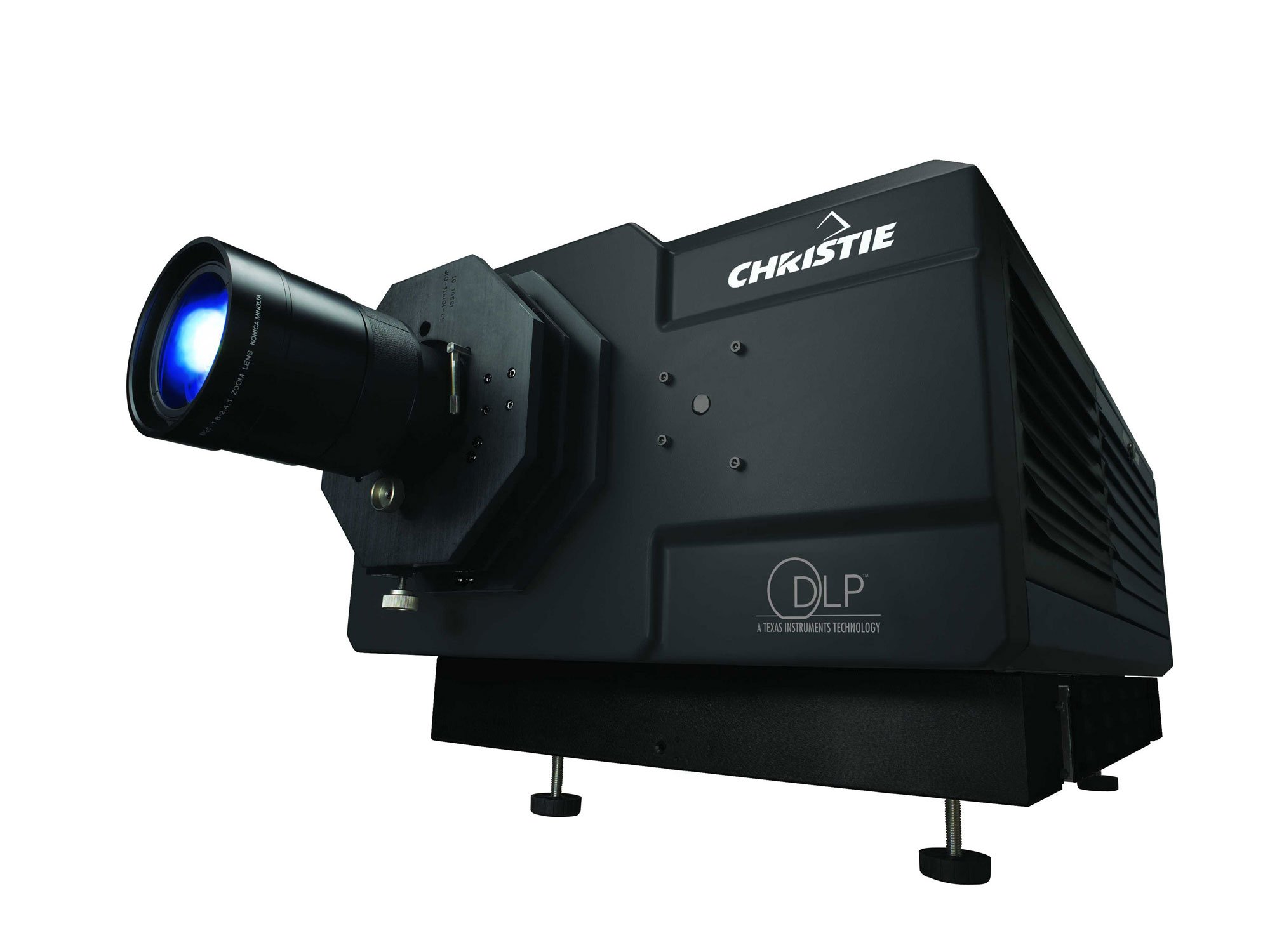

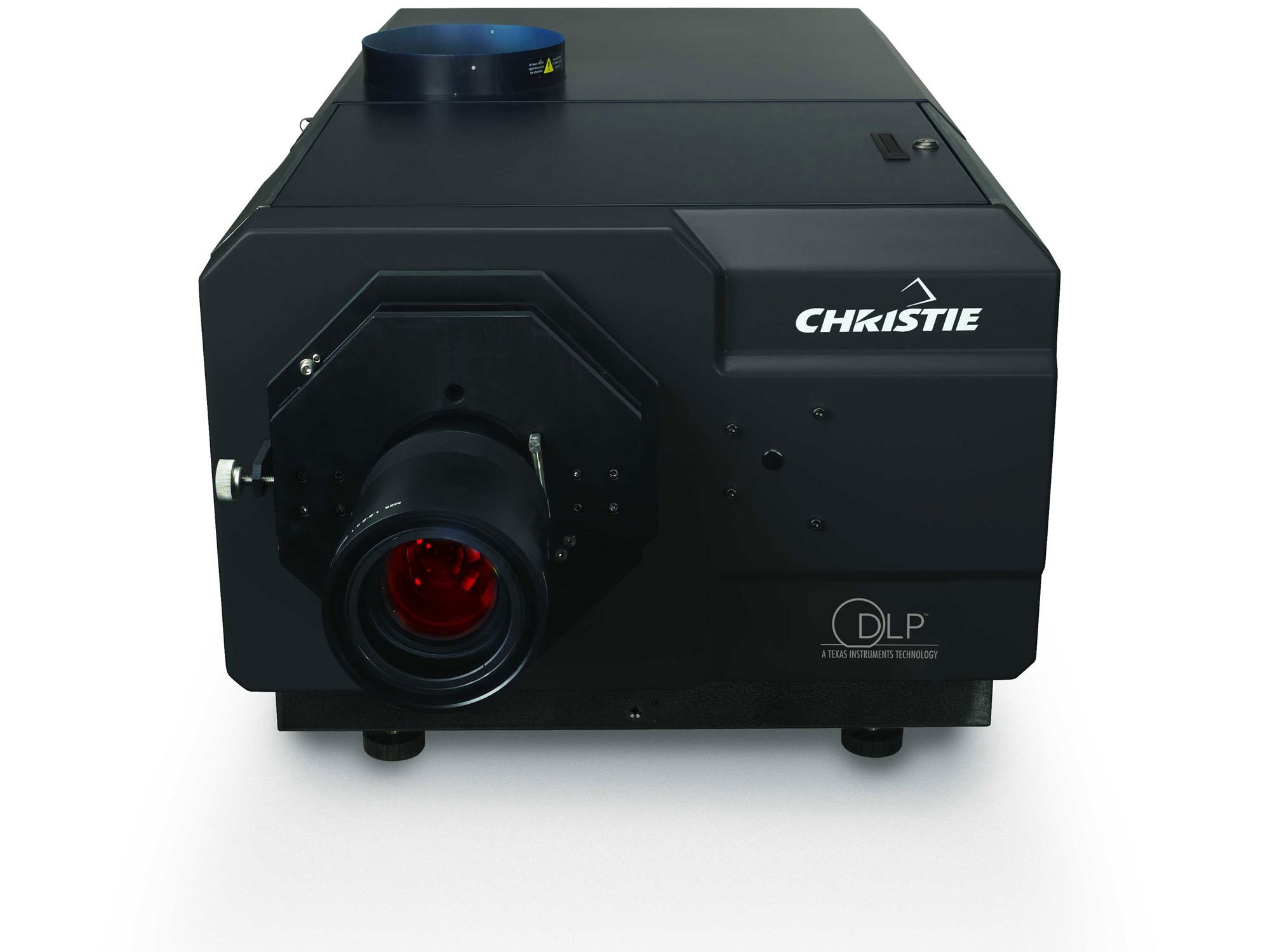

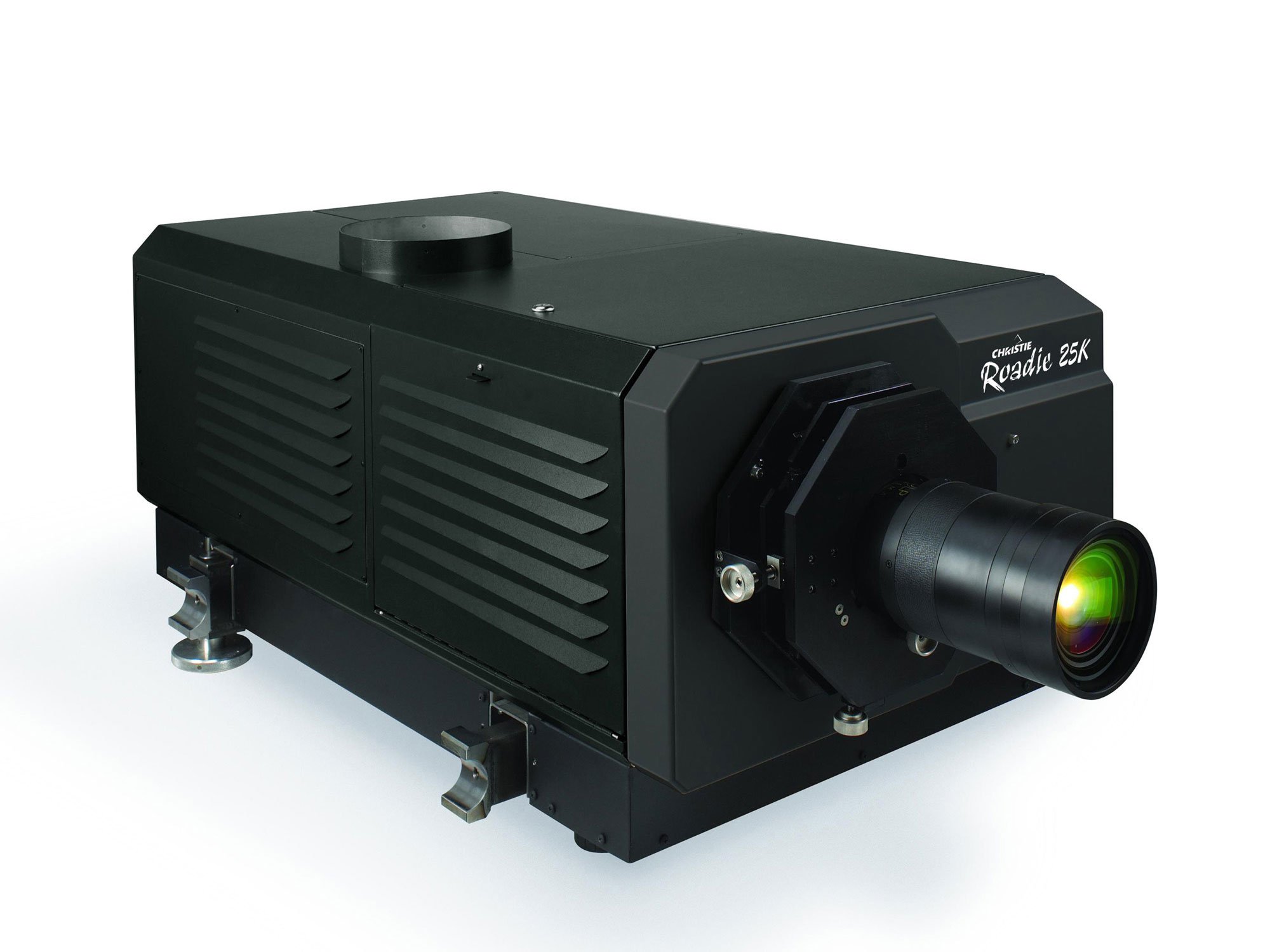

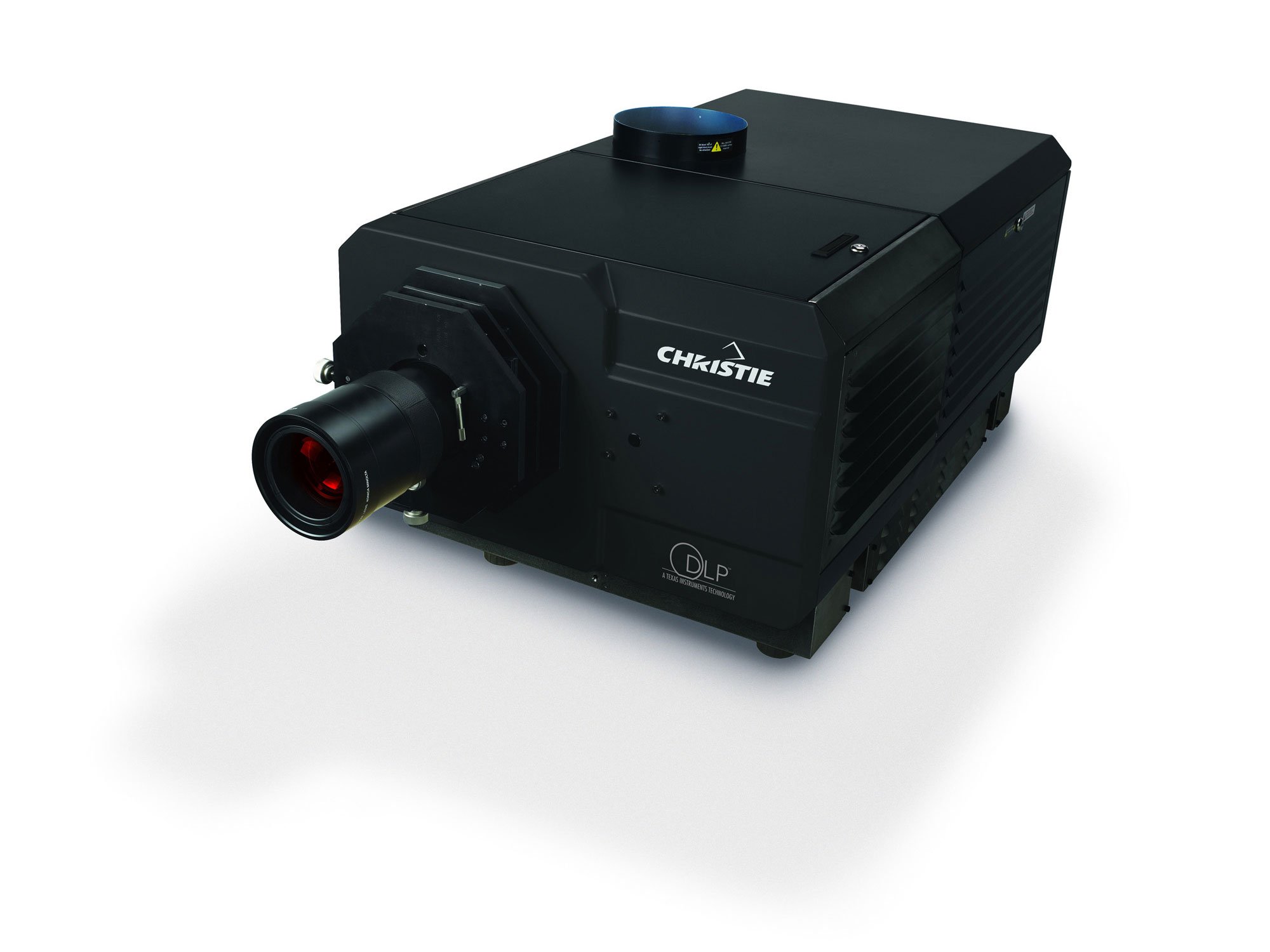

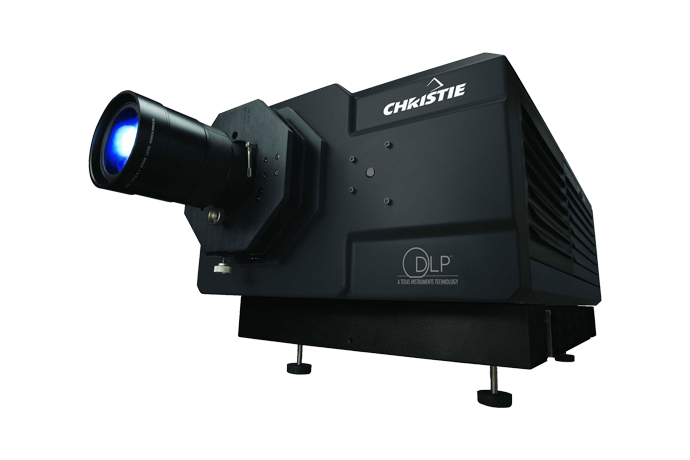

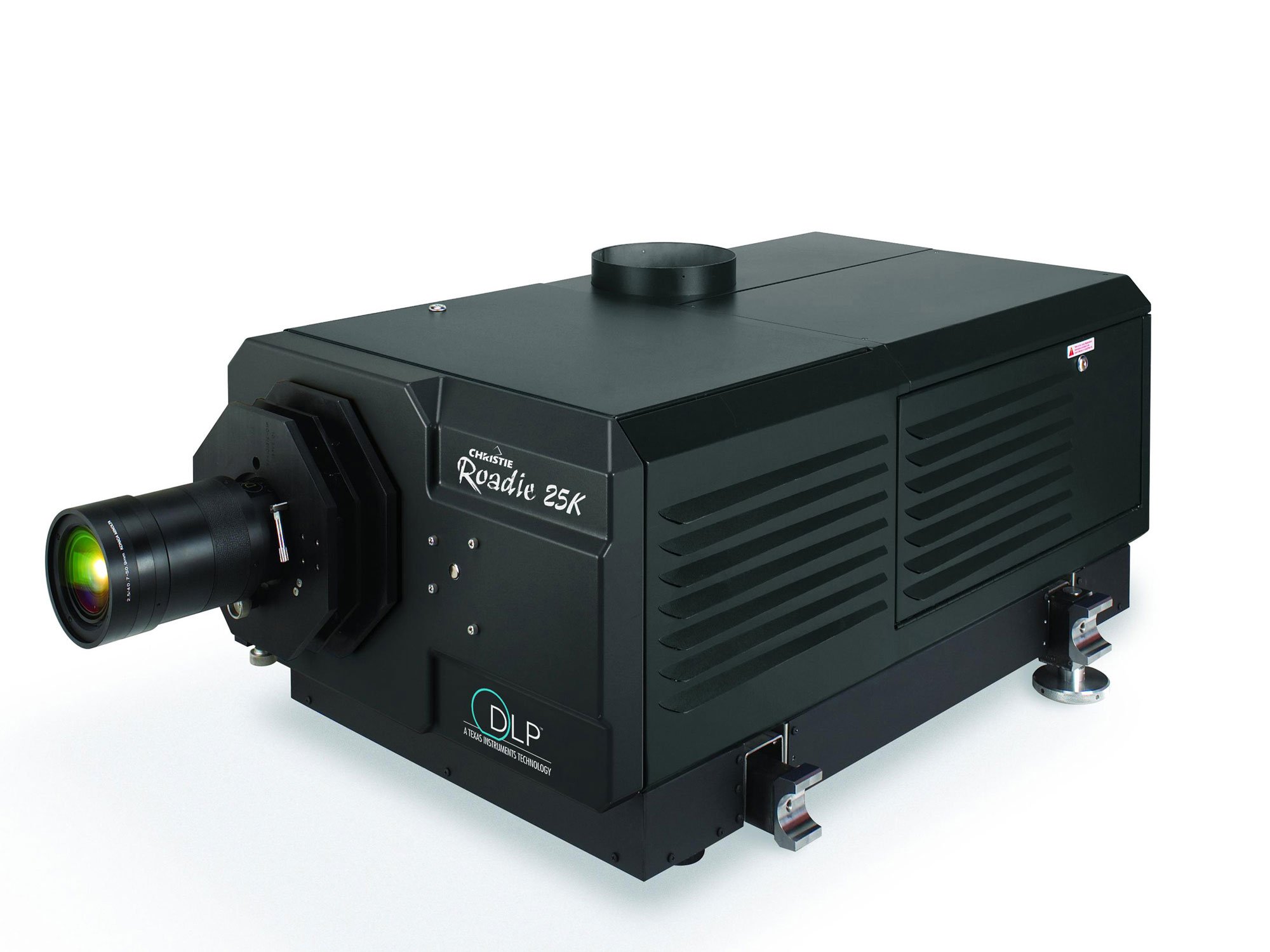

The Christie Roadie 25K LE is a revolutionary split-body projector utilizing 3-chip DLP™ technology. Its unique separate projection head and lamp ballast means both parts can be flown and rigged with greater ease, creating the ideal solution for challenging rental/staging installations and tight spaces.
The Christie Roadie 25K Limited Edition features a new scooped hood, improved rear air exhaust and stackability while the revamped lens mount increases its rock solid performance.
With 2048 x 1080 resolution, 25,000 ANSI lumens (+/-10%) and 10-bit image processing all standard, images are stunning in their size, brilliance and quality. This tough, user-friendly projector is built for frequent transport and quick set-up - perfect for any large audience venue demanding effortless installation and operation.
Offering extreme brightness, high contrast, installation and application flexibility, a self-aligning lamp and a wide offering of lamps for different applications, the Christie Roadie 25K shines virtually anywhere you put it.
Revolutionary design, purpose-built and riggable - projection perfection.
Features
- Split-ballast design
- 10-bit image processing

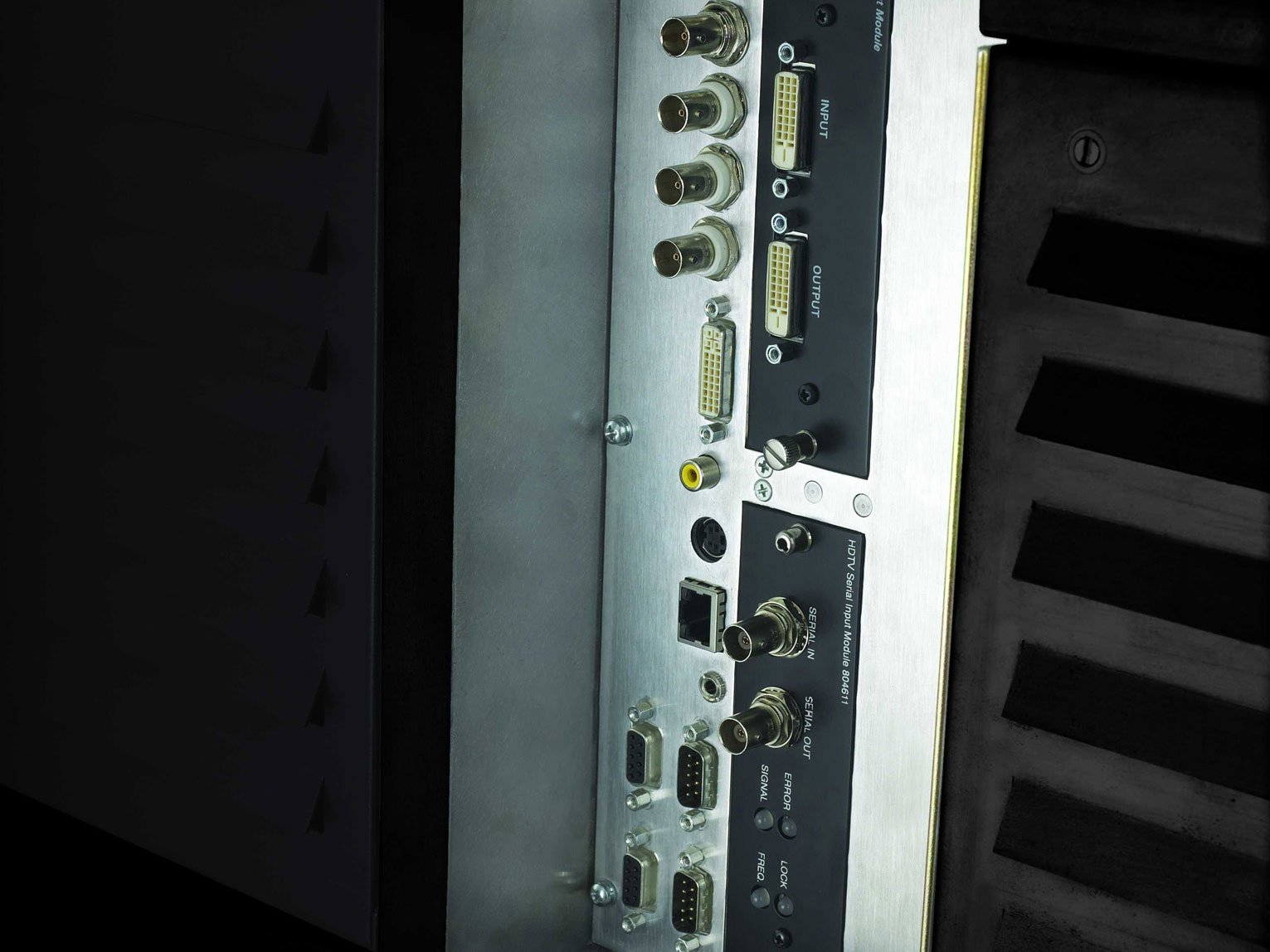

- Built-in multi-standard video decoder

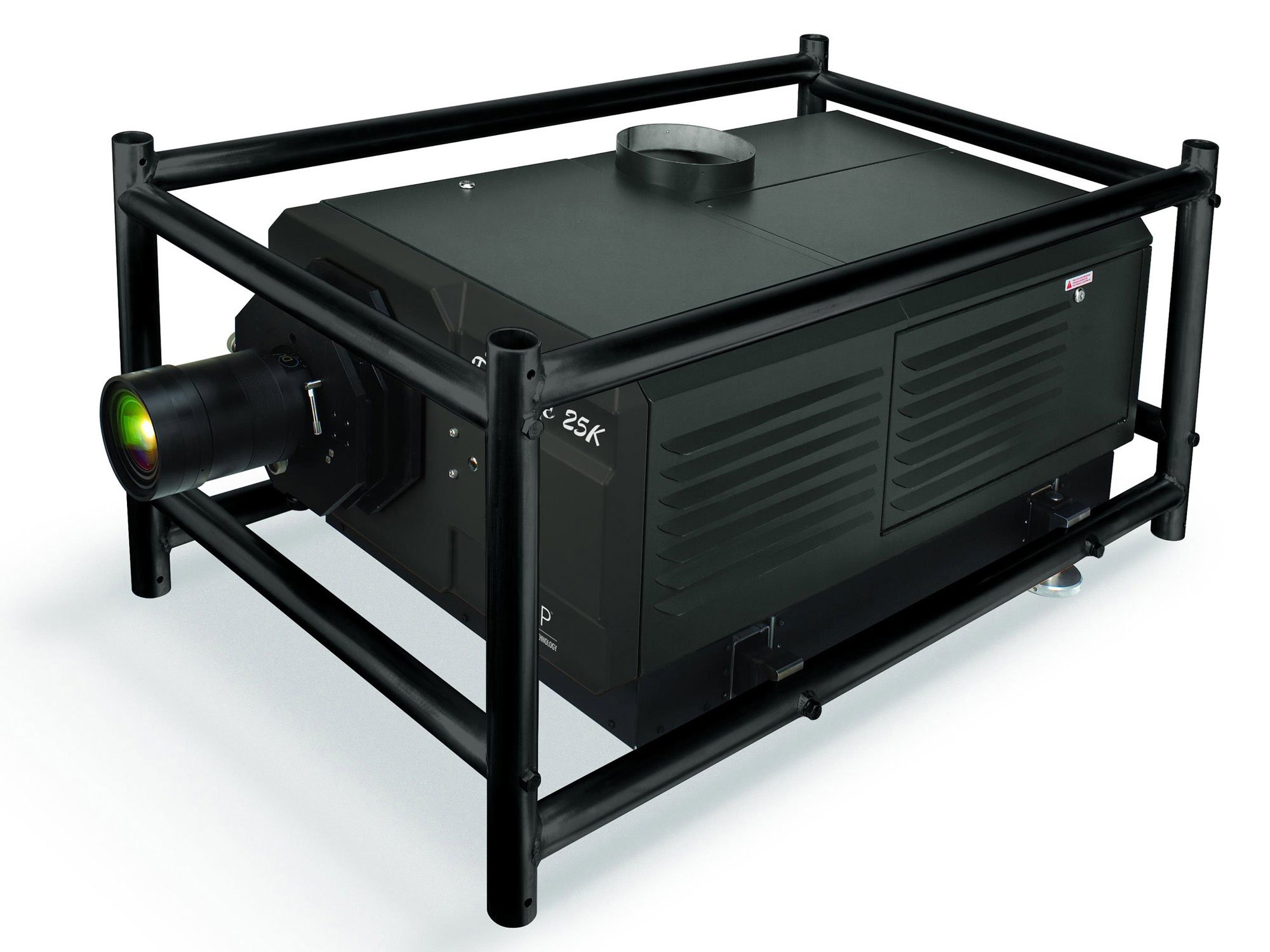

- Handles for carrying and rigging
Uses
- Tradeshows and exhibitions
- Auditoriums and churches
- Concerts
- Casinos, theme parks and museums
Specifications
Digital Light Processing
- 3-chip 1.25" DLP®
Resolution
- 2048 x 1080
Brightness
- 8,000 - 25,000 ANSI lumens (+/-10%)
- 90% brightness uniformity across the screen
Contrast Ratio
- - High Brightness lens: 1600:1 on/off
- - High Contrast lens: 1800:1 on/off
- - ANSI Contrast, both lenses: 650:1
- - High Contrast optional aperture: 2800:1
Input Line Voltage
- - Ballast: 3-phase 200-230 VAC +/- 10% @ 50/60 Hz (max 24A per phase)
- - 3-phase 380-415 VAC +/- 10% @ 50/60 Hz (max 12.5A per phase)
- - Projection Head: Single-phase 200-240 VAC +/- 10% @ 50/60 Hz
Color processing
- 10-bit digital processing
Due to constant research, specifications and features are subject to change without notice.
Downloads
Sign in to access additional resources, including service bulletins, interconnect drawings, and cinema software updates.
Christie High Contrast Aperture Installation Instruction Sheet
Jul 22, 2011 | PDF: 777 KB
This PDF document is an instruction sheet that outlines the procedures to change overall contrast ratio and brightness in a Roadie 25K/25K LE, HD+30K/HD+35K and the CP2220 and CP2230 series projector by installing a different diameter f/# aperture. Contact our technical support center or your Christie Sales Manager if you require more information or assistance.
Christie Roadie Warp Blower Kit Installation Instruction Sheet
Jul 07, 2011 | PDF: 1.7 MB
This PDF document is an instruction sheet that outlines the procedures for (what is this instructing you to do – usually in overview/introduction text of the document). Contact our technical support center or your Christie Sales Manager if you require more information or assistance.
Christie TWIST Warping Module Installation Instruction Sheet
Jul 07, 2011 | PDF: 2.9 MB
This PDF document is an instruction sheet that outlines the procedures for (what is this instructing you to do – usually in overview/introduction text of the document). Contact our technical support center or your Christie Sales Manager if you require more information or assistance.
