Christie DWU700-GS | Christie - Audio Visual Solutions

View Christie's current line of projectors.

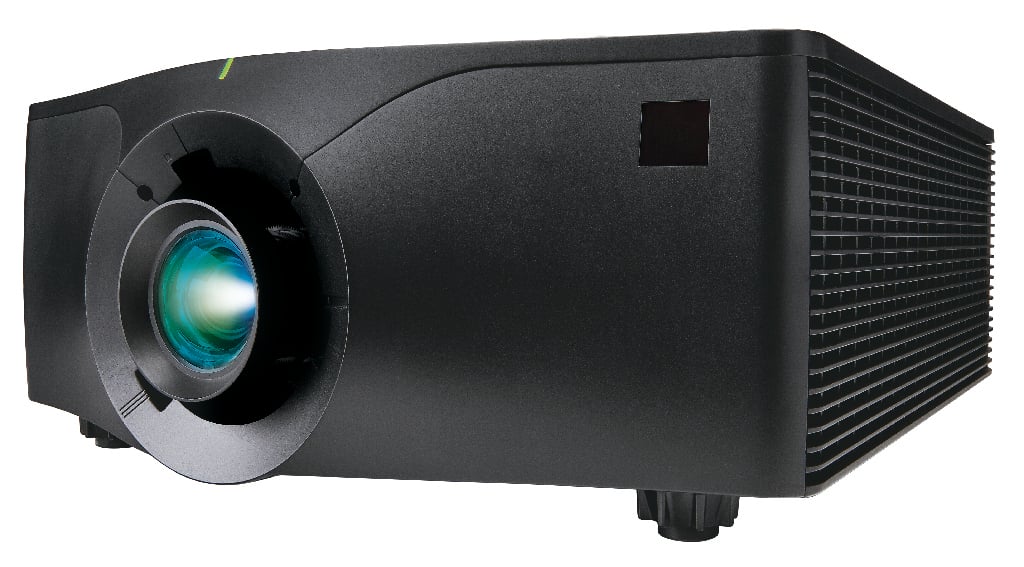

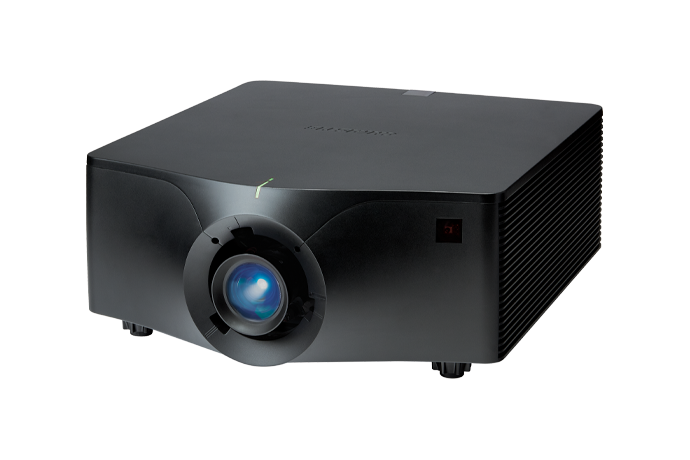

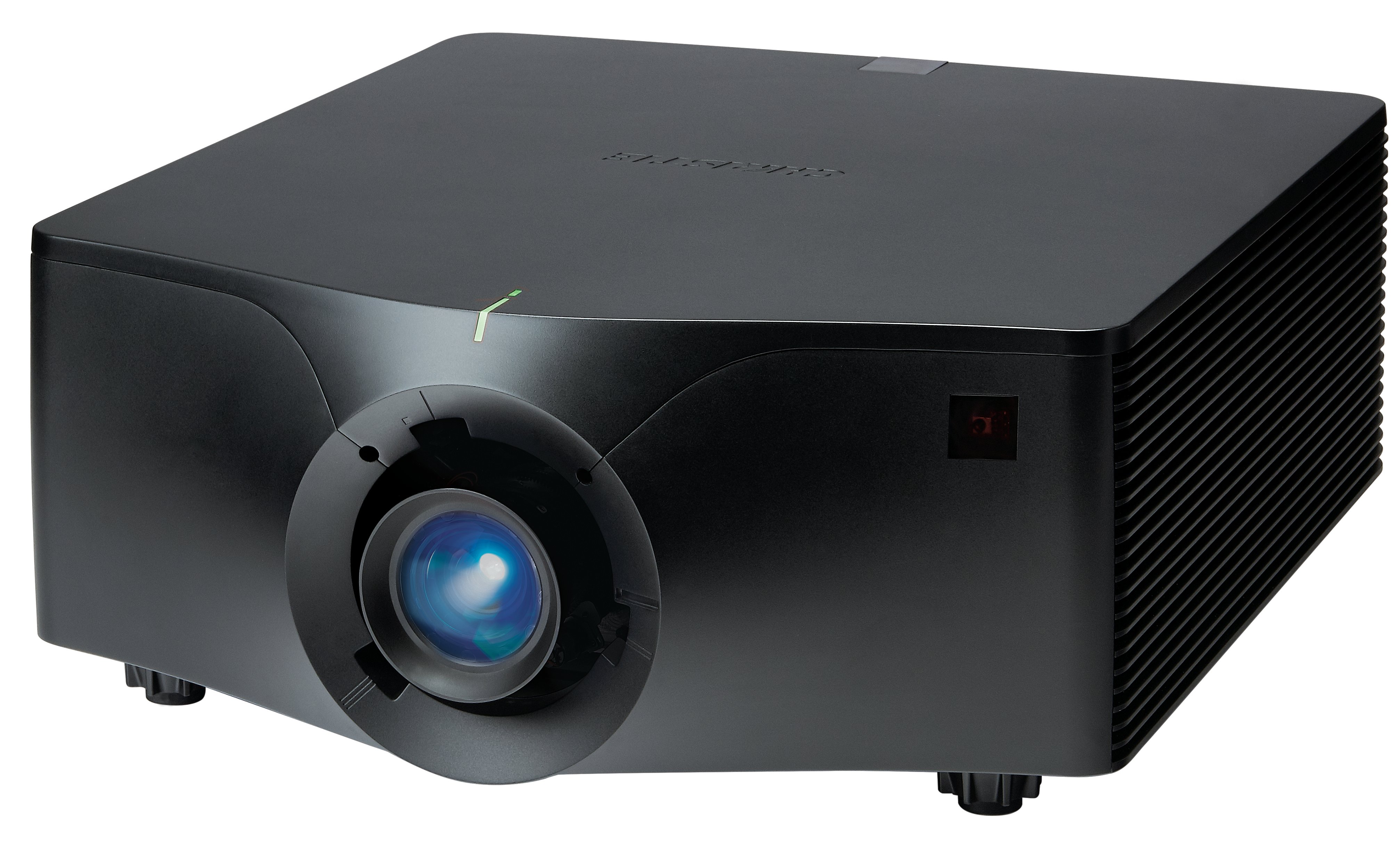

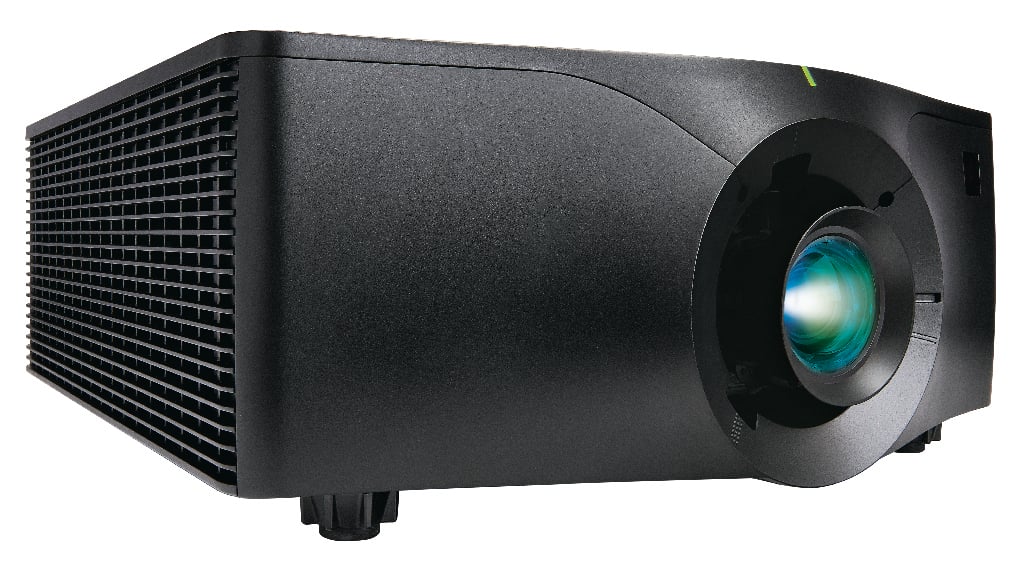

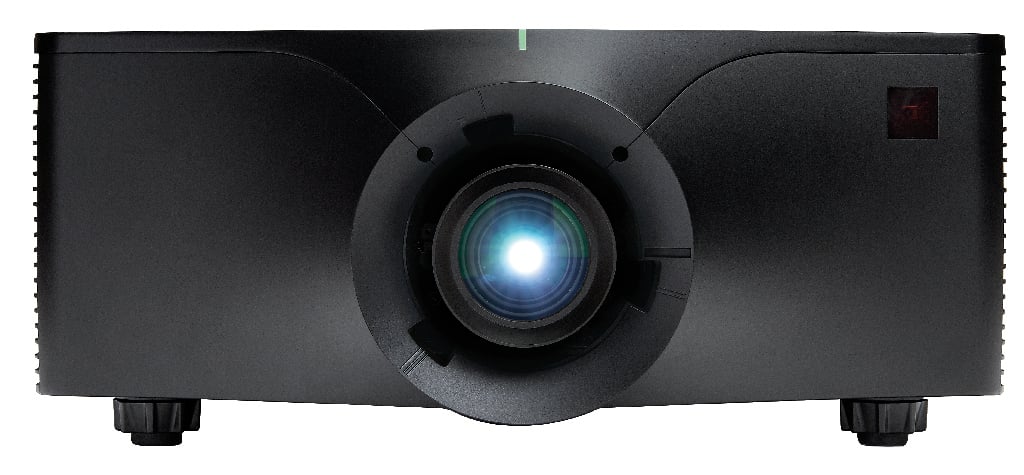

Featuring laser illumination, the Christie^® DWU700-GS 1DLP^® projector eliminates the need for lamp and filter replacements, providing 20,000 hours of low-cost operation. With its small footprint, low weight, quiet operation and a full suite of lenses, the Christie DWU700-GS is ideal for boardrooms, higher education, houses of worship and smaller location-based entertainment venues.

Features

Laser illumination and 1DLP technology for excellent image quality and reliability
20,000 hours of low-cost operation
Built-in color matching for a more uniform image in a multiple projector configuration
Built-in advanced (grid-based) warping and blending for complex applications.
24/7 operation
Standard HDBaseT input
Optional wireless module for device flexibility and easy presentation set up
DICOM simulation mode for training purposes

Specifications

Brightness

- 7,300 ISO
- 7,000 Center
- 6,500 ANSI (typical)

Contrast

300,000:1 Full On/Off (Christie RealBlack enabled)
1200:1, ANSI 250:1 (nominal) Full On/Off (Christie RealBlack disabled)

Display

1DLP 0.67" DMD

Resolution

WUXGA (1920 x 1200)

Illumination

Solid state (laser phosphor)

Lamp life

20,000 hrs

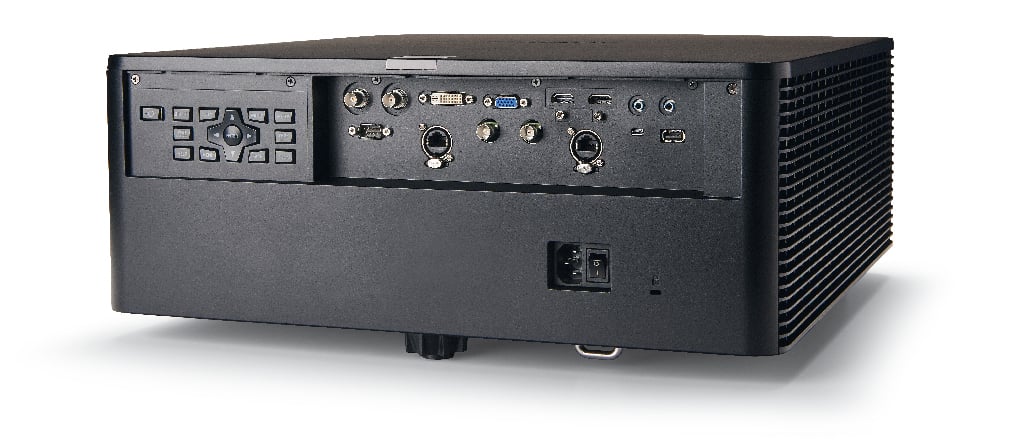

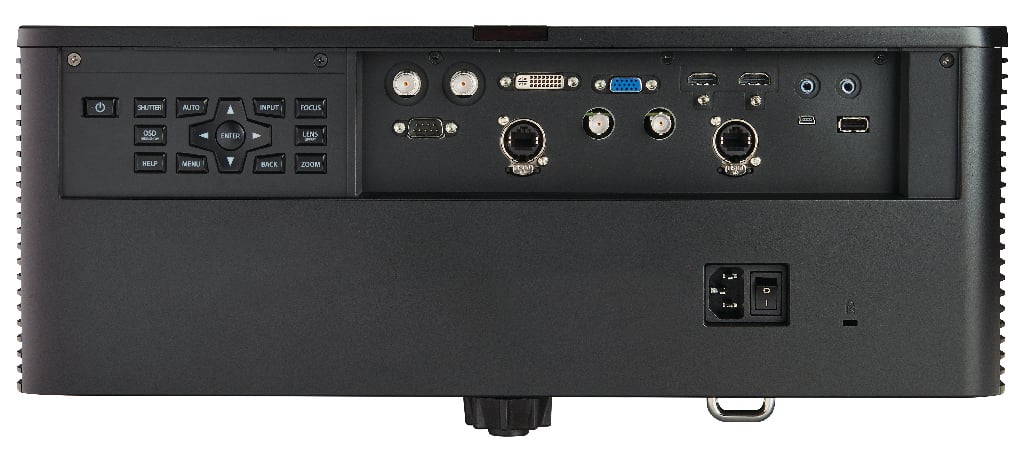

Inputs

- HDMI x 2
- 3GSDI x 1 (BNC)
- DVI-D x 1 (digital only)
- VGA (HD15 x 1)
- USB x 1 (type B mini) - display over USB
- USB x 1 (type A) - image viewer or WiFi dongle (optional)
- HDBaseT x 1
- Ethernet (RJ45 x 1)

Signals

HDTV formats VGA through to WUXGA (1920 x 1200)

Pixel clock

162MHz

Scan rates

Horizontal: 15kHz to 91kHz
Vertical: 24Hz to 85Hz

Monitor out

3GSDI x 1 (BNC)

Networking

- RS-232 in
- Control via HDBaseT
- Ethernet (10/100) RJ45 with ChristieNET connectivity
- Built-in backlit keypad
- Wired remote control (3.5mm stereo)
- Loop out available for daisy chaining

Standard accessories

- IR remote with wired remote jack (wire not included)
- AC line cord for projector head
- Rear input/keypad panel cover
- User manual

Optional accessories

- QwikRig Frame (140-128102-XX)
- Christie One Mount Plus (140-117100-XX)
- One Mount Extender Rod
- One Mount Rigging Kit (used with One Mount, One Mount Plus and/or One Mount Extender Rod)
- Wireless dongle

Lens mount

- Tool-free lens insertion system
- Boresight adjustable
- Motorized horizontal and vertical lens offset
- Motorized zoom and focus adjustment

Lens options

- 0.75-0.95:1 zoom lens G (140-119102-XX)
- 0.95-1.22:1 zoom lens G (140-101103-XX)
- 1.22-1.52:1 zoom lens HP G/GS (140-131106-XX)
- 1.52-2.89:1 zoom lens G (140-102104-XX)
- 2.90-5.50:1 zoom lens G (140-107109-XX)
- Lens UST 0.36 (140-133108-XX)

Offsets

+/- 100% vertical (+/- 600 px)
+/- 30% horizontal (+/- 288 px)

Dissipation

2608.7 BTU/hr ±15% (220V)
2693.9 BTU/hr ±15% (110V)

Audible noise

35dB(A) standard mode
32dB(A) eco mode

Dimensions (L x W x H)

Physical: 22.2 x 19.2 x 7.6" (555 x 480 x 190mm) without feet
Shipping: 30.4 x 24.1 x 14.9" (759 x 599 x 373mm)

Weight

Physical: 52.4 lb (23.7 kg)
Shipping: 66.3 lb (30 kg)

Operating environment

Temperature: 0 to 40°C (32 to 104°F)
Humidity: 10 to 85% non-condensing

Regulatory

- Contact Christie for timing of certifications: UL/CSA/IEC 60950-1
- FCC Class A, CE, FDA, CCC, KC, EAC, PSE, EAC, SABS, BIS, VCCI, RCM,UKR, TER, SASO
- This product conforms to all relevant European directives, standards, safety, health and environmental concerns RoHS, REACH and WEEE.

Limited warranty

- 3 years parts and labor on the projector
- 3 years or 15,000 hours parts and labor on the illumination system*
- Contact an authorized Christie representative for full details of our limited warranty

*Please reference the Christie Standard Limited Warranty document for details.
