The Christie​® LW502 is a feature-rich, 5,000-lumen-class​ 3LCD projector showcasing Christie’s renowned level of performance in a compact, easy-to-use and value-added package. Offering a long lamp life (up to 6,000 hours) and integrated audio, this projector provides a low total cost of ownership and is designed for easy classroom or meeting space installation.

Features

  • Extensive I/O including HDBaseT
  • WXGA (1280x800​) resolution
  • 5000:1 contrast ratio
  • 16W integrated audio system
  • Edge-blending and warping
  • DICOM simulation mode
  • Wireless presentation capable
  • Ease-of-​use and maintenance
  • Industry-leading warranties and service​​

Specifications


  • Brightness (lumens)
  • - Center - 5401
  • - ANSI - 5000​​
  • - ISO - 5525
  • Contrast
  • - 5000:1

Display technology

  • 3 x 0.59" Inorganic LCD
  • 1280 x 800 WXGA

Lamp

  • Type
  • - 300W UHB
  • Typical lifetime
  • - Normal mode: up to 4000 hrs
  • - Eco mode: up to 6000 hrs

Inputs

  • Signals
  • - VGA / SVGA / XGA / WXGA / WXGA+ / SXGA / SXGA+ / WSXGA+ / UXGA / WUXGA / MAC 16"
  • - NTSC, NTSC4.43, PAL, PAL-M, PAL-N, SECAM
  • - 480i, 480p, 576i, 720p, 1080i, 1080p
  • Scan rates
  • - Horizontal: 15-106kHz
  • - Vertical: 60-120Hz
  • Standard
  • - Co​mputer In: 15-pin D-sub x 1
  • - ​Digital Input: HDMI x 2, HDBaseT x 1
  • - Video Input: Composite video RCA jack x 1, Component video 15-pin D-sub x 1
  • - Audio input: 3.5mm stereo mini jack x 1, RCA jack (L/R) x 1
  • - USB Type A x 1 (for wireless network)

Outputs

  • - HDMI x 1
  • - 15-pin D-sub x 1
  • - Audio output 3.5mm stereo mini jack x 1

Control and networking

  • 9-pin D-sub x 1 (RS-232C)
  • RJ-45 port (HDBaseT)

Due to constant research, specifications and features are subject to change without notice.

Downloads

Sign in to access additional resources, including service bulletins, interconnect drawings, and cinema software updates.

Images

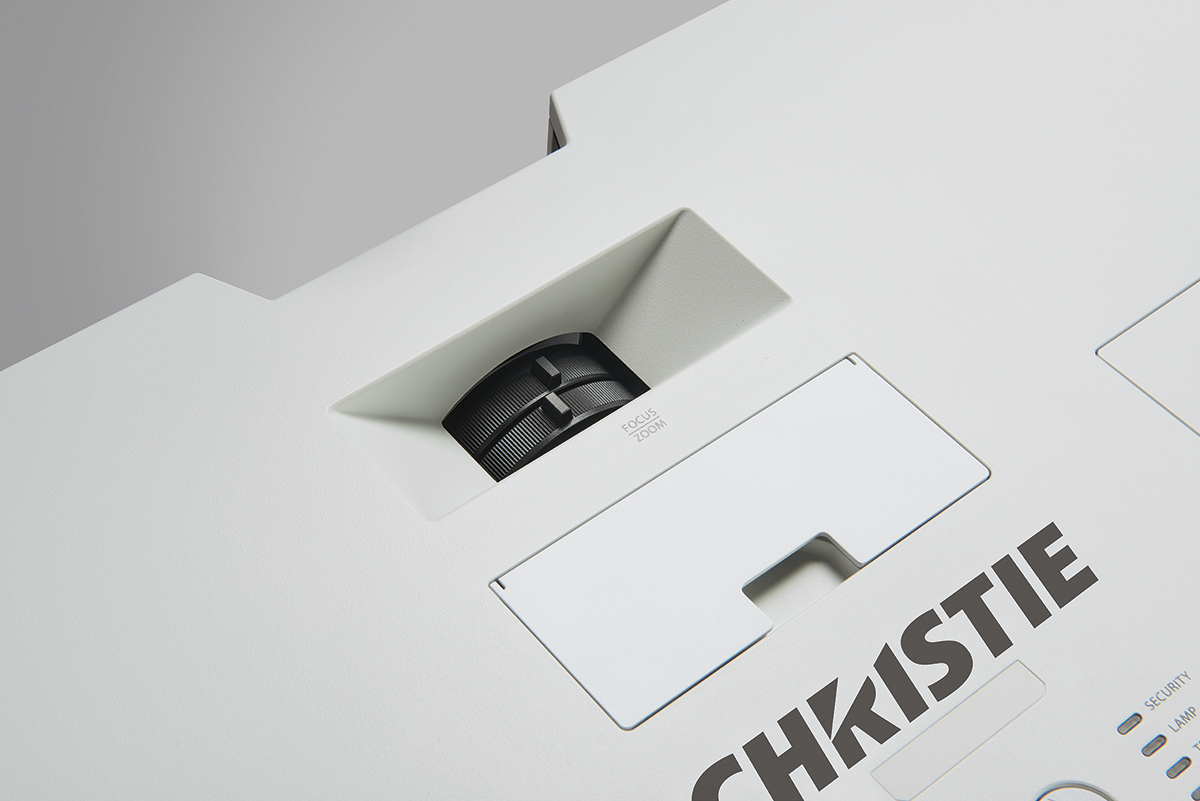

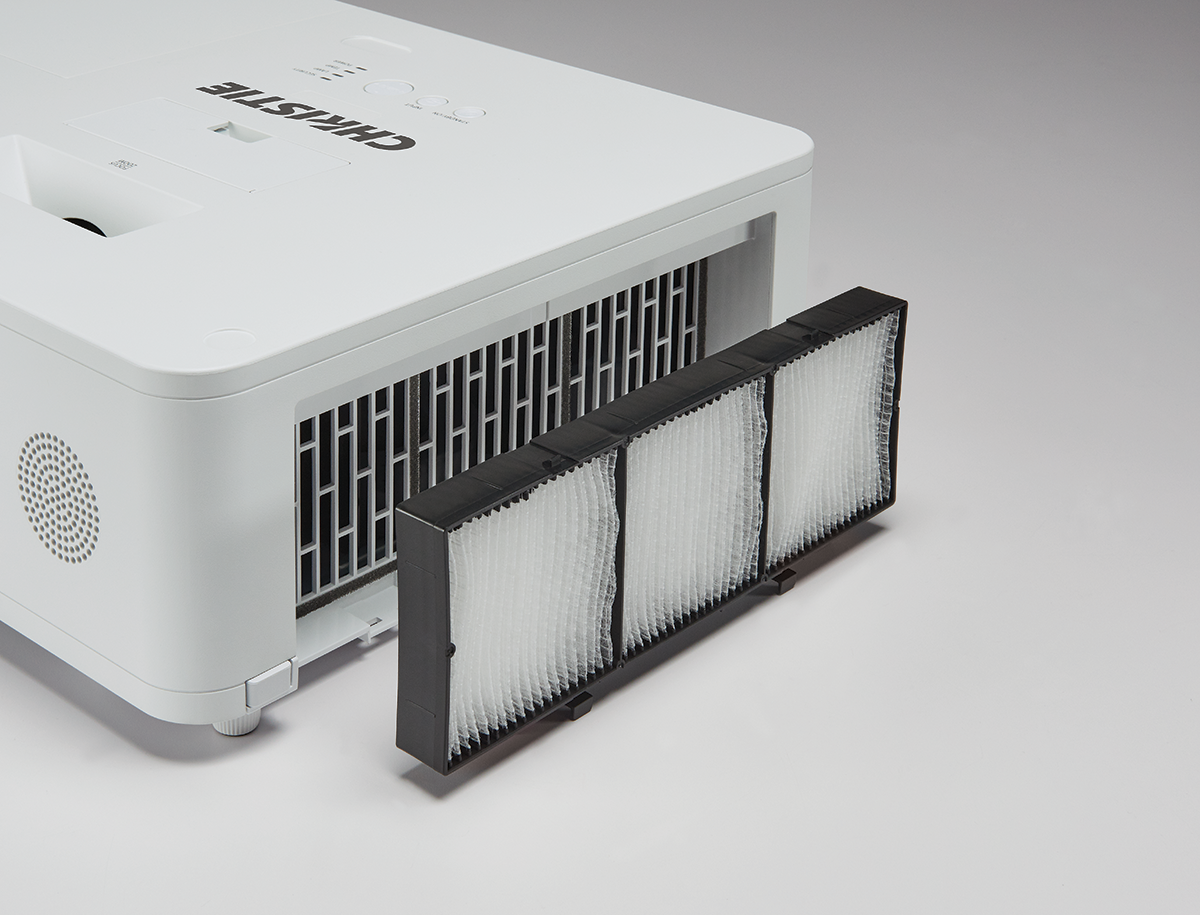

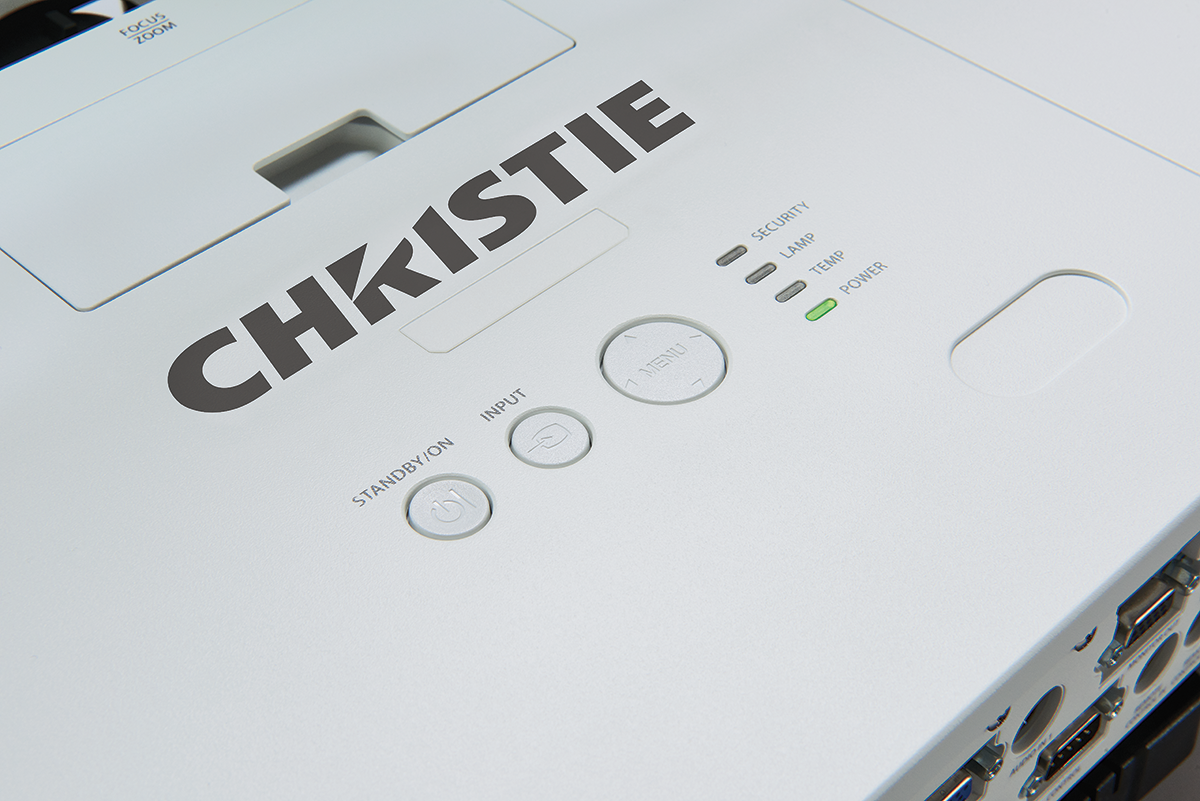

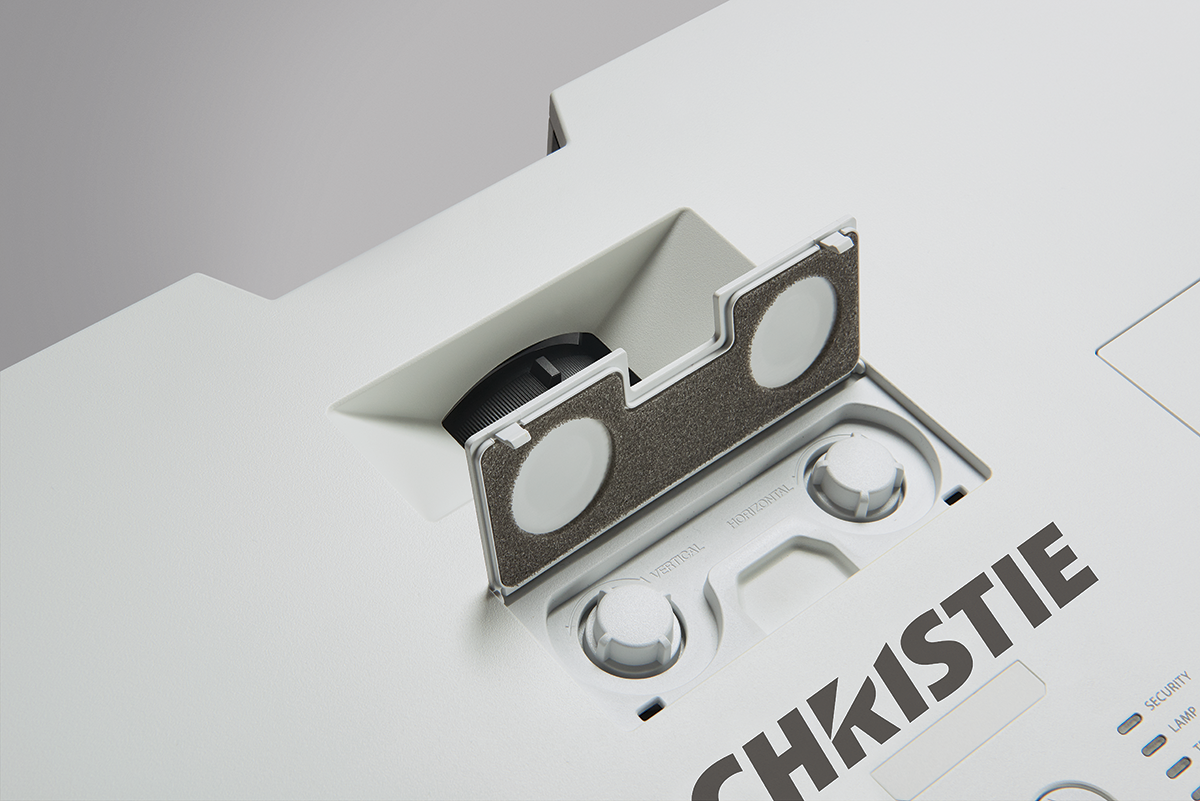

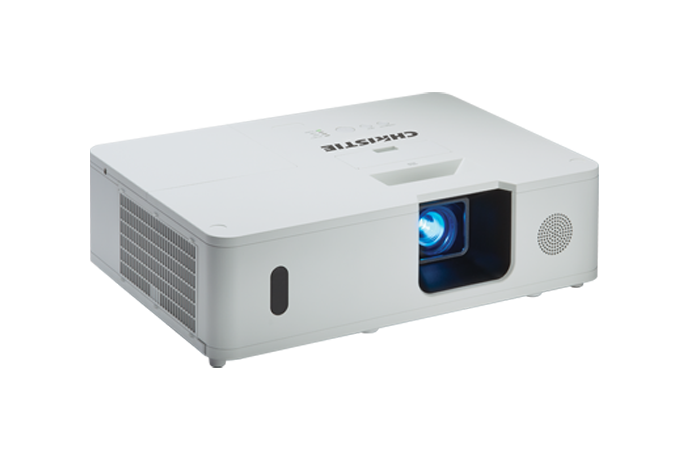

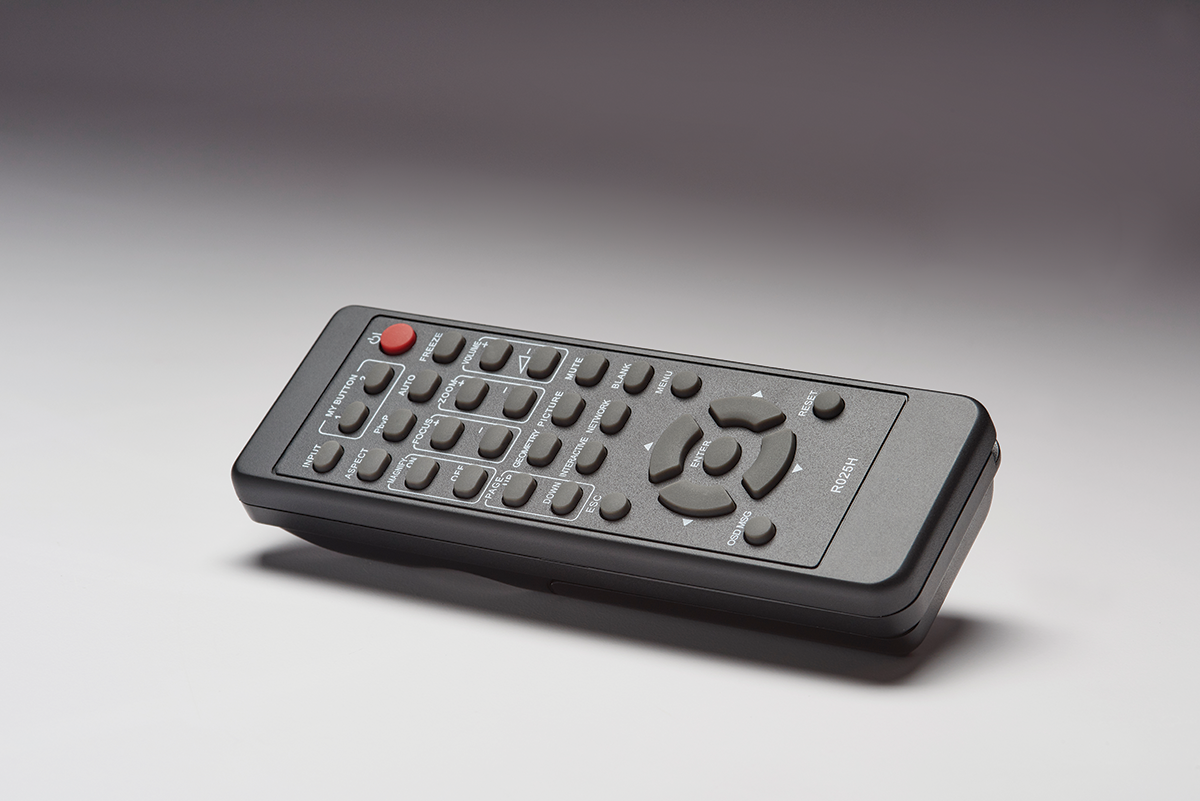

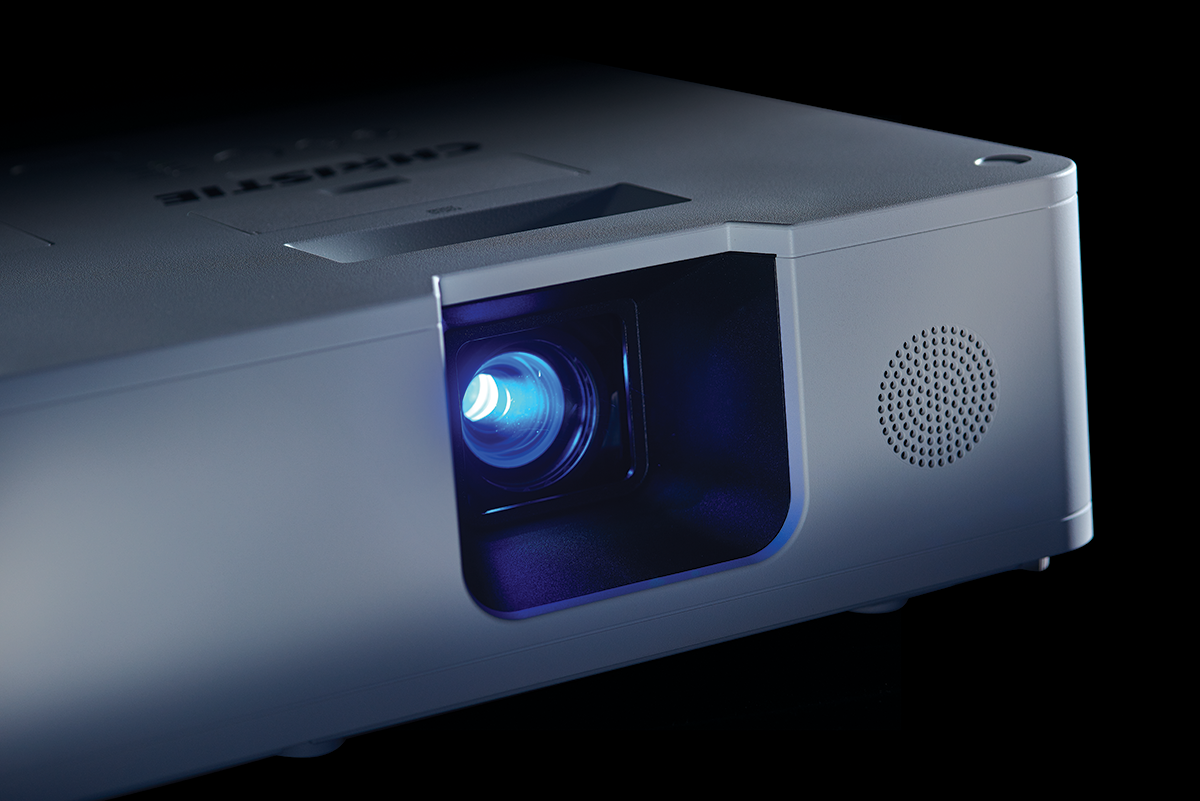

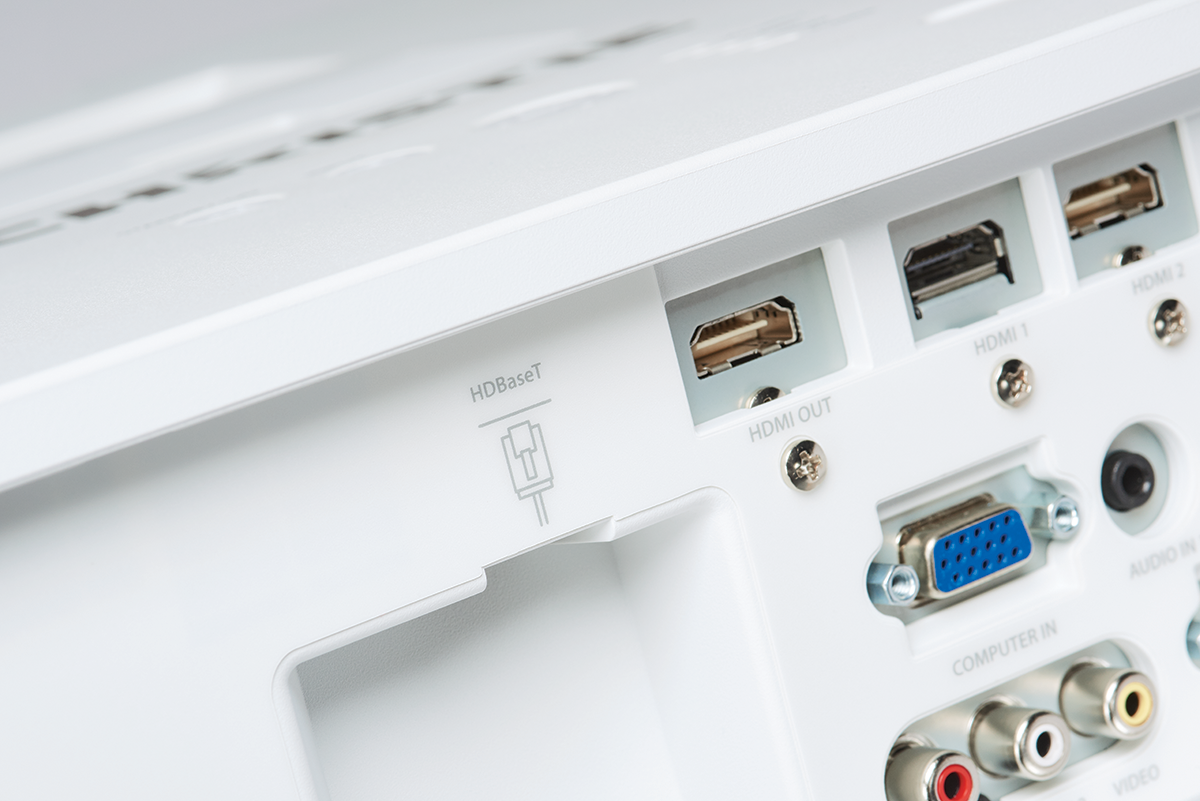

Christie LW502 3LCD projector | 121-041106-XX
