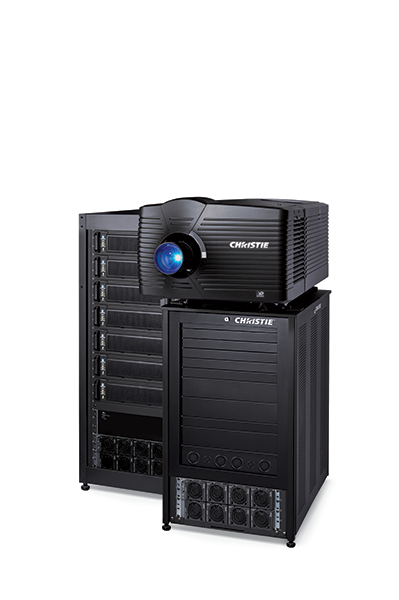

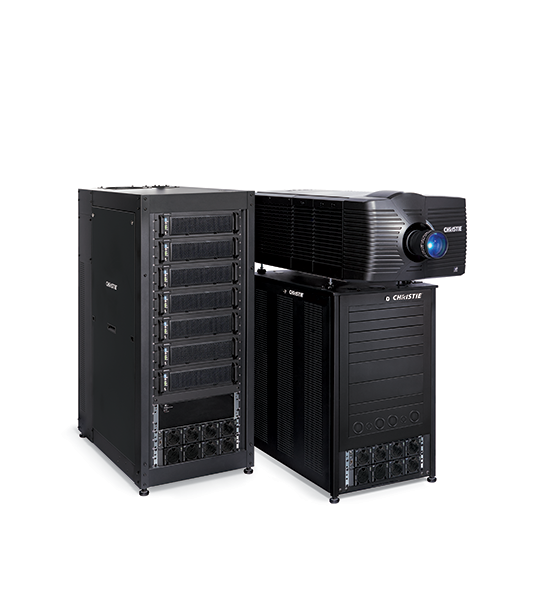

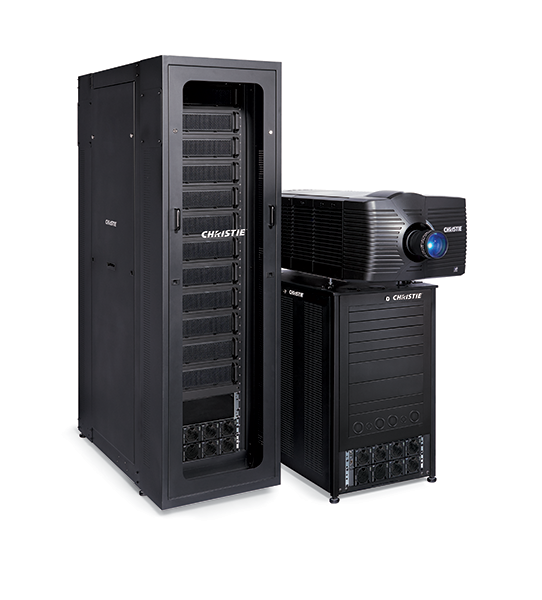

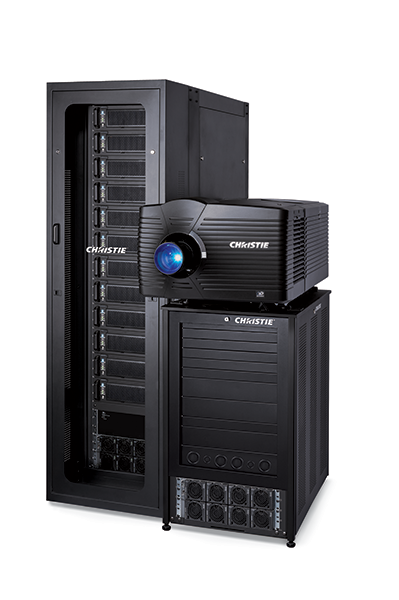

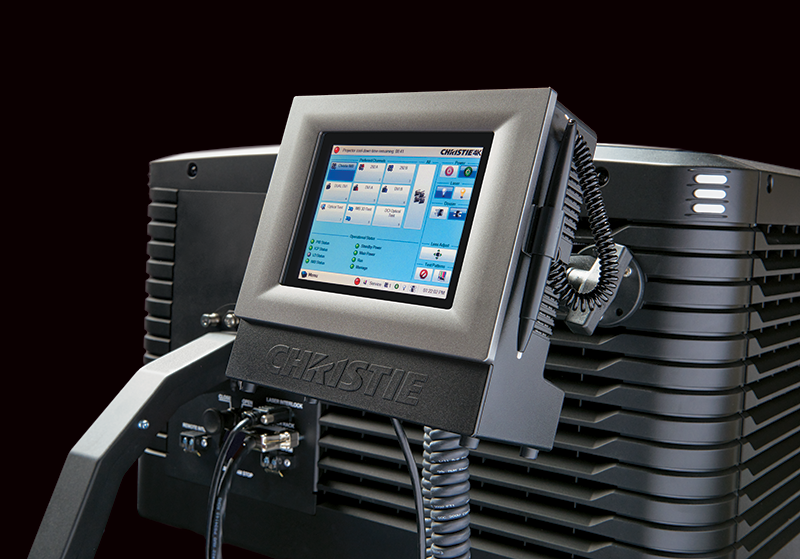

Christie D4KLH60 | High frame rate 3DLP 4K RGB laser projector head

Due to constant research, specifications and features are subject to change without notice.

Specifications

Brightness

5,000 - 60,000 lumens (1-12 Laser Modules)
30,000 hrs. to 80% initial brightness

Contrast

2100:1

Illumination

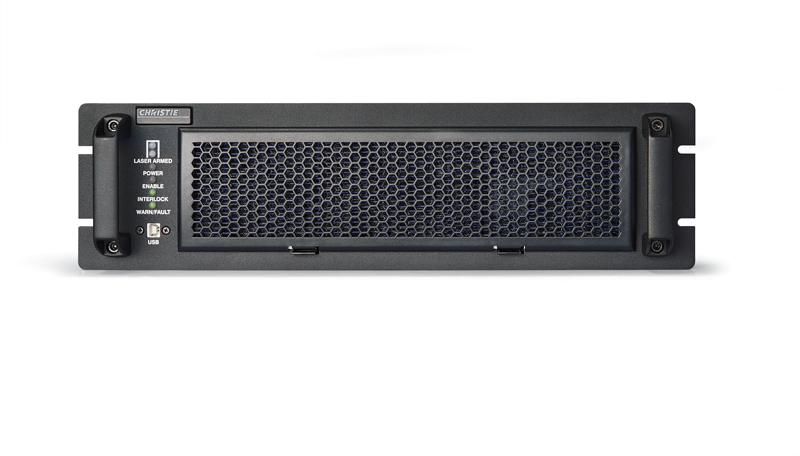

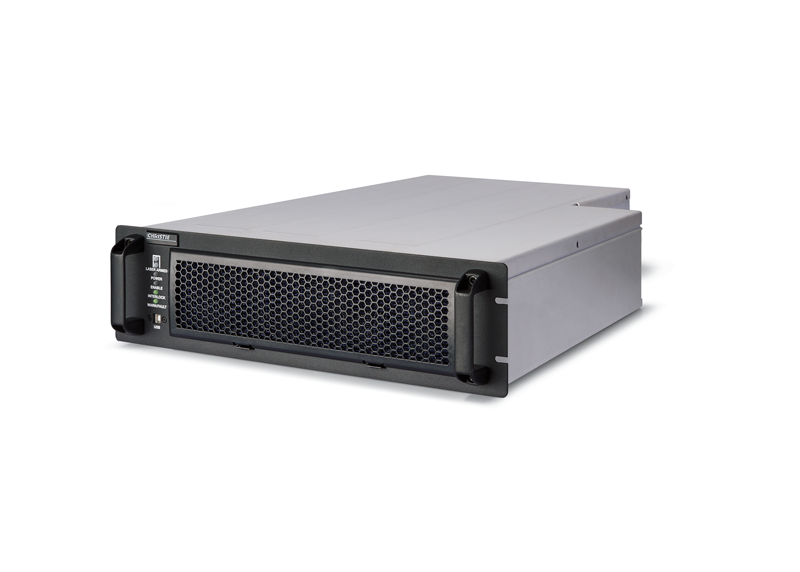

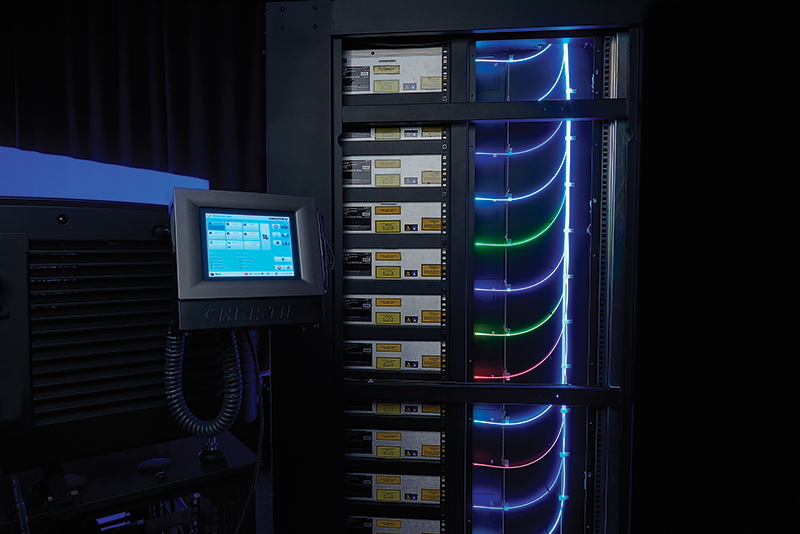

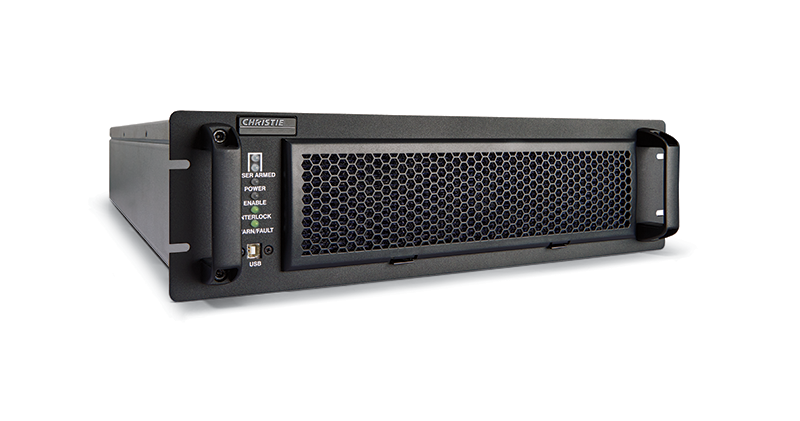

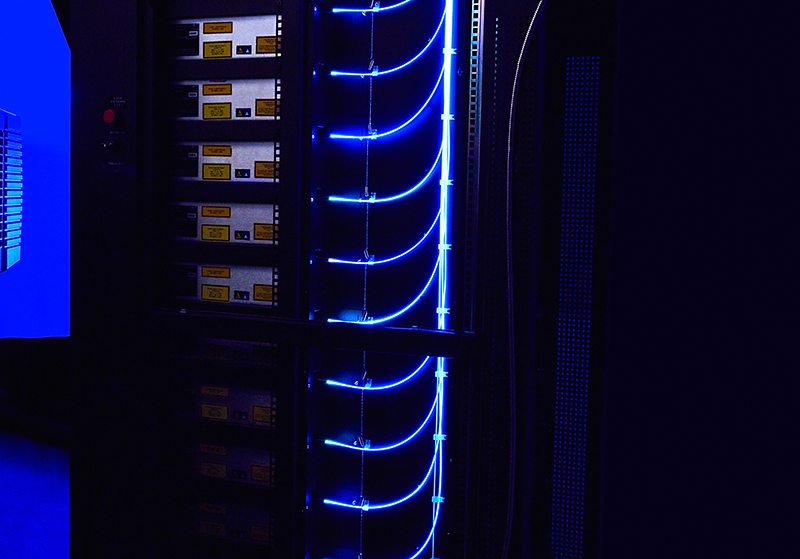

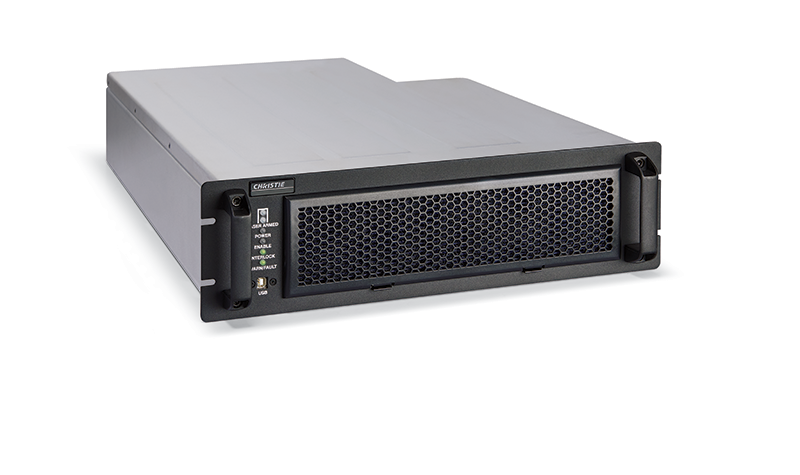

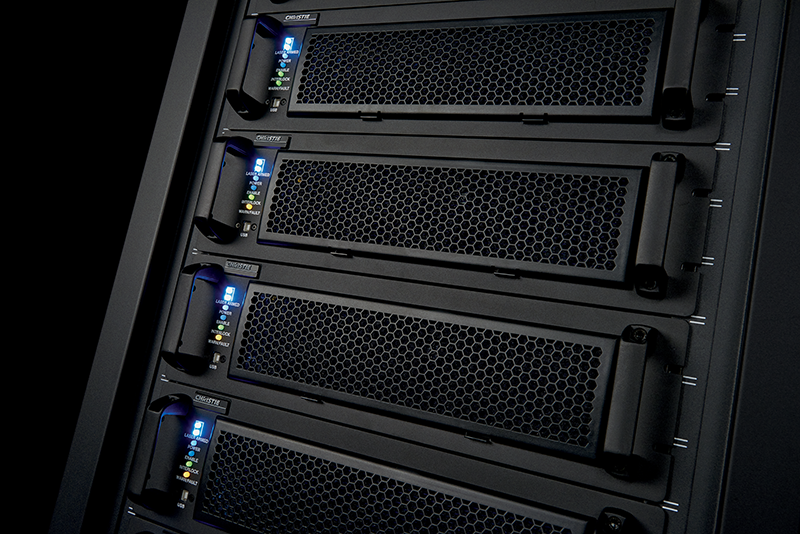

RGB Laser Light supplied from a Laser Module (LM) through a fiber bundle

Power

100-240 VAC, single phase, 10A breaker,50-60Hz.

Heat Exhaust

1320W

Full Video Connectivity available

3G-SDI -Standard- 2 Input modules with 2 inputs per
DisplayPort -Standard -2 Input modules- 2 inputs per
DVI-I
HDMI

TruLife Video Processing

Equivalent 25b/s video processing
Floating point processing

4K (4096x2160) 3 Chip DLP imaging engine

The 4K pixel canvas along with TruLife allows for images of almost any resolution to utilize the max pixel area

Full Lens Suite

The lens suite available covers a wide range of throw distances.
0.72:1
0.9:1
1.13-1.31:1
1.31-1.63:1
1.63-2.17:1
1.98-2.71:1
2.71-3.89:1
3.89-5.43:1
4.98-7.69:1

Size

(LxWxH) 54.0" x 25.6" x 18.6" ( 1391 x 650 x 472.5 mm)
Shipping size- (LxWxH) 57.0" x 36.0" x 28.0" ( 1447 x 914.4 x 711.2 mm)

Weight

244lbs (111kg)
Shipping weight- 340lbs (154kg)

Operating Environment

Operating temperature: 50-77°F (10-25°C)

Christie Service and Support

Three years parts and labor warranty
Contact an authorized Christie representative for the full details of our limited warranty

Due to constant research, specifications and features are subject to change without notice.

Accessories

1.00:1 fixed (HB/2K/1.2DLP)

38-809071-XX

0.90:1 when used in a 4K projector

Lens 3.0-4.3:1 (2K) / 2.71-3.89:1 (4K)

129-108100-XX

1.13-1.31:1 High Brightness Lens

129-104106-XX

1.31-1.63:1 High Brightness Lens

129-105107-XX

1.63-2.17:1 High Brightness Lens

129-106108-XX

1.98-2.71:1 High Brightness Lens

129-107109-XX

3.89-5.43:1 High Brightness Lens

129-109101-XX

5.0-7.69:1 High Brightness Lens

129-110103-XX

Twin HDMI Input Card

108-311101-XX

Dual Link DVI Input Card

108-312101-XX

Dual 3G SD/HD-SDI input card

108-313101-XX
