View Christie's current line of projectors.

The Christie® DWU600-G offers unsurpassed value and is a perfect fit for a variety of applications. Its single lamp design lowers total cost of ownership by reducing maintenance and energy cost.

Features

  • single-lamp design
  • 1DLP® technology for excellent image quality and reliability
  • built-in color matching for a more uniform image in a multiple projector configuration
  • blending and warping capabilities for curved surfaces using the optional Dual Processor Warp Module
  • 24/7 use capability
  • 2,000 hours long lamp life contributes to a low cost of ownership
  • filter-free and dust-sealed for low maintenance and costs
  • eco-friendly features
  • Dynamic Contrast, which enhances images by increasing the contrast ratio to 4000:1
  • an optional wireless module for device flexibility and easy presentation set up
  • DICOM simulation mode for training purposes​​​

Specifications

Brightness

  • 6,300 center (6,050 ANSI) lumens

Contrast

  • - 4800:1 (dynamic contrast enabled)
  • - 1000:1 (full on/ full off)
  • - 250:1 (ANSI)

Display technology and resolution

  • 1DLP 0.67" DMD
  • 1920 x 1200 WUXGA

Lamp

  • - 465W NSH
  • - 2000 hrs typical @ 465W
  • - 2500 hrs typical @ 360W

Inputs

  • Standard
  • - 1x HDMI
  • - 1x DVI-D (digital only)
  • - 1x DisplayPort
  • - 1x HD15
  • - 1x RCA (composite video)
  • - 1x S-Video (mini DIN)
  • - Component video (RCA)
  • - 1x USB (type B mini) - display over USB
  • - 1x USB (type A) - image viewer or WiF​i dongle (optional)
  • - 1x RJ45
  • Signals
  • - HDTV formats VGA through to WUXGA (1920 x 1200)
  • - Horizontal and vertical scaling while maintaining aspect ratio, all inputs

Pixel clock

  • 162 MHz

Accessories

Christie wireless adapter

133-113106-XX

Christie G Series cable cover

140-103105-xx

465W NSH lamp

003-004808-XX

Downloads

Christie G Series Brochure - English

May 10, 2016 | PDF: 631 KB

​This PDF product brochure outlines key features, specifications and uses. Please refer to the information presented on the Christie website, or speak to your Christie representative, for the confirmation of installation-critical specifications and features.

Christie G Series Brochure

Oct 17, 2012 | PDF: 700 KB

This PDF product brochure outlines key features, specifications and uses for the Christie G Series projectors. Please refer to the information presented on the Christie website, or speak to your Christie representative, for the confirmation of installation-critical specifications and features.

Images

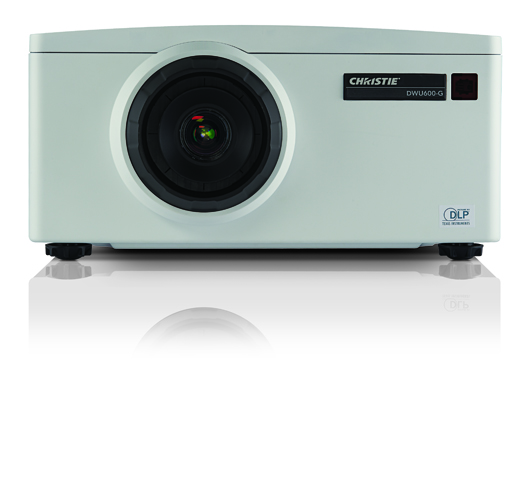

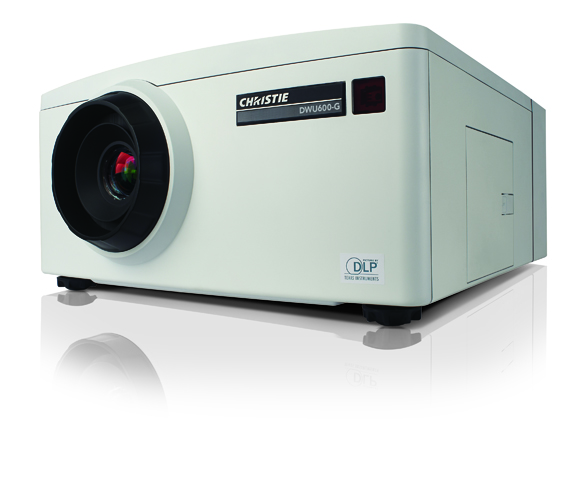

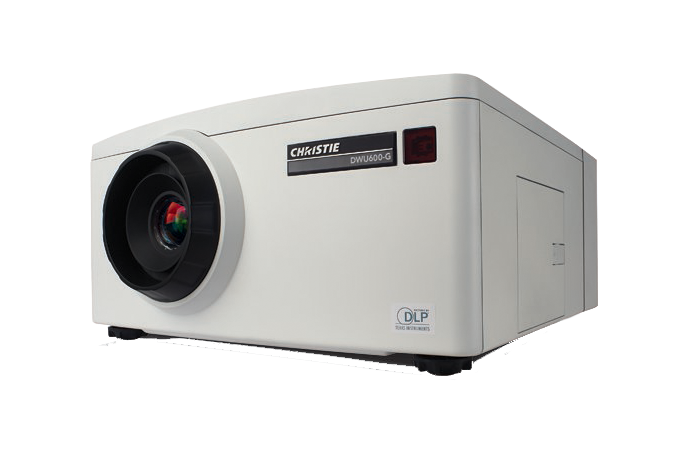

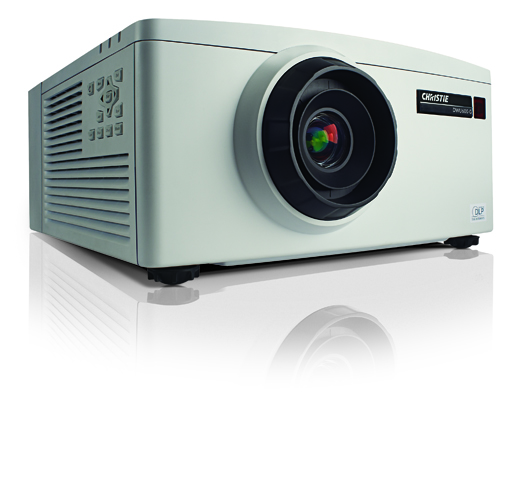

Christie DWU600-G WUXGA 1DLP projector | 140-004105-XX
