Christie DWX600-G | Christie - Visual Display Solutions
Overview Specs Accessories Downloads Images

* This product is no longer available. View Christie's current line of projectors.

The Christie® DWX600-G offers unsurpassed value and is a perfect fit for a variety of applications. Its single lamp design lowers total cost of ownership by reducing maintenance and energy cost.

Features

  • single-lamp design
  • 1DLP® technology for excellent image quality and reliability
  • built-in color matching for a more uniform image in a multiple projector configuration
  • blending and warping capabilities for curved surfaces using the optional Dual Processor Warp Module
  • 24/7 use capability
  • 2,000 hours long lamp life contributes to a low cost of ownership
  • filter-free and dust-sealed for low maintenance and costs
  • eco-friendly features
  • Dynamic Contrast, which enhances images by increasing the contrast ratio to 4000:1
  • an optional wireless module for device flexibility and easy presentation set up
  • DICOM simulation mode for training purposes​​​

Specifications

Brightness

  • 6,400 center (6,150 ANSI) lumens

Contrast

  • - 4000:1 (dynamic contrast enabled)
  • - 1000:1 (full on/full off)
  • - 250:1 (ANSI)

Display technology and resolution

  • 1DLP 0.65" DMD
  • 1280 x 800 WXGA

Lamp

  • - 465W NSH
  • - 2000 hrs typical​ @ 465W
  • - 2500 hrs typical @ 360W

Inputs

  • Standard
  • - HDMI x 1
  • - DVI-D x 1 (digital only)
  • - DisplayPort x 1
  • - HD15 x 1
  • - RCA x 1 (composite video)
  • - 1x S-Video (mini DIN)
  • - Component video (RCA)
  • - USB x 1 (type B mini) - displays over USB
  • - USB x 1 (type A)- image viewer or WiFi dongle (optional)
  • - RJ45 x 1
  • Signals
  • - HDTV formats VGA through to WUXGA (1920 x 1200)
  • - Horizontal and vertical scaling while maintaining aspect ratio, all inputs

Pixel clock

  • 162 MHz

Downloads

Images

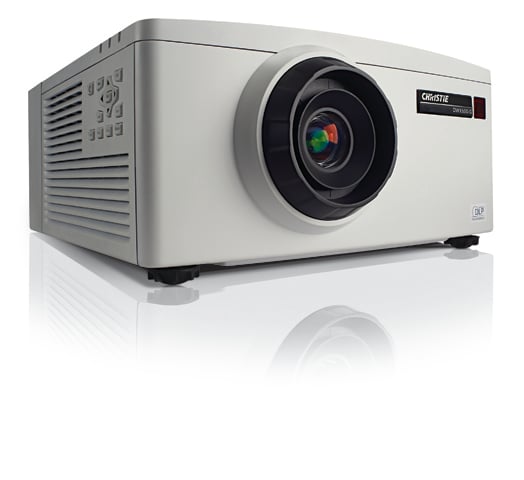

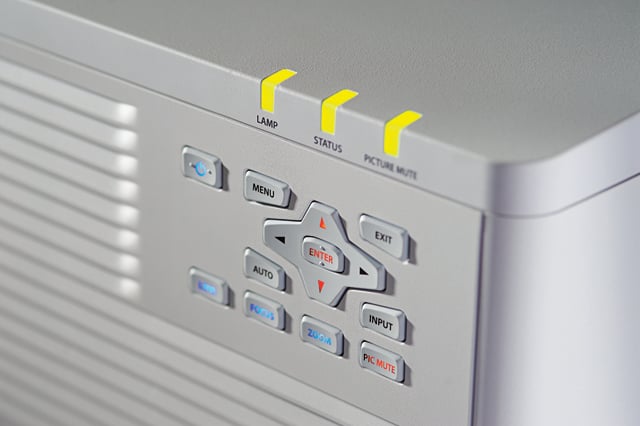

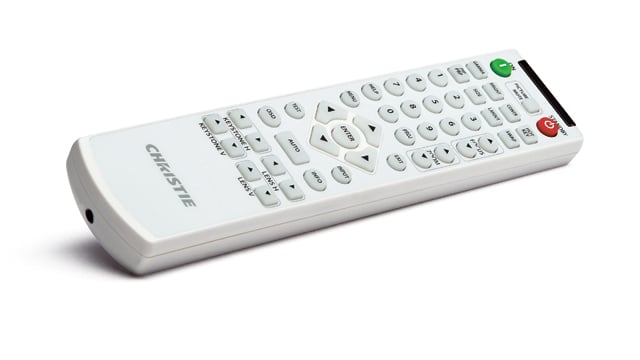

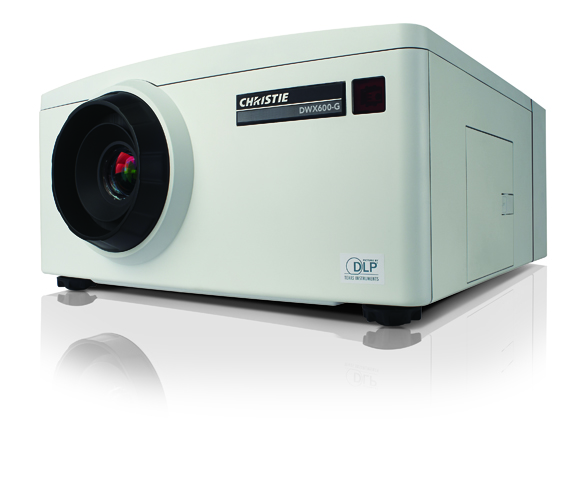

Christie DWX600-G WXGA 1DLP projector | 140-005106-XX
