Mirage WU7K-M WUXGA 3D 3DLP projector | Christie Visual Solutions
Overview Specs Accessories Downloads Images

*This product is no longer available. View Christie's current line of projectors.

The most compact in its class, the Christie Mirage WU7K–M DLP projector provides the high-performance and feature-rich standards you expect – Up to 6,300 ANSI lumens and up to 10,000:1 contrast for crisp, detailed images, excellent color, brightness uniformity control combined with low maintenance.

Utilizing unique electronics and ultra-high bandwidth processing power, Christie’s technology advancements include Dual Input 3D enabling the display of two discrete 60Hz video channel inputs for high performance 120Hz output.

 The Christie Mirage WU7K-M features three modes of 3D input.  It supports native frame rate up to 120Hz at WUXGA resolution over Dual Link DVI-D as well as frame doubled content for maximum source compatibility and high-performance, flicker-free operation.  With the addition of a second input module, the Dual Input 3D mode enables the display of a frame locked passive stereo source for high-performance active stereo at 120Hz without the need of a passive to active converter.

The Mirage WU7K-M offers high efficiency and low cost of ownership featuring long life dual lamps, automatic projector shut-down without a signal and adjustable power for cooling fans.

Features

  • WUXGA resolution (1920 x 1200)
  • Up to 6300 ANSI lumens
  • Up to a full 120Hz native frame rate
  • Standard full 330MHz dual-link DVI-D
  • Variable contrast ratio using electronically adjustable iris for crisp, detailed images - 2500-10,000:1 (full on, full off) / 650:1 ANSI
  • At maximum brightness the projector draws a maximum power of 870W
  • Smallest chassis in its class
  • Motorized yellow notch filter
  • Dual P-VIP lamps (200W)
  • Embedded Christie Twist™ image warping and edge-blending
  • Dust-sealed engine, filter-free design
  • Intelligent Lens System (ILS™) for zoom, focus, horizontal and vertical offset
  • AutoDesk® Revit® model
  • Built-in portrait display capabilities*

*Christie M Series stacking frame is required in portrait orientation.

A full suite of specifically-designed lenses offers flexibility and an embedded Christie Twist™ module enables advanced internal image warping and edge-blending.  Easy to set-up and easy to use, the dual-lamp platform offers greater choice and installation flexibility with a more optimal aspect ratio.

With the consistency of DLP technology, the Christie Mirage WU7K-M offers reliable, affordable, dual- lamp brightness, in the smallest chassis in its class. Combining additional standard features, an expanded lens suite and industry-leading Christie service, the Christie Mirage WU7K-M provides high performance and ease of use for all 3D/Advanced Visualization users.

More pixels, more performance, more reality.

Specifications


  • - Up to 6,300 ANSI lumens
  • - 2,500-10,000:1 FOFO
  • - 650:1 ANSI
  • - Electronically adjustable iris (manual or dynamic)

Display technology and resolution

  • - 3DLP ​0.96" DMD
  • - Native WUXGA 1920 x 1200
  • - Frame delay: as little as one frame

Input signal compatibility

  • - Native dual-link DVI-D
  • - Analog BNC (optional)
  • - Frame-doubled 3D - dual-link DVI, VGA (HDMI, analog BNC & SDI optional)

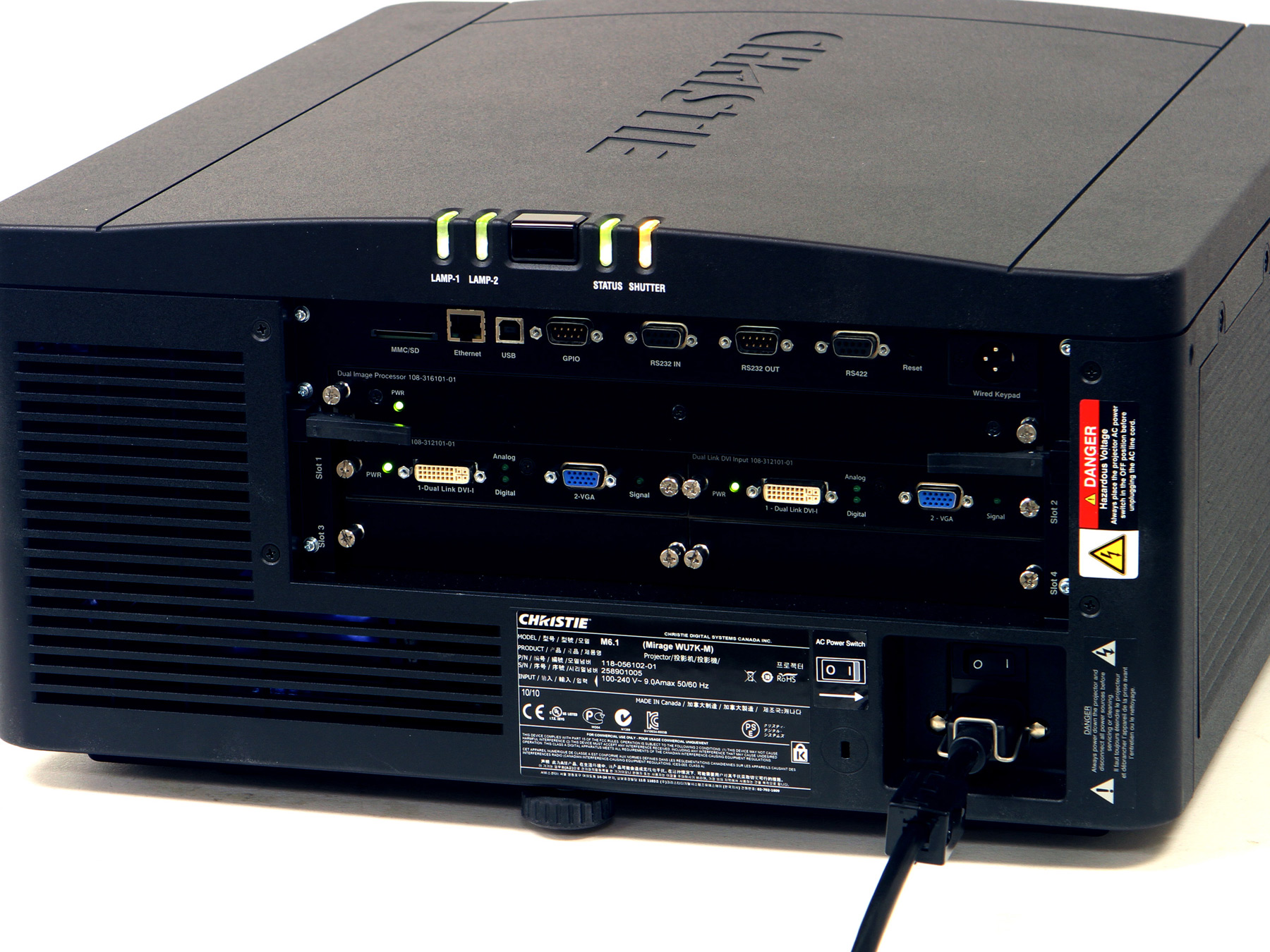

Inputs, control and networking

  • - RS232 in/out
  • - RS422 in
  • - Ethernet (10/100)
  • - USB device
  • - GPIO (RS232 9-pin male connector)

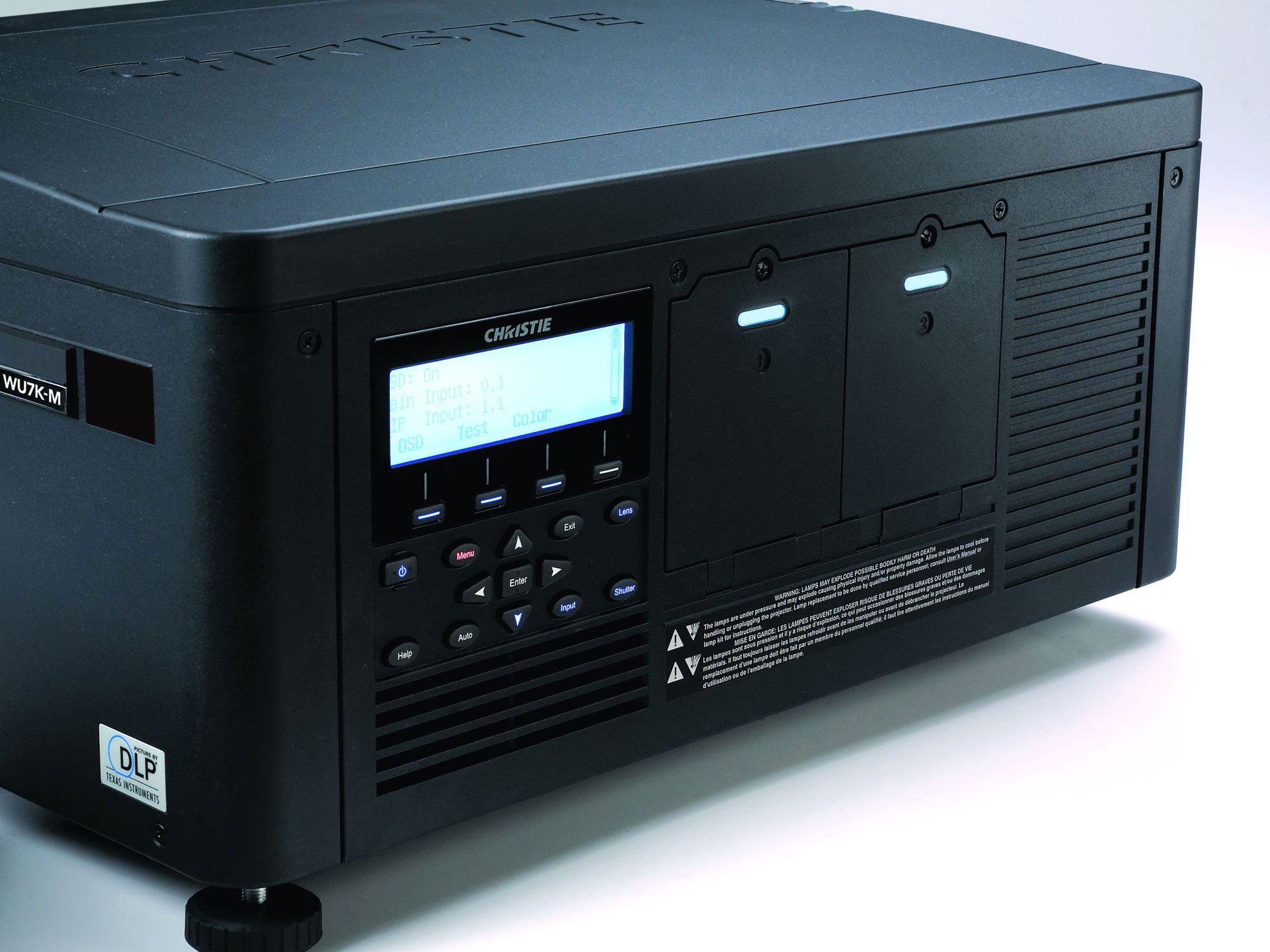

  • - Built-in backlit LCD keypad
  • - Remote control (with optional wired XLR connection)
  • - Slot 1-2 standard (populated): dual-link DVI-D (330MHz) and VGA (165MHz)
  • - Slots 3-4 are available for option cards

Optional input modules

  • - Full bandwidth analog BNC
  • - Dual-link DVI input card (330MHz), \- VGA (165MHz)
  • - Dual SD/HD-SDI
  • - Video decoder
  • - Twin HDMI

Advanced feature sets

  • - Embedded Christie Twist™ - internal advanced warping and edge-blending
  • - LiteLOC™
  • - Electronically adjusted iris (manual or dynamic)
  • - Dust-sealed, filter-free design
  • - Reduced power requirements (as compared to competitive products on the market today) – at maximum brightness the unit only draws 870W; standby power consumption (phantom power draw) is less than 20W
  • - Reduced noise levels
  • - LCD keypad – active keys are amber to indicate whether function selected will be seen by the audience
  • - Motorized yellow notch filter
  • - Built-in portrait display capabilities*
  • *Christie M Series stacking frame is required in portrait orientation.

Due to constant research, specifications and features are subject to change without notice.

Downloads

Sign in to access additional resources, including service bulletins, interconnect drawings, and cinema software updates.

Images

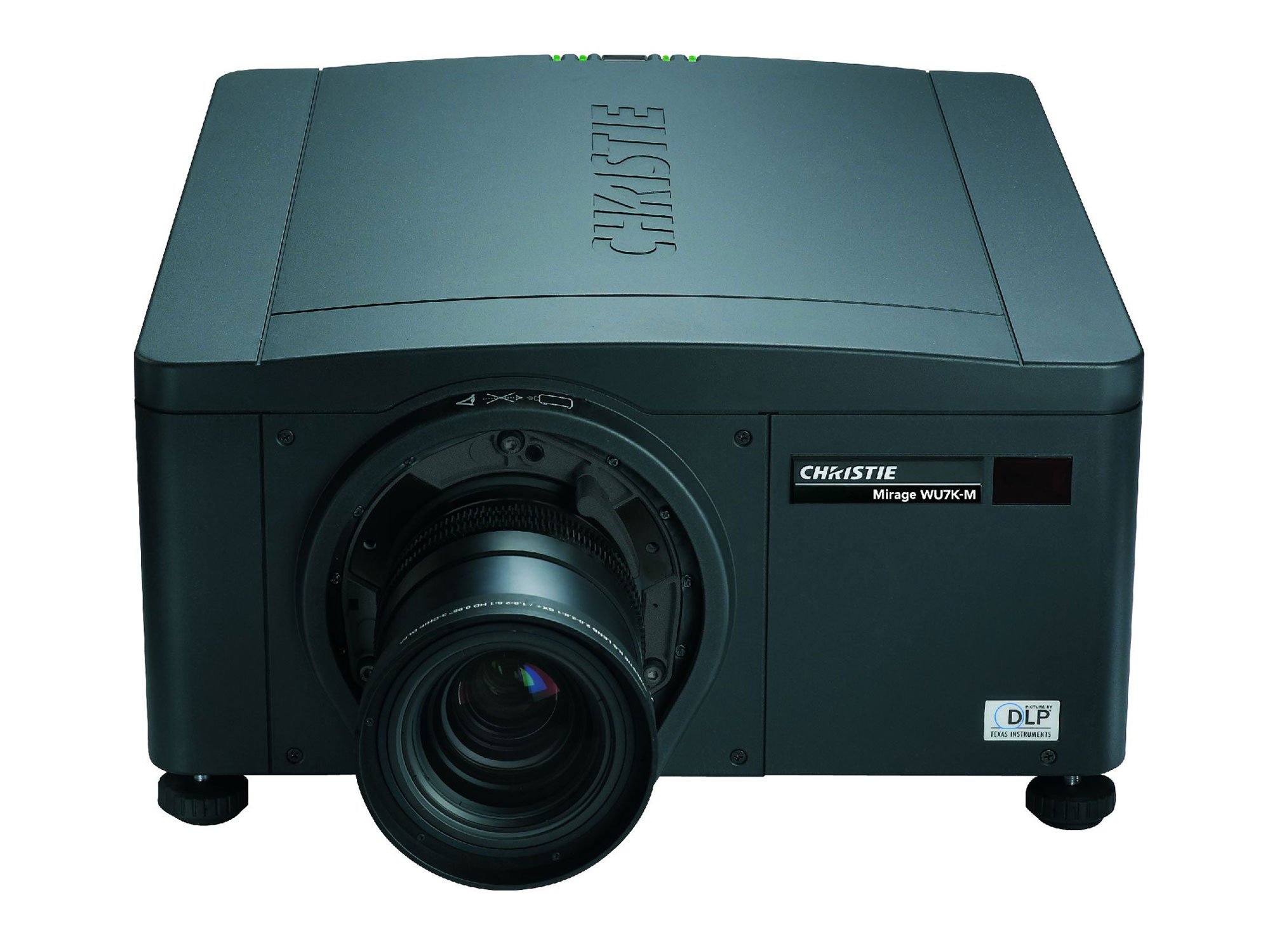

Mirage WU7K-M WUXGA 3D 3DLP projector | 118-056102-XX

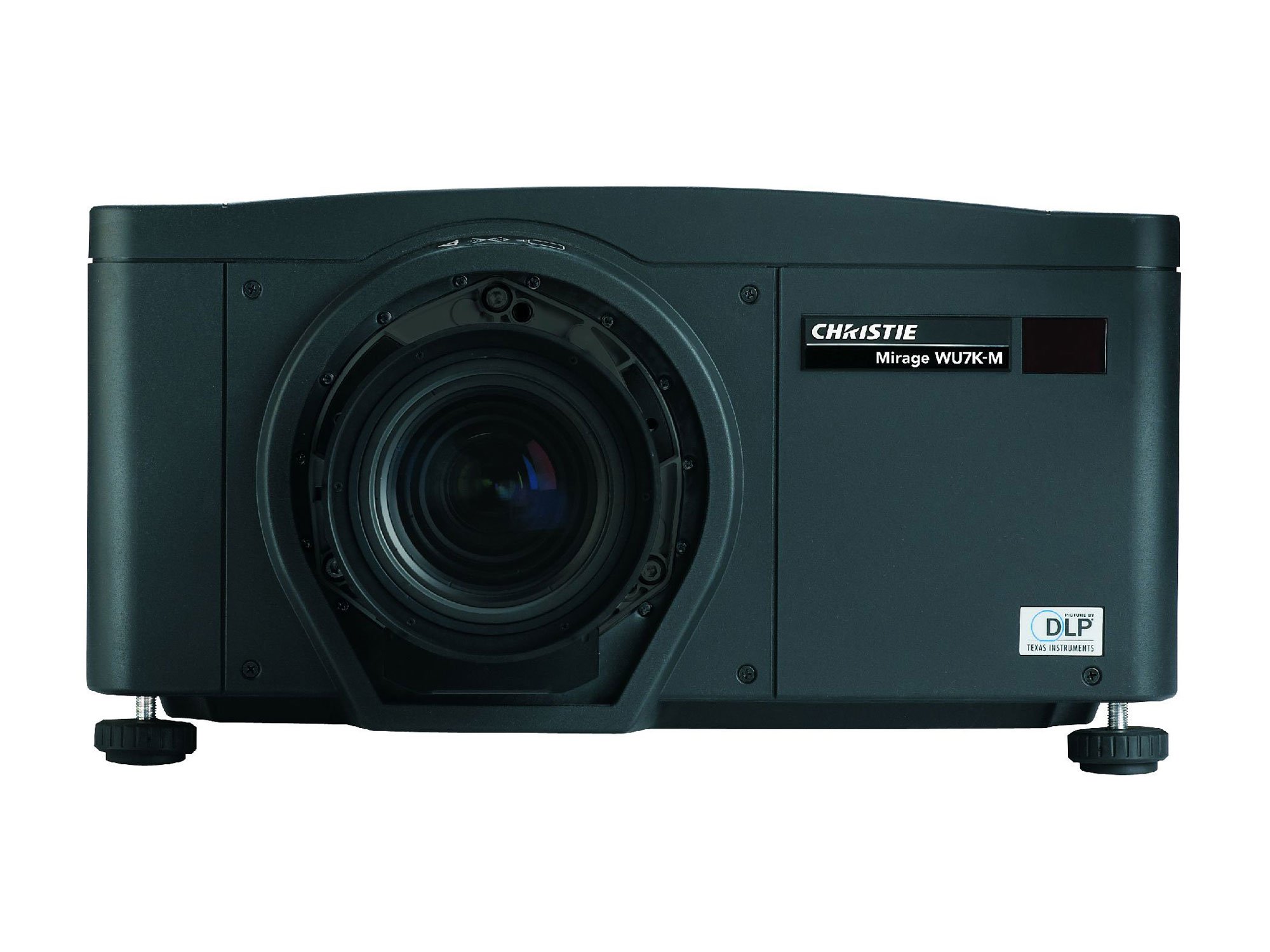

Mirage WU7K-M WUXGA 3D 3DLP projector | 118-056102-XX

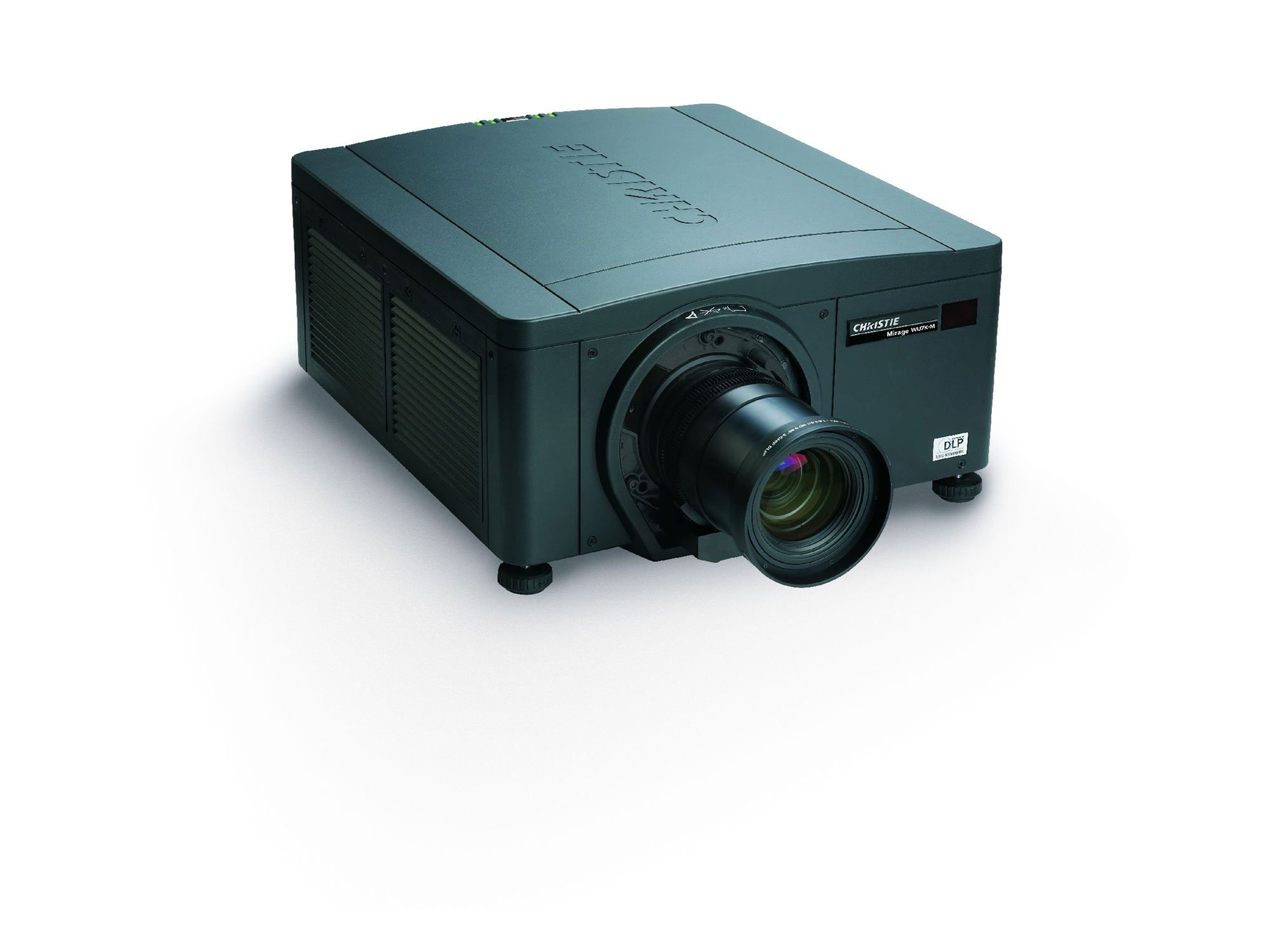

Mirage WU7K-M WUXGA 3D 3DLP projector | 118-056102-XX
