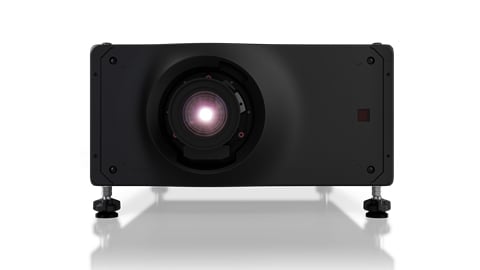

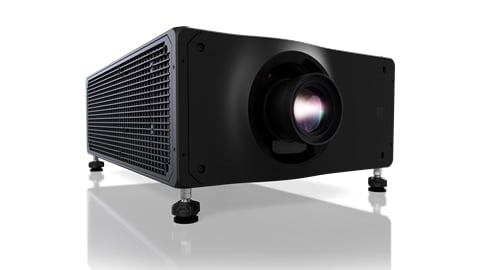

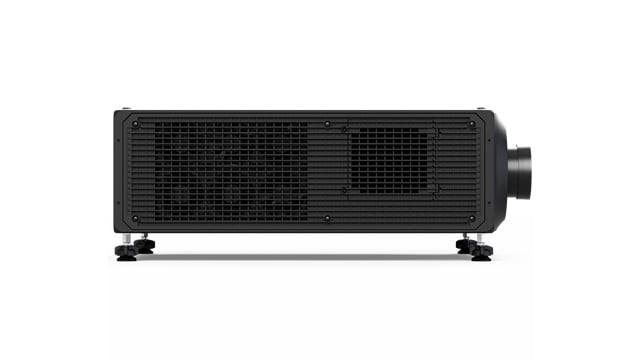

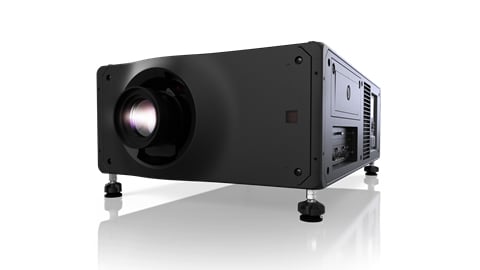

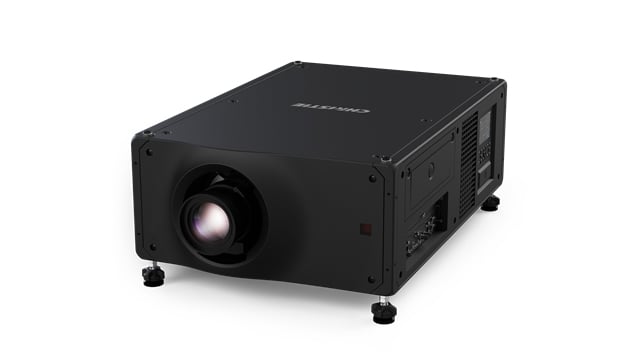

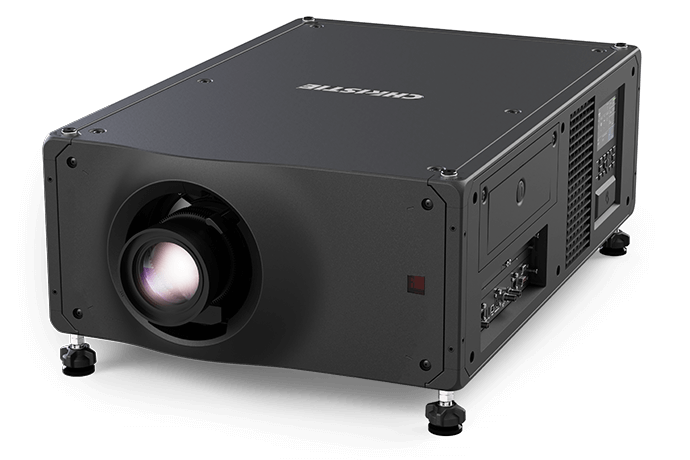

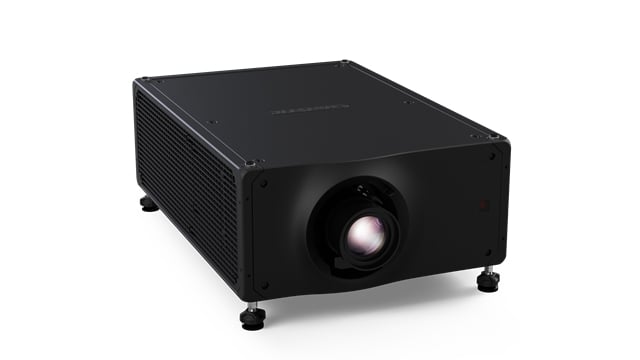

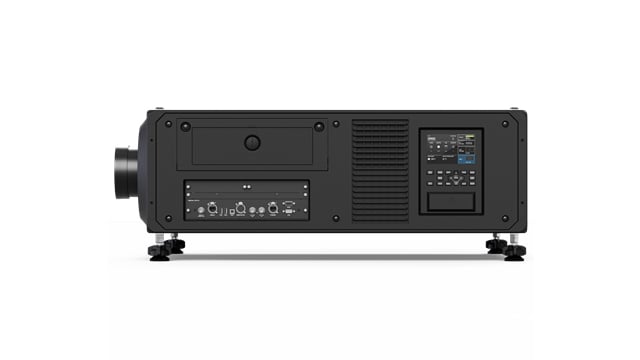

Looking for a high-brightness, 120Hz 3D projector? The Christie® Mirage WU25 is your answer. Achieving up to 25, 000 Center lumens and featuring proprietary Christie BoldColor Technology, the Mirage WU25 laser phosphor projector produces bright, accurate and true-to-life visuals for demanding 3D visualization environments.

Featuring an IP5X-sealed, solid-state laser light source in a rugged and compact chassis, the Mirage WU25 provides years of reliable, virtually maintenance-free and low-cost operation. Add to this the ultra-fast processing of Christie TruLife™ electronics and you benefit from a powerful and easy to use 3D projection solution offering reliable and consistent performance, day in, day out.

Key features

High-brightness — 25,000 Center lumens for big, bright images
Christie BoldColor Technology - Enhanced color performance and saturation over standard laser phosphor projection
Long-life laser light source – Up to 20,000 hours of virtually maintenance-free operation
3D stereoscopic performance – Ideal high-usage visualization environments
ILS lens compatibility – Designed to work with existing Christie M and J Series lenses for added cost savings and versatility
Fully omnidirectional – Unrestricted design and installation flexibility
Advanced electronics – Christie TruLife electronics for ultra-fast 120Hz processing
Blend and warp – Christie Twist built-in for quick and easy setup
Seamless integration – Compatible with the Christie Mystique automated camera-based alignment software solution
Perfectly aligned arrays. All the time. – Supports Christie Guardian, a powerful optional feature of Mystique, which ensures invisible, real-time automatic blended image correction even when content is playing

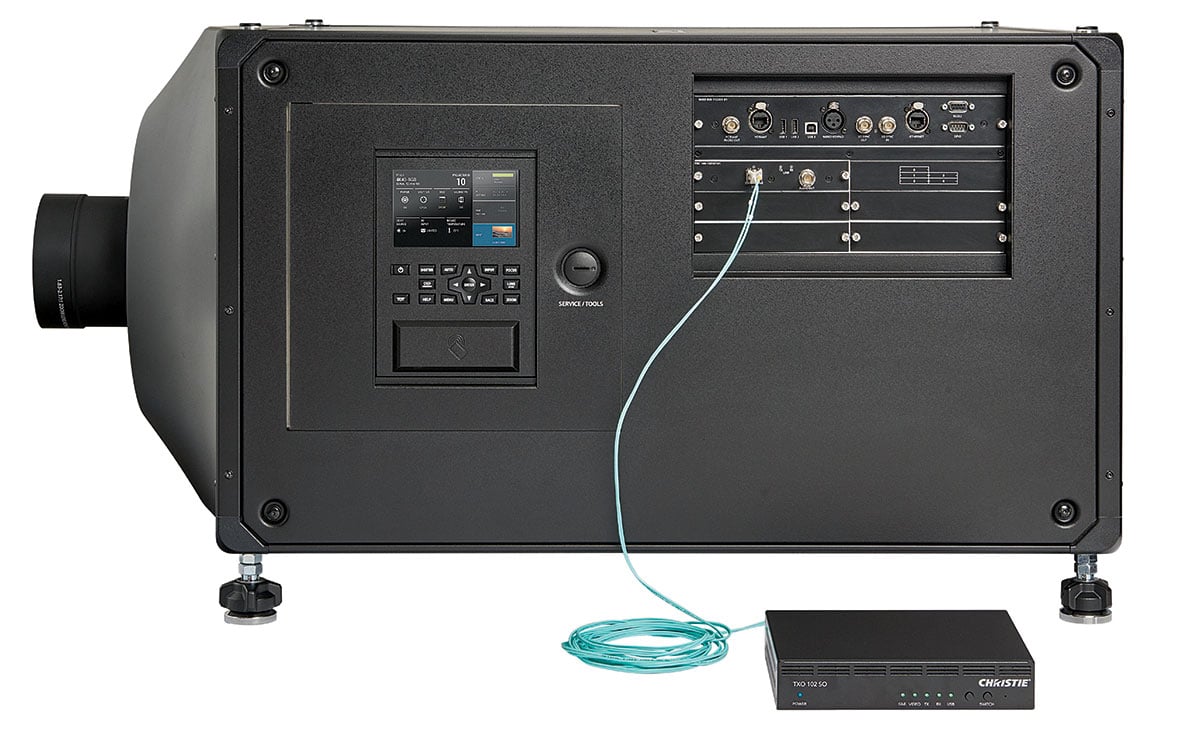

Christie Link

. Link packages available with the following products:

Specifications

Brightness

25,000 (Center)
24,000 (ANSI)

Contrast

2,000:1

Light source

BoldColor Laser Phosphor
IP5 Rated
20,000 hours to 50%

Display

3 x 0.96” DMD
Dust sealed engine

Resolution

1920 x 1200 WUXA
Up to 120Hz
Frame Delay: As low as one frame

Signal inputs

Standard:
2 x 12GSDI
1 x HDMI 2.0
1 x DisplayPort 1.2
1 x Christie Link (QSFP+ Fiber)
1 x HDBaseT
Optional:
Dual Link DVI Input Card
Dual 3G/HD/SD-SDI Input Card
Twin Display Port Input Card
Twin HDMI Input Card
High Bandwidth Multi-Input Card
Refresh rates:
Up to 120Hz
Video format:
Up to 2048 x 1080
4:4:4
12 BPC

Control & networking

Ethernet (10/100) RJ45
RS232 in
Wired Keypad (XLR)
Built-in Backlit Keypad with Color Display
GPIO (D-SUB 9-pin male connector)

Lens options

0.38:1 UST
0.67:1
1.1:1
0.8-1.16:1
1.16-1.49:1
1.4-1.8:1
1.8-2.6:1
2.6-4.1:1
4.1-6.9:1
6.9-10.4:1

Operating environment

Temp: 40 to 104°F (5 to 40°C)
Humidity: 10-80% non-condensing

Power requirements

Main power:
Electrical Rating: 200-240 VAC, 16A max., 50/60 Hz
Inlet Type: IEC320-C20
3200 W Power Consumption
10,929 BTU/Hr dissipation
Limited mode:
Electrical Rating: 100-240Vac, 15-6A, 50/60Hz
Inlet type: IEC320-C14

Physical dimensions (L x W x H)

37.7 x 25.0 x 11.9"
957 x 635 x 302mm

Physical weight

172.5 lbs (78.2kg)

*Please reference the Christie Standard Limited Warranty document for details.

Accessories

Fiber solutions

Christie Link Transmitter

144-117100-XX

QSPF+ Modules

144-120104-XX

Rack shelf for Christie Link transmitters

144-128102-XX
