A technological marvel that combines superior Christie® electronics, our proprietary RGB laser illumination architecture​ with integrated cooling and a sealed optical path for reliable long-life illumination performance, resulting in capabilities that will impress you.​​

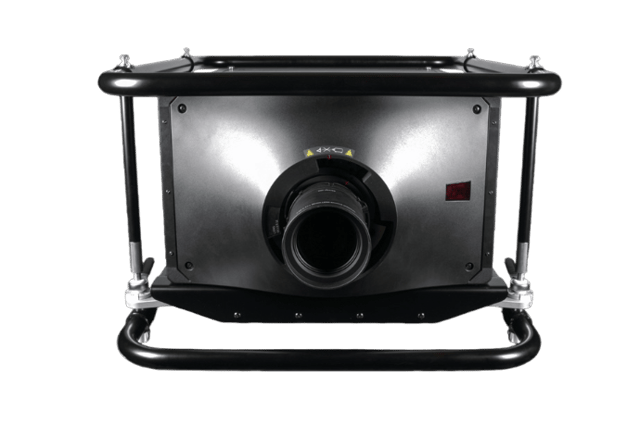

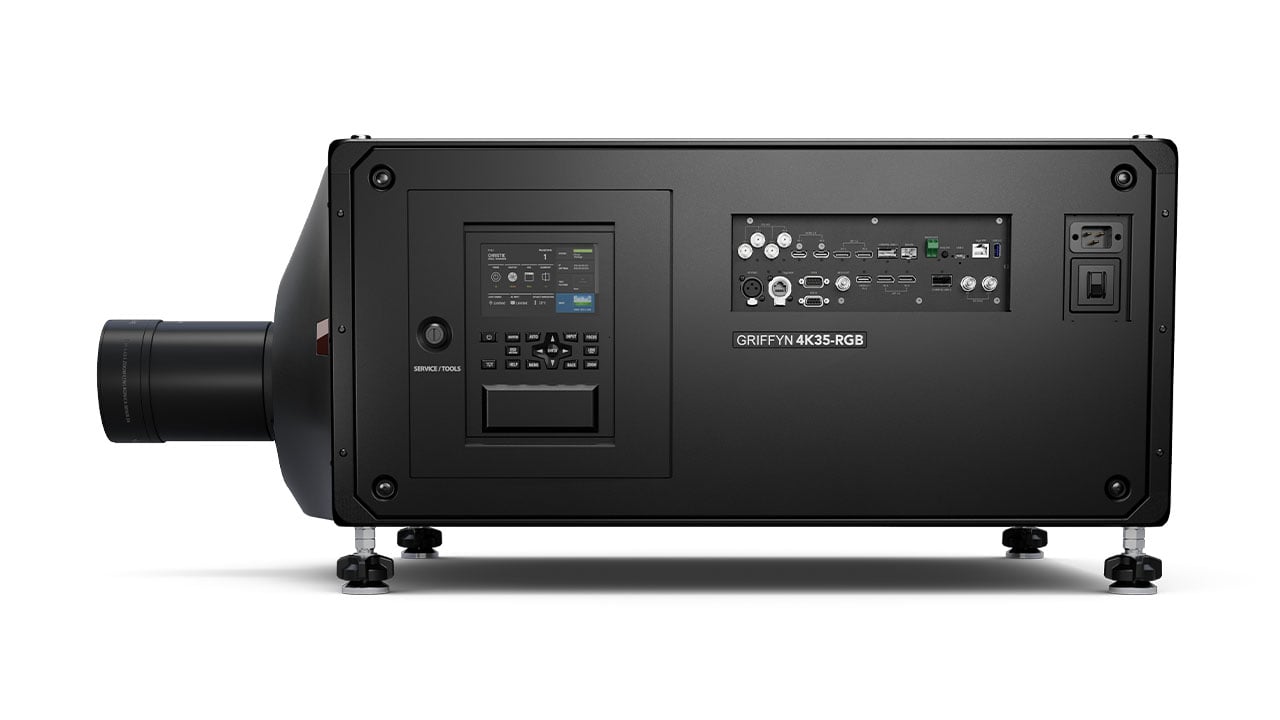

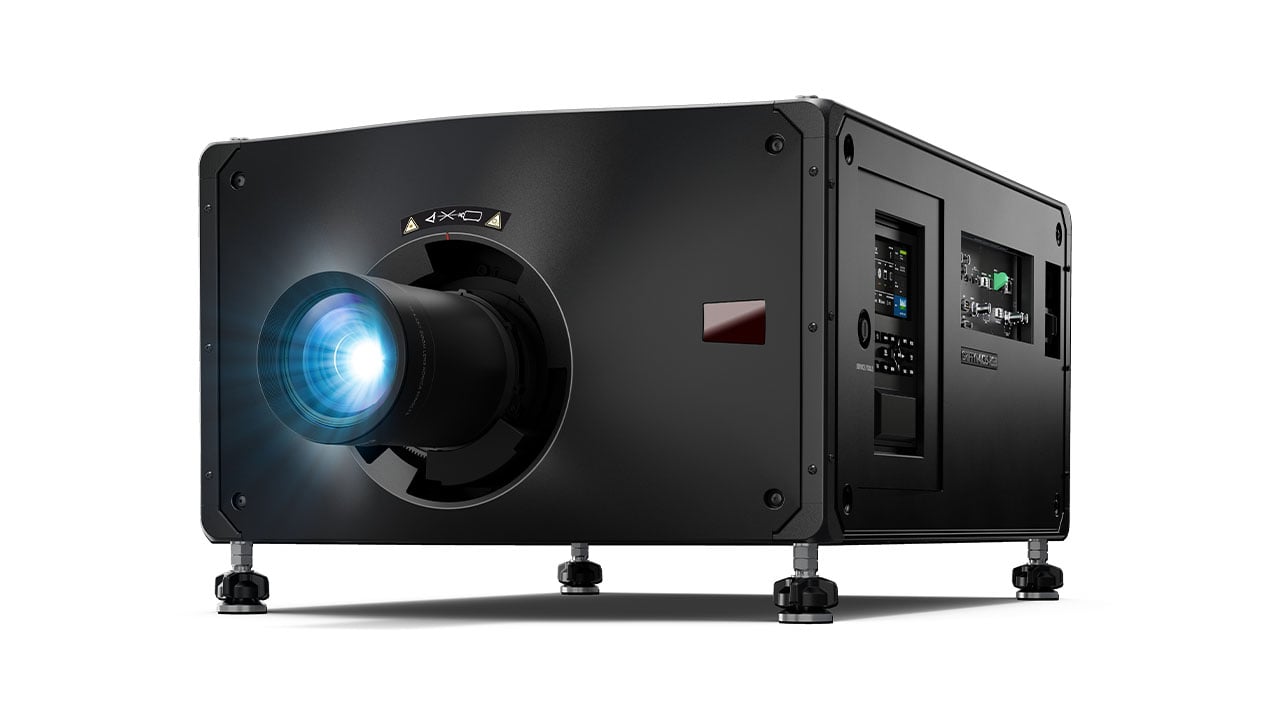

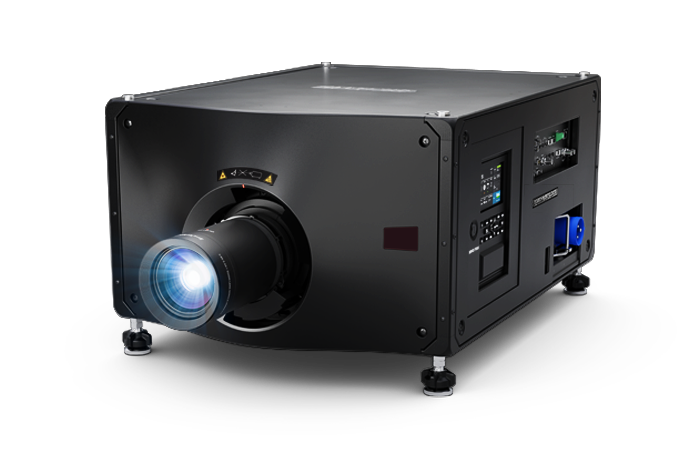

Ready to illuminate any surface with 36,500 lumens while operating as low as 44 dBA in quiet mode, the highly advanced Griffyn® 4K35-RGB is designed for demanding large venue applications on the ground or ‘in the air’.

Design excellence

Talk about engineering expertise: this compact and powerful all-in-one, omnidirectional projector offers our latest​ TruLife+ electronics platform for all-in connectivity, eliminating the hassle of removable option cards. Griffyn also includes our new electronic color convergence (ECC), which allows you to adjust convergence via remote control for easy, picture-perfect color alignment.

With two power modes, the 4K35-RGB offers added versatility and can be operated at 200-240 VAC delivering maximum brightness or 100-120 VAC at reduced brightness increasing the operational life of the projector.

Griffyn​ 4K35-RGB again, raises the bar in RGB pure laser projection performance.

Spectacular visuals

Griffyn 4K35-RGB produces an exceptionally wide color gamut, achieving ~98% of the Rec. 2020 color space—more than twice​ the color of Rec. 709 and 50% more than DCI-P3-capable projectors—for an enhanced audience experience.​ And Griffyn’s optional high frame rate (HFR) capability achieves 120 Hz at 4K resolution or up to 480 Hz at 2K resolution. Ready to​ transport your audience to colorful new worlds, Griffyn not only raises the bar for RGB pure laser projection but soars above it.

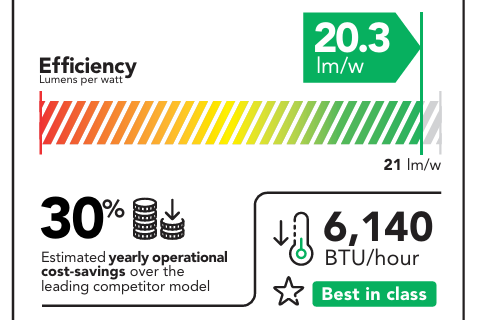

Griffyn-4K50 energy efficiency information

Key features

  • All-in-one, compact design — No external chillers or laser racks at a manageable weight of 179lbs (81kg)
  • Electronic Color Convergence (ECC) — easily adjust the color convergence via remote control for picture-perfect color alignment
  • New TruLife+ all-in-one electronics — every connection you need is built-in at no extra cost
  • High frame rate options - 4K at 60Hz standard. The Mirage option delivers 4K at 120Hz or 4K at 60Hz per eye for 3D content. The Mirage Pro option adds further capabilities: 240-480Hz at 2K resolution and Christie View (simultaneous multi-content viewer)
  • Quiet operation — Operates as low as 44 dBA in quiet mode
  • 4K lens compatibility — Compatible with all Christie® 3DLP® 4K ILS4 lenses
  • UST lens - 0.38:1 ultra short throw lens option available
  • Expanded color gamut — Produces ~98% of the Rec. 2020 color space for rich, vibrant and true-to-life visuals
  • Omnidirectional — Operates in any orientation for unlimited installation flexibility
  • Dual voltage operation - single-phase 200-240 VAC at full brightness or 100-120 VAC at reduced brightness which effectively more than doubles the lifetime of the laser optical system (LOS)
  • Field replaceable RGB laser light source — easy service and replacement of the laser optical system
  • Christie Twist — Built-in image warping and multi-projector blending software

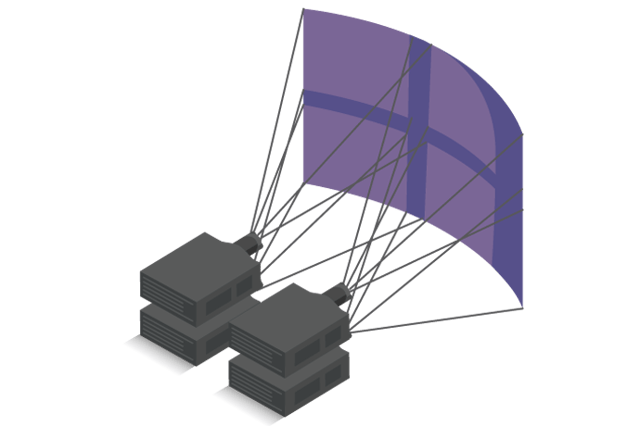

  • Compatible with Christie Mystique automated camera-based alignment software solution
  • Supports Christie Guardian – Invisible, real-time automatic blended-image correction even when content is playing

We’re here to support your investment

Backed by Christie's industry-leading warranties, service and support, you can feel confident investing in the Christie Griffyn 4K35-RGB. If you have any questions, or if you’d like to speak to a Christie sales representative, please contact us.

Specifications

36,500

ISO lumens

32,500

ANSI lumens

5000:1 On/Off with high contrast lens**

Contrast ratio

3DLP 1.38" DMD

Display type

4K (4096 x 2160)

Resolution

RGB pure laser

Illumination type

Notes
* Brightness is reduced up to 30% with use of high-contrast lens, D65 white measured at 23 C (73.4 F), In ambient temperatures up to 35 C
** 44 dBA in quiet fan mode at 23°C, Sound pressure measurement, measuring conditions, and method of notation all comply with ISO7779-1999. Sound level may vary between units
*** Power cord not included for limited brightness mode

Also, 4.98-7.69:1 high brightness (ILS4) requires lens hood extension for Class 1, Risk Group 3
