A technological marvel that combines superior Christie® TruLife+ electronics, our proprietary RGB pure laser illumination architecture with integrated cooling, and a sealed optical path for steadfast illumination performance, resulting in capabilities that are sure to impress you.
Ready to illuminate any surface with 50,000 lumens while operating at 55dBA at full brightness, the Griffyn 4K50-RGB is the lightest, brightest projector in its class. The highly advanced Griffyn® 4K50-RGB is designed to deliver rich, bright colors for exceptional experiences in demanding large-venue applications on the ground or in the air.
Design excellence
Talk about engineering expertise: this compact and very powerful all-in-one, omnidirectional 3DLP® projector offers our latest TruLife+™ electronics platform with ‘all-in’ connectivity, eliminating the hassle of removable option cards. Griffyn also includes our new electronic color convergence (ECC), which allows you to adjust convergence via remote control for easy, picture-perfect color alignment.
Griffyn 4K50-RGB again raises the bar in laser projection performance.
Spectacular visuals
The Griffyn Series produces an exceptionally wide color gamut, achieving ~98% of the Rec. 2020 color space—more than twice the color of Rec. 709 and 50% more than DCI-P3-capable projectors—for an enhanced audience experience. And Griffyn’s optional high frame rate (HFR) capability achieves 120Hz at 4K resolution or up to 480 Hz with 2K resolution. Ready to transport your audience to colorful new worlds, Griffyn not only raises the bar for RGB pure laser projection but soars above it.
Integrated warping and blending
Griffyn 4K50-RGB features integrated Christie Twist, for warping and blending, which enables compatibility with Christie® Mystique™, our automated camera-based alignment and recalibration solution to quickly install, align, calibrate and maintain multi-projection systems, removing hours of painstaking work”
Griffyn 4K50-RGB feature highlights overview
Key features
- All-in-one, compact design — No external chillers or laser racks at a manageable weight of 197 lbs.
- Electronic Color Convergence (ECC) — easily adjust color convergence via remote control for picture-perfect color alignment.

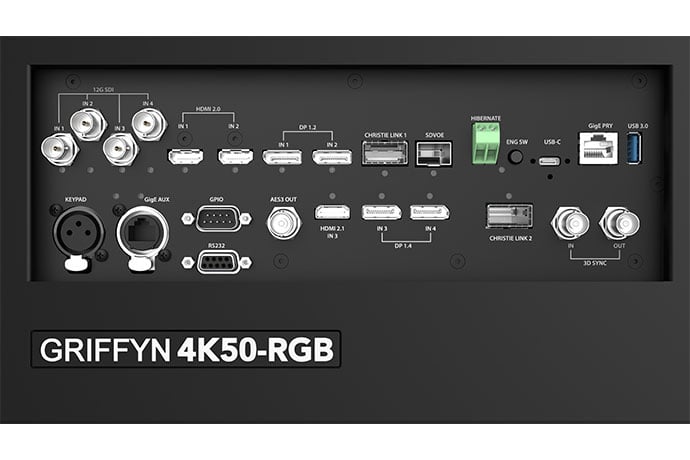

- TruLife+ ‘all-in’ electronics — every connection you need is built-in
- High frame rate options - 4K at 60Hz standard. The Mirage option delivers 4K at 120Hz or 4K at 60Hz per eye for 3D content. The Mirage Pro option adds further capabilities: 240-480Hz at 2K resolution and Christie View (simultaneous multi-content viewer)
- Quiet operation — Operates as low as 46 dBA.
- 4K lens compatibility — Compatible with all Christie 4K 3DLP® ILS4 lenses
- Expanded color gamut — Produces ~98% of the Rec. 2020 color space for rich, vibrant and true-to-life visuals
- Omnidirectional — Operates in any orientation for unlimited installation flexibility
- Energy efficient — Operates on 200-240 VAC single-phase power for lower cost of ownership
- Christie Twist™ — Built-in image warping and multi-projector blending software
- Compatible with Christie Mystique™ automated camera-based alignment software.
- Supports Christie Guardian – Invisible, real-time automatic blended-image correction while content is playing
- Field replaceable RGB laser architecture — easy service and replacement of the laser light source
We're here to support your investment
Backed by Christie's industry-leading warranties, service and support, you can feel confident investing in the Christie Griffyn 4K50-RGB. If you have any questions, or if you'd like to speak to a Christie sales representative, please contact us.
Quick links
-
Griffyn 4K50-RGB datasheet
-
Projector lens calculator
-
Projection solutions brochure
-
Top 10 reasons to choose Christie RGB pure laser projection
-
Frequently asked questions
-

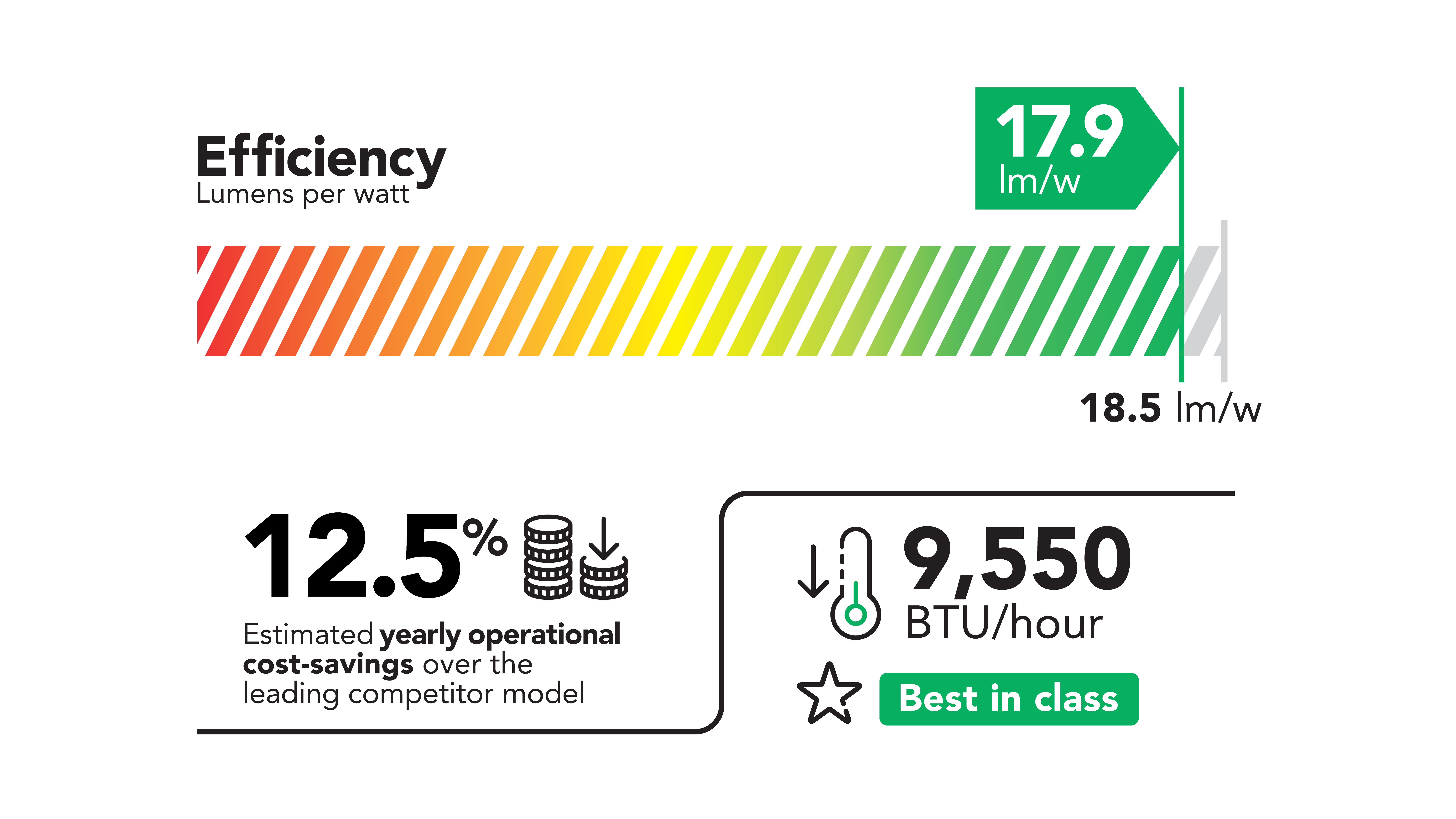

Energy-guide-Griffyn 4K50.pdf
Videos
Griffyn 4K50-RGB projectors illuminate ITE Headquarters’ flagship auditorium
Griffyn 4K50-RGB projectors illuminate ITE Headquarters’ flagship auditorium
Specifications
50,000
ISO lumens
2000:1 On/Off | 5000:1 On/Off with high contrast lens*
Contrast ratio
3DLP 1.38" DMD
Display type
4K (4096 x 2160)
Resolution
RGB pure laser
Illumination type
25,000 hours at 100% brightness | 50,000 hours at 60% brightness**
Illumination performance (hrs)
Notes
* Brightness is reduced up to 30% with use of high-contrast lens, D65 white measured at 23 C (73.4 F), In ambient temperatures up to 30 C
** 25,000 hours to 50% brightness when operated at 100% brightness | 50,000 hours to 50% brightness when operated at 60% brightness. To 50% brightness is based on 9-point average (results may vary depending on environmental conditions i.e., ambient temperature, humidity, dust, smog, or other contaminants.)
*** 46dBA in quiet fan mode at 23°C, 55dBA in standard fan mode at 23°C, Sound pressure measurement, measuring conditions, and method of notation all comply with ISO7779-1999. Sound level may vary between units
Also, 4.98-7.69:1 high brightness (ILS4) requires lens hood extension for Class 1, Risk Group 3
Downloads
Griffyn 4K50-RGB data sheet
Dec 11, 2024 | PDF: 248 KB
Projection solution brochure
Aug 15, 2024 | PDF: 28.5 MB
Powerful tools for powerful experiences.
Projection solutions and tools line card
Jan 19, 2024 | PDF: 451 KB
Griffyn 4K50-RGB FAQ
Jun 28, 2022 | PDF: 636 KB
Learn about the Griffyn 4K50-RGB pure laser projector.
Top 10 reasons to choose RGB laser projection
Apr 15, 2022 | PDF: 392 KB
Learn about all the reasons why RGB laser projection
